JIS Standard-Compliant Hydraulic Cylinder, Double Acting: Double Rod, CH2EW / CH2FW Series

JIS Standard-Compliant Hydraulic Cylinder, Double Acting: Double Rod, CH2EW / CH2FW Series

SMC

SMC

[Features]
· Equipped with the cushion mechanism of cushion seal type. Impact at the stroke end has been reduced. Durability improved.
· The rod cover has a divided structure for easy disassembly and assembly.

(i)Remark

  • ■ For selection / technical information and characteristics on SMC air cylinder products,
    check here.

    ■ Handling SMC products
    Web pages for products currently without individual pages on this site will be released on an ad-hoc basis.
    Click here for a quotation or to make an order if you have a model number.
  • Refer to the manufacturer's catalog for specification and material details.
  • Product images may be representative images. Refer to the manufacturer's catalog for shape details.

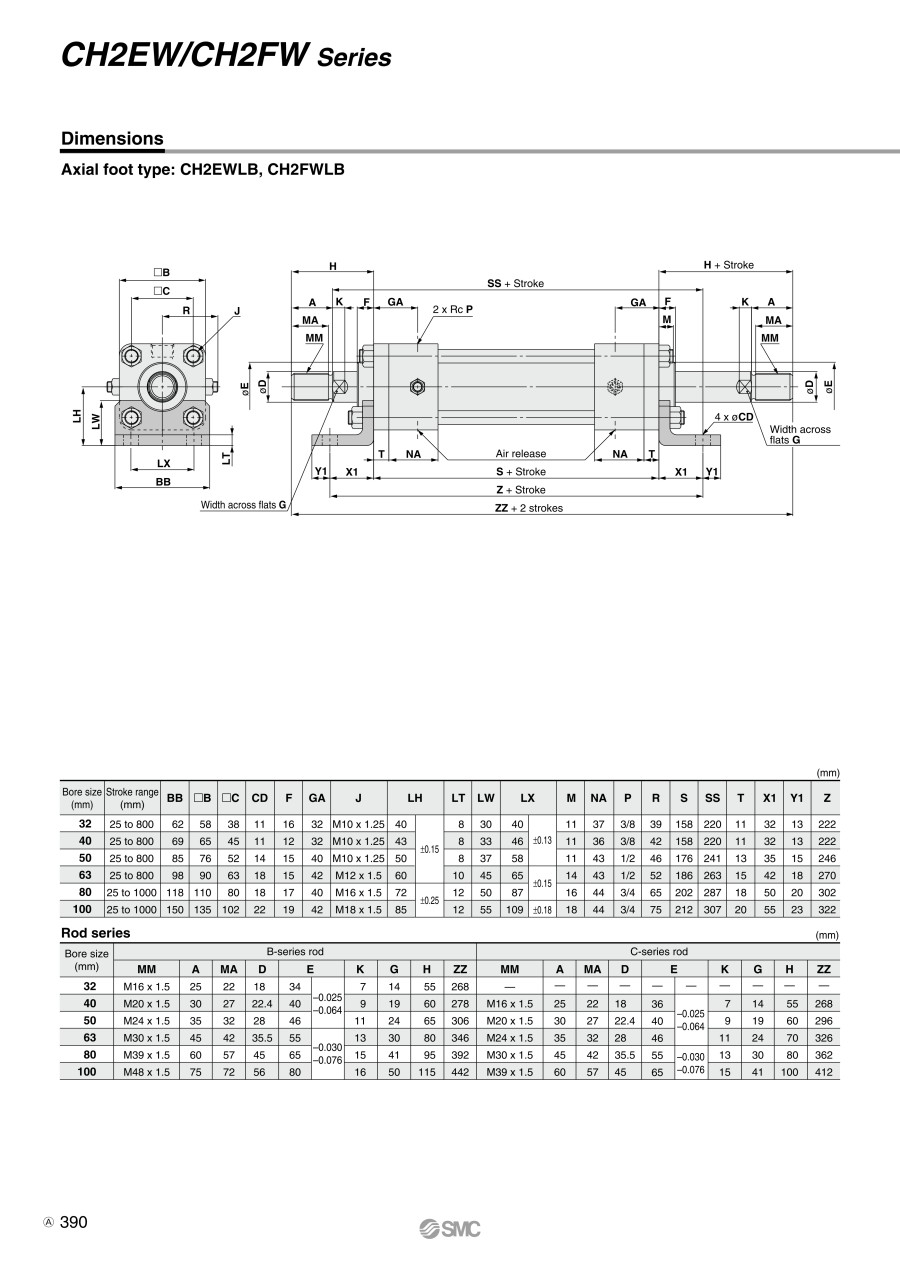

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.


Data to be displayed
30
45
60
  1. 1
Part Number
CH2EWLB32B-160
CH2FWB32B-30
CH2FWB32B-150
CH2FWB32B-150A
CH2FWB63B-200
CH2FWFA32B-100
CH2FWFA50B-75
CH2FWFA50C-120
CH2FWFA80B-50A
CH2FWFA80C-75
CH2FWFA80C-125
CH2FWFA100C-75
CH2FWFA100C-125
CH2FWTC32B-60
CH2FWTC32B-80
CHD2EWB63B-250
CHD2EWB80B-250A
CHD2EWFA50B-80
CHD2EWLA32B-40-G
CHD2EWLA32B-40-H
CHD2EWLA32B-400A
CHD2FWB40B-25
CHD2FWB40B-700A
CHD2FWB50B-100
CHD2FWB50C-25
CHD2FWB50C-100
CHD2FWB80B-60
CHD2FWB80B-150
CHD2FWB100B-50
CHD2FWFA32B-80
CHD2FWFA40B-80
CHD2FWFA50B-50A
CHD2FWFA50B-100
CHD2FWFA50B-150A
CHD2FWFA50C-50A
CHD2FWFA50C-125A
CHD2FWFA63B-30A
CHD2FWFA80B-50A
CHD2FWFA80B-150
CHD2FWFA80B-150A
CHD2FWFA80C-100
CHD2FWFC50B-160A-F-F5PZ
CHD2FWLB100C-40A
CHD2FWTC32B-60
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Nominal Pressure Cylinder Nominal Size
(φ) 		Rod Diameter Stroke
(mm) 		Support Type Tube Material Operating Pressure Range
(MPa) 		Operating Temperature Range
(°C) 		Port position Switch Lead wire
(m) 		Number of switches Rod end nut Cushion valve position

661.99 €

1 26 Days 3.5MPa32B160Shaft Direction FootAluminum0.3～3.5-10～80On portWithout auto switchN/AN/AWithout rod end nutCushion valve right

636.21 €

1 26 Days 7MPa32B30StandardStainless Steel0.3～13.5-10～80On portWithout auto switchN/AN/AWithout rod end nutCushion valve right

693.10 €

1 26 Days 7MPa32B150StandardStainless Steel0.3～13.5-10～80On portWithout auto switchN/AN/AWithout rod end nutCushion valve right

696.89 €

1 26 Days 7MPa32B150StandardStainless Steel0.3～13.5-10～80On portWithout auto switchN/AN/AWith rod end nutCushion valve right

1,158.79 €

1 26 Days 7MPa63B200StandardStainless Steel0.3～13.5-10～80On portWithout auto switchN/AN/AWithout rod end nutCushion valve right

664.66 €

1 26 Days 7MPa32B100[Rod Side Flange] Rod Side Rectangular Flange StyleStainless Steel0.3～13.5-10～80On portWithout auto switchN/AN/AWithout rod end nutCushion valve right

842.00 €

1 26 Days 7MPa50B75[Rod Side Flange] Rod Side Rectangular Flange StyleStainless Steel0.3～13.5-10～80On portWithout auto switchN/AN/AWithout rod end nutCushion valve right

878.60 €

1 26 Days 7MPa50C120[Rod Side Flange] Rod Side Rectangular Flange StyleStainless Steel0.3～11-10～80On portWithout auto switchN/AN/AWithout rod end nutCushion valve right

1,585.16 €

1 68 Days 7MPa80B50[Rod Side Flange] Rod Side Rectangular Flange StyleStainless Steel0.3～13.5-10～80On portWithout auto switchN/AN/AWith rod end nutCushion valve right

1,572.97 €

1 68 Days 7MPa80C75[Rod Side Flange] Rod Side Rectangular Flange StyleStainless Steel0.3～11-10～80On portWithout auto switchN/AN/AWithout rod end nutCushion valve right

1,662.30 €

1 68 Days 7MPa80C125[Rod Side Flange] Rod Side Rectangular Flange StyleStainless Steel0.3～11-10～80On portWithout auto switchN/AN/AWithout rod end nutCushion valve right

2,091.39 €

1 68 Days 7MPa100C75[Rod Side Flange] Rod Side Rectangular Flange StyleStainless Steel0.3～11-10～80On portWithout auto switchN/AN/AWithout rod end nutCushion valve right

2,217.37 €

1 68 Days 7MPa100C125[Rod Side Flange] Rod Side Rectangular Flange StyleStainless Steel0.3～11-10～80On portWithout auto switchN/AN/AWithout rod end nutCushion valve right

739.14 €

1 26 Days 7MPa32B60Middle TrunnionStainless Steel0.3～13.5-10～80On portWithout auto switchN/AN/AWithout rod end nutCushion valve right

739.14 €

1 26 Days 7MPa32B80Middle TrunnionStainless Steel0.3～13.5-10～80On portWithout auto switchN/AN/AWithout rod end nutCushion valve right

914.18 €

1 26 Days 3.5MPa63B250StandardAluminum0.3～3.5-10～80On portWithout auto switch (built-in magnet)N/AN/AWithout rod end nutCushion valve right

1,377.97 €

1 26 Days 3.5MPa80B250StandardAluminum0.3～3.5-10～80On portWithout auto switch (built-in magnet)N/AN/AWith rod end nutCushion valve right

658.90 €

1 26 Days 3.5MPa50B80[Rod Side Flange] Rod Side Rectangular Flange StyleAluminum0.3～3.5-10～80On portWithout auto switch (built-in magnet)N/AN/AWithout rod end nutCushion valve right

499.47 €

1 26 Days 3.5MPa32B40Foot Perpendicular to AxisAluminum0.3～3.5-10～80Right of portWithout auto switch (built-in magnet)N/AN/AWithout rod end nutCushion valve left

499.47 €

1 26 Days 3.5MPa32B40Foot Perpendicular to AxisAluminum0.3～3.5-10～80Left of portWithout auto switch (built-in magnet)N/AN/AWithout rod end nutCushion valve right

619.68 €

1 26 Days 3.5MPa32B400Foot Perpendicular to AxisAluminum0.3～3.5-10～80On portWithout auto switch (built-in magnet)N/AN/AWith rod end nutCushion valve right

567.48 €

1 26 Days 7MPa40B25StandardStainless Steel0.3～13.5-10～80On portWithout auto switch (built-in magnet)N/AN/AWithout rod end nutCushion valve right

876.24 €

1 26 Days 7MPa40B700StandardStainless Steel0.3～13.5-10～80On portWithout auto switch (built-in magnet)N/AN/AWith rod end nutCushion valve right

700.15 €

1 26 Days 7MPa50B100StandardStainless Steel0.3～13.5-10～80On portWithout auto switch (built-in magnet)N/AN/AWithout rod end nutCushion valve right

670.05 €

1 26 Days 7MPa50C25StandardStainless Steel0.3～11-10～80On portWithout auto switch (built-in magnet)N/AN/AWithout rod end nutCushion valve right

700.15 €

1 26 Days 7MPa50C100StandardStainless Steel0.3～11-10～80On portWithout auto switch (built-in magnet)N/AN/AWithout rod end nutCushion valve right

1,352.26 €

1 26 Days 7MPa80B60StandardStainless Steel0.3～13.5-10～80On portWithout auto switch (built-in magnet)N/AN/AWithout rod end nutCushion valve right

1,425.85 €

1 26 Days 7MPa80B150StandardStainless Steel0.3～13.5-10～80On portWithout auto switch (built-in magnet)N/AN/AWithout rod end nutCushion valve right

1,684.45 €

1 68 Days 7MPa100B50StandardStainless Steel0.3～13.5-10～80On portWithout auto switch (built-in magnet)N/AN/AWithout rod end nutCushion valve right

551.84 €

1 26 Days 7MPa32B80[Rod Side Flange] Rod Side Rectangular Flange StyleStainless Steel0.3～13.5-10～80On portWithout auto switch (built-in magnet)N/AN/AWithout rod end nutCushion valve right

590.89 €

1 26 Days 7MPa40B80[Rod Side Flange] Rod Side Rectangular Flange StyleStainless Steel0.3～13.5-10～80On portWithout auto switch (built-in magnet)N/AN/AWithout rod end nutCushion valve right

679.02 €

1 26 Days 7MPa50B50[Rod Side Flange] Rod Side Rectangular Flange StyleStainless Steel0.3～13.5-10～80On portWithout auto switch (built-in magnet)N/AN/AWith rod end nutCushion valve right

700.15 €

1 26 Days 7MPa50B100[Rod Side Flange] Rod Side Rectangular Flange StyleStainless Steel0.3～13.5-10～80On portWithout auto switch (built-in magnet)N/AN/AWithout rod end nutCushion valve right

739.23 €

1 26 Days 7MPa50B150[Rod Side Flange] Rod Side Rectangular Flange StyleStainless Steel0.3～13.5-10～80On portWithout auto switch (built-in magnet)N/AN/AWith rod end nutCushion valve right

674.53 €

1 26 Days 7MPa50C50[Rod Side Flange] Rod Side Rectangular Flange StyleStainless Steel0.3～11-10～80On portWithout auto switch (built-in magnet)N/AN/AWith rod end nutCushion valve right

734.76 €

1 26 Days 7MPa50C125[Rod Side Flange] Rod Side Rectangular Flange StyleStainless Steel0.3～11-10～80On portWithout auto switch (built-in magnet)N/AN/AWith rod end nutCushion valve right

854.02 €

1 26 Days 7MPa63B30[Rod Side Flange] Rod Side Rectangular Flange StyleStainless Steel0.3～13.5-10～80On portWithout auto switch (built-in magnet)N/AN/AWith rod end nutCushion valve right

1,314.39 €

1 26 Days 7MPa80B50[Rod Side Flange] Rod Side Rectangular Flange StyleStainless Steel0.3～13.5-10～80On portWithout auto switch (built-in magnet)N/AN/AWith rod end nutCushion valve right

1,425.85 €

1 26 Days 7MPa80B150[Rod Side Flange] Rod Side Rectangular Flange StyleStainless Steel0.3～13.5-10～80On portWithout auto switch (built-in magnet)N/AN/AWithout rod end nutCushion valve right

1,461.55 €

1 26 Days 7MPa80B150[Rod Side Flange] Rod Side Rectangular Flange StyleStainless Steel0.3～13.5-10～80On portWithout auto switch (built-in magnet)N/AN/AWith rod end nutCushion valve right

1,304.35 €

1 68 Days 7MPa80C100[Rod Side Flange] Rod Side Rectangular Flange StyleStainless Steel0.3～11-10～80On portWithout auto switch (built-in magnet)N/AN/AWithout rod end nutCushion valve right

856.31 €

1 26 Days 7MPa50B160[Rod Side Flange] Rod Side Square Flange StyleStainless Steel0.3～13.5-10～60Right of portF5P52 pcs.With rod end nutCushion valve up

1,665.52 €

1 26 Days 7MPa100C40Shaft Direction FootStainless Steel0.3～11-10～80On portWithout auto switch (built-in magnet)N/AN/AWith rod end nutCushion valve right

613.19 €

1 26 Days 7MPa32B60Middle TrunnionStainless Steel0.3～13.5-10～80On portWithout auto switch (built-in magnet)N/AN/AWithout rod end nutCushion valve right

Loading...

  1. 1

Basic information

Cylinder type Standard Rod Motion Double Acting Dual Rod Piston Material Aluminum
Standard JIS Standard Cushion Mechanism Both Sides Additional Function No
Piston Speed(mm/sec) 8::300 Piston Packing Material NBR

Configure

Clear all

44Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.
The part number is completed.

Basic Attributes

  • Nominal Pressure

    • 3.5MPa
    • 7MPa

    Clear

  • Cylinder Nominal Size(φ)

    • 32
    • 40
    • 50
    • 63
    • 80
    • 100

    Clear

  • Stroke(mm)

    • 25
    • 30
    • 40
    • 50
    • 60
    • 75
    • 80
    • 100
    • 120
    • 125
    • 150
    • 160
    • 200
    • 250
    • 400
    • 700

    Clear

  • Support Type

    • Standard
    • Rod Side Flange
      • Rod Side Rectangular Flange Style
      • Rod Side Square Flange Style
    • Shaft Direction Foot
    • Middle Trunnion
    • Foot Perpendicular to Axis

    Clear

  • Tube Material

    • Stainless Steel
    • Aluminum

    Clear

  • Port position

    • Left of port
    • On port
    • Right of port

    Clear

  • Switch

    • F5P
    • Without auto switch
    • Without auto switch (built-in magnet)

    Clear

  • Lead wire(m)

    • 5
    • N/A

    Clear

  • Number of switches

    • 2 pcs.
    • N/A

    Clear

  • Rod end nut

    • With rod end nut
    • Without rod end nut

    Clear

  • Cushion valve position

    • Cushion valve left
    • Cushion valve right
    • Cushion valve up

    Clear

  • Type

    • CH2EW□
    • CH2FW□
    • CHD2EW□
    • CHD2FW□

    Clear

  • Filter by CAD data type

    • 2D
    • 3D

    Clear

Filter by standard shipping days

    • All
    • 26 Days or Less
    • 68 Days or Less

    Reset
