Air Cylinder CG1 Series Seal Kit
Replacement parts (seal kit) for the Air Cylinder CG1 Series.
[Please refer to the following pages of the catalog]
P.27-29 Standard Type Smooth Cylinder
P.30-31 Non-Rotating Rod Type
P.32-33 Direct Mount Type

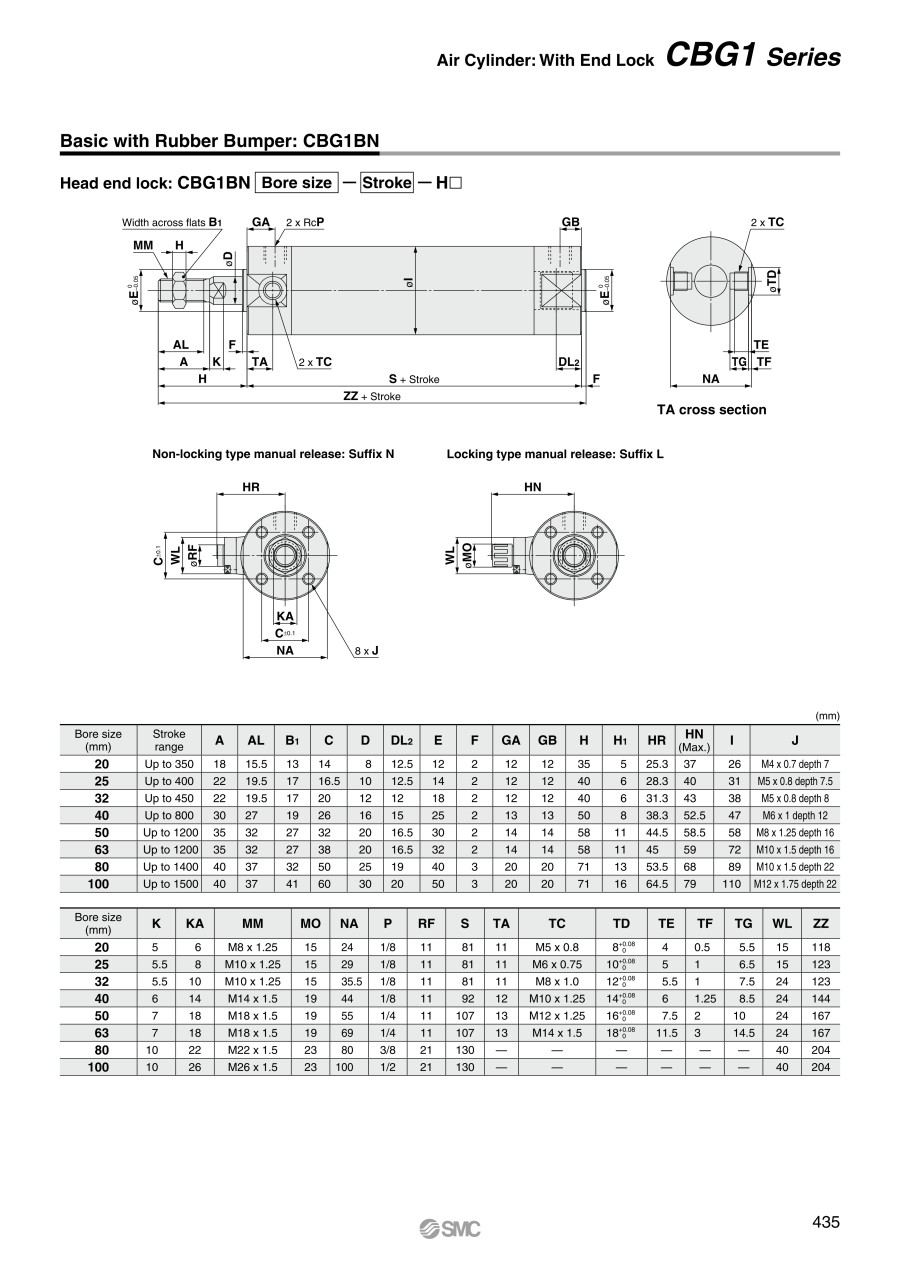

P.41 Cylinder with End Lock
(i)Remark
- Please refer to the manufacturer's catalog for specifications and material details.
- Product images may be representative only. Please see the manufacturer's catalog for shape details.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Bore size (ø) | Compatible air cylinder details | |
|---|---|---|---|---|---|---|
6.66 € | 1 | Quote | 20 | Cylinder with End Lock (one end) | ||
17.94 € | 1 | Quote | 20 | Cylinder with End Lock (both ends) | ||
17.40 € | 1 | Quote | 25 | Cylinder with End Lock (one end) | ||
17.94 € | 1 | Quote | 32 | Cylinder with End Lock (one end) | ||
19.69 € | 1 | Quote | 40 | Cylinder with End Lock (one end) | ||
7.02 € | 1 | Quote | 20 | Air Cylinder / Direct Mount, Non-Rotating Rod Type | ||
10.03 € | 1 | Quote | 25 | Air Cylinder / Direct Mount, Non-Rotating Rod Type | ||
9.97 € | 1 | Quote | 32 | Air Cylinder / Direct Mount, Non-Rotating Rod Type | ||
11.56 € | 1 | Quote | 40 | Air Cylinder / Direct Mount, Non-Rotating Rod Type | ||
10.24 € | 1 | Quote | 20 | Air Cylinder / Non-Rotating Rod Type (Double Acting, Double Rod) | ||
12.37 € | 1 | Quote | 25 | Air Cylinder / Non-Rotating Rod Type (Double Acting, Double Rod) | ||
12.53 € | 1 | Quote | 32 | Air Cylinder / Non-Rotating Rod Type (Double Acting, Double Rod) | ||
14.24 € | 1 | Quote | 40 | Air Cylinder / Non-Rotating Rod Type (Double Acting, Double Rod) | ||
2.02 € | 1 | Quote | 20 | Air Cylinder / Standard Type (Single Acting, Spring Extend/Return) | ||
6.90 € | 1 | Quote | 20 | Air Cylinder / Direct-Mount Type (Double Acting) | ||
2.02 € | 1 | Quote | 25 | Air Cylinder / Standard Type (Single Acting, Spring Extend/Return) | ||
6.90 € | 1 | 39 Days | 25 | Air Cylinder / Direct-Mount Type (Double Acting) | ||
2.82 € | 1 | Quote | 32 | Air Cylinder / Standard Type (Single Acting, Spring Extend/Return) | ||
8.61 € | 1 | 39 Days | 32 | Air Cylinder / Direct-Mount Type (Double Acting) | ||
3.65 € | 1 | Quote | 40 | Air Cylinder / Standard Type (Single Acting, Spring Extend/Return) | ||
8.61 € | 1 | 39 Days | 40 | Air Cylinder / Direct-Mount Type (Double Acting) | ||
9.68 € | 1 | Quote | 20 | Air Cylinder / Standard Type (Double Acting, Double Rod) | ||
10.10 € | 1 | Quote | 25 | Air Cylinder / Standard Type (Double Acting, Double Rod) | ||
61.44 € | 1 | Quote | 32 | Air Cylinder / Standard Type (Double Acting, Double Rod) | ||
12.18 € | 1 | Quote | 40 | Air Cylinder / Standard Type (Double Acting, Double Rod) | ||
18.60 € | 1 | Quote | 32 | Air Cylinder / Smooth Cylinder |
Loading...
Basic information
| Type | Gasket | Maintenance part name | Seal kit |
|---|
Configure
Basic Attributes
-
Bore size(ø)
- 20
- 25
- 32
- 40
-
Compatible air cylinder details
- Air Cylinder / Direct-Mount Type (Double Acting)
- Air Cylinder / Direct Mount, Non-Rotating Rod Type
- Air Cylinder / Non-Rotating Rod Type (Double Acting, Double Rod)
- Air Cylinder / Smooth Cylinder
- Air Cylinder / Standard Type (Double Acting, Double Rod)
- Air Cylinder / Standard Type (Single Acting, Spring Extend/Return)
- Cylinder with End Lock (both ends)
- Cylinder with End Lock (one end)
-
Type
- CBG1
- CG1
- CG1K
- CG1KW
- CG1W
Filter by standard shipping days
-
- All
- 39 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
