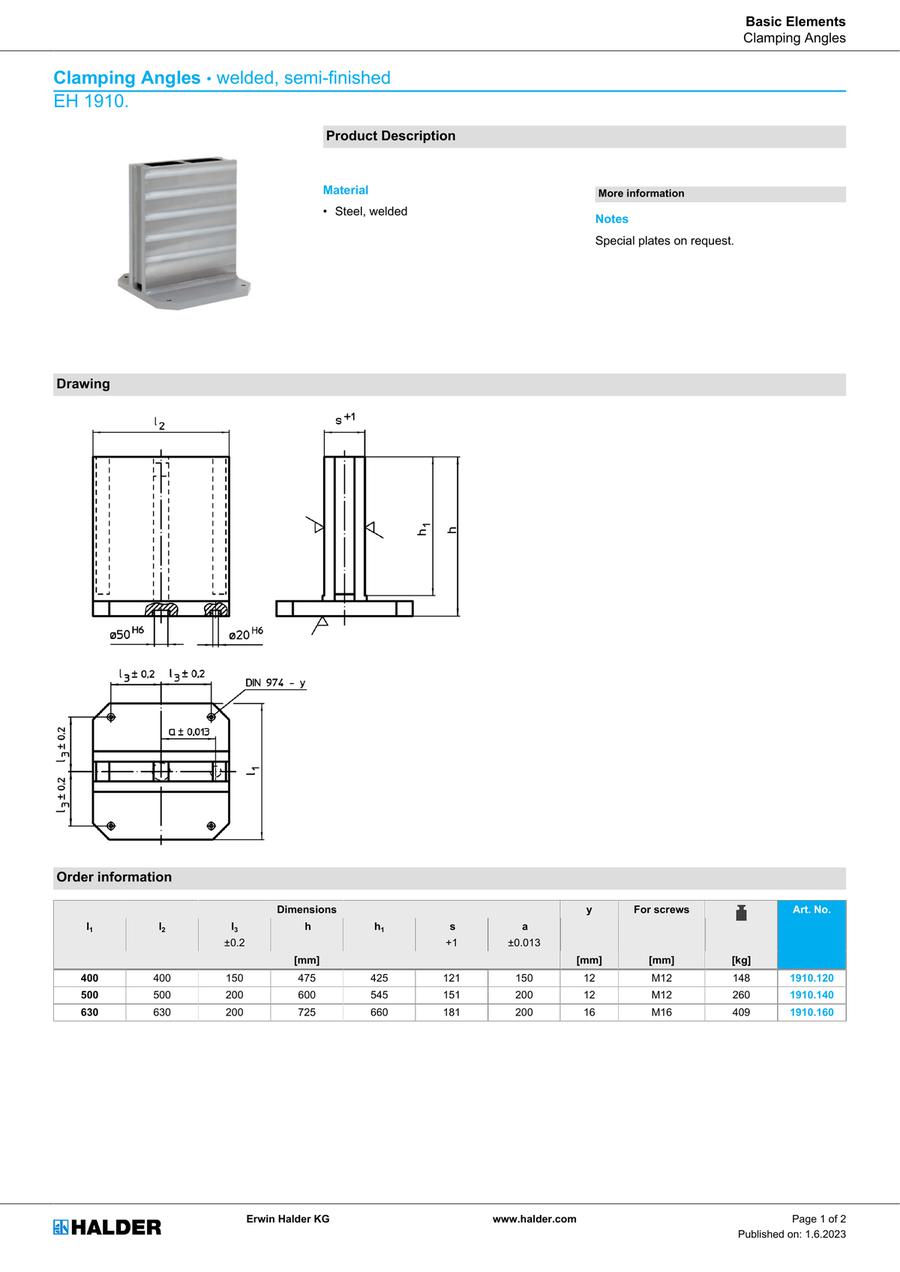

Clamping Angles, welded, semi-finished
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 1910.120 |
| 1910.140 |
| 1910.160 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | a (mm) | h (mm) | h1 (mm) | l1 (mm) | l2 (mm) | l3 (mm) | s (mm) | y (mm) | Suitable for | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2,646.60 € | 1 | 3 Days | 150 | 475 | 425 | 400 | 400 | 150 | 121 | 12 | M12 | 148 | |||
3,447.70 € | 1 | 3 Days | 200 | 600 | 545 | 500 | 500 | 200 | 151 | 12 | M12 | 274 | |||
4,181.77 € | 1 | 3 Days | 200 | 725 | 660 | 630 | 630 | 200 | 181 | 16 | M16 | 395 |
Loading...
Basic information
| Material | Steel, welded | Conflict Minerals free | yes | REACH compliant | yes |
|---|
Configure
Basic Attributes
-
a(mm)
- 150
- 200
-
h(mm)
-
h1(mm)
-
l1(mm)
-
l2(mm)
-
l3(mm)
-
s(mm)
-
y(mm)
- 12
- 16
-
Suitable for
- M12
- M16
-
Filter by CAD data type
- 3D
Filter by standard shipping days
-
- All
- 3 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
