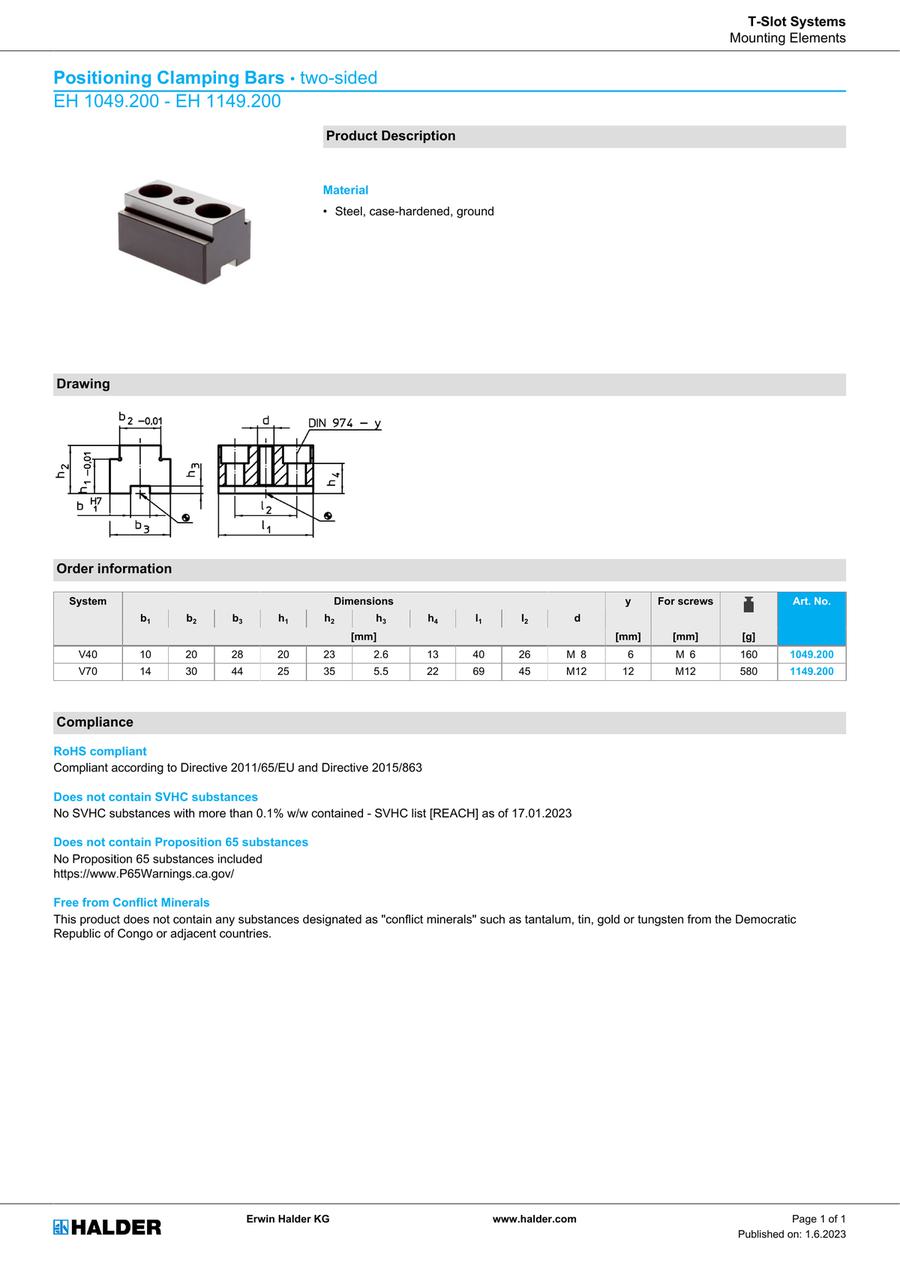

Positioning Clamping Bars, two-sided
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 1049.200 |
| 1149.200 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | b1 (mm) | b2 (mm) | b3 (mm) | d (mm) | h1 (mm) | h2 (mm) | h3 (mm) | h4 (mm) | l1 (mm) | l2 (mm) | y (mm) | Suitable for | System | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
310.78 € | 1 | 3 Days | 10 | 20 | 28 | M8 | 20 | 23 | 2.6 | 13 | 40 | 26 | 6 | M6 | V40 | 155 | |||
324.60 € | 1 | 3 Days | 14 | 30 | 44 | M12 | 25 | 35 | 5.5 | 22 | 69 | 45 | 12 | M12 | V70 | 580 |
Loading...
Basic information
| Material | Steel, case-hardened, ground | Conflict Minerals free | yes | REACH compliant | yes |
|---|
Configure
Basic Attributes
-
b1(mm)
-
b2(mm)
-
b3(mm)
-
d(mm)
-
h1(mm)
-
h2(mm)
-
h3(mm)
-
h4(mm)
-
l1(mm)
-
l2(mm)
-
y(mm)
- 6
- 12
-
Suitable for
- M6
- M12
-
System
- V40
- V70
-
Filter by CAD data type
- 3D
Filter by standard shipping days
-
- All
- 3 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
