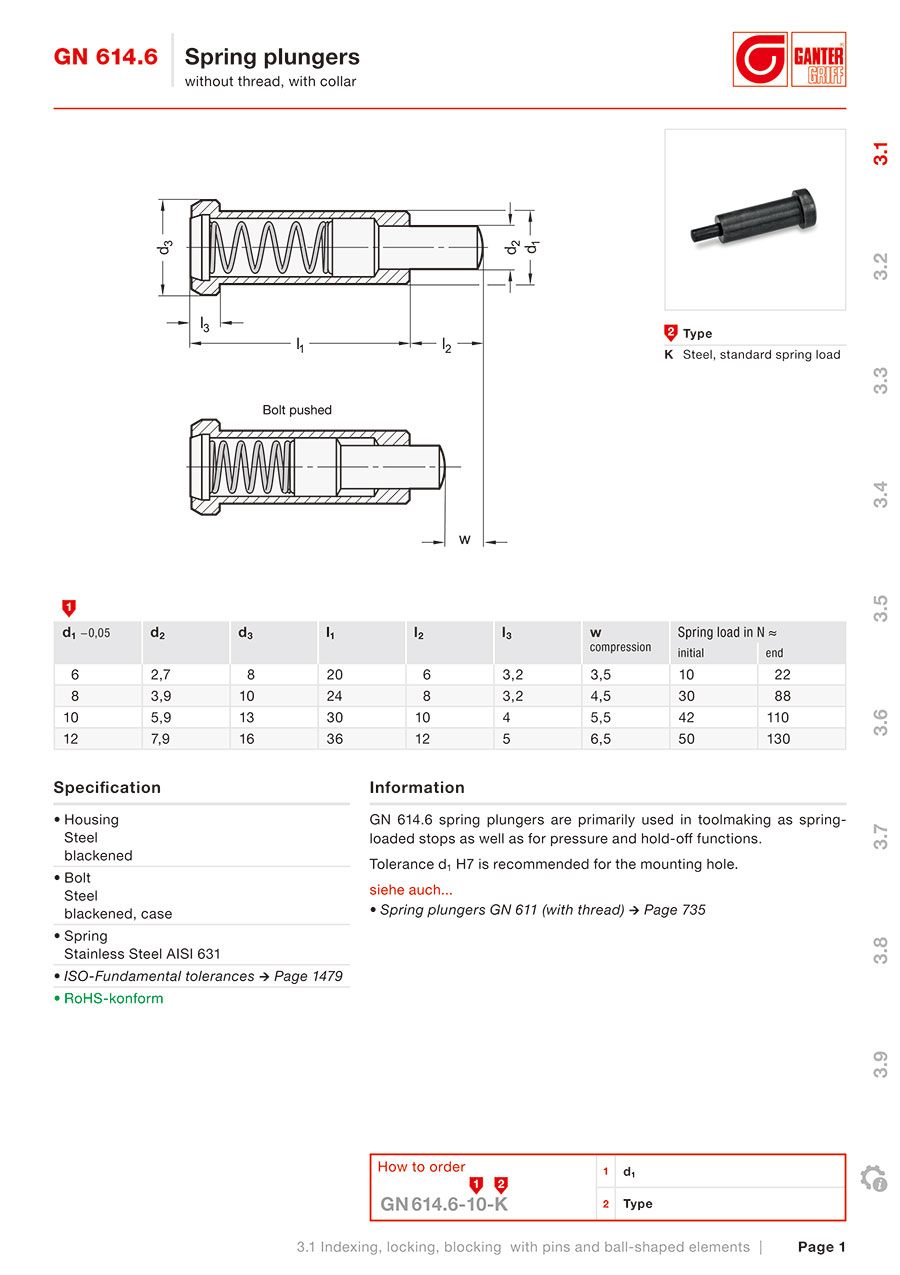

Spring plungers, without thread, with collar (GN 614.6)
- Volume Discount
Tolerance d1 H7 is recommended for the mounting hole.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 614.6-6-K |
| 614.6-8-K |
| 614.6-10-K |
| 614.6-12-K |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | d1 | d2 | d3 | l1 | l2 | l3 | w | x14 | Spring load, initial (N) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
7.56 € | 1 | Available | 5 Days | 6 | 2.7 | 8 | 20 | 6 | 3.2 | 3.5 | 22, 22 | 10, 10 | 0.004 | |
7.80 € | 1 | Available | 6 Days | 8 | 3.9 | 10 | 24 | 8 | 3.2 | 4.5 | 88, 88 | 30, 30 | 0.008 | |
8.30 € | 1 | Available | 5 Days | 10 | 5.9 | 13 | 30 | 10 | 4 | 5.5 | 110, 110 | 42, 42 | 0.016 | |
8.60 € | 1 | Available | 5 Days | 12 | 7.9 | 16 | 36 | 12 | 5 | 6.5 | 130, 130 | 50, 50 | 0.027 |
Loading...
Basic information
| Form | K, Steel, standard spring load |
|---|
Configure
Basic Attributes
-
d1
- 6
- 8
- 10
- 12
-
d2
-
d3
- 8
- 10
- 13
- 16
-
l1
-
l2
-
l3
- 3.2
- 4
- 5
-
w
-
x14
-
Spring load, initial(N)
-
Type
- 614.6
Filter by standard shipping days
-
- All
- 5 Days or Less
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
