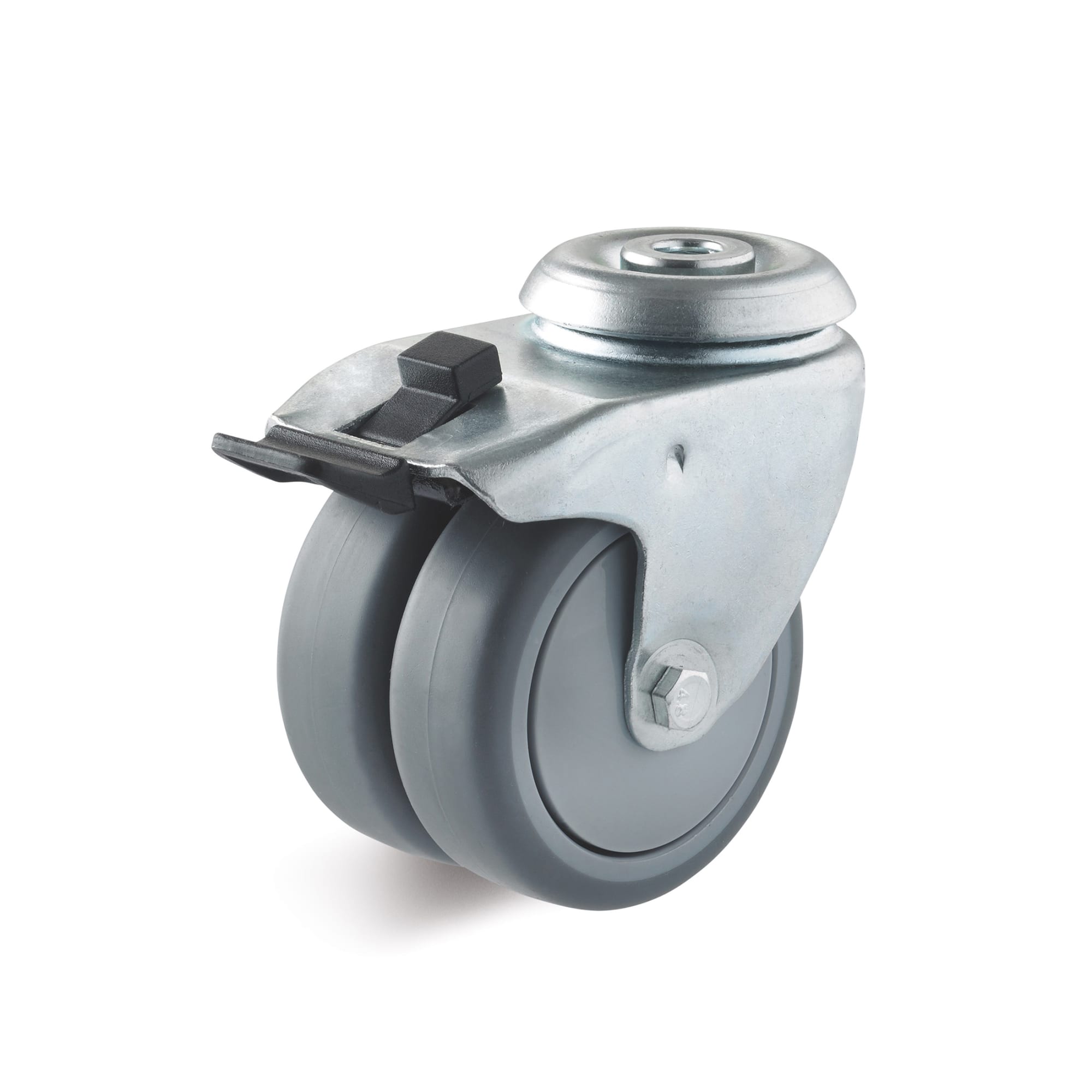

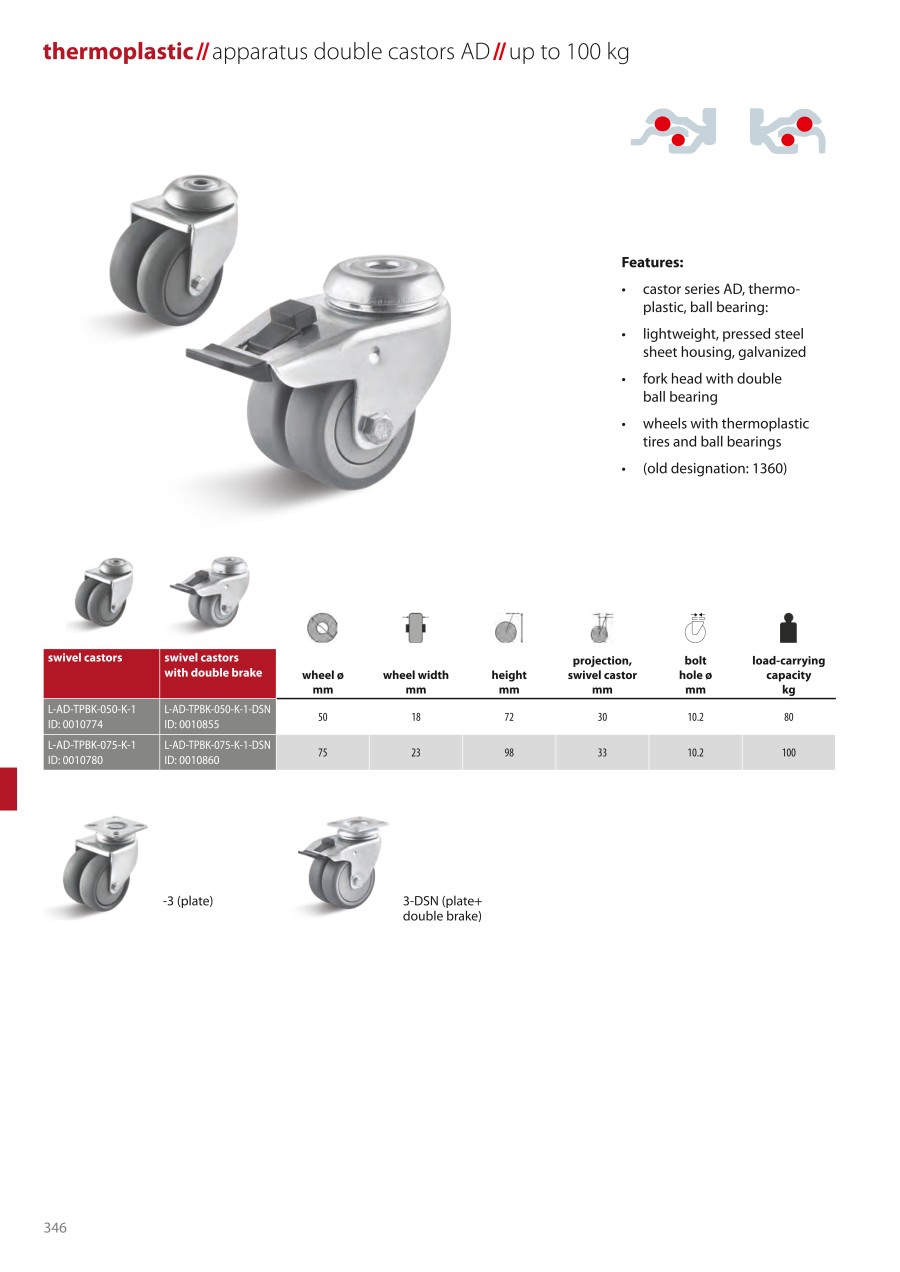

Apparatus double roll with back hole and double stop, thermoplastic wheels
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| L-AD-TPBK-050-K-1-DSN |
| L-AD-TPBK-075-K-1-DSN |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Wheel diameter (mm) | Wheel width (mm) | Load capacity dynamic (kg) | overall height (mm) | Discharge swivel castor (mm) | Slewing ring Ø (mm) | Swivel Radius (mm) | Overall height housing (to center axis) (mm) | Light width (mm) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
7.91 € | 1 | 4 Days | 50 | 18 | 80 | 74 | 24 | 44 | 83 | 49 | - | 0.296 | ||
11.58 € | 1 | 4 Days | 75 | 25 | 100 | 100 | 31 | 55 | 92 | 62 | 56 | 0.498 |
Loading...
Basic information
| Rolls and case type | Steering housing | Mounting type | Baack hole | Wheel bearing | Ball-bearing |
|---|---|---|---|---|---|
| Housing Series Type | AD (1362/1360/1365) | Housing material RR | Steel galvanized | Material Description Housing | Lightweight, pressed sheet steel housing, galvanized |
| Surface coating | galvanized | Bolt hole Ø(mm) | 10.2 | Number of wheels [piece] | 2 |
| Clevis bearing type | Clevis with double ball bearing | Clevis connection | riveted | Rim material | Polypropylene |
| Tread material | Thermoplastic | electrically conductive | none | Housing design | drawn |
| Clevis bearing seal | without gasket ring | Tread color | Grey | Tread type | cylindrical |
| Bearing shell type | not hardened | fork strength(mm) | 2 | Stop screw adjustable | No |
| Stop Type | DS-N (double stop in the wake) | Axle bore housing(mm) | 6 | Housing classification | Apparatus Double Rollers AD |
| Min. temperature resistance(° C) | -20 | Max. temperature resistance(° C) | 60 |
