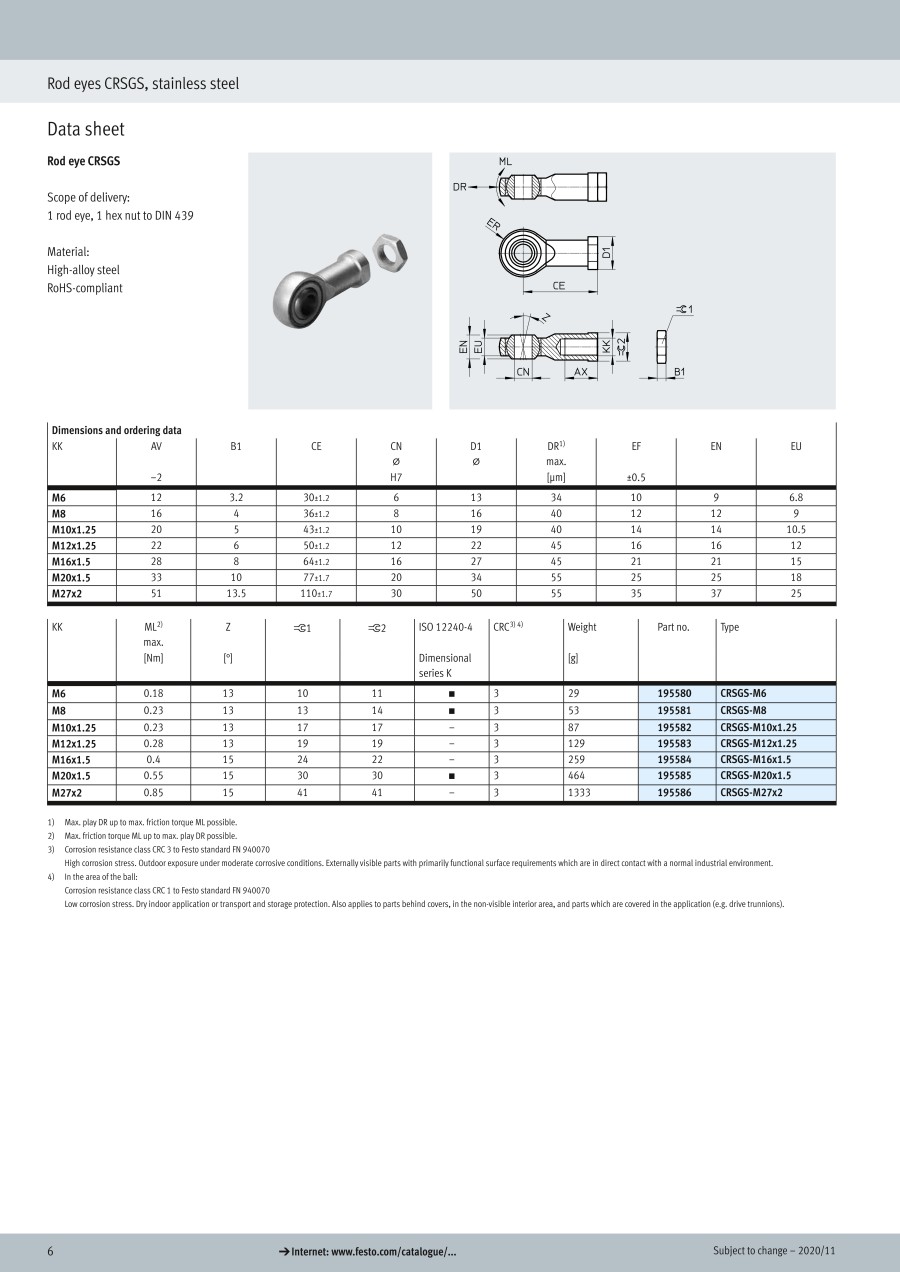

Rod eye, CRSGS Series
Click on this image to zoom in.
Click on this image to zoom in.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| CRSGS-M6 |
| CRSGS-M10X1.25 |
| CRSGS-M12X1.25 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | Size | Manufacturer part # | Weight (g) | |
|---|---|---|---|---|---|---|---|---|
42.82 € | 1 | 4 Days | M6 | 195580 | 29 | |||
81.09 € | 1 | 20 Days | M10x1.25 | 195582 | 87 | |||
104.52 € | 1 | 4 Days | M12x1.25 | 195583 | 129 |
Loading...
Basic information
| Housing material | Steel | Housing material | High-alloy steel | Material of outer ring | High-alloy steel |
|---|---|---|---|---|---|
| Inner raceway material | High-alloy steel | Nut material | High-alloy steel | Min. Ambient temperature(°C) | -40 |
| Max. Ambient temperature(°C) | 150 | Corrosion resistance class (CRC) | 3 - High corrosion stress |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
