Flow sensor, SFAW Series

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

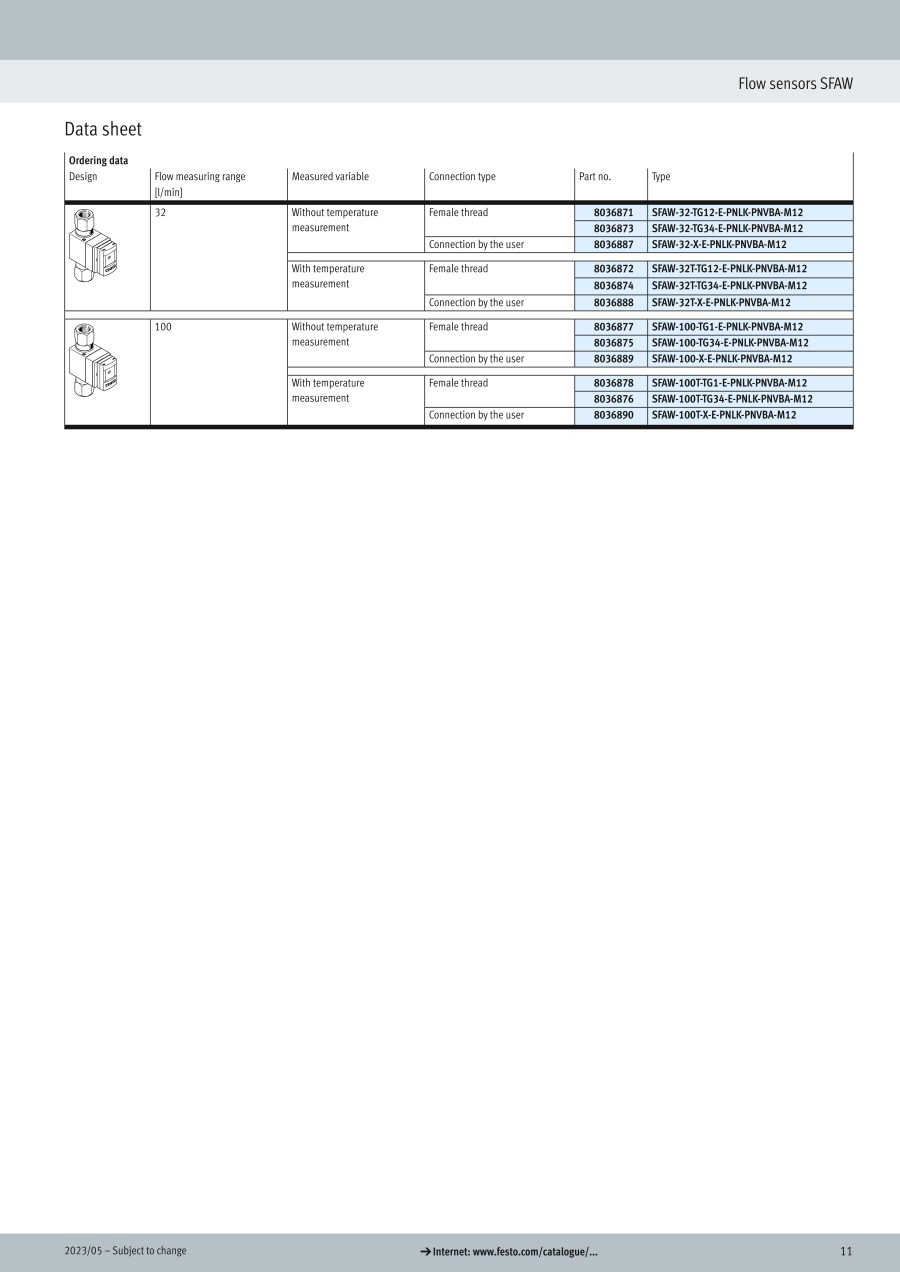

Part Number
SFAW-32T-TG12-E-PNLK-PNVBA-M12
SFAW-100T-TG1-E-PNLK-PNVBA-M12
Part NumberRelated to
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Flow measuring range start value
(l/min)
Flow measuring range end value
(l/min)
Manufacturer part #

466.02 €

1 Quote 1.8328036872

480.57 €

1 4 Days 51008036878

Loading...

  1. 1

Basic information

Operating Temperature Range(℃) 0::50 Protection Rating IP65 Housing material PA-reinforced
Materials in contact with the media EPDM (peroxide), Stainless steel, ETFE, PA6T/6I-reinforced Switching output 2xPNP or 2xNPN switchable Switching element function N/C contact, N/O contact, Switchable
Max. output current(mA) 100 Min. Operating pressure(bar) 0 Max. Operating pressure(bar) 12
Min. Temperature of medium(°C) 0 Max. Temperature of medium(°C) 90 Nominal temperature(°C) 23
IP rating IP65 DC operating voltage range(V) 18-30 Operating medium Water, Neutral liquids, Liquid media
Corrosion resistance class (CRC) 3 - High corrosion stress Weight(g) 400
