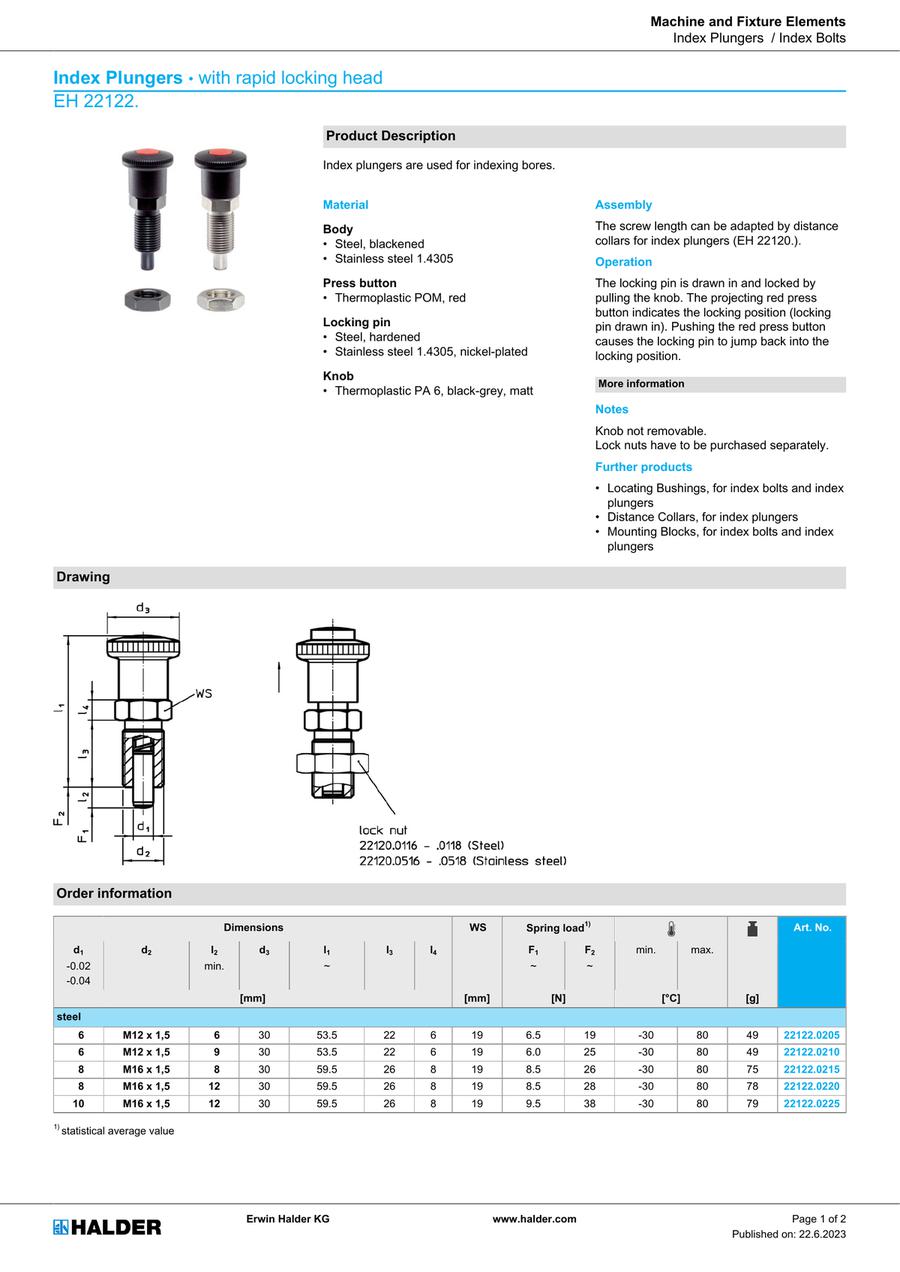

Index Plungers, with rapid locking head
[Operation]
The locking pin is drawn in and locked by pulling the knob. The projecting red press button indicates the locking position (locking pin drawn in). Pushing the red press button causes the locking pin to jump back into the locking position.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 22122.0205 |
| 22122.0210 |
| 22122.0215 |
| 22122.0220 |
| 22122.0225 |
| 22122.0305 |
| 22122.0310 |
| 22122.0315 |
| 22122.0320 |
| 22122.0325 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | d1 (mm) | d2 (mm) | l1 (mm) | l2 min. (mm) | l3 (mm) | l4 (mm) | F1 (N) | F2 (N) | Body | Locking pin | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
18.45 € | 1 | 2 Days | 6 | M12 x 1,5 | ~ 53.5 | 6 | 22 | 6 | ~ 6.5 | ~ 19 | Steel, blackened | Steel, hardened | 47 | |||
18.56 € | 1 | 2 Days | 6 | M12 x 1,5 | ~ 53.5 | 9 | 22 | 6 | ~ 6 | ~ 25 | Steel, blackened | Steel, hardened | 48 | |||
19.73 € | 1 | 2 Days | 8 | M16 x 1,5 | ~ 59.5 | 8 | 26 | 8 | ~ 8.5 | ~ 26 | Steel, blackened | Steel, hardened | 74 | |||
19.84 € | 1 | 2 Days | 8 | M16 x 1,5 | ~ 59.5 | 12 | 26 | 8 | ~ 8.5 | ~ 28 | Steel, blackened | Steel, hardened | 77 | |||
20.31 € | 1 | 2 Days | 10 | M16 x 1,5 | ~ 59.5 | 12 | 26 | 8 | ~ 9.5 | ~ 38 | Steel, blackened | Steel, hardened | 78 | |||
24.77 € | 1 | 2 Days | 6 | M12 x 1,5 | ~ 53.5 | 6 | 22 | 6 | ~ 6.5 | ~ 19 | Stainless steel 1.4305 | Stainless steel 1.4305, nickel-plated | 47 | |||
25.23 € | 1 | 2 Days | 6 | M12 x 1,5 | ~ 53.5 | 9 | 22 | 6 | ~ 6 | ~ 25 | Stainless steel 1.4305 | Stainless steel 1.4305, nickel-plated | 48 | |||
26.72 € | 1 | 2 Days | 8 | M16 x 1,5 | ~ 59.5 | 8 | 26 | 8 | ~ 8.5 | ~ 26 | Stainless steel 1.4305 | Stainless steel 1.4305, nickel-plated | 74 | |||
27.43 € | 1 | 2 Days | 8 | M16 x 1,5 | ~ 59.5 | 12 | 26 | 8 | ~ 8.5 | ~ 28 | Stainless steel 1.4305 | Stainless steel 1.4305, nickel-plated | 77 | |||
28.18 € | 1 | 2 Days | 10 | M16 x 1,5 | ~ 59.5 | 12 | 26 | 8 | ~ 9.5 | ~ 38 | Stainless steel 1.4305 | Stainless steel 1.4305, nickel-plated | 78 |
Loading...
Basic information
| d3(mm) | 30 | WS(mm) | 19 | Press button | Thermoplastic POM, red |
|---|---|---|---|---|---|
| Knob | Thermoplastic PA 6, black-grey, matt | Temperature min.(°C) | -30 | Temperature max.(°C) | 80 |
| Conflict Minerals free | yes |
