Inductive power clamp sensor Rectangular type
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|

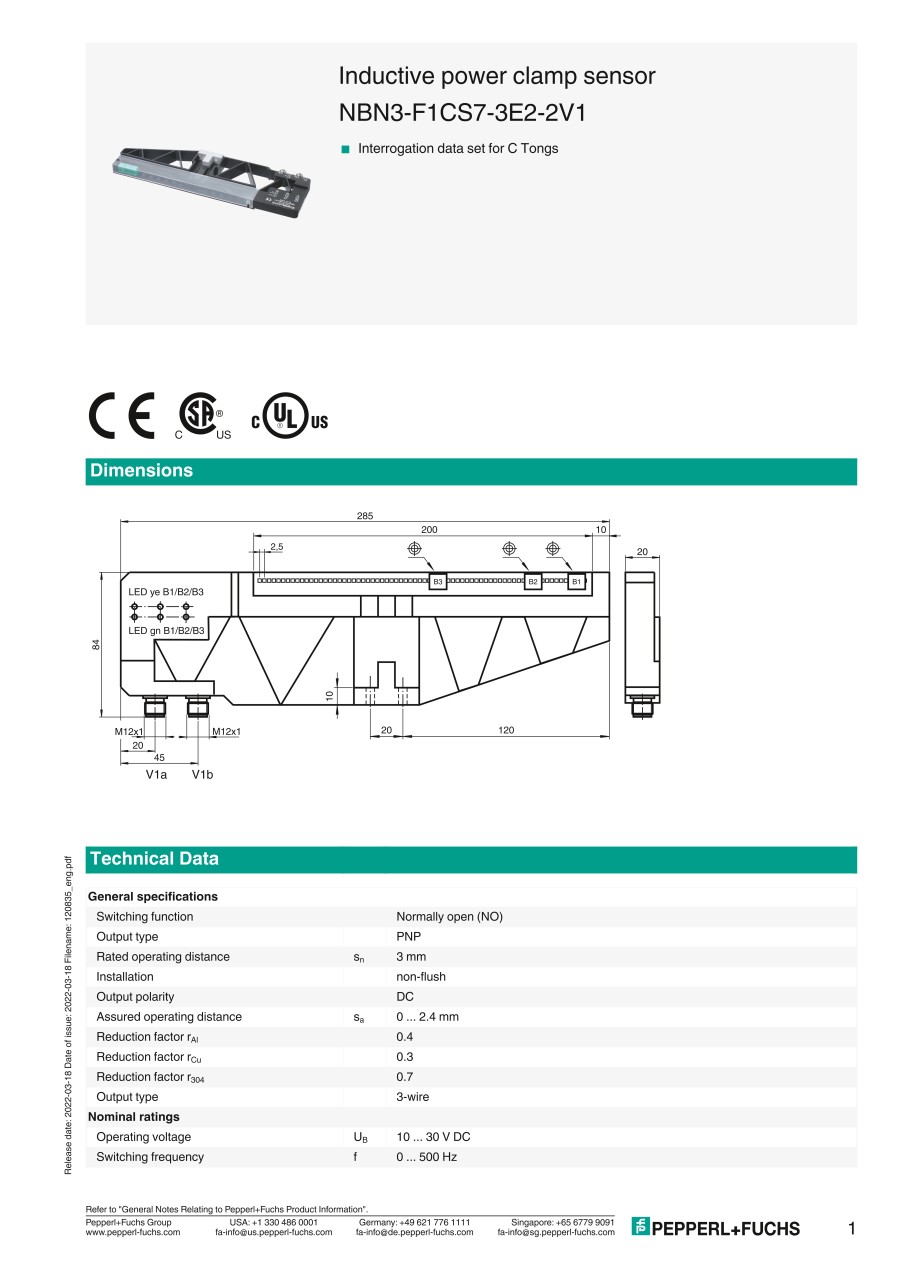

| NBN3-F1CS7-3E2-2V1 |
| NBXX-F58D3X3-E8-V1 |
| NBXX-F58E1X3-E8-V1 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Detection Distance L1 (mm) | Detection Head Size Dimension L2 (mm) | Detection Head Size Dimension W (mm) | Detection Head Size Dimension H (mm) | Switching distance (mm) | Mechanical mounting condition for sensor | |
|---|---|---|---|---|---|---|---|---|---|---|
- | 1 | Quote | 3 | 285 | 84 | 20 | 3 | Not flat | ||
- | 1 | Quote | - | 46.5 | 18 | 18.5 | - | - | ||
76.18 € | 1 | 5 Days | - | 46.5 | 18 | 18.5 | - | - |
Loading...
Basic information
| Voltage type | DC | Material housing | Other | Type of electric connection | Connector M12 |
|---|---|---|---|---|---|
| Type of switching output | PNP | Type of switch function | Normally open (NO) | Construction type housing | Cuboid |
Configure
Basic Attributes
-
Detection Distance L1(mm)
-
Detection Head Size Dimension L2(mm)
-
Detection Head Size Dimension W(mm)
-
Detection Head Size Dimension H(mm)
-
Switching distance(mm)
-
Mechanical mounting condition for sensor
-
Type
Filter by standard shipping days
-
- All
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
