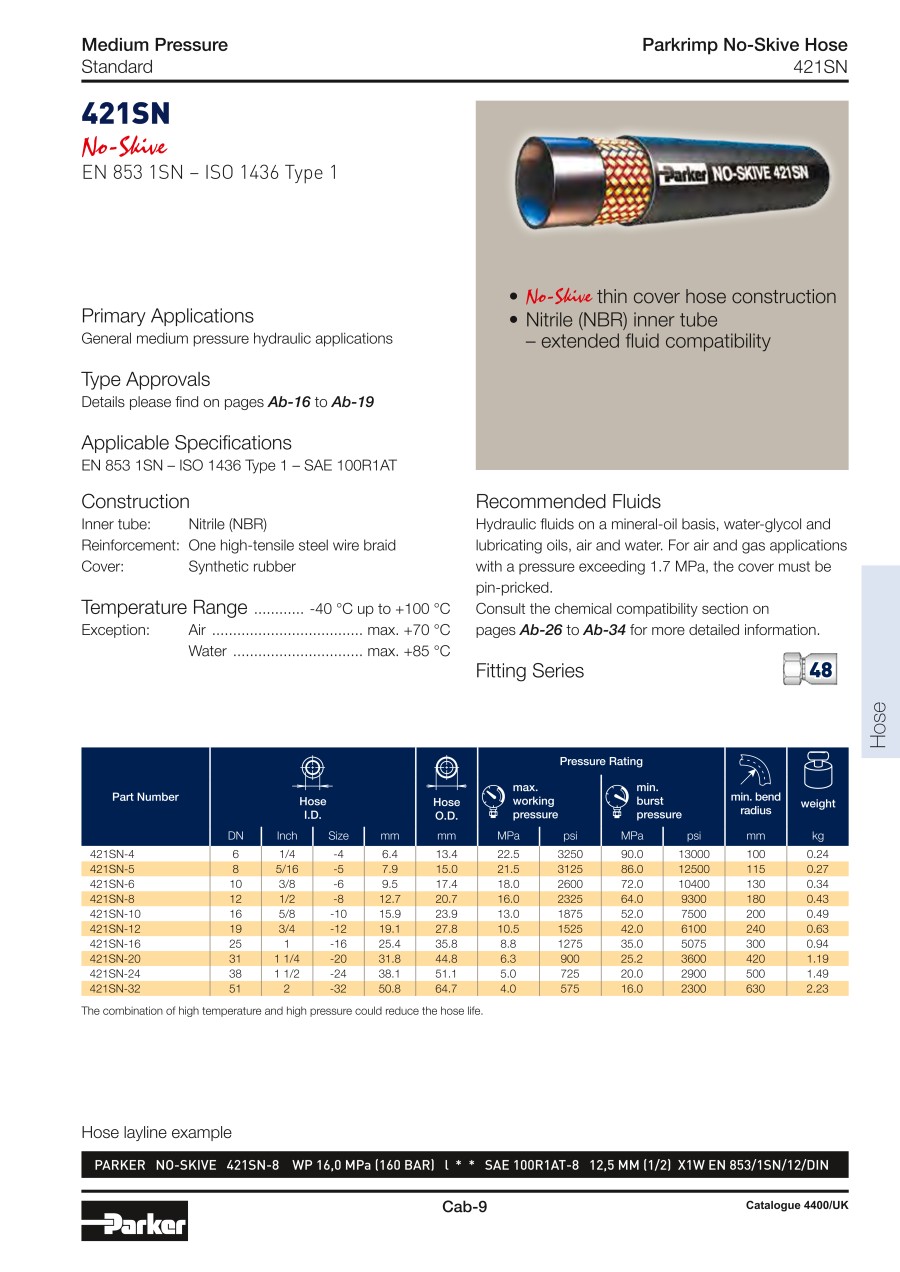

PARKER Parkrimp No-Skive Hose 421SN
(i)Remark
- If you want to order "X" meters of hose, please enter "X" as the quantity. For example: For a 10 meter hose, please enter 10 in the quantity field.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 421SN-4 |
| 421SN-5 |
| 421SN-6 |
| 421SN-8 |
| 421SN-10 |
| 421SN-12 |
| 421SN-16 |
| 421SN-20 |
| 421SN-24 |
| 421SN-32 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | I.D. d (mm) | Max. Operating Pressure (MPa) | Minimum Bending Radius (mm) | O.D. D (Ø) | Nominal width (inch) | Customs tariff weight (kg) | Size | Nominal width (mm) | Min. burst pressure (MPa) | Min. burst pressure (psi) | Customs tariff country of origin | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
- | 1 | 5 Days | 6.4 | 22.5 | 100 | 13.4 | - | 0.24 | -4 | 6 | 90 | 13,000 | IN | ||
- | 1 | 5 Days | 7.9 | 21.5 | 115 | 15 | - | 0.27 | -5 | 8 | 86 | 12,500 | IN | ||
- | 1 | 5 Days | 9.5 | 18 | 130 | 17.4 | 3/8 | 0.34 | -6 | - | 72 | 10,400 | IN | ||
- | 1 | 5 Days | 12.7 | 16 | 180 | 20.7 | - | 0.43 | -8 | 12 | 64 | 9,300 | IN | ||
- | 1 | 5 Days | 15.9 | 13 | 200 | 23.9 | - | 0.49 | -10 | 16 | 52 | 7,500 | IN | ||
- | 1 | 5 Days | 19.1 | 10.5 | 240 | 27.8 | - | 0.63 | -12 | 19 | 42 | 6,100 | IN | ||
- | 1 | 5 Days | 25.4 | 8.8 | 300 | 35.8 | - | 0.94 | -16 | 25 | 35 | 5,075 | IN | ||
- | 1 | 5 Days | 31.8 | 6.3 | 420 | 44.8 | - | 1.19 | -20 | 31 | 25.2 | 3,600 | IT | ||
- | 1 | 5 Days | 38.1 | 5 | 500 | 51.1 | - | 1.49 | -24 | 38 | 20 | 2,900 | IT | ||
- | 1 | 5 Days | 50.8 | 4 | 630 | 64.7 | - | 2.23 | -32 | 51 | 16 | 2,300 | IT |
Loading...
Basic information
| Operating Temperature Range(°C) | -40::100 | Inner layer | Nitrile (NBR) | Customs tariff weight unit | kg |
|---|---|---|---|---|---|
| Norm | EN 853-1SN/ISO 1436-1SN / R1AT/SAE 100R1AT | Outer layer | Synthetic rubber | Type | 421SN |
| Area of application | Standard | Fitting series | 48 | Customs tariff item number | 40092100 |
| Pressure classification | Medium pressure | Substrate | High-tensile steel wire braid | Customs tariff weight per | 1,000 |
Configure
Basic Attributes
-
I.D. d(mm)
-
Max. Operating Pressure(MPa)
-
Minimum Bending Radius(mm)
-
Nominal width(inch)
-
Customs tariff weight(kg)
-
Size
-
Nominal width(mm)
-
Min. burst pressure (MPa)
-
Min. burst pressure (psi)
-
Customs tariff country of origin
-
Type
Filter by standard shipping days
-
- All
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
