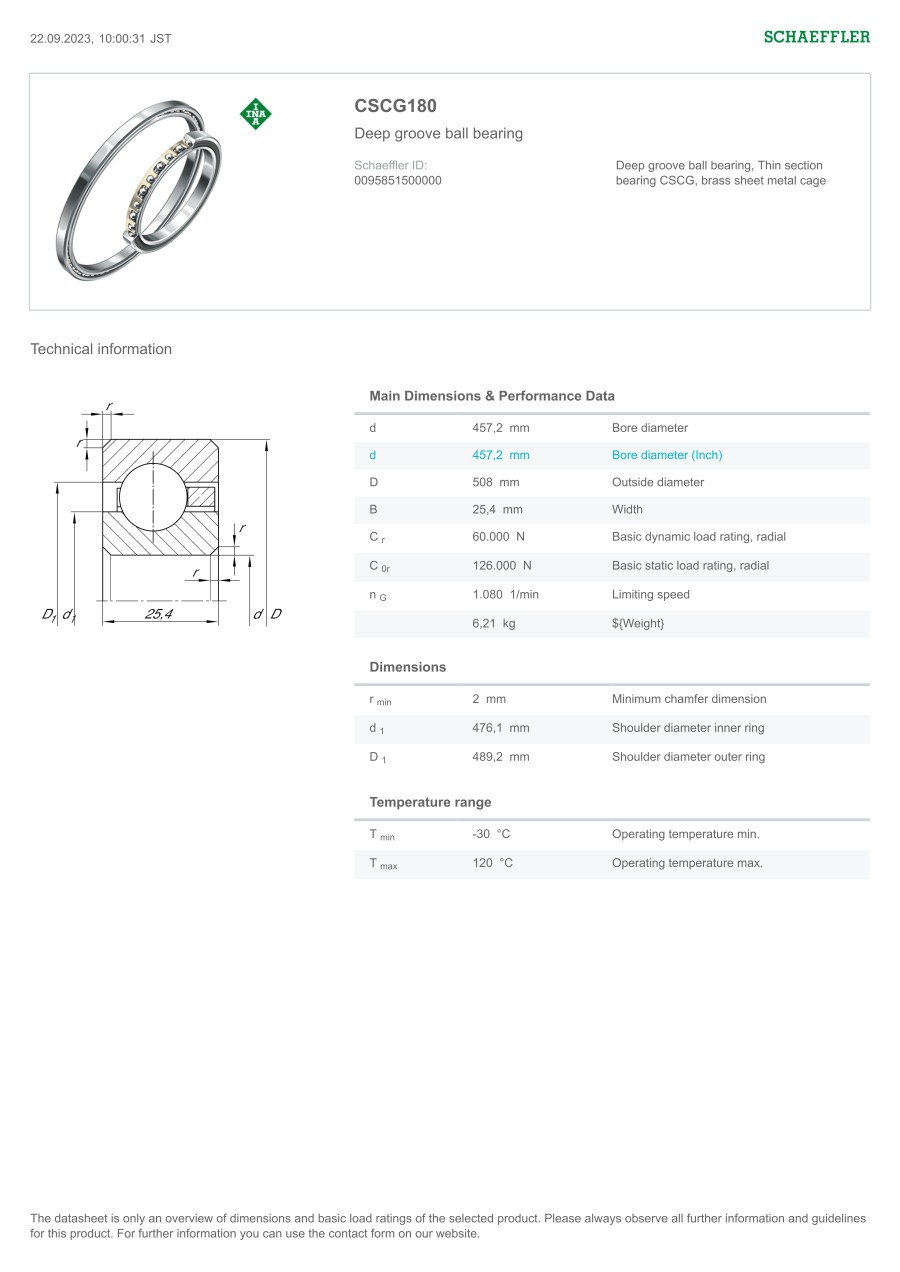

Thin-section bearings / 230CSCG180-HLE / INA
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
230CSCG180-HLE
- Product data
- CAD data not available
Basic information
| Inner Diameter d(φ) | 457.2 | Outer Diameter D(φ) | 508 | Width B (or T)(mm) | 25.4 |
|---|---|---|---|---|---|
| Basic Load Rating Static Rating(N) | 126000 | Product type | Deep-groove ball bearing | Shoulder dimension d1(mm) | 476.1 |
| r (min.)(mm) | 2 | Bore shape | Cylindrical | Internal diameter (d)(inch) | 18 |
| Model series | G | Shoulder dimension D1(mm) | 489.2 | Engineering material | Steel |
| Cage material | Brass | Height H(mm) | 25.4 | Customs tariff — weight(kg) | 6.21 |
| Customs tariff — weight per | 1 | Customs tariff — weight unit | kg | Customs tariff — item number | 84821090 |
| Customs tariff — country of origin | DE |
This page is Thin-section bearings / 230CSCG180-HLE / INA, part number 230CSCG180-HLE.
You can find the detail information about specifications and dimensions on part number 230CSCG180-HLE.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
