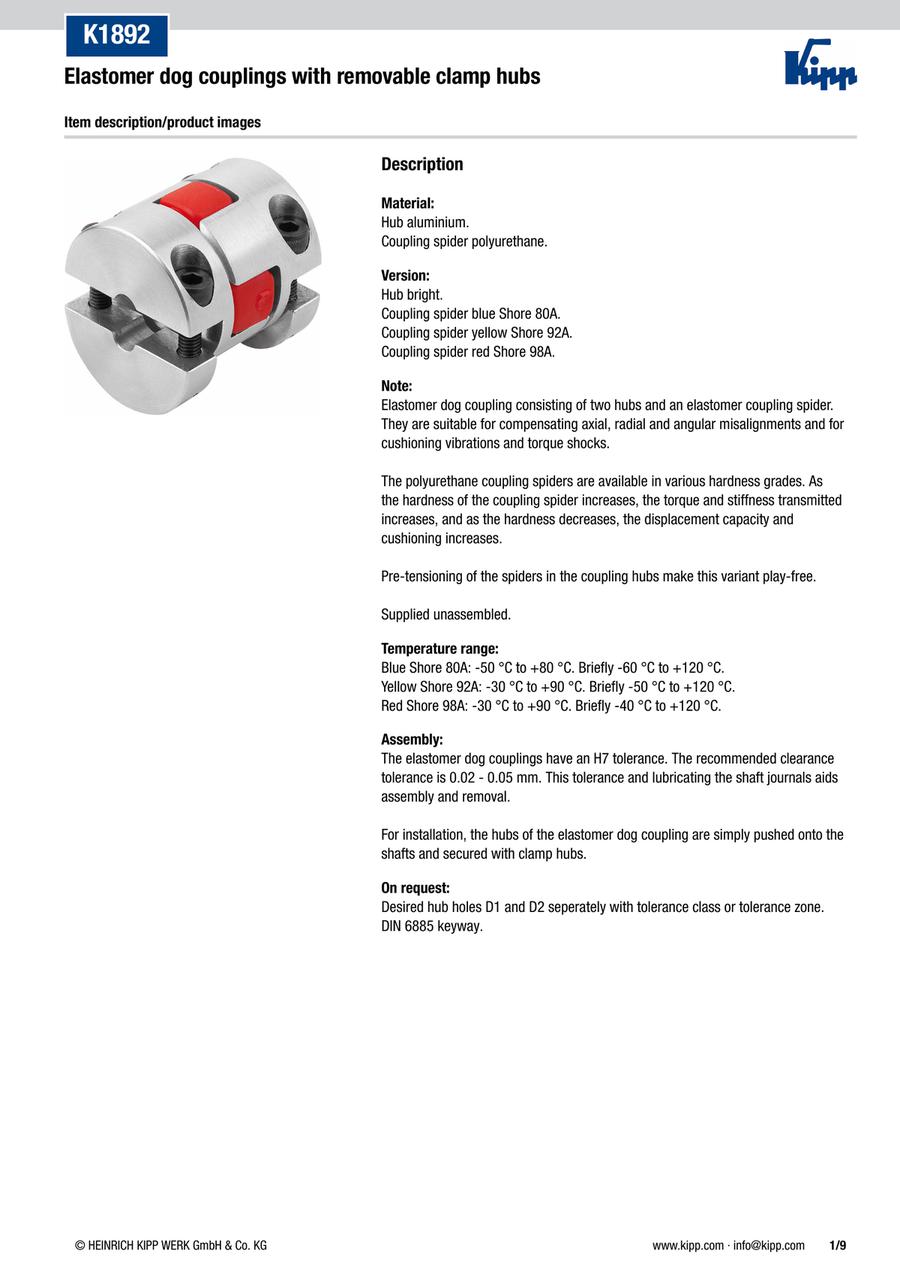

Elastomer dog couplings with removable clamp hubs (K1892)(Part number list: 3 page)

Configure

A(mm)
- 10.5
- 14.5
- 20
- 25
- 30
- 32
- 36
Tightening torque of screws(Nm)
- 5
- 15
- 40
- 84
- 145
C (ISO 4029)
- M4
- M6
- M8
- M10
- M12
D1 (H7)(mm)
- 4
- 8
- 10
- 12
- 14
- 15
- 16
- 18
- 19
- 20
- 22
- 24
- 25
- 28
- 32
- 38
- 45
- 50
D2 (H7)(mm)
- 4
- 8
- 10
- 12
- 14
- 15
- 16
- 18
- 19
- 20
- 22
- 24
- 25
- 28
- 32
- 38
- 45
- 50
D1/D2 min.(mm)
- 4
- 8
- 10
- 14
- 18
- 22
D1/D2 max.(mm)
- 12
- 21
- 32
- 37
- 48
- 50
- 57
D4(mm)
- 30
- 40
- 55
- 65
- 80
- 95
- 105
Component colour
Spring stiffness radial(N/mm)
- 153
- 336
- 582
- 654
- 840
- 990
- 1120
- 1780
- 1900
- 2010
- 2350
- 2940
- 3200
- 4100
- 4400
- 4500
- 5940
- 6820
Size
- 14
- 19
- 24
- 28
- 38
- 42
- 48
K(mm)
- 8
- 19.5
- 22
- 25
- 33
- 36.5
- 39.5
Coupling spider hardness
L=Length(mm)
- 35
- 66
- 78
- 90
- 114
- 126
- 140
L1(mm)
- 11
- 25
- 30
- 35
- 45
- 50
- 56
L2(mm)
- 13
- 16
- 18
- 20
- 24
- 26
- 28
L3(mm)
- 5
- 8
- 10.5
- 11.5
- 15.5
- 18
- 18.5
L4(mm)
- 19
- 27
- 34
- 40
- 48
- 53
- 61
Moment of inertia(gm²)
- 0.007
- 0.042
- 0.171
- 0.402
- 1.096
- 2.522
- 4.076
max. Torque(Nm)
- 8
- 12
- 15
- 24
- 25
- 34
- 42
- 70
- 92
- 120
- 190
- 320
- 380
- 620
- 650
- 830
- 900
- 1050
max. Rotational speed(rpm)
- 3750
- 4000
- 5000
- 6000
- 7000
- 10000
- 13000
max. Angular offset (°)
- 0.9
- 1
- 1.1
- 1.3
max. Shaft offset axial(mm)
max. Shaft offset radial(mm)
- 0.06
- 0.09
- 0.1
- 0.11
- 0.12
- 0.14
- 0.15
- 0.16
- 0.17
- 0.19
- 0.2
- 0.21
- 0.23
Nom. torque(Nm)
- 4
- 6
- 7.5
- 12
- 12.5
- 17
- 21
- 35
- 46
- 60
- 95
- 160
- 190
- 265
- 310
- 325
- 450
- 525
R(mm)
- 35
- 46
- 57.5
- 73
- 83.5
- 93.5
- 105
Torsional stiffness dynamic(Nm/rad)
- 180
- 344
- 513
- 1065
- 1390
- 1815
- 2350
- 2540
- 5130
- 6745
- 8130
- 9920
- 12000
- 20500
- 21850
- 22800
- 37692
- 49400
Torsional stiffness static(Nm/rad)
- 60.2
- 114.6
- 171.9
- 618
- 860
- 1090
- 1370
- 1512
- 2300
- 3700
- 4080
- 6410
- 6525
- 10870
- 11800
- 12968
- 21594
- 25759
Weight(kg)
- 0.0500
- 0.1820
- 0.3910
- 0.6430
- 1.1670
- 1.9430
- 2.5920
Type
CAD
- 2D
- 3D
Est. shipping days
- All
- Within 4 working days

Elastomer dog couplings with removable clamp hubs (K1892)(Part number list: 3 page)

Catalog

Part number:

Still undefined. 135 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

(mm)

Tightening torque of screws

(Nm)

C (ISO 4029)

D1 (H7)

(mm)

D2 (H7)

(mm)

D1/D2 min.

(mm)

D1/D2 max.

(mm)

Component colour

Spring stiffness radial

(N/mm)

Size

(mm)

Coupling spider hardness

L=Length

(mm)

Moment of inertia

(gm²)

max. Torque

(Nm)

max. Rotational speed

(rpm)

max. Angular offset (°)

max. Shaft offset axial

(mm)

max. Shaft offset radial

(mm)

Nom. torque

(Nm)

(mm)

Torsional stiffness dynamic

(Nm/rad)

Torsional stiffness static

(Nm/rad)

Weight

(kg)

Minimum order quantity

32	84	M10	32	32	22	50	95	yellow	4100	42	36.5	92 Shore A	126	50	26	18	53	2.522	830	4000	1	+2 / -1	0.19	265	93.5	20500	10870	1.9430	1 pieces
32	84	M10	38	38	22	50	95	yellow	4100	42	36.5	92 Shore A	126	50	26	18	53	2.522	830	4000	1	+2 / -1	0.19	265	93.5	20500	10870	1.9430	1 pieces
32	84	M10	45	45	22	50	95	yellow	4100	42	36.5	92 Shore A	126	50	26	18	53	2.522	830	4000	1	+2 / -1	0.19	265	93.5	20500	10870	1.9430	1 pieces
32	84	M10	22	22	22	50	95	red	5940	42	36.5	98 Shore A	126	50	26	18	53	2.522	900	4000	0.9	+2 / -1	0.14	450	93.5	37692	21594	1.9430	1 pieces
32	84	M10	32	32	22	50	95	red	5940	42	36.5	98 Shore A	126	50	26	18	53	2.522	900	4000	0.9	+2 / -1	0.14	450	93.5	37692	21594	1.9430	1 pieces
32	84	M10	38	38	22	50	95	red	5940	42	36.5	98 Shore A	126	50	26	18	53	2.522	900	4000	0.9	+2 / -1	0.14	450	93.5	37692	21594	1.9430	1 pieces
32	84	M10	45	45	22	50	95	red	5940	42	36.5	98 Shore A	126	50	26	18	53	2.522	900	4000	0.9	+2 / -1	0.14	450	93.5	37692	21594	1.9430	1 pieces
36	145	M12	22	22	22	57	105	yellow	4500	48	39.5	92 Shore A	140	56	28	18.5	61	4.076	620	3750	1	+2.1 / -1	0.23	310	105	22800	12968	2.5920	1 pieces
36	145	M12	38	38	22	57	105	yellow	4500	48	39.5	92 Shore A	140	56	28	18.5	61	4.076	620	3750	1	+2.1 / -1	0.23	310	105	22800	12968	2.5920	1 pieces
36	145	M12	45	45	22	57	105	yellow	4500	48	39.5	92 Shore A	140	56	28	18.5	61	4.076	620	3750	1	+2.1 / -1	0.23	310	105	22800	12968	2.5920	1 pieces
36	145	M12	50	50	22	57	105	yellow	4500	48	39.5	92 Shore A	140	56	28	18.5	61	4.076	620	3750	1	+2.1 / -1	0.23	310	105	22800	12968	2.5920	1 pieces
36	145	M12	22	22	22	57	105	red	6820	48	39.5	98 Shore A	140	56	28	18.5	61	4.076	1050	3750	0.9	-2.1 / -1	0.16	525	105	49400	25759	2.5920	1 pieces
36	145	M12	38	38	22	57	105	red	6820	48	39.5	98 Shore A	140	56	28	18.5	61	4.076	1050	3750	0.9	-2.1 / -1	0.16	525	105	49400	25759	2.5920	1 pieces
36	145	M12	45	45	22	57	105	red	6820	48	39.5	98 Shore A	140	56	28	18.5	61	4.076	1050	3750	0.9	-2.1 / -1	0.16	525	105	49400	25759	2.5920	1 pieces
36	145	M12	50	50	22	57	105	red	6820	48	39.5	98 Shore A	140	56	28	18.5	61	4.076	1050	3750	0.9	-2.1 / -1	0.16	525	105	49400	25759	2.5920	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

296.99 € ( 353.42 € )	4 working days
296.99 € ( 353.42 € )	4 working days
296.99 € ( 353.42 € )	4 working days
296.99 € ( 353.42 € )	4 working days
296.99 € ( 353.42 € )	4 working days
296.99 € ( 353.42 € )	4 working days
296.99 € ( 353.42 € )	4 working days
377.42 € ( 449.13 € )	4 working days
377.42 € ( 449.13 € )	4 working days
377.42 € ( 449.13 € )	4 working days
377.42 € ( 449.13 € )	4 working days
377.42 € ( 449.13 € )	4 working days
377.42 € ( 449.13 € )	4 working days
377.42 € ( 449.13 € )	4 working days
377.42 € ( 449.13 € )	4 working days

More Information

Basic information

Basic information

· Play-free elastomer coupling clamp with grub screw

· For shaft diameters from 4 to 57 mm

· Torque range: 4 - 525 Nm

· Compensation of misalignments (axial, radial, angular)

· Axially attachment, thus very simple installation
