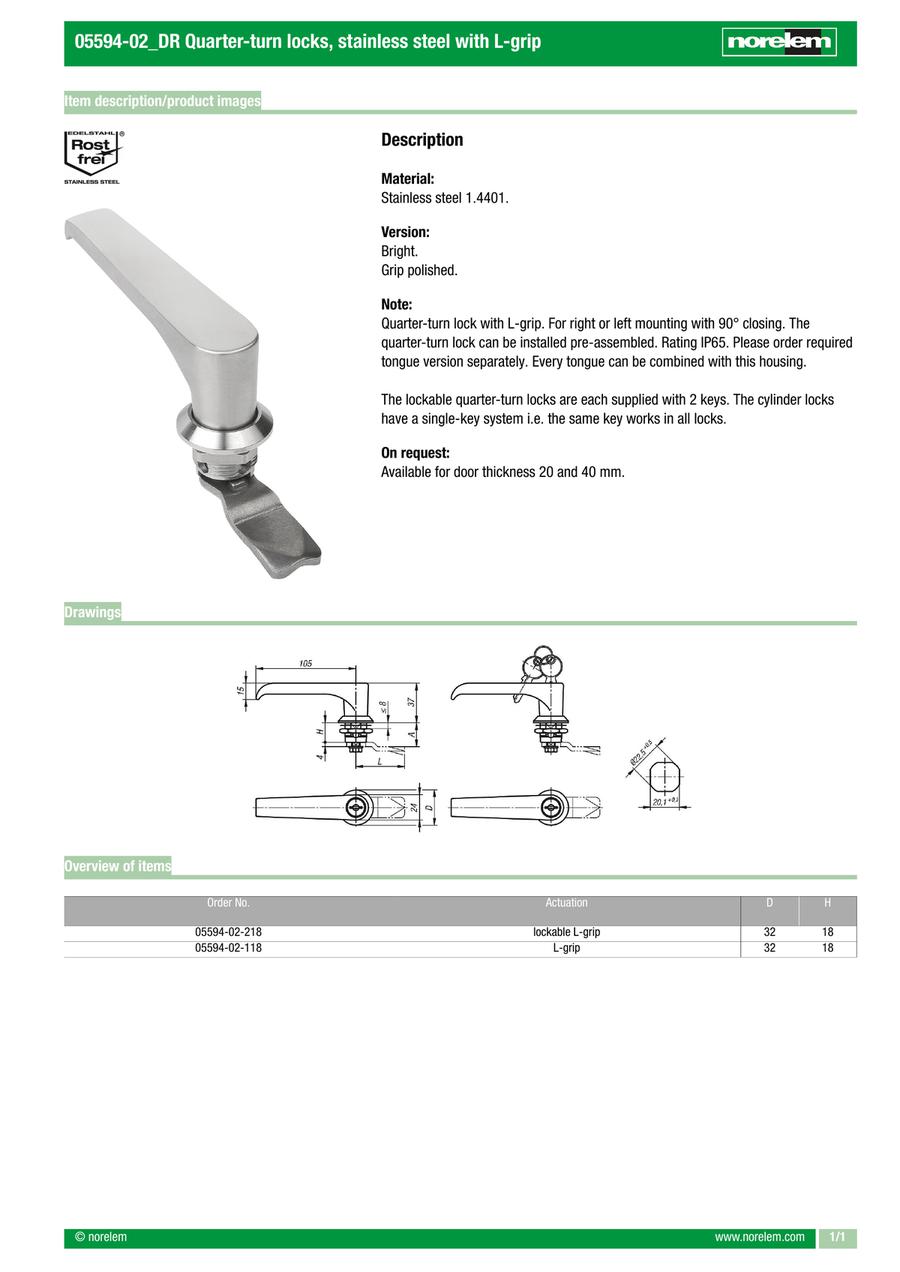

Quarter-turn locks stainless steel with L-grip (05594-02)
· Lock for hatches, control cabinets, steel cabinets or machine doors
· Application sectors: material handling, assembly, logistics, control cabinet construction
· Every tongue can be combined with every housing
· Can be installed pre-assembled, right or left mounting
· Stainless steel 1.4401
· Application sectors: material handling, assembly, logistics, control cabinet construction
· Every tongue can be combined with every housing
· Can be installed pre-assembled, right or left mounting
· Stainless steel 1.4401
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 05594-02-118 |
| 05594-02-218 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Actuation | |
|---|---|---|---|---|---|
109.70 € | 1 | 4 Days | L-grip | ||
121.15 € | 1 | 4 Days | lockable L-grip |
Loading...
Basic information
| Main material | Stainless steel | Steel code | 1.4401 | D=diameter(mm) | 32 |
|---|---|---|---|---|---|
| H=Height(mm) | 18 | S=Max. wall thickness(mm) | 8 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
