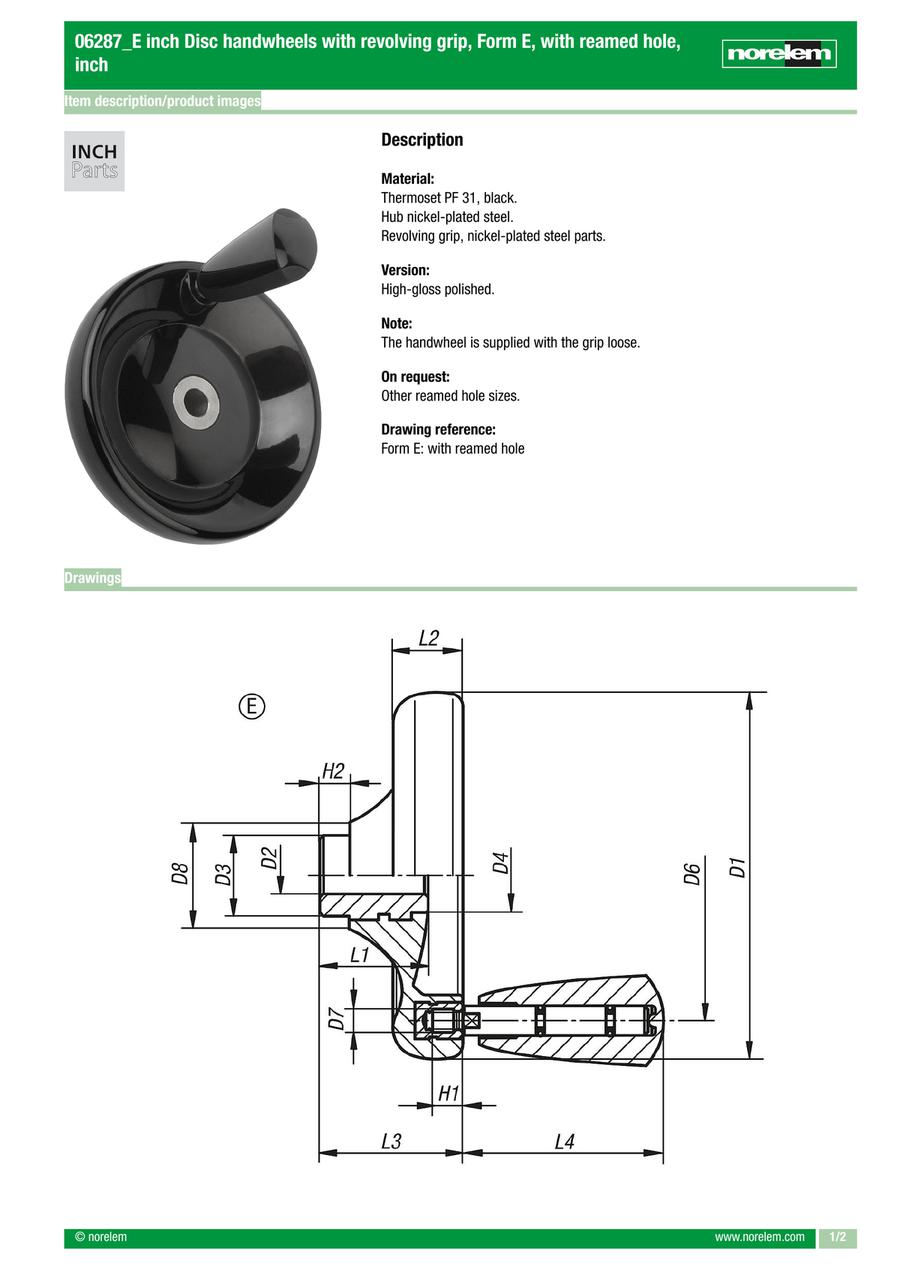

Disc handwheels with revolving grip, Form E, with reamed hole, inch (06287)
· Application sectors: machine, plant, equipment construction and measuring devices
· For opening, closing and operating valves in fittings, machine tools
· Form E: with reamed hole
· Hub, steel or stainless steel
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 06287-1100XCM |
| 06287-1125XCO |
| 06287-1140XCP |
| 06287-1160XCQ |
| 06287-1160XCR |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Outside diameter (Ø) | Size | D2=Fastening hole (mm) | D3 (mm) | D4 (mm) | D6 (mm) | D7 (mm) | D8 (mm) | L1 (mm) | D8 | H1 | L2 | L3=height | L4 | Weight in kg (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
38.46 € | 1 | 4 Days | 100 | 1 | 0.25 | 22 | 20 | 79 | M6 | 29 | 29.5 | 29 | 9 | 19 | 39 | 54.7 | 0.2490 | ||
48.15 € | 1 | 4 Days | 125 | 2 | 0.375 | 26 | 21 | 101 | M6 | 34 | 34 | 34 | 9 | 24 | 46 | 54.7 | 0.3983 | ||
55.48 € | 1 | 4 Days | 140 | 3 | 0.5 | 30 | 25 | 110 | M8 | 39 | 38.5 | 39 | 12 | 27 | 52 | 82.2 | 0.6406 | ||
71.73 € | 1 | 4 Days | 160 | 4 | 0.625 | 33 | 30 | 128 | M8 | 43 | 41.3 | 43 | 12 | 30.1 | 57 | 82.2 | 0.8437 | ||
71.73 € | 1 | 4 Days | 160 | 4 | 0.75 | 33 | 30 | 128 | M8 | 43 | 41.3 | 43 | 12 | 30.1 | 57 | 82.2 | 0.8108 |
Loading...
Basic information
| Main material | duroplast | Component material | duroplast | Steel parts material | steel |
|---|---|---|---|---|---|
| Form | E | Form-Type | with reamed hole | Grip | revolving grip |
| Form definition | with reamed hole | H2 | 8 | Item | Disc Handwheel |
| RoHS | yes | PL Edelstahl | no |
