Program Relay ZEN
[Features]
· ZEN, optimal for simple control, is now improved with new features.
[Space and man-hour saving wiring]
· Many features in a compact body (width 70 mm × height 90 mm).
· Relay, timer, counter, and time switch functions conveniently gathered together into one unit. Removes need to separately wire timer and relay, and drastically reduces wiring man-hours.
[Simple programming]
· Programming can be done with front LCD and 8 operation buttons.
· Also equipped with back light feature.
· Settings can be easily changed at the work site.
[Free expansion possible with 44 maximum I/O points]
· In the even of insufficient I/O points, up to 3 expansion I/O units can be added. Expansion I/O unit is slim at just 35 mm wide.
[Support software with simulation features]
· Simple ladder programming creation and saving monitor possible by computer.
· Simulation can be run on computer without connecting to the ZEN main body.
[Equipped with many other features]
· Memory cassette for easy program copying and saving.
· Analog input 2ch equipped (DC power source type only).
· Password feature for reliable security.
· UL/CSA standard.
· Can display 6 languages (Japanese, English, German, French, Spanish, Italian).
· Can display optional messages on screen with display feature.

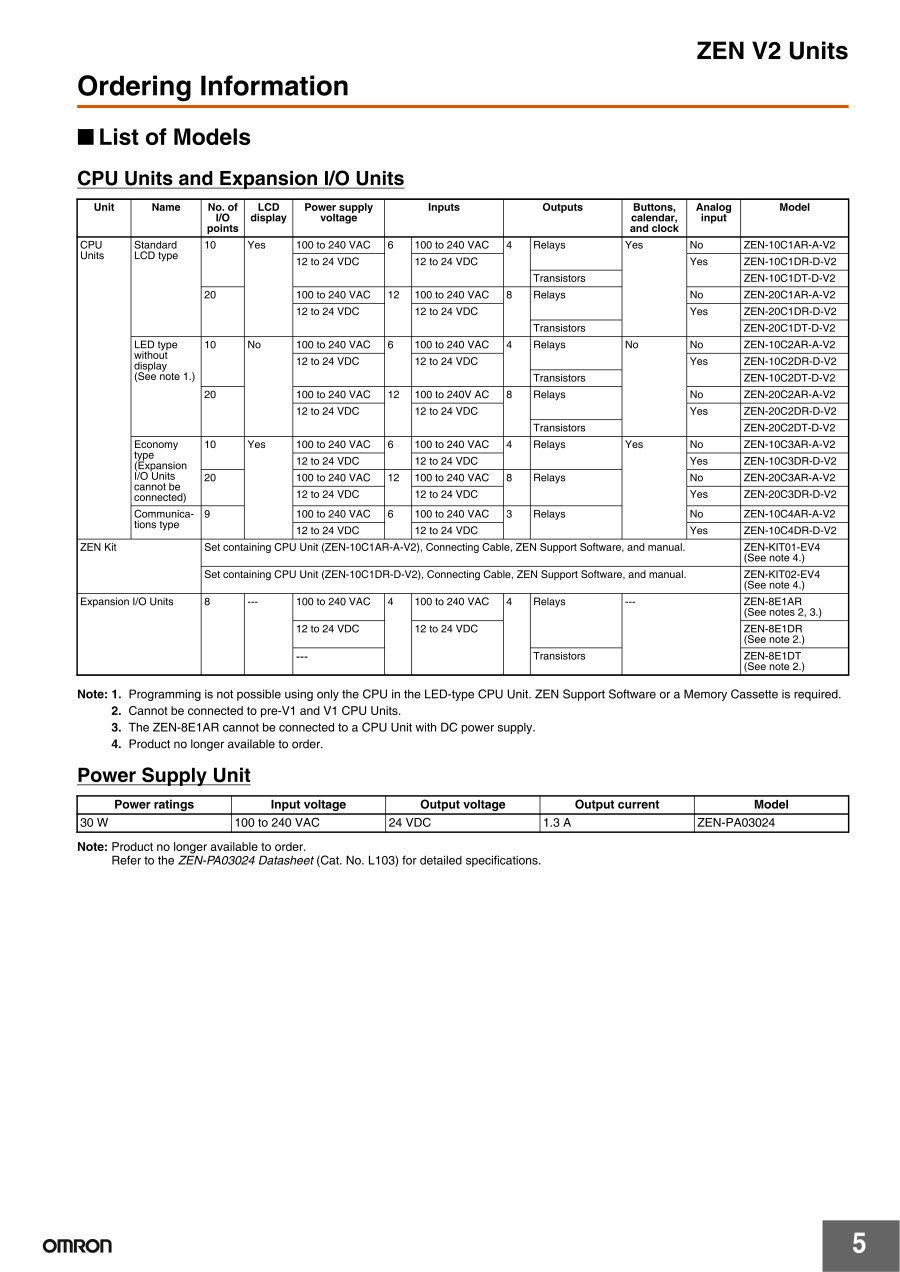

Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Dimension width (mm) | Classification | Number of I/Os | LCD | Power Supply Voltage | Output Format | |
|---|---|---|---|---|---|---|---|---|---|---|
439.25 € | 1 | 6 Days | 70 | Standard LCD type | 10 | Available | VAC 100–240 | Relay | ||
439.25 € | 1 | 6 Days | 70 | Standard LCD type | 10 | Available | VDC 12–24 | Relay | ||
413.47 € | 1 | 7 Days | 70 | Standard LCD type | 10 | Available | VDC 12–24 | Transistor | ||
372.40 € | 1 | 7 Days | 70 | LED type | 10 | NA | VAC 100–240 | Relay | ||
372.40 € | 1 | 6 Days | 70 | LED type | 10 | NA | VDC 12–24 | Relay | ||
397.83 € | 1 | 7 Days | 70 | Economy Type | 10 | Available | VAC 100–240 | Relay | ||
397.83 € | 1 | 7 Days | 70 | Economy Type | 10 | Available | VDC 12–24 | Relay | ||
549.38 € | 1 | 7 Days | 122.5 | Standard LCD type | 20 | Available | VAC 100–240 | Relay | ||
549.38 € | 1 | 7 Days | 122.5 | Standard LCD type | 20 | Available | VDC 12–24 | Relay | ||
495.13 € | 1 | 7 Days | 122.5 | Standard LCD type | 20 | Available | VDC 12–24 | Transistor | ||
495.13 € | 1 | 7 Days | 122.5 | LED type | 20 | NA | VAC 100–240 | Relay | ||
495.13 € | 1 | 7 Days | 122.5 | LED type | 20 | NA | VDC 12–24 | Relay | ||
439.25 € | 1 | 7 Days | 122.5 | LED type | 20 | NA | VDC 12–24 | Transistor | ||
495.13 € | 1 | 7 Days | 122.5 | Economy Type | 20 | Available | VAC 100–240 | Relay | ||
495.13 € | 1 | 7 Days | 122.5 | Economy Type | 20 | Available | VDC 12–24 | Relay |
Loading...
Basic information
| Application | Program relay | Terminal shape | Screw terminal | Dimension height(mm) | 90 |
|---|---|---|---|---|---|
| Dimension depth(mm) | 56 | Type | CPU unit |
Configure
Basic Attributes
-
Dimension width(mm)
-
Classification
- Economy Type
- LED type
- Standard LCD type
-
Number of I/Os
- 10
- 20
-
LCD
- Available
- NA
-
Power Supply Voltage
- VDC 12–24
- VAC 100–240
-
Output Format
- Relay
- Transistor
Filter by standard shipping days
-
- All
- 6 Days or Less
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
