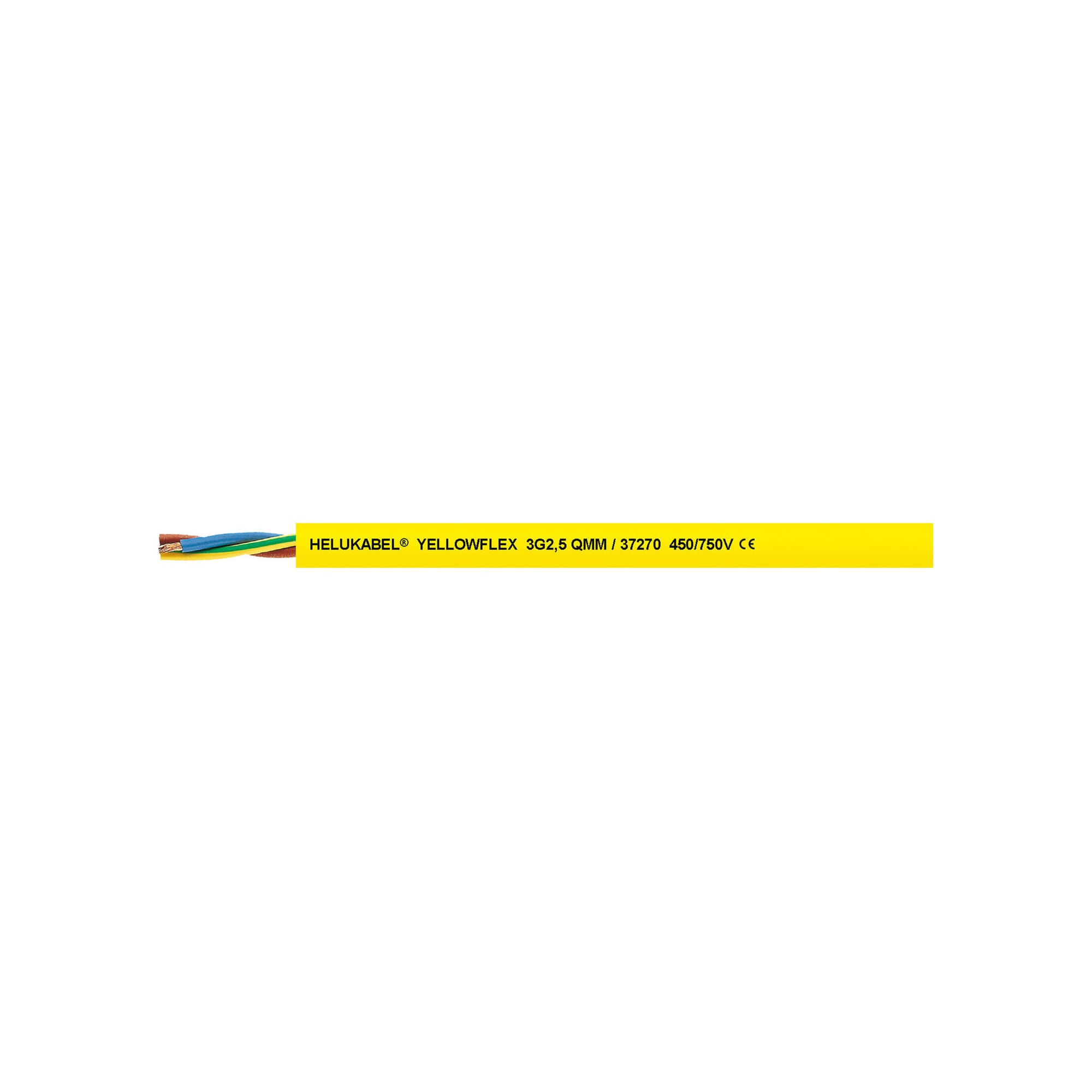

Allweather / Rubber & Lift Hoist Cable YELLOWFLEX
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 37259/1000 |
| 37260/1000 |
| 37260/500 |
| 37264/1000 |
| 37264/500 |
| 37272/1000 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Overall Length (m) | Finished outer diameter (mm) | Number of cores x nominal cross section (mm2) | Weight approx. (kg / km) | Cop | |
|---|---|---|---|---|---|---|---|---|---|---|---|
1,868.01 € | 1 | 5 Days | 10 | 1000 | min 7.7 - max 10.0 | 2 x 1 | 98 | 19 | |||
2,270.50 € | 1 | 5 Days | 10 | 1000 | min 8.3 - max 10.7 | 3 G 1 | 131 | 29 | |||
1,135.24 € | 1 | 5 Days | 10 | 500 | min 8.3 - max 10.7 | 3 G 1 | 131 | 29 | |||
2,840.86 € | 1 | 5 Days | 10 | 1000 | min 9.2 - max 11.9 | 3 G 1.5 | 165 | 43 | |||
1,420.44 € | 1 | 5 Days | 10 | 500 | min 9.2 - max 11.9 | 3 G 1.5 | 165 | 43 | |||
6,647.88 € | 1 | 5 Days | 10 | 1000 | min 13.3 - max 17.0 | 5 G 2.5 | 347 | 120 |
Loading...
Basic information
| Rated voltage U(kV) | 0.75, with protected and fixed installation 1.0 | Rated voltage Uo(kV) | 0.45, with solid and protected installation 0.6 | Perm. External cable temperature during installation / handling | -25°C to +60°C |
|---|---|---|---|---|---|
| Perm. External cable temperature after mounting without vibration | -30°C to +60°C | Test voltage(kV) | 2.5 |
Configure
Basic Attributes
-
Overall Length(m)
-
Finished outer diameter(mm)
-
Number of cores x nominal cross section(mm2)
-
Weight approx.(kg / km)
-
Cop
Filter by standard shipping days
-
- All
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
