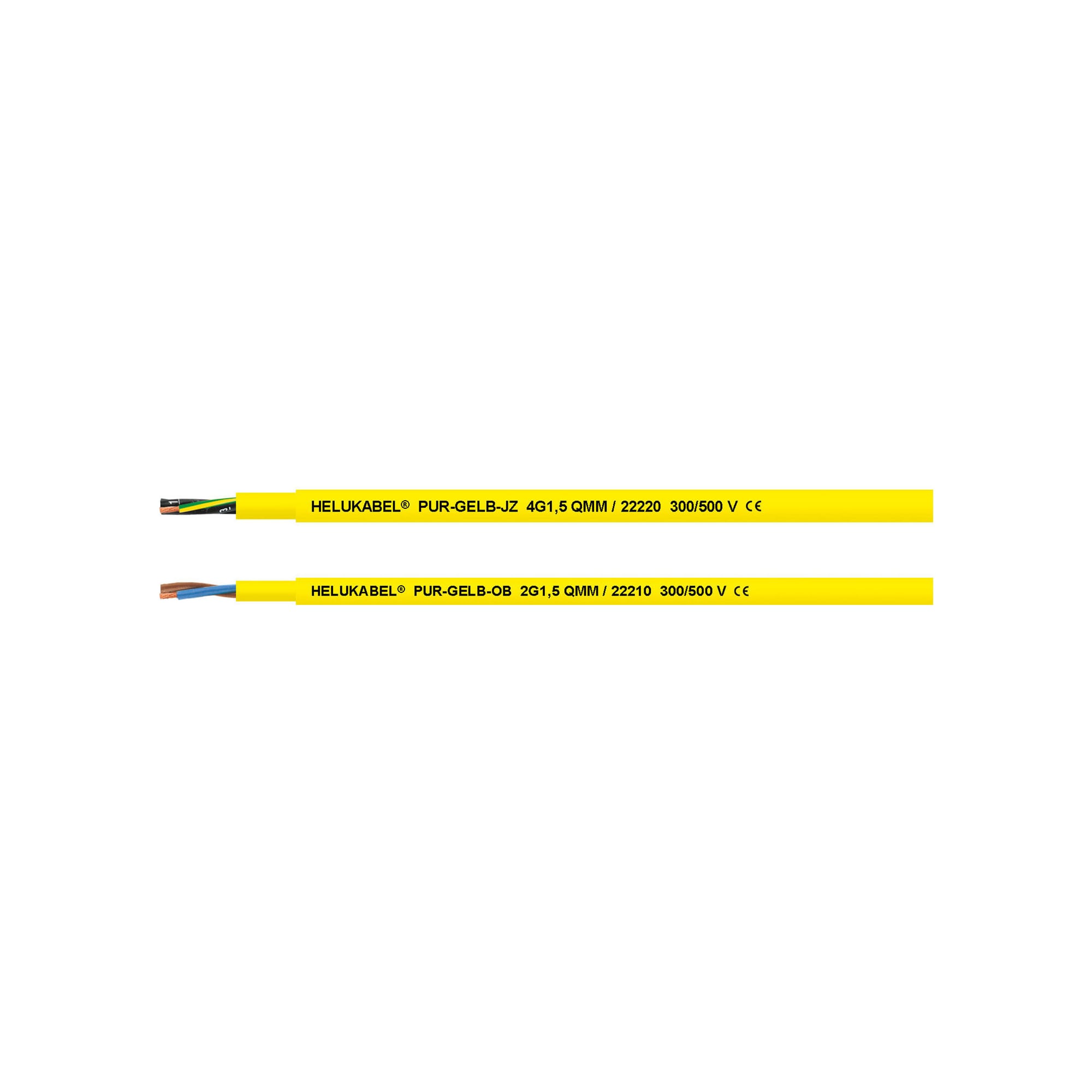

Control Cable PUR,TMPU UV resistant PUR GELB JB
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Overall Length (m) | Number Of Cores (Core) | Finished outer diameter (mm) | Coat Material | Conductor Nominal cross-section | Perm. External cable temperature during installation / handling | Perm. External cable temperature after mounting without vibration | Conductor class | Stranding | protective conductor | oil resistance | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1,830.45 € | 1 | 5 Days | 10 | 1000 | 2 | 6.4 | PUR (Polyurethan) | 0.75 | -15°C to +80°C | -40°C to +80°C | Kl.5 = fine wired | - | no | - | |||
915.22 € | 1 | 5 Days | 10 | 500 | 2 | 6.4 | PUR (Polyurethan) | 0.75 | -15°C to +80°C | -40°C to +80°C | Kl.5 = fine wired | - | no | - | |||
2,009.49 € | 1 | 5 Days | 10 | 1000 | 3 | 6.8 | TMPU | 0.75 | - | - | fine wired | Core | yes | yes | |||
1,004.74 € | 1 | 5 Days | 10 | 500 | 3 | 6.8 | TMPU | 0.75 | - | - | fine wired | Core | yes | yes | |||
2,035.70 € | 1 | 5 Days | 10 | 1000 | 2 | 7.2 | TMPU | 1 | - | - | fine wired | Core | no | yes | |||
1,017.85 € | 1 | 5 Days | 10 | 500 | 2 | 7.2 | TMPU | 1 | - | - | fine wired | Core | no | yes | |||
2,550.28 € | 1 | 5 Days | 10 | 1000 | 3 | 7.6 | TMPU | 1 | - | - | fine wired | Core | yes | yes | |||
1,275.14 € | 1 | 5 Days | 10 | 500 | 3 | 7.6 | TMPU | 1 | - | - | fine wired | Core | yes | yes | |||
2,356.94 € | 1 | 5 Days | 10 | 1000 | 2 | 7.8 | TMPU | 1.5 | - | - | fine wired | Core | no | yes | |||
1,178.46 € | 1 | 5 Days | 10 | 500 | 2 | 7.8 | TMPU | 1.5 | - | - | fine wired | Core | no | yes | |||
2,922.30 € | 1 | 5 Days | 10 | 1000 | 3 | 8.3 | TMPU | 1.5 | - | - | fine wired | Core | yes | yes | |||
1,461.14 € | 1 | 5 Days | 10 | 500 | 3 | 8.3 | TMPU | 1.5 | - | - | fine wired | Core | yes | yes | |||
4,336.12 € | 1 | 5 Days | 10 | 1000 | 5 | 9.7 | TMPU | 1.5 | - | - | fine wired | Core | yes | yes | |||
2,168.07 € | 1 | 5 Days | 10 | 500 | 5 | 9.7 | TMPU | 1.5 | - | - | fine wired | Core | yes | yes | |||
3,604.39 € | 1 | 5 Days | 10 | 1000 | 2 | 9.2 | TMPU | 2.5 | - | - | fine wired | Core | no | yes | |||
1,802.19 € | 1 | 5 Days | 10 | 500 | 2 | 9.2 | TMPU | 2.5 | - | - | fine wired | Core | no | yes | |||
4,306.19 € | 1 | 5 Days | 10 | 1000 | 3 | 9.6 | TMPU | 2.5 | - | - | fine wired | Core | yes | yes | |||
2,153.10 € | 1 | 5 Days | 10 | 500 | 3 | 9.6 | TMPU | 2.5 | - | - | fine wired | Core | yes | yes | |||
5,747.73 € | 1 | 5 Days | 10 | 1000 | 4 | 11 | TMPU | 2.5 | - | - | fine wired | Core | yes | yes | |||
2,873.86 € | 1 | 5 Days | 10 | 500 | 4 | 11 | TMPU | 2.5 | - | - | fine wired | Core | yes | yes | |||
6,845.69 € | 1 | 5 Days | 10 | 1000 | 5 | 12 | TMPU | 2.5 | - | - | fine wired | Core | yes | yes | |||
3,422.85 € | 1 | 5 Days | 10 | 500 | 5 | 12 | TMPU | 2.5 | - | - | fine wired | Core | yes | yes | |||
3,987.36 € | 1 | 5 Days | 10 | 1000 | 4 | 9 | TMPU | 1.5 | - | - | fine wired | Core | yes | yes | |||
1,993.68 € | 1 | 5 Days | 10 | 500 | 4 | 9 | TMPU | 1.5 | - | - | fine wired | Core | yes | yes |
Loading...
Basic information
| Sheath (outer coating) color | Yellow | Core insulation | PVC | Rated voltage U(kV) | 0.5 |
|---|---|---|---|---|---|
| Core identification | Colour | Halogen-free according to EN 50267-2-3 | no |
Configure
Basic Attributes
-
Overall Length(m)
-
Number Of Cores(Core)
-
Finished outer diameter(mm)
-
Coat Material
-
Conductor Nominal cross-section
-
Perm. External cable temperature during installation / handling
- -15°C to +80°C
-
Perm. External cable temperature after mounting without vibration
- -40°C to +80°C
-
Conductor class
- Kl.5 = fine wired
- fine wired
-
Stranding
- Core
-
protective conductor
- no
- yes
-
oil resistance
- yes
Filter by standard shipping days
-
- All
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
