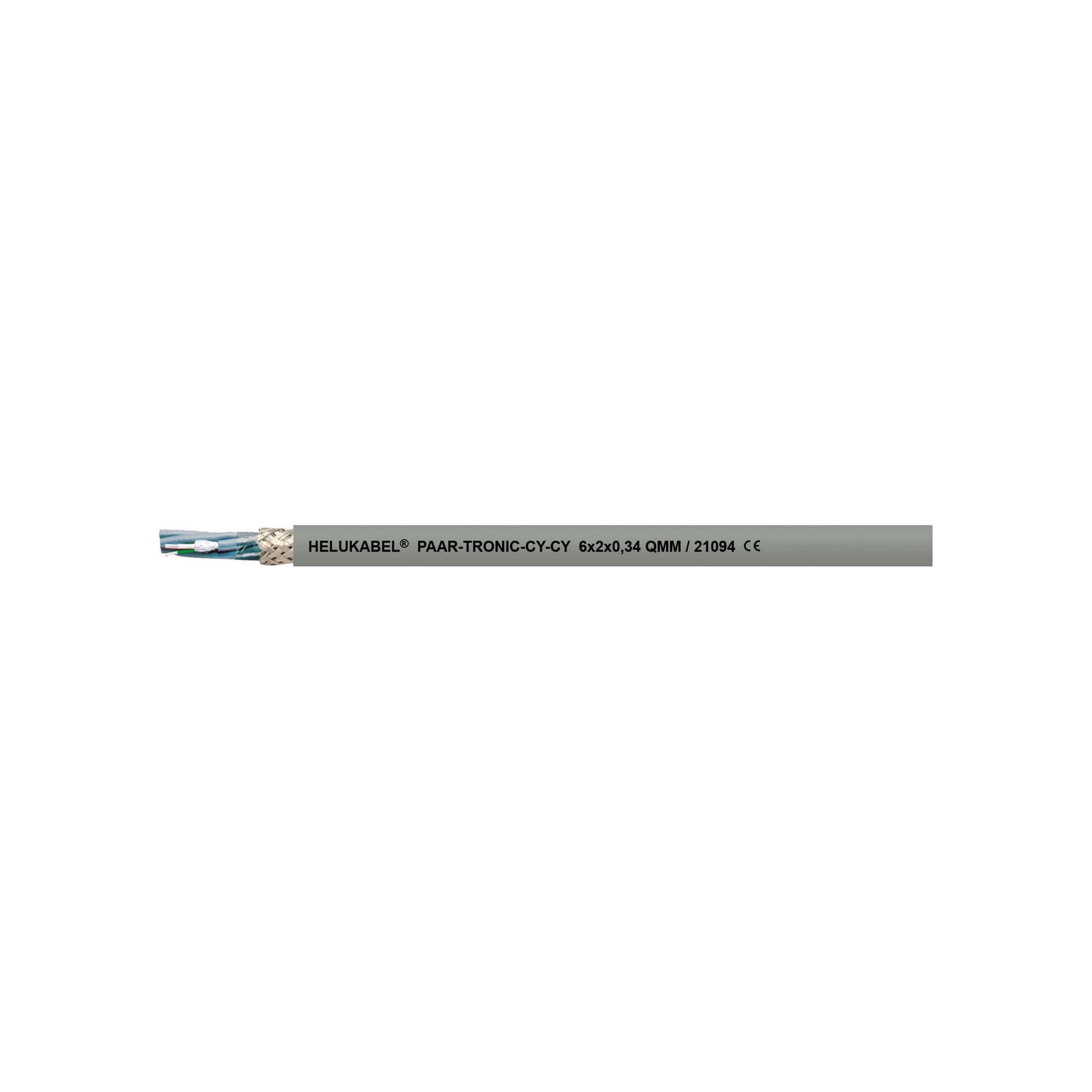

Data & Computer Cables PVC screened Pair TRONIC CY CY

Data & Computer Cables PVC screened Pair TRONIC CY CY

HELUKABEL

HELUKABEL

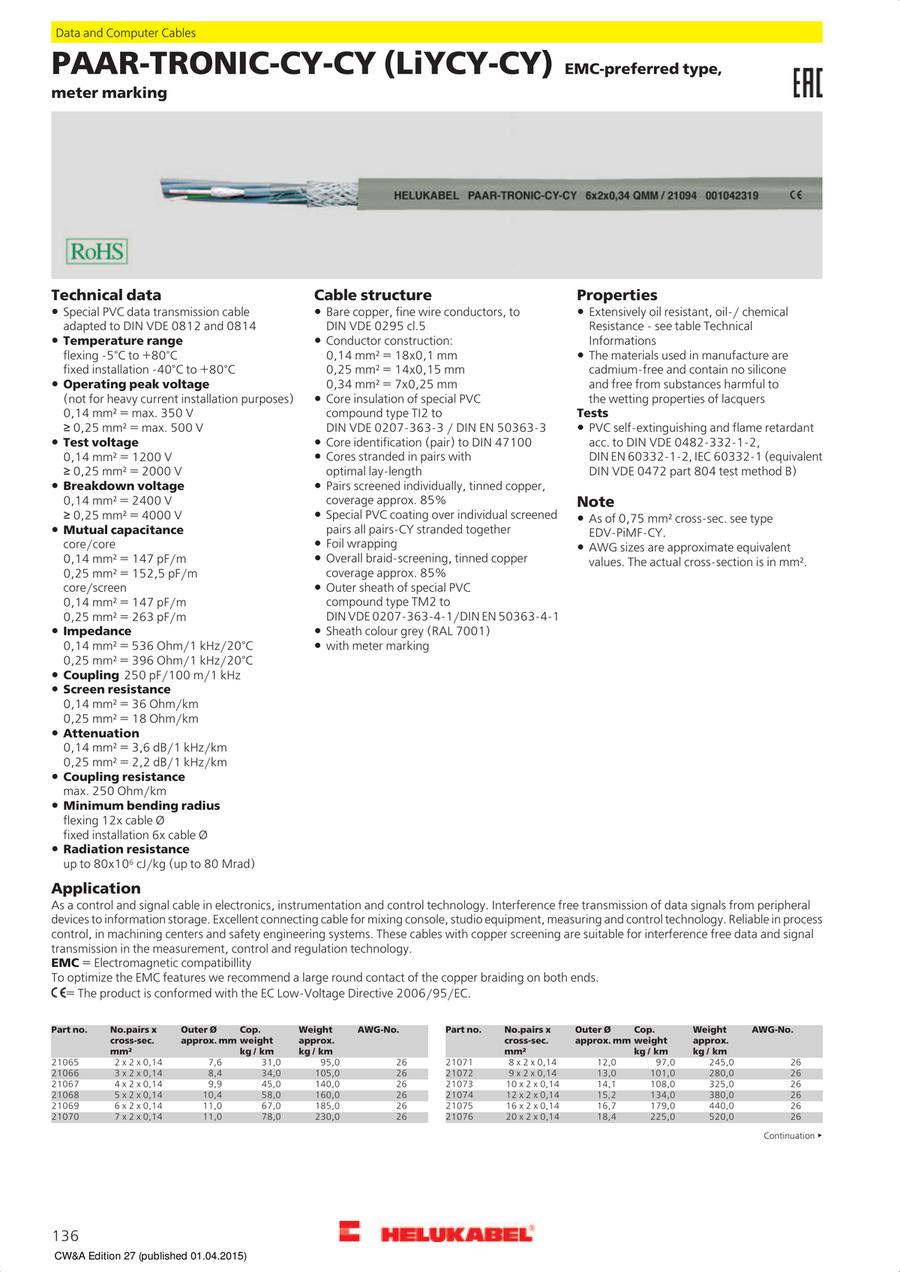

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.


Data to be displayed
30
45
60
  1. 1
Part Number
21065/1000
21065/500
21066/1000
21066/500
21067/1000
21068/1000
21068/500
21074/1000
21074/500
21077/1000
21077/500
21078/1000
21078/500
21079/1000
21079/500
21080/1000
21080/500
21081/1000
21081/500
21083/1000
21083/500
21084/500
21085/1000
21086/1000
21091/1000
21091/500
21093/1000
21093/500
21101/1000
21101/500
21102/1000
21102/500
21103/1000
21103/500
21104/1000
21104/500
21105/1000
Part NumberRelated to
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSOverall Length
(m) 		Finished outer diameter
(mm) 		Conductor Nominal cross-section Number of cores Cop
(kg / km) 		Weight approx.
(kg / km) 		Number of couples x cross section
(mm2)

Data sheet

2,313.63 €

1 5 Days 1010007.60.14431952 x 2 x 0.14

Data sheet

1,156.81 €

1 5 Days 105007.60.14431952 x 2 x 0.14

Data sheet

3,551.59 €

1 5 Days 1010008.40.146341053 x 2 x 0.14

Data sheet

1,775.80 €

1 5 Days 105008.40.146341053 x 2 x 0.14

Data sheet

3,965.05 €

1 5 Days 1010009.90.148451404 x 2 x 0.14

Data sheet

5,319.02 €

1 5 Days 10100010.40.1410581605 x 2 x 0.14

Data sheet

2,659.51 €

1 5 Days 1050010.40.1410581605 x 2 x 0.14

Data sheet

10,290.57 €

1 5 Days 10100015.20.142413438012 x 2 x 0.14

Data sheet

5,145.29 €

1 5 Days 1050015.20.142413438012 x 2 x 0.14

Data sheet

2,978.07 €

1 5 Days 1010008.60.254621252 x 2 x 0.25

Data sheet

1,489.03 €

1 5 Days 105008.60.254621252 x 2 x 0.25

Data sheet

4,626.13 €

1 5 Days 1010009.30.25678.21403 x 2 x 0.25

Data sheet

2,313.07 €

1 5 Days 105009.30.25678.21403 x 2 x 0.25

Data sheet

6,371.82 €

1 5 Days 10100010.40.258124.12054 x 2 x 0.25

Data sheet

3,185.90 €

1 5 Days 1050010.40.258124.12054 x 2 x 0.25

Data sheet

6,334.44 €

1 5 Days 10100012.10.2510137.62305 x 2 x 0.25

Data sheet

3,167.22 €

1 5 Days 1050012.10.2510137.62305 x 2 x 0.25

Data sheet

7,844.95 €

1 5 Days 10100013.90.2512148.12756 x 2 x 0.25

Data sheet

3,922.48 €

1 5 Days 1050013.90.2512148.12756 x 2 x 0.25

Data sheet

10,634.50 €

1 5 Days 10100014.20.2516178.73308 x 2 x 0.25

Data sheet

5,317.26 €

1 5 Days 1050014.20.2516178.73308 x 2 x 0.25

Data sheet

6,303.49 €

1 5 Days 1050015.90.2520213.942010 x 2 x 0.25

Data sheet

14,779.52 €

1 5 Days 101000170.2524238.346512 x 2 x 0.25

Data sheet

18,742.33 €

1 5 Days 10100019.80.2532291.459016 x 2 x 0.25

Data sheet

3,616.85 €

1 5 Days 1010009.50.34473.11392 x 2 x 0.34

Data sheet

1,808.42 €

1 5 Days 105009.50.34473.11392 x 2 x 0.34

Data sheet

6,653.47 €

1 5 Days 10100011.30.348137.22134 x 2 x 0.34

Data sheet

3,326.74 €

1 5 Days 1050011.30.348137.22134 x 2 x 0.34

Data sheet

4,322.74 €

1 5 Days 10100010.40.5483.11432 x 2 x 0.5

Data sheet

2,161.37 €

1 5 Days 1050010.40.5483.11432 x 2 x 0.5

Data sheet

6,506.79 €

1 5 Days 10100011.70.56106.41793 x 2 x 0.5

Data sheet

3,253.39 €

1 5 Days 1050011.70.56106.41793 x 2 x 0.5

Data sheet

8,234.99 €

1 5 Days 10100013.10.581582414 x 2 x 0.5

Data sheet

4,117.50 €

1 5 Days 1050013.10.581582414 x 2 x 0.5

Data sheet

10,414.57 €

1 5 Days 10100015.60.512201.43196 x 2 x 0.5

Data sheet

5,207.29 €

1 5 Days 1050015.60.512201.43196 x 2 x 0.5

Data sheet

15,767.62 €

1 5 Days 10100016.40.516311.54418 x 2 x 0.5

Loading...

  1. 1

Basic information

Sheath (outer coating) color Gray Core insulation Polyvinylchlorid (PVC) Sheath material Polyvinylchlorid (PVC)
Conductor material Copper, blank Perm. External cable temperature during installation / handling - 5°C to +80°C Perm. External cable temperature after mounting without vibration -30°C to +80°C
Conductor class Kl.5 = stranded Stranding Pairs Core identification Colour
Test voltage(V) 0,14 mm² = 1200 V, >= 0,25 mm² = 2000 V coupling resistance max. 250 Ohm/km radiation resistance up to 80 Mrad
Screen over stranding element Weave Screen over stranding Weave flame retardant according to EN 60332-1-2
Low smoke according to EN61034-2 no

Configure

Clear all

37Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.
The part number is completed.

Basic Attributes

  • Overall Length(m)

    • 500
    • 1000

    Clear

  • Finished outer diameter(mm)

    • 7.6
    • 8.4
    • 8.6
    • 9.3
    • 9.5
    • 9.9
    • 10.4
    • 11.3
    • 11.7
    • 12.1
    • 13.1
    • 13.9
    • 14.2
    • 15.2
    • 15.6
    • 15.9
    • 16.4
    • 17
    • 19.8

    Clear

  • Conductor Nominal cross-section

    • 0.14
    • 0.25
    • 0.34
    • 0.5

    Clear

  • Number of cores

    • 4
    • 6
    • 8
    • 10
    • 12
    • 16
    • 20
    • 24
    • 32

    Clear

  • Cop(kg / km)

    • 31
    • 34
    • 45
    • 58
    • 62
    • 73.1
    • 78.2
    • 83.1
    • 106.4
    • 124.1
    • 134
    • 137.2
    • 137.6
    • 148.1
    • 158
    • 178.7
    • 201.4
    • 213.9
    • 238.3
    • 291.4
    • 311.5

    Clear

  • Weight approx.(kg / km)

    • 95
    • 105
    • 125
    • 139
    • 140
    • 143
    • 160
    • 179
    • 205
    • 213
    • 230
    • 241
    • 275
    • 319
    • 330
    • 380
    • 420
    • 441
    • 465
    • 590

    Clear

  • Number of couples x cross section(mm2)

    • 2 x 2 x 0.14
    • 2 x 2 x 0.25
    • 2 x 2 x 0.34
    • 2 x 2 x 0.5
    • 3 x 2 x 0.14
    • 3 x 2 x 0.25
    • 3 x 2 x 0.5
    • 4 x 2 x 0.14
    • 4 x 2 x 0.25
    • 4 x 2 x 0.34
    • 4 x 2 x 0.5
    • 5 x 2 x 0.14
    • 5 x 2 x 0.25
    • 6 x 2 x 0.25
    • 6 x 2 x 0.5
    • 8 x 2 x 0.25
    • 8 x 2 x 0.5
    • 10 x 2 x 0.25
    • 12 x 2 x 0.14
    • 12 x 2 x 0.25
    • 16 x 2 x 0.25

    Clear
