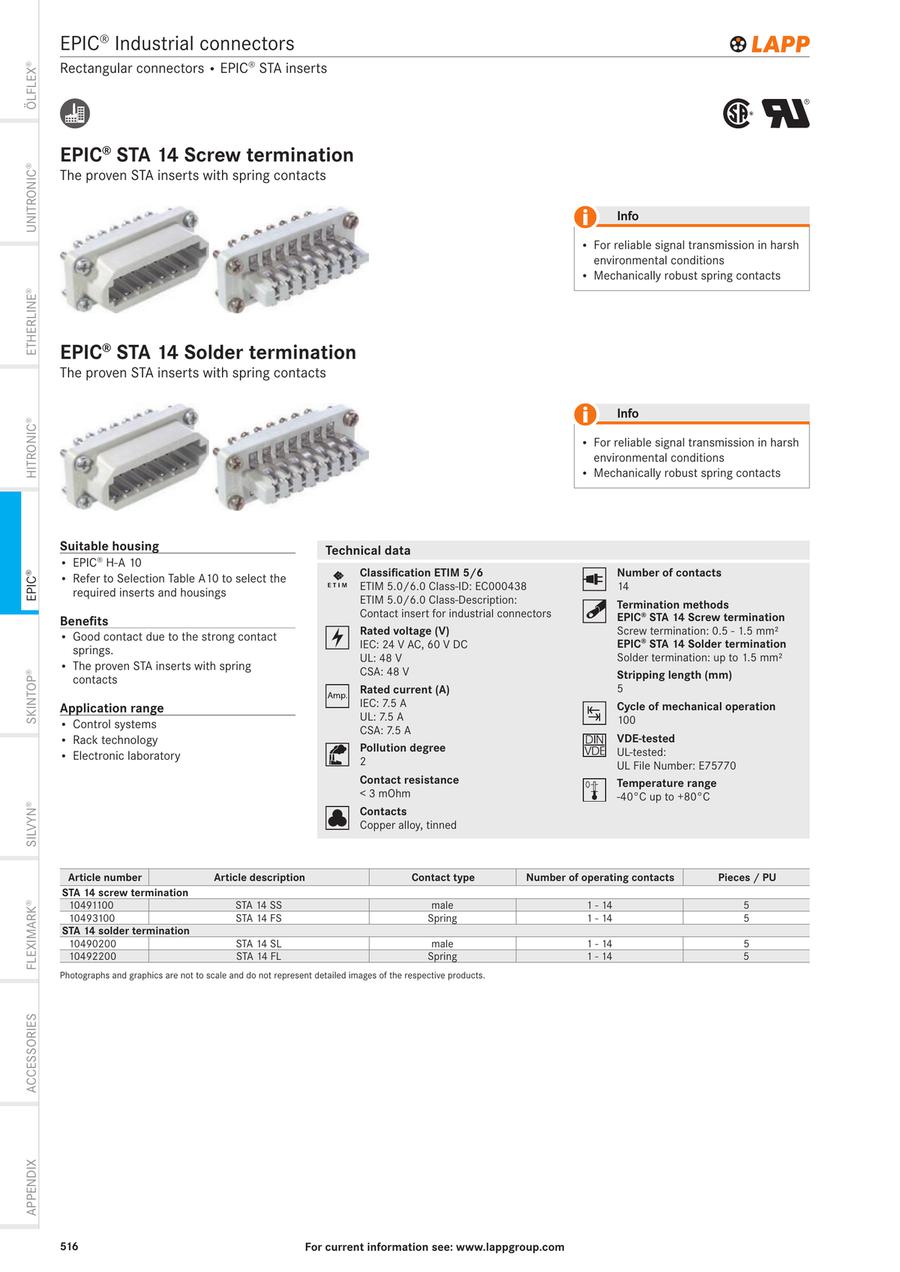

EPIC® STA 14 Solder termination
- Volume Discount
The connector insert for solder termination with an internal resistance of less than 3 milliohms is the perfect choice for control cabinets and electronic laboratories.The proven STA inserts with spring contactsFor reliable signal transmission in harsh environmental conditionsMechanically robust spring contacts
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Basic information
| Rated current In(A) | 7,5 | Rated voltage(V) | 24 | Type of electric connection | Soldering connection |
|---|---|---|---|---|---|
| Ambient temperature | 125 | Connectable conductor cross section | 1.5 | Number of poles | 14 |
| Over voltage category | III | Pollution degree | 2 | Inflammability class of insulation material acc. with UL94 | V0 |
| Material connector of connector insert | Thermoplastic | Material contact | Brass | Material of contact insert | Plastic |
| Material of contact surface | Tin | Contact insert without contacts | False | Modular version | True |
| With protective conductor | True | With wire protection | True |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
