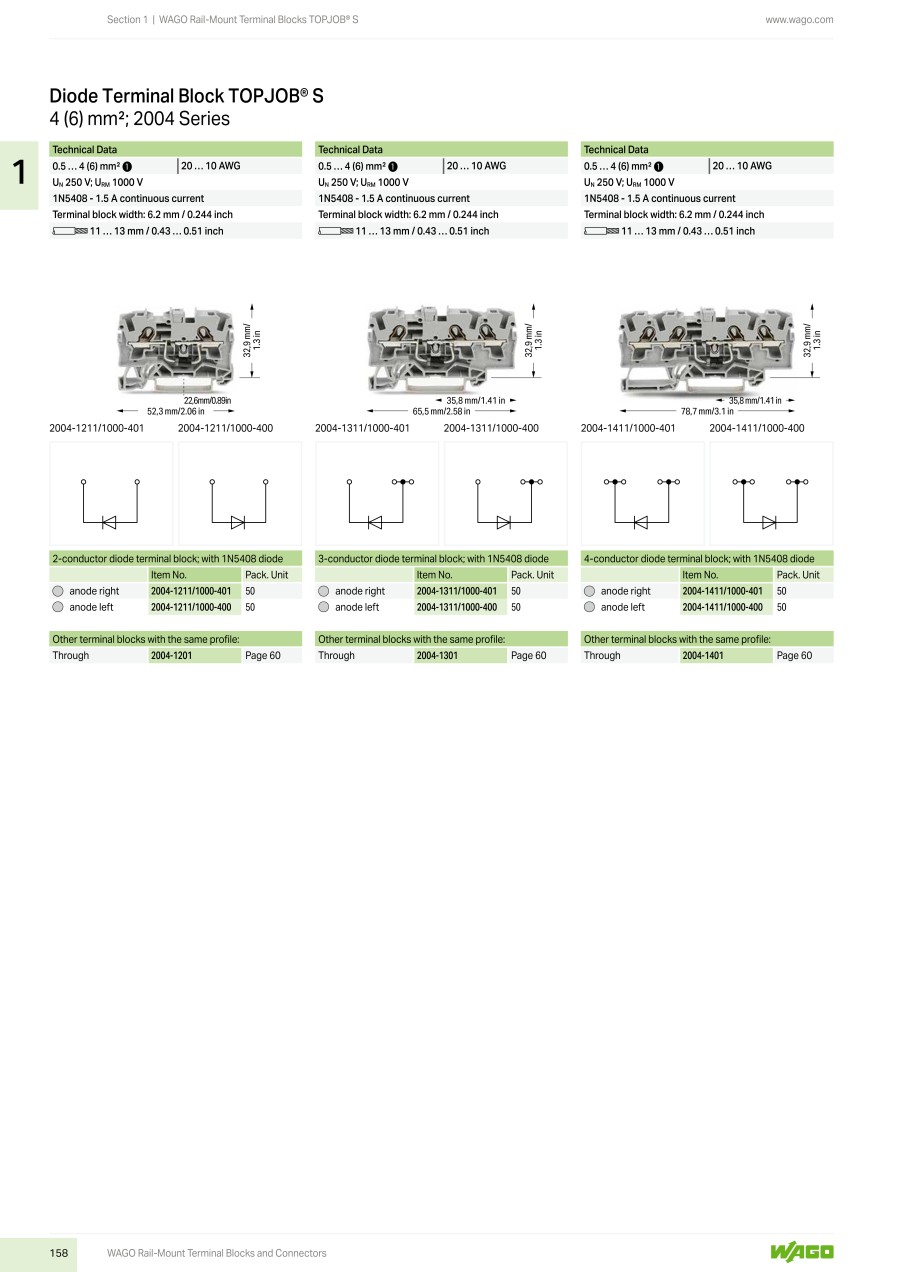

3-conductor diode terminal 2004【50 Pieces Per Package】
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 2004-1311/1000-400 |
| 2004-1311/1000-401 |
| Part Number | Related to |
Standard Unit Price
| Number of pc(s). included in pkg. | Minimum order quantity | Volume Discount | |
|---|---|---|---|---|---|---|
290.20 € | 50 Pieces Per Package | 1 pack | 25 Days | |||
290.20 € | 50 Pieces Per Package | 1 pack | 25 Days |
Loading...
Basic information
| Number of pins(Pole) | 1 | Product size (height)(mm) | 32.90 | Product size (length)(mm) | 6.20 |
|---|---|---|---|---|---|
| Product size (width)(mm) | 6.20 | Clamp width(mm) | 6.20 | Stripping length (max.)(mm) | 11 |
| Nominal current(A) | 1.5 | Nominal voltage(V) | 250 | Min. cross section (flexible)(mm²) | 0.50 |
| Max. cross section (flexible)(mm²) | 6 | Min. cross section (inflexible)(mm²) | 0.5 | Max. cross section (inflexible)(mm²) | 4 |
| AWG (min.) | 20 | AWG max. | 10 | No. of rows | 1 |
| Pins per row | 3 | Weight(g) | 9.67 | Colour | Grey |
| Connector type (category) | Diode terminal | Configuration | L | Connection (components) | Pull spring |
| Connector features | + 1 diode | Industrial goods | Yes |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
