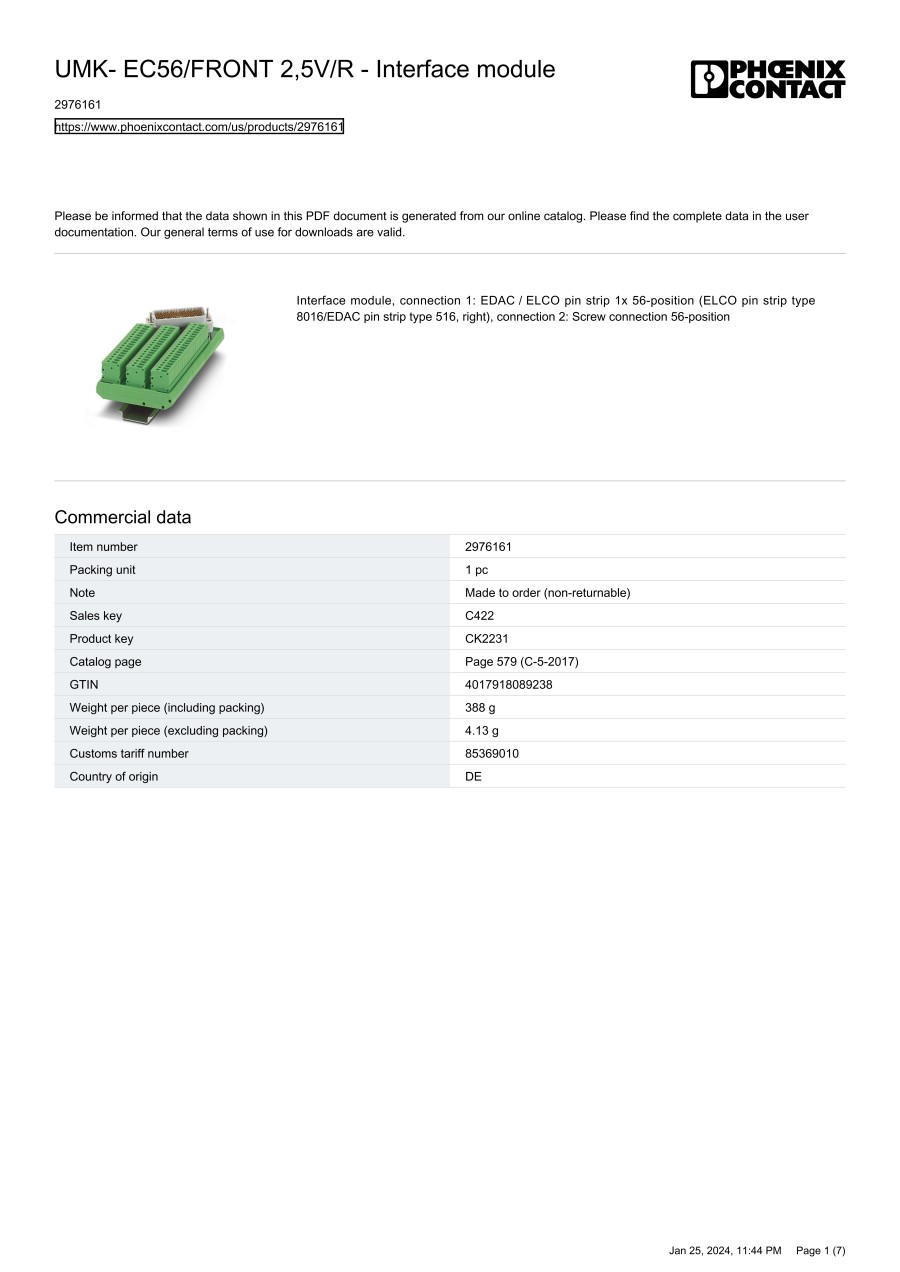

Interface module UMK- EC56 / FRONT
Product Details:
Manufacturer part number: 2976161
Brand: PHOENIX CONTACT
Price: 250.70 €
Delivery time: 61 Days
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
2976161
Basic information
| Connection (components) | Screws | Total number of pins(Pole) | 56 | Max. cross section (flexible)(mm²) | 1.5 |
|---|---|---|---|---|---|
| Min. cross section (flexible)(mm²) | 0.2 | Max. cross section (inflexible)(mm²) | 2.5 | Min. cross section (inflexible)(mm²) | 0.2 |
| Max. temperature(°C) | +50 | Min. temperature(°C) | -20 | Stripping length (max.)(mm) | 9 |
| Connector (control) | ELCO connector | Suitable for | ELCO connector | Series (Phoenix transfer modules) | Varioface-UMK-EC |
| Transfer module type (category) | Transfer module | Transfer module features | Any orientation |
This page is Interface module UMK- EC56 / FRONT, part number 2976161.
You can find the detail information about specifications and dimensions on part number 2976161.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
