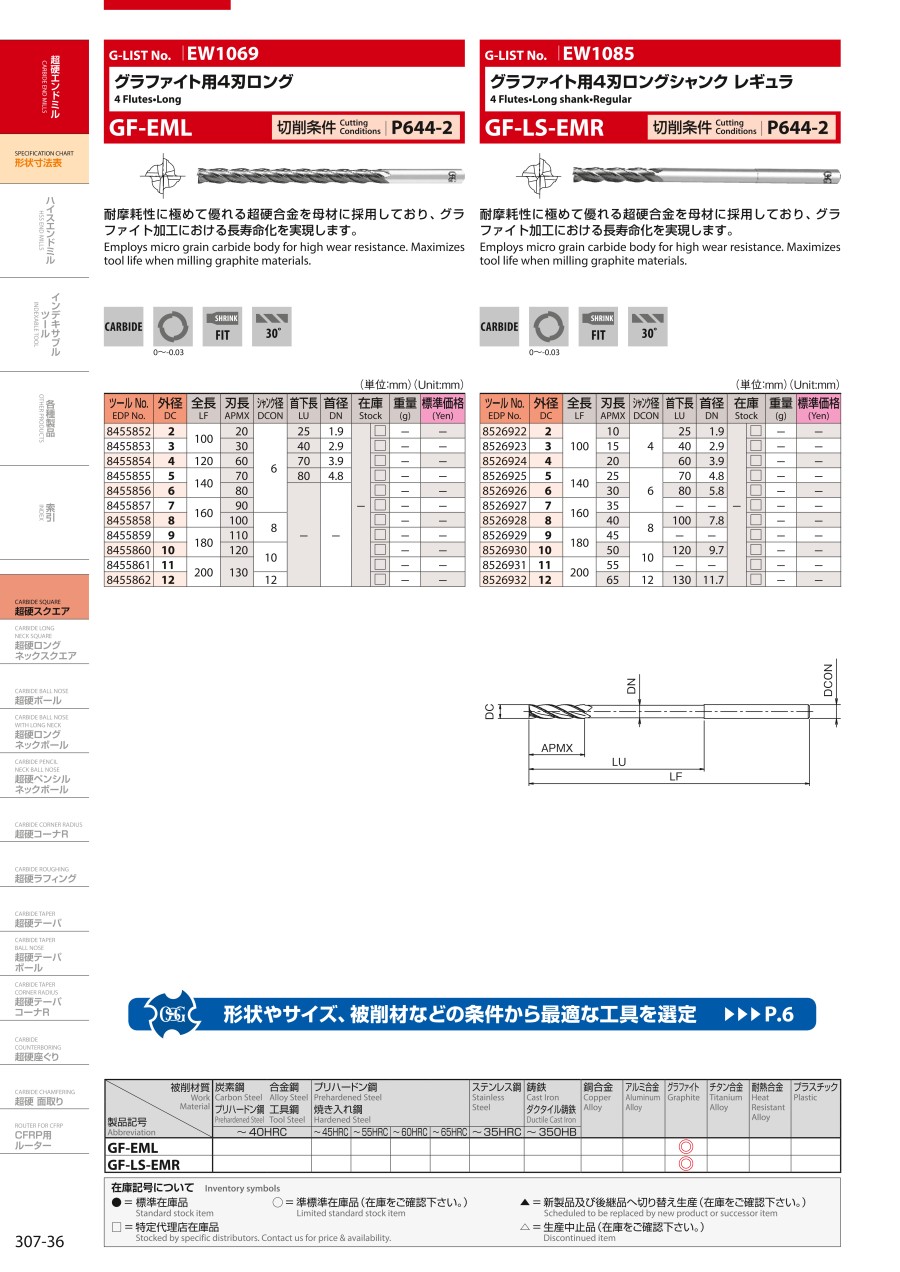

4-Flute Long Shank for Graphite, Regular Type, GF-LS-EMR
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| GF-LS-EMR-2 |
| GF-LS-EMR-3 |
| GF-LS-EMR-4 |
| GF-LS-EMR-5 |
| GF-LS-EMR-6 |
| GF-LS-EMR-7 |
| GF-LS-EMR-8 |
| GF-LS-EMR-9 |
| GF-LS-EMR-10 |
| GF-LS-EMR-11 |
| GF-LS-EMR-12 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Blade diameter (D) (φ) | Blade length (ℓ) (mm) | Shank diameter (d) (mm) | Overall Length (L) (mm) | Underneck length (ℓ1) (mm) | Tool No. | Neck diameter (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
114.56 € | 1 | 6 Days | 2 | 10 | 4 | 100 | 25 | 8526922 | 1.9 | ||
114.56 € | 1 | 6 Days | 3 | 15 | 4 | 100 | 40 | 8526923 | 2.9 | ||
124.87 € | 1 | 6 Days | 4 | 20 | 4 | 100 | 60 | 8526924 | 3.9 | ||
135.16 € | 1 | 6 Days | 5 | 25 | 6 | 140 | 70 | 8526925 | 4.8 | ||
141.18 € | 1 | 6 Days | 6 | 30 | 6 | 140 | 80 | 8526926 | 5.8 | ||
152.34 € | 1 | 6 Days | 7 | 35 | 6 | 160 | - | 8526927 | - | ||
176.36 € | 1 | 6 Days | 8 | 40 | 8 | 160 | 100 | 8526928 | 7.8 | ||
195.26 € | 1 | 6 Days | 9 | 45 | 8 | 180 | - | 8526929 | - | ||
228.73 € | 1 | 6 Days | 10 | 50 | 10 | 180 | 120 | 8526930 | 9.7 | ||
254.48 € | 1 | 6 Days | 11 | 55 | 10 | 200 | - | 8526931 | - | ||
292.25 € | 1 | 6 Days | 12 | 65 | 12 | 200 | 130 | 8526932 | 11.7 |
Loading...
Basic information
| work material | Graphite | Number of flutes(sheet) | 4 | Type | Square |
|---|---|---|---|---|---|
| Coating | Non-Coated | Machining Application | Flat Surface / Side Surface / Groove / Inclined Cutting | Blade tip shape | With Lead |
| Torsion Angle (θ) | Standard Helix (30 to 40°) | Blade diameter tolerance(mm) | 0～-0.03 |
Configure
Basic Attributes
-
Blade diameter (D)(φ)
-
Blade length (ℓ)(mm)
-
Shank diameter (d)(mm)
-
Overall Length (L)(mm)
-
Underneck length (ℓ1)(mm)
-
Tool No.
-
Type
- GF-LS-EMR
Filter by standard shipping days
-
- All
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
