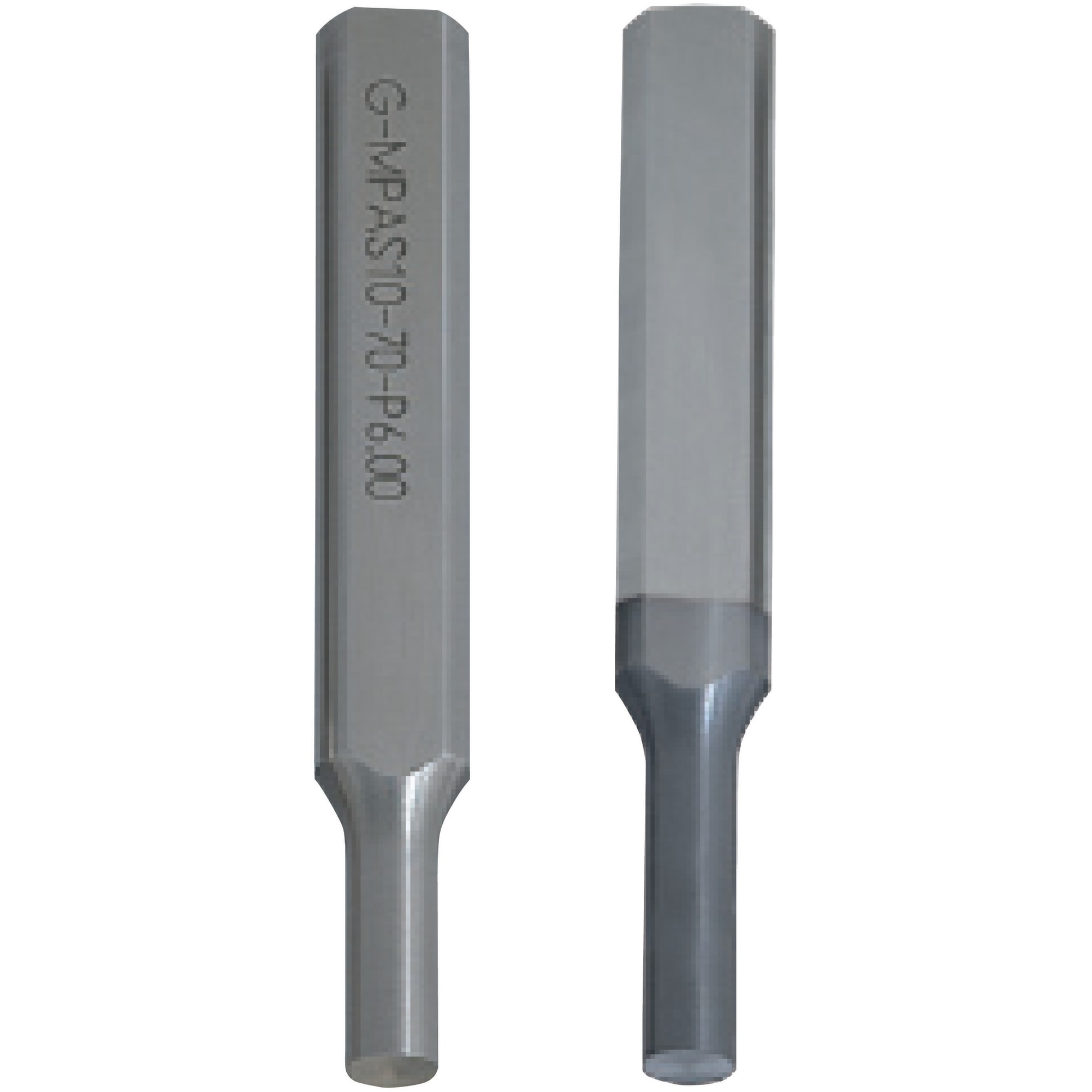

Cutting punches / without head / internal thread / anti-rotation device

Configure

Tip shape
- A
- D
- R
- E
- G
Material
- SKD11 Equivalent
- Powdered high-speed steel
Surface treatment
- None
- TiCN
B (Tip length)
- L
- S
- X
D (Shank diameter)(mm)
- 6
- 8
- 10
- 13
- 16
- 20
- 25
P (Tip dimension)(mm)
[1.5-24.97/0.01mm units]
L (L dimension)(mm)
[40-100/10mm units]
LC (Full length alteration)(mm)
[27-99.9/0.1mm units]
PC (Tip dimension alteration)(mm)
[0.8-17.99/0.01mm units]
R (Tip corner R)(mm)
[0.15-11.39/0.01mm units]
W (Tip dimension)(mm)
[1.5-22.8/0.01mm units]
WC (Tip dimension alteration)(mm)
[0.8-5.99/0.01mm units]
Type
CAD
- 2D
- 3D

Cutting punches / without head / internal thread / anti-rotation device

A	SKD11 Equivalent	None	L	6	2 ～ 3.8	50 ～ 80	-	-	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	L	6	-	50 ～ 80	-	1 ～ 1.99	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	L	6	2 ～ 3.8	-	27 ～ 79.9	-	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	L	6	-	-	27 ～ 79.9	1 ～ 1.99	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	L	8	3 ～ 5.8	50 ～ 100	-	-	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	L	8	-	50 ～ 100	-	1.5 ～ 2.99	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	L	8	3 ～ 5.8	-	27 ～ 99.9	-	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	L	8	-	-	27 ～ 99.9	1.5 ～ 2.99	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	L	10	3 ～ 7.8	50 ～ 100	-	-	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	L	10	-	50 ～ 100	-	1.5 ～ 2.99	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	L	10	3 ～ 7.8	-	27 ～ 99.9	-	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	L	10	-	-	27 ～ 99.9	1.5 ～ 2.99	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	L	13	6 ～ 10.8	50 ～ 100	-	-	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	L	13	-	50 ～ 100	-	3 ～ 5.99	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	L	13	6 ～ 10.8	-	27 ～ 99.9	-	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	L	13	-	-	27 ～ 99.9	3 ～ 5.99	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	L	16	10 ～ 13.8	60 ～ 100	-	-	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	L	16	-	60 ～ 100	-	5 ～ 9.99	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	L	16	10 ～ 13.8	-	27 ～ 99.9	-	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	L	16	-	-	27 ～ 99.9	5 ～ 9.99	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	L	20	13 ～ 17.8	60 ～ 100	-	-	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	L	20	-	60 ～ 100	-	6.5 ～ 12.99	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	L	20	13 ～ 17.8	-	27 ～ 99.9	-	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	L	20	-	-	27 ～ 99.9	6.5 ～ 12.99	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	L	25	18 ～ 22.8	60 ～ 100	-	-	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	L	25	-	60 ～ 100	-	9 ～ 17.99	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	L	25	18 ～ 22.8	-	27 ～ 99.9	-	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	L	25	-	-	27 ～ 99.9	9 ～ 17.99	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	S	6	2 ～ 3.8	40 ～ 80	-	-	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	S	6	-	40 ～ 80	-	1 ～ 1.99	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	S	6	2 ～ 3.8	-	27 ～ 79.9	-	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	S	6	-	-	27 ～ 79.9	1 ～ 1.99	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	S	8	3 ～ 5.8	40 ～ 100	-	-	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	S	8	-	40 ～ 100	-	1.5 ～ 2.99	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	S	8	3 ～ 5.8	-	27 ～ 99.9	-	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	S	8	-	-	27 ～ 99.9	1.5 ～ 2.99	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	S	10	3 ～ 7.8	40 ～ 100	-	-	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	S	10	-	40 ～ 100	-	1.5 ～ 2.99	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	S	10	3 ～ 7.8	-	27 ～ 99.9	-	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	S	10	-	-	27 ～ 99.9	1.5 ～ 2.99	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	S	13	6 ～ 10.8	40 ～ 100	-	-	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	S	13	-	40 ～ 100	-	3 ～ 5.99	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	S	13	6 ～ 10.8	-	27 ～ 99.9	-	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	S	13	-	-	27 ～ 99.9	3 ～ 5.99	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	S	16	10 ～ 13.8	40 ～ 100	-	-	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	S	16	-	40 ～ 100	-	5 ～ 9.99	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	S	16	10 ～ 13.8	-	27 ～ 99.9	-	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	S	16	-	-	27 ～ 99.9	5 ～ 9.99	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	S	20	13 ～ 17.8	40 ～ 100	-	-	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	S	20	-	40 ～ 100	-	6.5 ～ 12.99	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	S	20	13 ～ 17.8	-	27 ～ 99.9	-	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	S	20	-	-	27 ～ 99.9	6.5 ～ 12.99	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	S	25	18 ～ 22.8	40 ～ 100	-	-	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	S	25	-	40 ～ 100	-	9 ～ 17.99	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	S	25	18 ～ 22.8	-	27 ～ 99.9	-	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	S	25	-	-	27 ～ 99.9	9 ～ 17.99	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	X	6	2 ～ 3.8	60 ～ 80	-	-	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	X	6	-	60 ～ 80	-	1 ～ 1.99	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	X	6	2 ～ 3.8	-	27 ～ 79.9	-	-	-	-	10	1 pieces
A	SKD11 Equivalent	None	X	6	-	-	27 ～ 79.9	1 ～ 1.99	-	-	-	10	1 pieces

- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote

Cutting punches / without head / internal thread / anti-rotation device

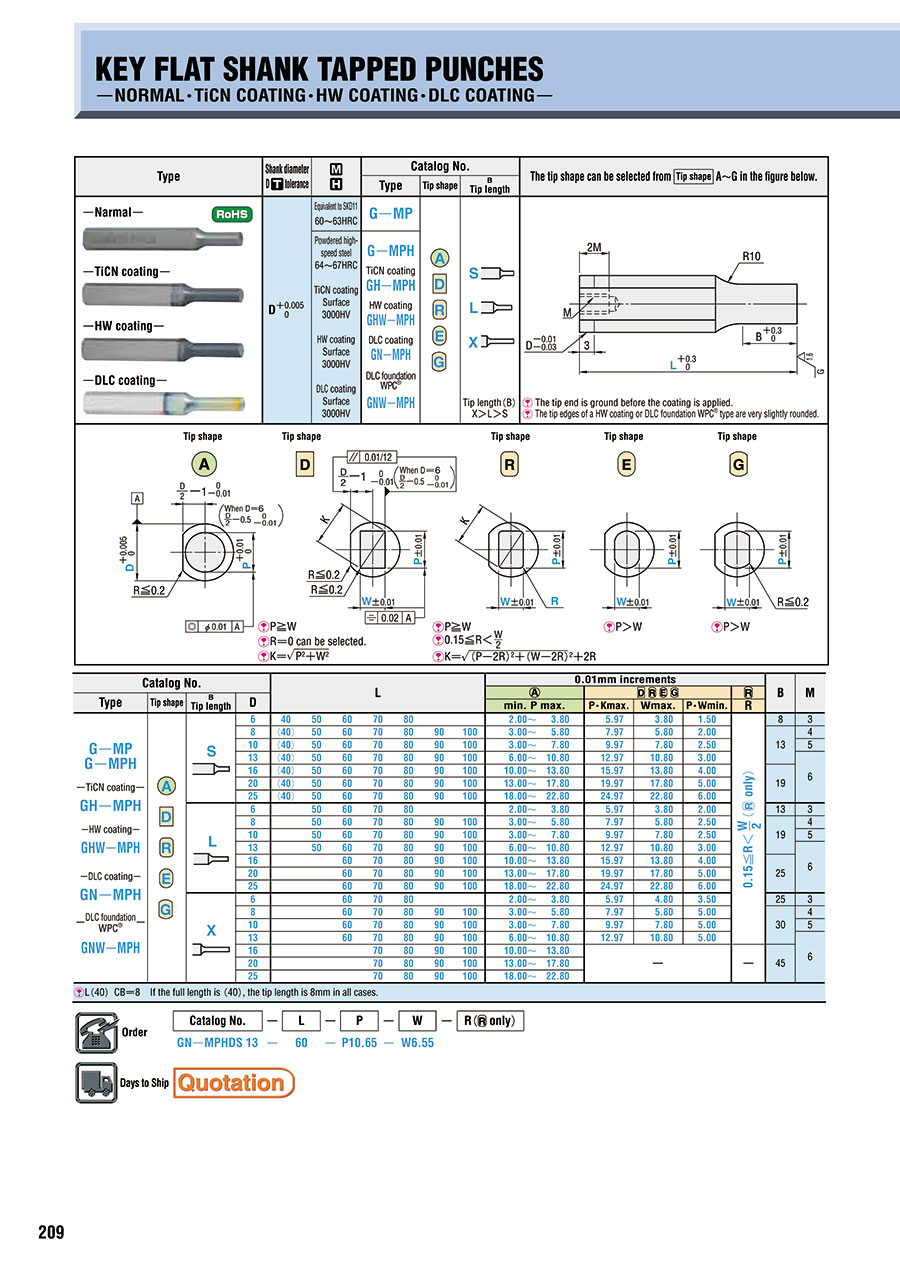

Outline drawing

Part number list
