  • D (Shank diameter)(mm)
  • P (Tip dimension)(mm)
      [0.3-2.49/0.01mm units]
    • L (L dimension)(mm)
    • LC (Full length alteration)(mm)
        [25-50/0.1mm units]
      • PC (Tip dimension alteration)(mm)
          [0.3-1/0.01mm units]
        • Type
        • CAD
        MISUMI

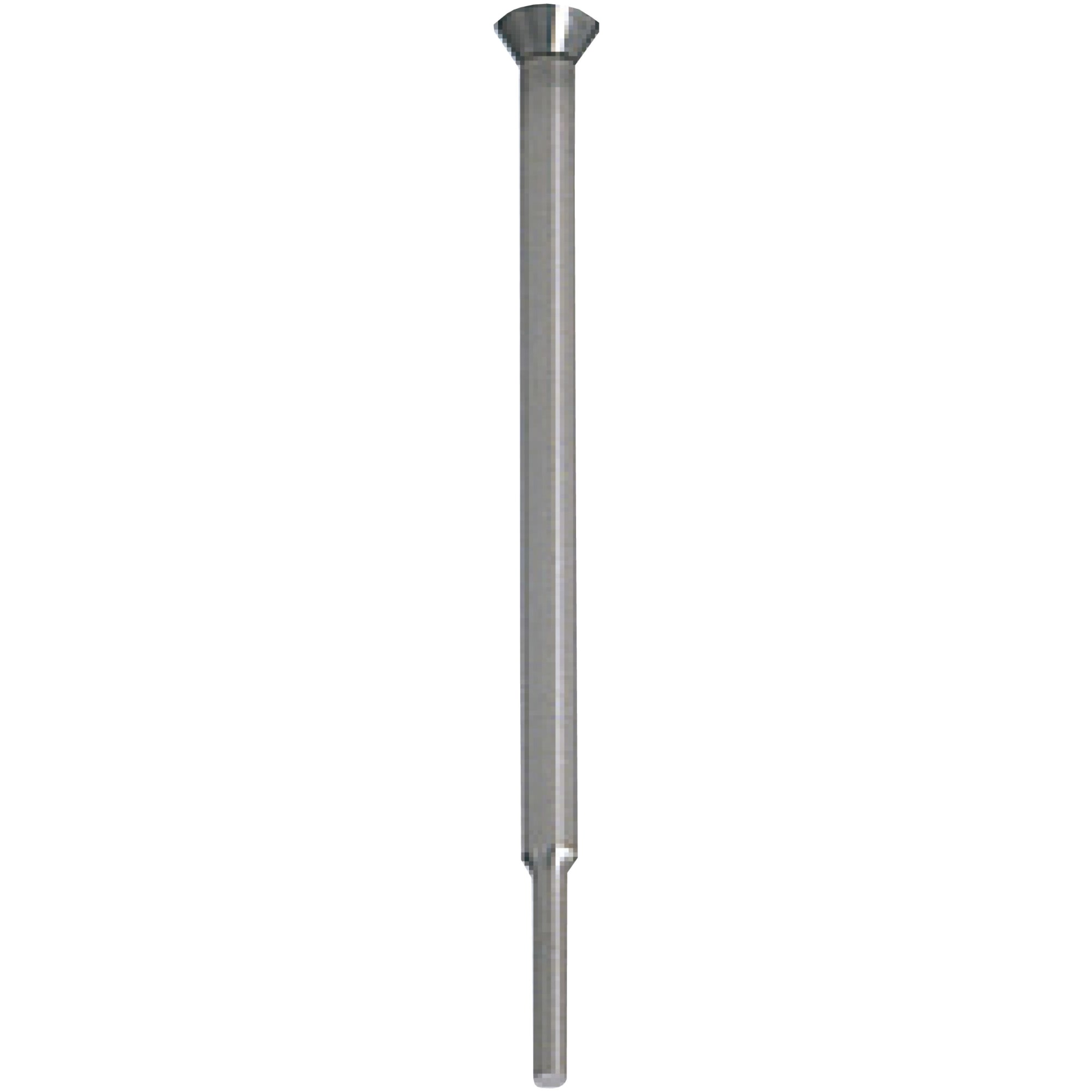

        Cutting punches / conical head 60°

        Cutting punches / conical head 60°

        Mouse over image to enlarge

        Part number:

        Still undefined. 10 possible part numbers found.
        Quantity:

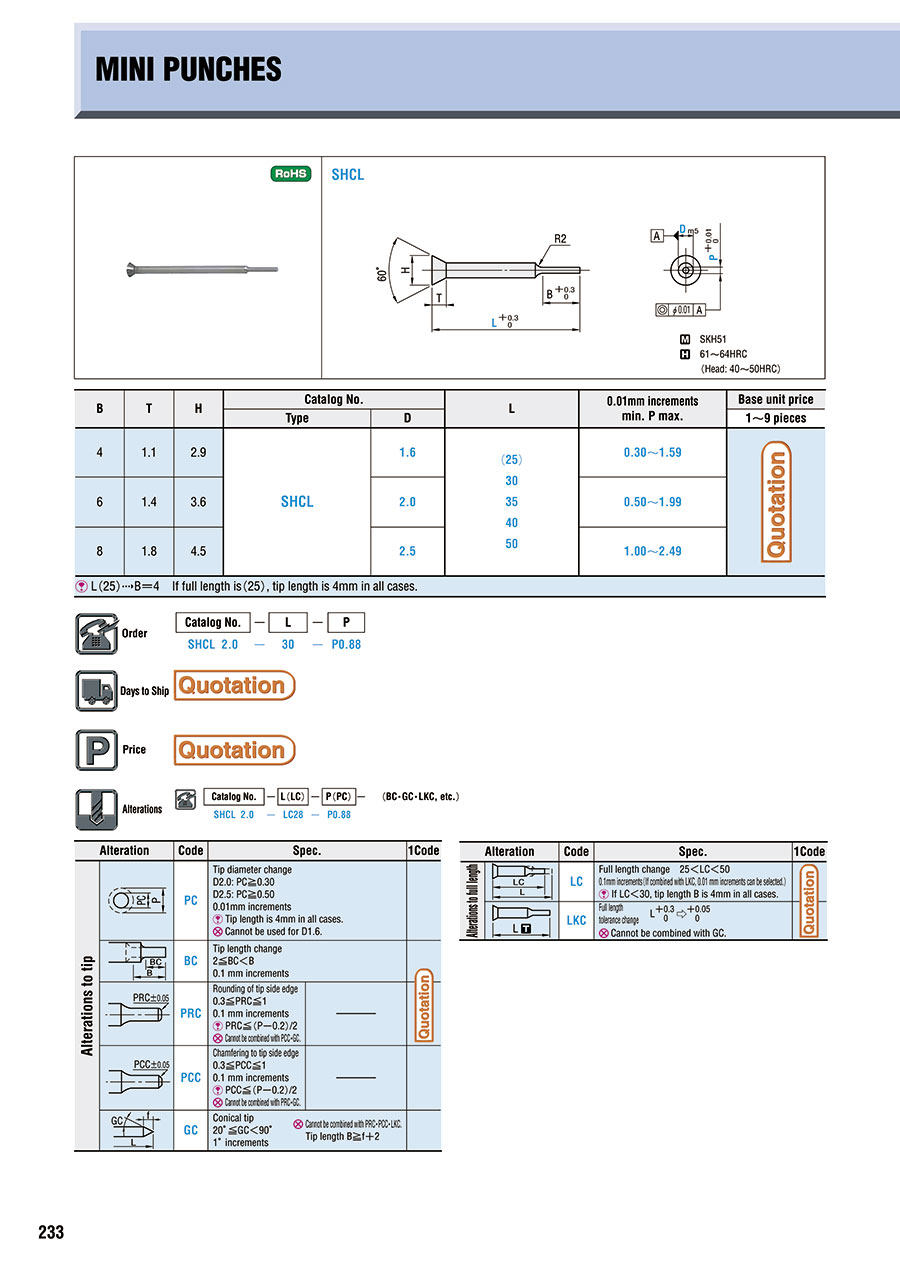

        Outline drawing

        Part number list

        Number of items
      • 1
        • Part number
        SHCL1.6-[25,30,35,40,50]-P[0.3-1.59/0.01]
        SHCL1.6-LC[25-50/0.1]-P[0.3-1.59/0.01]
        SHCL2.0-[25,30,35,40,50]-P[0.5-1.99/0.01]
        SHCL2.0-[25,30,35,40,50]-PC[0.3-0.5/0.01]
        SHCL2.0-LC[25-50/0.1]-P[0.5-1.99/0.01]
        SHCL2.0-LC[25-50/0.1]-PC[0.3-0.5/0.01]
        SHCL2.5-[25,30,35,40,50]-P[1-2.49/0.01]
        SHCL2.5-[25,30,35,40,50]-PC[0.5-1/0.01]
        SHCL2.5-LC[25-50/0.1]-P[1-2.49/0.01]
        SHCL2.5-LC[25-50/0.1]-PC[0.5-1/0.01]

        D (Shank diameter)

        (mm)

        P (Tip dimension)

        (mm)

        L (L dimension)

        (mm)

        LC (Full length alteration)

        (mm)

        PC (Tip dimension alteration)

        (mm)

        		RoHS?Minimum order quantity
        1.6
        0.3 ～ 1.59
        25 ～ 50
        -
        -
        10
        1 pieces
        1.6
        0.3 ～ 1.59
        -
        25 ～ 50
        -
        10
        1 pieces
        2.0
        0.5 ～ 1.99
        25 ～ 50
        -
        -
        10
        1 pieces
        2.0
        -
        25 ～ 50
        -
        0.3 ～ 0.5
        10
        1 pieces
        2.0
        0.5 ～ 1.99
        -
        25 ～ 50
        -
        10
        1 pieces
        2.0
        -
        -
        25 ～ 50
        0.3 ～ 0.5
        10
        1 pieces
        2.5
        1 ～ 2.49
        25 ～ 50
        -
        -
        10
        1 pieces
        2.5
        -
        25 ～ 50
        -
        0.5 ～ 1
        10
        1 pieces
        2.5
        1 ～ 2.49
        -
        25 ～ 50
        -
        10
        1 pieces
        2.5
        -
        -
        25 ～ 50
        0.5 ～ 1
        10
        1 pieces
        Unit price (excluding VAT)(Unit price including VAT)
        Standard shipping days
        -
        ( - )
        Quote
        -
        ( - )
        Quote
        -
        ( - )
        Quote
        -
        ( - )
        Quote
        -
        ( - )
        Quote
        -
        ( - )
        Quote
        -
        ( - )
        Quote
        -
        ( - )
        Quote
        -
        ( - )
        Quote
        -
        ( - )
        Quote
