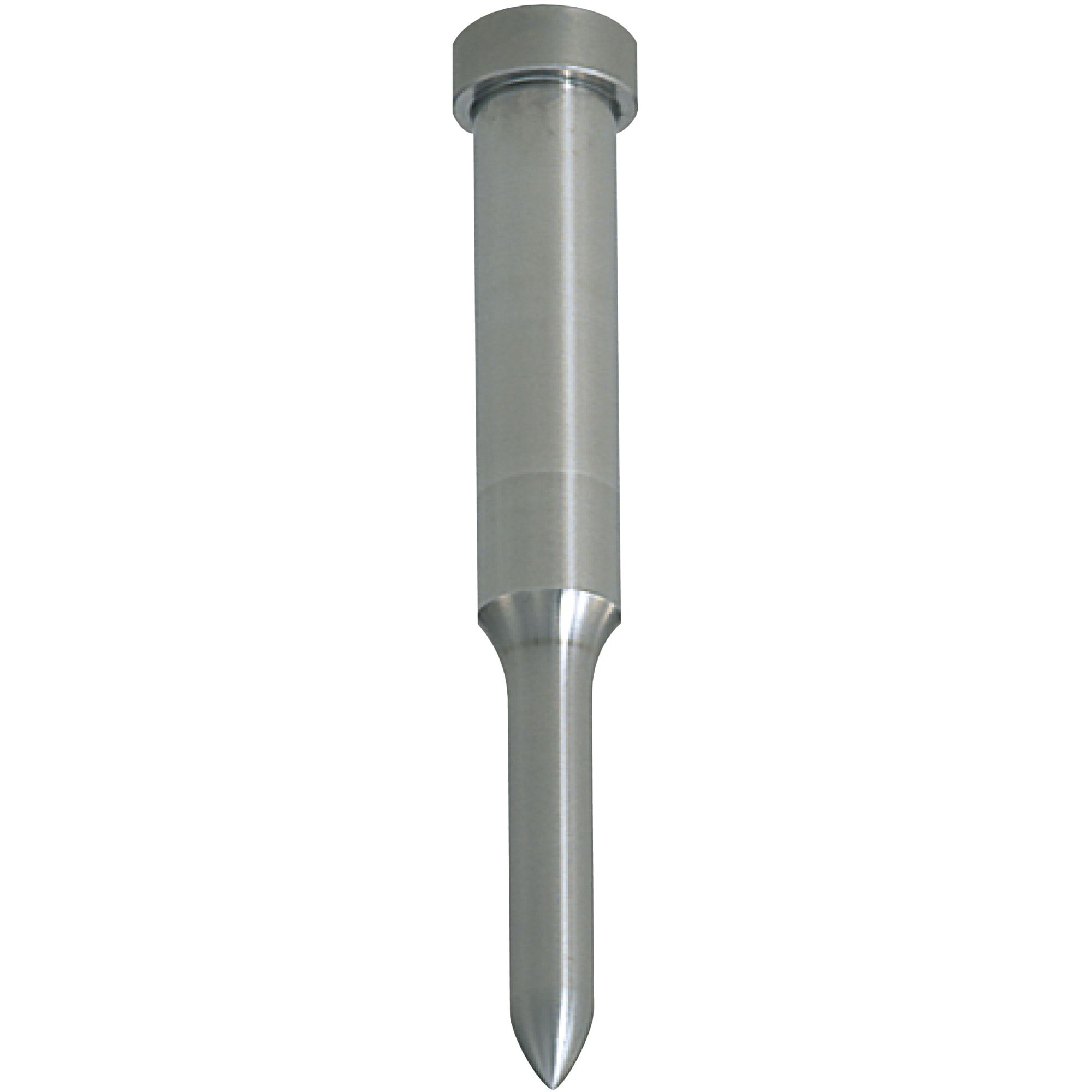

Pilot pins / cylindrical head / offset

Pilot pins / cylindrical head / offset

Mouse over image to enlarge

Part number:

Still undefined. 6 possible part numbers found.
Quantity:

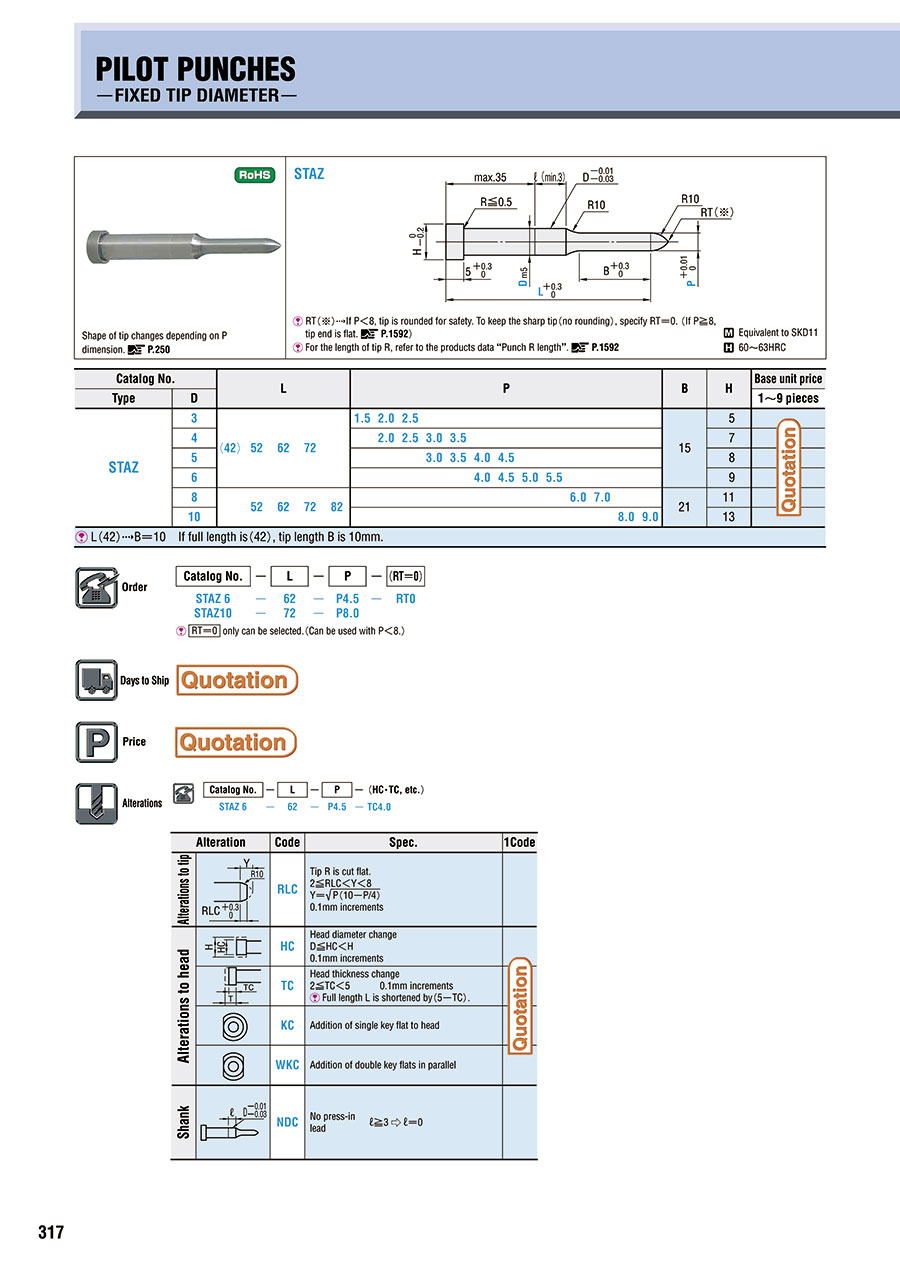

Outline drawing

Part number list

Number of items
  • 1
    • Part number
    STAZ3-[42,52,62,72]-P[1.5,2,2.5]
    STAZ4-[42,52,62,72]-P[2,2.5,3,3.5]
    STAZ5-[42,52,62,72]-P[3,3.5,4,4.5]
    STAZ6-[42,52,62,72]-P[4,4.5,5,5.5]
    STAZ8-[52,62,72,82]-P[6,7]
    STAZ10-[52,62,72,82]-P[8,9]

    D (Shank diameter)

    (mm)

    L (L dimension)

    (mm)

    P (Tip dimension)

    (mm)

    		RoHS?Minimum order quantity
    3
    42 ～ 72
    1.5 ～ 2.5
    10
    1 pieces
    4
    42 ～ 72
    2 ～ 3.5
    10
    1 pieces
    5
    42 ～ 72
    3 ～ 4.5
    10
    1 pieces
    6
    42 ～ 72
    4 ～ 5.5
    10
    1 pieces
    8
    52 ～ 82
    6 ～ 7
    10
    1 pieces
    10
    52 ～ 82
    8 ～ 9
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
