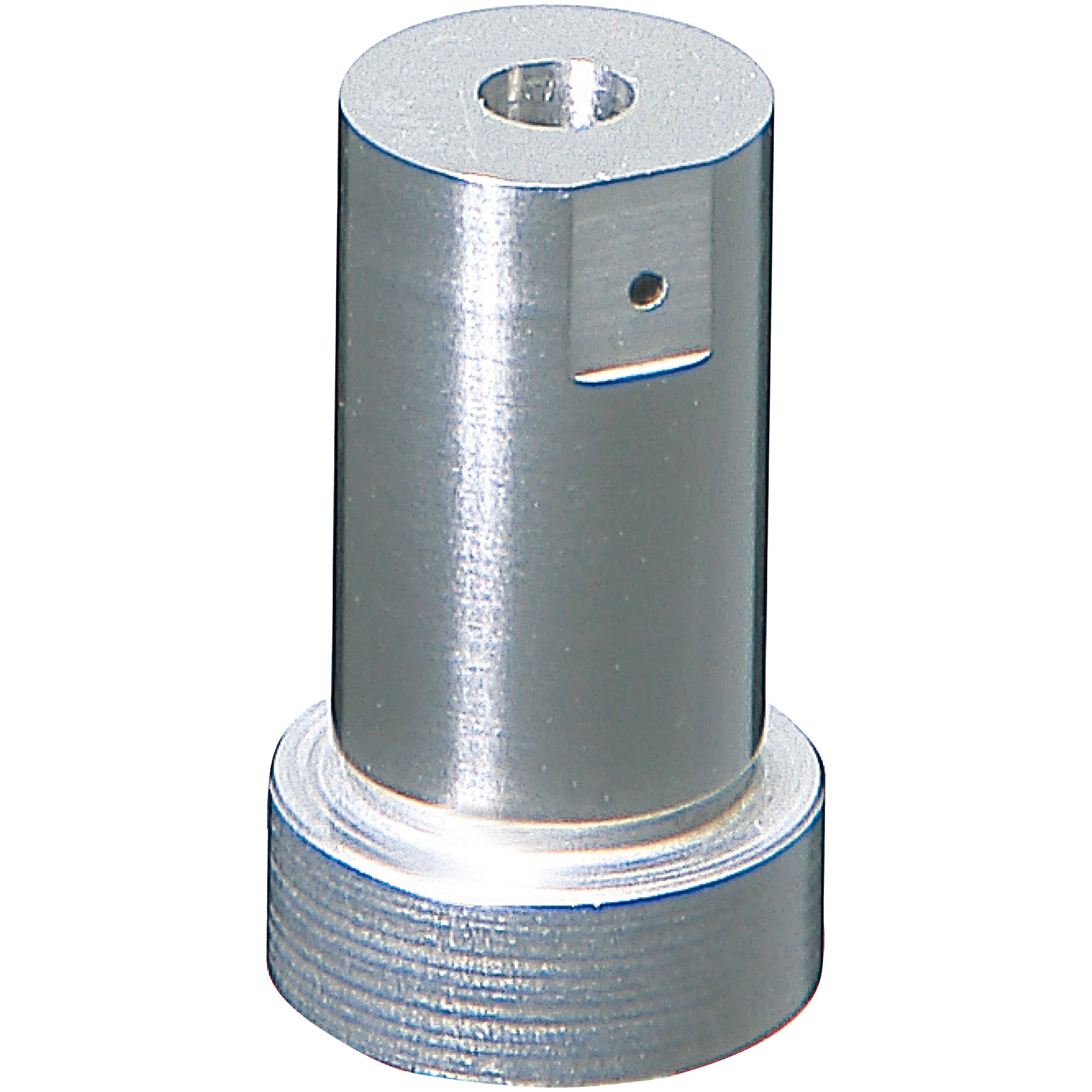

      Cutting bushes with collar for vacuum extraction

      Cutting bushes with collar for vacuum extraction

      Part number:

      Still undefined. 24 possible part numbers found.
      Quantity:

      Outline drawing

      Part number list

      Number of items
    • 1
      • Part number
      SV-MHD3-[16,20]-P[0.5-1/0.01]
      SV-MHD3-[16,20]-PC[1.01-1.2/0.01]
      SV-MHD4-[16,20,22,25]-P[0.5-2/0.01]
      SV-MHD4-[16,20,22,25]-PC[2.01-2.2/0.01]
      SV-MHD5-[16,20,22,25]-P[0.5-2.5/0.01]
      SV-MHD5-[16,20,22,25]-PC[2.51-2.7/0.01]
      SV-MHD6-[16,20,22,25]-P[1-3/0.01]
      SV-MHD6-[16,20,22,25]-PC[0.5-0.99/0.01]
      SV-MHD6-[16,20,22,25]-PC[3.01-3.2/0.01]
      SV-MHD8-[16,20,22,25]-P[1-4/0.01]
      SV-MHD8-[16,20,22,25]-PC[0.5-0.99/0.01]
      SV-MHD8-[16,20,22,25]-PC[4.01-4.2/0.01]
      SV-MHD10-[16,20,22,25]-P[2-6/0.01]
      SV-MHD10-[16,20,22,25]-PC[1-1.99/0.01]
      SV-MHD10-[16,20,22,25]-PC[6.01-6.2/0.01]
      SV-PMHD6-[16,20,22,25]-P[1-3/0.01]
      SV-PMHD6-[16,20,22,25]-PC[0.5-0.99/0.01]
      SV-PMHD6-[16,20,22,25]-PC[3.01-3.2/0.01]
      SV-PMHD8-[16,20,22,25]-P[1-4/0.01]
      SV-PMHD8-[16,20,22,25]-PC[0.5-0.99/0.01]
      SV-PMHD8-[16,20,22,25]-PC[4.01-4.2/0.01]
      SV-PMHD10-[16,20,22,25]-P[2-6/0.01]
      SV-PMHD10-[16,20,22,25]-PC[1-1.99/0.01]
      SV-PMHD10-[16,20,22,25]-PC[6.01-6.2/0.01]

      Material

      D (Shank diameter)

      (mm)

      L (L dimension)

      (mm)

      P (Tip dimension)

      (mm)

      PC (Tip dimension alteration)

      (mm)

      		RoHS?Minimum order quantity
      SKH51 Equivalent
      3
      16 ～ 20
      0.5 ～ 1
      -
      10
      1 pieces
      SKH51 Equivalent
      3
      16 ～ 20
      -
      1.01 ～ 1.2
      10
      1 pieces
      SKH51 Equivalent
      4
      16 ～ 25
      0.5 ～ 2
      -
      10
      1 pieces
      SKH51 Equivalent
      4
      16 ～ 25
      -
      2.01 ～ 2.2
      10
      1 pieces
      SKH51 Equivalent
      5
      16 ～ 25
      0.5 ～ 2.5
      -
      10
      1 pieces
      SKH51 Equivalent
      5
      16 ～ 25
      -
      2.51 ～ 2.7
      10
      1 pieces
      SKD11 Equivalent
      6
      16 ～ 25
      1 ～ 3
      -
      10
      1 pieces
      SKD11 Equivalent
      6
      16 ～ 25
      -
      0.5 ～ 0.99
      10
      1 pieces
      SKD11 Equivalent
      6
      16 ～ 25
      -
      3.01 ～ 3.2
      10
      1 pieces
      SKD11 Equivalent
      8
      16 ～ 25
      1 ～ 4
      -
      10
      1 pieces
      SKD11 Equivalent
      8
      16 ～ 25
      -
      0.5 ～ 0.99
      10
      1 pieces
      SKD11 Equivalent
      8
      16 ～ 25
      -
      4.01 ～ 4.2
      10
      1 pieces
      SKD11 Equivalent
      10
      16 ～ 25
      2 ～ 6
      -
      10
      1 pieces
      SKD11 Equivalent
      10
      16 ～ 25
      -
      1 ～ 1.99
      10
      1 pieces
      SKD11 Equivalent
      10
      16 ～ 25
      -
      6.01 ～ 6.2
      10
      1 pieces
      Powdered high-speed steel
      6
      16 ～ 25
      1 ～ 3
      -
      10
      1 pieces
      Powdered high-speed steel
      6
      16 ～ 25
      -
      0.5 ～ 0.99
      10
      1 pieces
      Powdered high-speed steel
      6
      16 ～ 25
      -
      3.01 ～ 3.2
      10
      1 pieces
      Powdered high-speed steel
      8
      16 ～ 25
      1 ～ 4
      -
      10
      1 pieces
      Powdered high-speed steel
      8
      16 ～ 25
      -
      0.5 ～ 0.99
      10
      1 pieces
      Powdered high-speed steel
      8
      16 ～ 25
      -
      4.01 ～ 4.2
      10
      1 pieces
      Powdered high-speed steel
      10
      16 ～ 25
      2 ～ 6
      -
      10
      1 pieces
      Powdered high-speed steel
      10
      16 ～ 25
      -
      1 ～ 1.99
      10
      1 pieces
      Powdered high-speed steel
      10
      16 ～ 25
      -
      6.01 ～ 6.2
      10
      1 pieces
