Configure

Tip shape
- A
- D
- R
- E
- G
L dimension classification
- L40.0 max.
- L 40.1 or more
D (Shank diameter)(mm)
- 6
- 8
- 10
- 13
- 16
- 20
- 25
- 32
- 38
- 45
- 50
- 56
L (L dimension)(mm)
- 40
[30-100/0.1mm units]
P (Tip dimension)(mm)
[1-45/0.01mm units]
PC (Tip dimension alteration)(mm)
[0.5-45.2/0.01mm units]
R (Tip corner R)(mm)
[0.15-22.5/0.01mm units]
W (Tip dimension)(mm)
[1-45/0.01mm units]
WC (Tip dimension alteration)(mm)
[1-45.2/0.01mm units]
Type
CAD
- 2D
- 3D

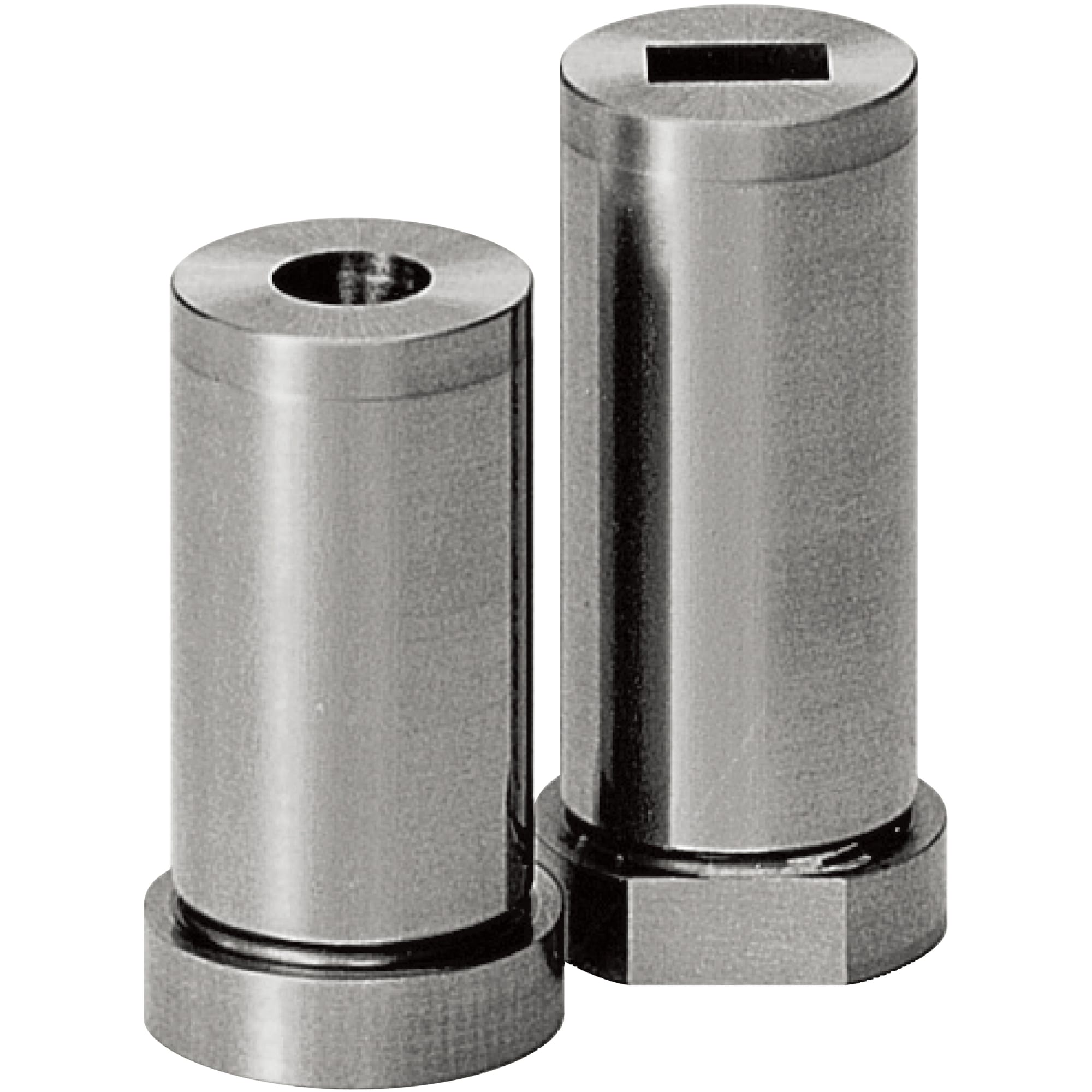

Cutting bushes with collar / long / configurable

Mouse over image to enlarge

CatalogP.373

Part number:

Still undefined. 641 possible part numbers found.

Outline drawing
Part number list
More Information
Catalog

Outline drawing

Part number list

Number of items

...

Part number

S-HDD6-[30-40/0.1]-P[1-3/0.01]-W[1-3/0.01]

S-HDD6-[30-40/0.1]-P[1-3/0.01]-WC[1-3.2/0.01]

S-HDD6-[30-40/0.1]-PC[0.5-0.99/0.01]-W[1-3/0.01]

S-HDD6-[30-40/0.1]-PC[0.5-0.99/0.01]-WC[1-3.2/0.01]

S-HDD6-[30-40/0.1]-PC[3.01-3.2/0.01]-W[1-3/0.01]

S-HDD6-[30-40/0.1]-PC[3.01-3.2/0.01]-WC[1-3.2/0.01]

S-HDD8-[30-40/0.1]-P[1-4/0.01]-W[1-4/0.01]

S-HDD8-[30-40/0.1]-P[1-4/0.01]-WC[1-4.2/0.01]

S-HDD8-[30-40/0.1]-PC[0.5-0.99/0.01]-W[1-4/0.01]

S-HDD8-[30-40/0.1]-PC[0.5-0.99/0.01]-WC[1-4.2/0.01]

S-HDD8-[30-40/0.1]-PC[4.01-4.2/0.01]-W[1-4/0.01]

S-HDD8-[30-40/0.1]-PC[4.01-4.2/0.01]-WC[1-4.2/0.01]

S-HDD10-[30-40/0.1]-P[1.2-6/0.01]-W[1.2-6/0.01]

S-HDD10-[30-40/0.1]-P[1.2-6/0.01]-WC[1-6.2/0.01]

S-HDD10-[30-40/0.1]-PC[0.6-6.2/0.01]-W[1.2-6/0.01]

S-HDD10-[30-40/0.1]-PC[0.6-6.2/0.01]-WC[1-6.2/0.01]

S-HDD13-[30-40/0.1]-P[1.5-8/0.01]-W[1.5-8/0.01]

S-HDD13-[30-40/0.1]-P[1.5-8/0.01]-WC[1-1.49/0.01]

S-HDD13-[30-40/0.1]-P[1.5-8/0.01]-WC[2-10.2/0.01]

S-HDD13-[30-40/0.1]-PC[0.75-8.2/0.01]-W[1.5-8/0.01]

S-HDD13-[30-40/0.1]-PC[0.75-8.2/0.01]-WC[1-1.49/0.01]

S-HDD13-[30-40/0.1]-PC[0.75-8.2/0.01]-WC[2-10.2/0.01]

S-HDD16-[30-40/0.1]-P[2-10/0.01]-W[2-10/0.01]

S-HDD16-[30-40/0.1]-P[2-10/0.01]-WC[1-10.2/0.01]

S-HDD16-[30-40/0.1]-PC[1-10.2/0.01]-W[2-10/0.01]

S-HDD16-[30-40/0.1]-PC[1-10.2/0.01]-WC[1-10.2/0.01]

S-HDD20-[30-40/0.1]-P[3-12/0.01]-W[3-12/0.01]

S-HDD20-[30-40/0.1]-P[3-12/0.01]-WC[1.5-12.2/0.01]

S-HDD20-[30-40/0.1]-PC[1.5-12.2/0.01]-W[3-12/0.01]

S-HDD20-[30-40/0.1]-PC[1.5-12.2/0.01]-WC[1.5-12.2/0.01]

S-HDD25-[30-40/0.1]-P[3-16/0.01]-W[3-16/0.01]

S-HDD25-[30-40/0.1]-P[3-16/0.01]-WC[1.5-16.2/0.01]

S-HDD25-[30-40/0.1]-PC[1.5-16.2/0.01]-W[3-16/0.01]

S-HDD25-[30-40/0.1]-PC[1.5-16.2/0.01]-WC[1.5-16.2/0.01]

S-HDD32-[30-40/0.1]-P[4-20/0.01]-W[4-20/0.01]

S-HDD32-[30-40/0.1]-P[4-20/0.01]-WC[2-20.2/0.01]

S-HDD32-[30-40/0.1]-PC[2-20.2/0.01]-W[4-20/0.01]

S-HDD32-[30-40/0.1]-PC[2-20.2/0.01]-WC[2-20.2/0.01]

S-HDD38-[30-40/0.1]-P[5-26/0.01]-W[5-26/0.01]

S-HDD38-[30-40/0.1]-P[5-26/0.01]-WC[2.5-26.2/0.01]

S-HDD38-[30-40/0.1]-PC[2.5-26.2/0.01]-W[5-26/0.01]

S-HDD38-[30-40/0.1]-PC[2.5-26.2/0.01]-WC[2.5-26.2/0.01]

S-HDD45-[30-40/0.1]-P[6-35/0.01]-W[6-35/0.01]

S-HDD45-[30-40/0.1]-P[6-35/0.01]-WC[3-35.2/0.01]

S-HDD45-[30-40/0.1]-PC[3-35.2/0.01]-W[6-35/0.01]

S-HDD45-[30-40/0.1]-PC[3-35.2/0.01]-WC[3-35.2/0.01]

S-HDD50-[30-40/0.1]-P[7-40/0.01]-W[7-40/0.01]

S-HDD50-[30-40/0.1]-P[7-40/0.01]-WC[3.5-40.2/0.01]

S-HDD50-[30-40/0.1]-PC[3.5-40.2/0.01]-W[7-40/0.01]

S-HDD50-[30-40/0.1]-PC[3.5-40.2/0.01]-WC[3.5-40.2/0.01]

S-HDD56-[30-40/0.1]-P[8-45/0.01]-W[8-45/0.01]

S-HDD56-[30-40/0.1]-P[8-45/0.01]-WC[4-45.2/0.01]

S-HDD56-[30-40/0.1]-PC[4-45.2/0.01]-W[8-45/0.01]

S-HDD56-[30-40/0.1]-PC[4-45.2/0.01]-WC[4-45.2/0.01]

S-HDDS10-[40.1-80/0.1]-P[1.2-6/0.01]-W[1.2-6/0.01]

S-HDDS10-[40.1-80/0.1]-P[1.2-6/0.01]-WC[1-6.2/0.01]

S-HDDS10-[40.1-80/0.1]-PC[0.6-6.2/0.01]-W[1.2-6/0.01]

S-HDDS10-[40.1-80/0.1]-PC[0.6-6.2/0.01]-WC[1-6.2/0.01]

S-HDDS13-[40.1-80/0.1]-P[1.5-8/0.01]-W[1.5-8/0.01]

S-HDDS13-[40.1-80/0.1]-P[1.5-8/0.01]-WC[1-8.2/0.01]

Tip shape

L dimension classification

D (Shank diameter)

(mm)

L (L dimension)

(mm)

P (Tip dimension)

(mm)

PC (Tip dimension alteration)

(mm)

R (Tip corner R)

(mm)

W (Tip dimension)

(mm)

WC (Tip dimension alteration)

(mm)

RoHS?

Minimum order quantity

D	L40.0 max.	6	30 ～ 40	1 ～ 3	-	-	1 ～ 3	-	10	1 pieces
D	L40.0 max.	6	30 ～ 40	1 ～ 3	-	-	-	1 ～ 3.2	10	1 pieces
D	L40.0 max.	6	30 ～ 40	-	0.5 ～ 0.99	-	1 ～ 3	-	10	1 pieces
D	L40.0 max.	6	30 ～ 40	-	0.5 ～ 0.99	-	-	1 ～ 3.2	10	1 pieces
D	L40.0 max.	6	30 ～ 40	-	3.01 ～ 3.2	-	1 ～ 3	-	10	1 pieces
D	L40.0 max.	6	30 ～ 40	-	3.01 ～ 3.2	-	-	1 ～ 3.2	10	1 pieces
D	L40.0 max.	8	30 ～ 40	1 ～ 4	-	-	1 ～ 4	-	10	1 pieces
D	L40.0 max.	8	30 ～ 40	1 ～ 4	-	-	-	1 ～ 4.2	10	1 pieces
D	L40.0 max.	8	30 ～ 40	-	0.5 ～ 0.99	-	1 ～ 4	-	10	1 pieces
D	L40.0 max.	8	30 ～ 40	-	0.5 ～ 0.99	-	-	1 ～ 4.2	10	1 pieces
D	L40.0 max.	8	30 ～ 40	-	4.01 ～ 4.2	-	1 ～ 4	-	10	1 pieces
D	L40.0 max.	8	30 ～ 40	-	4.01 ～ 4.2	-	-	1 ～ 4.2	10	1 pieces
D	L40.0 max.	10	30 ～ 40	1.2 ～ 6	-	-	1.2 ～ 6	-	10	1 pieces
D	L40.0 max.	10	30 ～ 40	1.2 ～ 6	-	-	-	1 ～ 6.2	10	1 pieces
D	L40.0 max.	10	30 ～ 40	-	0.6 ～ 6.2	-	1.2 ～ 6	-	10	1 pieces
D	L40.0 max.	10	30 ～ 40	-	0.6 ～ 6.2	-	-	1 ～ 6.2	10	1 pieces
D	L40.0 max.	13	30 ～ 40	1.5 ～ 8	-	-	1.5 ～ 8	-	10	1 pieces
D	L40.0 max.	13	30 ～ 40	1.5 ～ 8	-	-	-	1 ～ 1.49	10	1 pieces
D	L40.0 max.	13	30 ～ 40	1.5 ～ 8	-	-	-	2 ～ 10.2	10	1 pieces
D	L40.0 max.	13	30 ～ 40	-	0.75 ～ 8.2	-	1.5 ～ 8	-	10	1 pieces
D	L40.0 max.	13	30 ～ 40	-	0.75 ～ 8.2	-	-	1 ～ 1.49	10	1 pieces
D	L40.0 max.	13	30 ～ 40	-	0.75 ～ 8.2	-	-	2 ～ 10.2	10	1 pieces
D	L40.0 max.	16	30 ～ 40	2 ～ 10	-	-	2 ～ 10	-	10	1 pieces
D	L40.0 max.	16	30 ～ 40	2 ～ 10	-	-	-	1 ～ 10.2	10	1 pieces
D	L40.0 max.	16	30 ～ 40	-	1 ～ 10.2	-	2 ～ 10	-	10	1 pieces
D	L40.0 max.	16	30 ～ 40	-	1 ～ 10.2	-	-	1 ～ 10.2	10	1 pieces
D	L40.0 max.	20	30 ～ 40	3 ～ 12	-	-	3 ～ 12	-	10	1 pieces
D	L40.0 max.	20	30 ～ 40	3 ～ 12	-	-	-	1.5 ～ 12.2	10	1 pieces
D	L40.0 max.	20	30 ～ 40	-	1.5 ～ 12.2	-	3 ～ 12	-	10	1 pieces
D	L40.0 max.	20	30 ～ 40	-	1.5 ～ 12.2	-	-	1.5 ～ 12.2	10	1 pieces
D	L40.0 max.	25	30 ～ 40	3 ～ 16	-	-	3 ～ 16	-	10	1 pieces
D	L40.0 max.	25	30 ～ 40	3 ～ 16	-	-	-	1.5 ～ 16.2	10	1 pieces
D	L40.0 max.	25	30 ～ 40	-	1.5 ～ 16.2	-	3 ～ 16	-	10	1 pieces
D	L40.0 max.	25	30 ～ 40	-	1.5 ～ 16.2	-	-	1.5 ～ 16.2	10	1 pieces
D	L40.0 max.	32	30 ～ 40	4 ～ 20	-	-	4 ～ 20	-	10	1 pieces
D	L40.0 max.	32	30 ～ 40	4 ～ 20	-	-	-	2 ～ 20.2	10	1 pieces
D	L40.0 max.	32	30 ～ 40	-	2 ～ 20.2	-	4 ～ 20	-	10	1 pieces
D	L40.0 max.	32	30 ～ 40	-	2 ～ 20.2	-	-	2 ～ 20.2	10	1 pieces
D	L40.0 max.	38	30 ～ 40	5 ～ 26	-	-	5 ～ 26	-	10	1 pieces
D	L40.0 max.	38	30 ～ 40	5 ～ 26	-	-	-	2.5 ～ 26.2	10	1 pieces
D	L40.0 max.	38	30 ～ 40	-	2.5 ～ 26.2	-	5 ～ 26	-	10	1 pieces
D	L40.0 max.	38	30 ～ 40	-	2.5 ～ 26.2	-	-	2.5 ～ 26.2	10	1 pieces
D	L40.0 max.	45	30 ～ 40	6 ～ 35	-	-	6 ～ 35	-	10	1 pieces
D	L40.0 max.	45	30 ～ 40	6 ～ 35	-	-	-	3 ～ 35.2	10	1 pieces
D	L40.0 max.	45	30 ～ 40	-	3 ～ 35.2	-	6 ～ 35	-	10	1 pieces
D	L40.0 max.	45	30 ～ 40	-	3 ～ 35.2	-	-	3 ～ 35.2	10	1 pieces
D	L40.0 max.	50	30 ～ 40	7 ～ 40	-	-	7 ～ 40	-	10	1 pieces
D	L40.0 max.	50	30 ～ 40	7 ～ 40	-	-	-	3.5 ～ 40.2	10	1 pieces
D	L40.0 max.	50	30 ～ 40	-	3.5 ～ 40.2	-	7 ～ 40	-	10	1 pieces
D	L40.0 max.	50	30 ～ 40	-	3.5 ～ 40.2	-	-	3.5 ～ 40.2	10	1 pieces
D	L40.0 max.	56	30 ～ 40	8 ～ 45	-	-	8 ～ 45	-	10	1 pieces
D	L40.0 max.	56	30 ～ 40	8 ～ 45	-	-	-	4 ～ 45.2	10	1 pieces
D	L40.0 max.	56	30 ～ 40	-	4 ～ 45.2	-	8 ～ 45	-	10	1 pieces
D	L40.0 max.	56	30 ～ 40	-	4 ～ 45.2	-	-	4 ～ 45.2	10	1 pieces
D	L 40.1 or more	10	40.1 ～ 80	1.2 ～ 6	-	-	1.2 ～ 6	-	10	1 pieces
D	L 40.1 or more	10	40.1 ～ 80	1.2 ～ 6	-	-	-	1 ～ 6.2	10	1 pieces
D	L 40.1 or more	10	40.1 ～ 80	-	0.6 ～ 6.2	-	1.2 ～ 6	-	10	1 pieces
D	L 40.1 or more	10	40.1 ～ 80	-	0.6 ～ 6.2	-	-	1 ～ 6.2	10	1 pieces
D	L 40.1 or more	13	40.1 ～ 80	1.5 ～ 8	-	-	1.5 ～ 8	-	10	1 pieces
D	L 40.1 or more	13	40.1 ～ 80	1.5 ～ 8	-	-	-	1 ～ 8.2	10	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote

...
