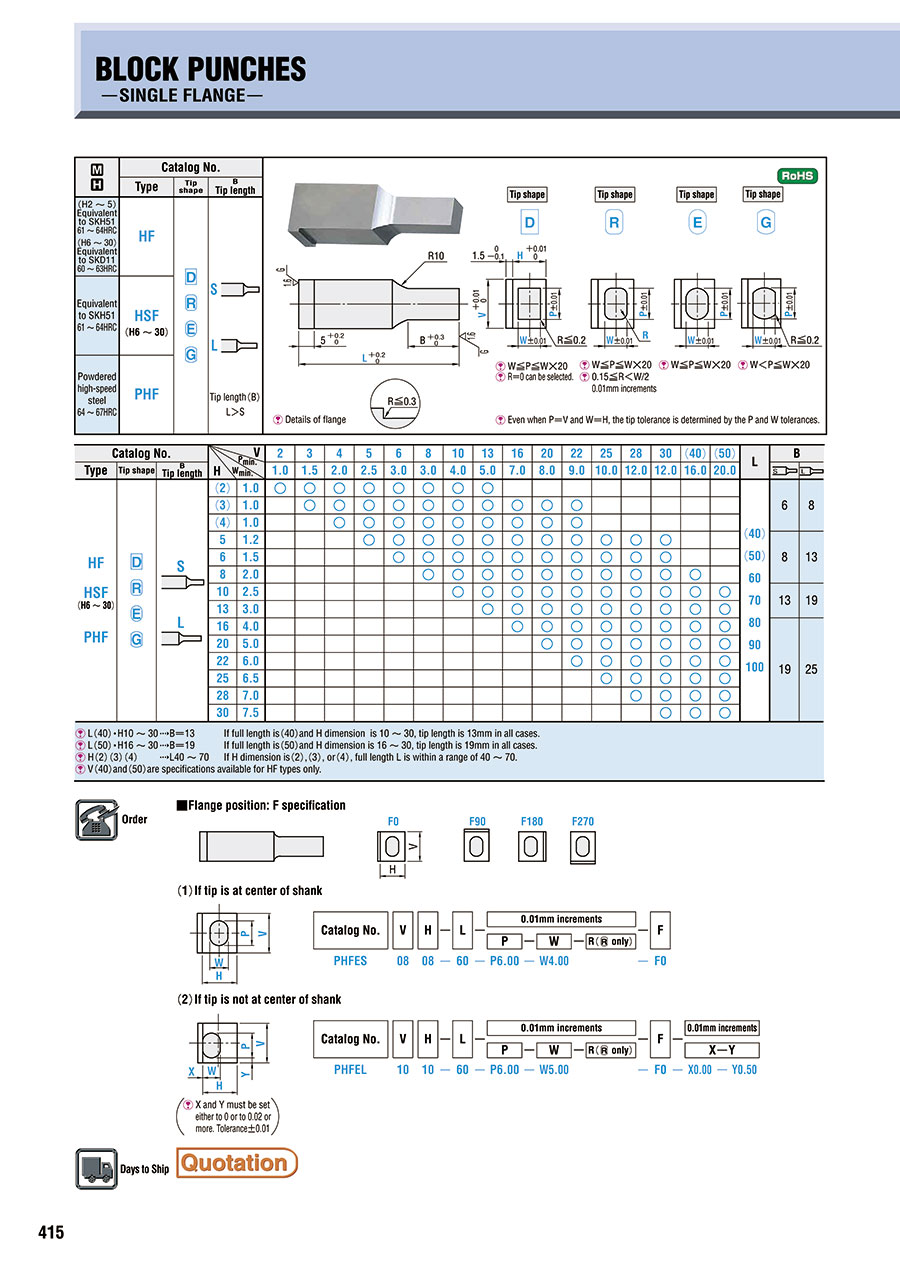

Block cutting punches / head offset

Block cutting punches / head offset

Click on this image to zoom in.

Click on this image to zoom in.

MISUMI

MISUMI

  • FLANGE
  • SKH51
  • SKD11
  • POWDER HSS

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...

Plug-in is required for 3D Preview

CAD Download

Data to be displayed
30
45
60
  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. Next >>
Part Number
HFDL0202-[40-70/10]-P[1-2/0.01]-W[1-2/0.01]-F[0,​90,​180,​270]
HFDL0202-[40-70/10]-P[1-2/0.01]-WC[0-0.99/0.01]-F[0,​90,​180,​270]
HFDL0202-LC[32-69.9/0.1]-P[1-2/0.01]-W[1-2/0.01]-F[0,​90,​180,​270]
HFDL0202-LC[32-69.9/0.1]-P[1-2/0.01]-WC[0-0.99/0.01]-F[0,​90,​180,​270]
HFDL0302-[40-70/10]-P[1-3/0.01]-W[1-2/0.01]-F[0,​90,​180,​270]
HFDL0302-[40-70/10]-P[1-3/0.01]-WC[0-0.99/0.01]-F[0,​90,​180,​270]
HFDL0302-[40-70/10]-PC[1-1.49/0.01]-W[1-2/0.01]-F[0,​90,​180,​270]
HFDL0302-[40-70/10]-PC[1-1.49/0.01]-WC[0-0.99/0.01]-F[0,​90,​180,​270]
HFDL0302-LC[32-69.9/0.1]-P[1-3/0.01]-W[1-2/0.01]-F[0,​90,​180,​270]
HFDL0302-LC[32-69.9/0.1]-P[1-3/0.01]-WC[0-0.99/0.01]-F[0,​90,​180,​270]
HFDL0302-LC[32-69.9/0.1]-PC[1-1.49/0.01]-W[1-2/0.01]-F[0,​90,​180,​270]
HFDL0302-LC[32-69.9/0.1]-PC[1-1.49/0.01]-WC[0-0.99/0.01]-F[0,​90,​180,​270]
HFDL0303-[40-70/10]-P[1-3/0.01]-W[1-3/0.01]-F[0,​90,​180,​270]
HFDL0303-[40-70/10]-P[1-3/0.01]-WC[0-0.99/0.01]-F[0,​90,​180,​270]
HFDL0303-[40-70/10]-PC[1-1.49/0.01]-W[1-3/0.01]-F[0,​90,​180,​270]
HFDL0303-[40-70/10]-PC[1-1.49/0.01]-WC[0-0.99/0.01]-F[0,​90,​180,​270]
HFDL0303-LC[31-69.9/0.1]-P[1-3/0.01]-W[1-3/0.01]-F[0,​90,​180,​270]
HFDL0303-LC[31-69.9/0.1]-P[1-3/0.01]-WC[0-0.99/0.01]-F[0,​90,​180,​270]
HFDL0303-LC[31-69.9/0.1]-PC[1-1.49/0.01]-W[1-3/0.01]-F[0,​90,​180,​270]
HFDL0303-LC[31-69.9/0.1]-PC[1-1.49/0.01]-WC[0-0.99/0.01]-F[0,​90,​180,​270]
HFDL0402-[40-70/10]-P[2-4/0.01]-W[1-2/0.01]-F[0,​90,​180,​270]
HFDL0402-[40-70/10]-P[2-4/0.01]-WC[0-0.99/0.01]-F[0,​90,​180,​270]
HFDL0402-[40-70/10]-PC[1-1.99/0.01]-W[1-2/0.01]-F[0,​90,​180,​270]
HFDL0402-[40-70/10]-PC[1-1.99/0.01]-WC[0-0.99/0.01]-F[0,​90,​180,​270]
HFDL0402-LC[32-69.9/0.1]-P[2-4/0.01]-W[1-2/0.01]-F[0,​90,​180,​270]
HFDL0402-LC[32-69.9/0.1]-P[2-4/0.01]-WC[0-0.99/0.01]-F[0,​90,​180,​270]
HFDL0402-LC[32-69.9/0.1]-PC[1-1.99/0.01]-W[1-2/0.01]-F[0,​90,​180,​270]
HFDL0402-LC[32-69.9/0.1]-PC[1-1.99/0.01]-WC[0-0.99/0.01]-F[0,​90,​180,​270]
HFDL0403-[40-70/10]-P[2-4/0.01]-W[1-3/0.01]-F[0,​90,​180,​270]
HFDL0403-[40-70/10]-P[2-4/0.01]-WC[0-0.99/0.01]-F[0,​90,​180,​270]
HFDL0403-[40-70/10]-PC[1-1.99/0.01]-W[1-3/0.01]-F[0,​90,​180,​270]
HFDL0403-[40-70/10]-PC[1-1.99/0.01]-WC[0-0.99/0.01]-F[0,​90,​180,​270]
HFDL0403-LC[31-69.9/0.1]-P[2-4/0.01]-W[1-3/0.01]-F[0,​90,​180,​270]
HFDL0403-LC[31-69.9/0.1]-P[2-4/0.01]-WC[0-0.99/0.01]-F[0,​90,​180,​270]
HFDL0403-LC[31-69.9/0.1]-PC[1-1.99/0.01]-W[1-3/0.01]-F[0,​90,​180,​270]
HFDL0403-LC[31-69.9/0.1]-PC[1-1.99/0.01]-WC[0-0.99/0.01]-F[0,​90,​180,​270]
HFDL0404-[40-70/10]-P[2-4/0.01]-W[1-4/0.01]-F[0,​90,​180,​270]
HFDL0404-[40-70/10]-P[2-4/0.01]-WC[0-0.99/0.01]-F[0,​90,​180,​270]
HFDL0404-[40-70/10]-PC[1-1.99/0.01]-W[1-4/0.01]-F[0,​90,​180,​270]
HFDL0404-[40-70/10]-PC[1-1.99/0.01]-WC[0-0.99/0.01]-F[0,​90,​180,​270]
HFDL0404-LC[31-69.9/0.1]-P[2-4/0.01]-W[1-4/0.01]-F[0,​90,​180,​270]
HFDL0404-LC[31-69.9/0.1]-P[2-4/0.01]-WC[0-0.99/0.01]-F[0,​90,​180,​270]
HFDL0404-LC[31-69.9/0.1]-PC[1-1.99/0.01]-W[1-4/0.01]-F[0,​90,​180,​270]
HFDL0404-LC[31-69.9/0.1]-PC[1-1.99/0.01]-WC[0-0.99/0.01]-F[0,​90,​180,​270]
HFDL0502-[40-70/10]-P[2-5/0.01]-W[1-2/0.01]-F[0,​90,​180,​270]
HFDL0502-[40-70/10]-P[2-5/0.01]-WC[0-0.99/0.01]-F[0,​90,​180,​270]
HFDL0502-[40-70/10]-PC[1-2.49/0.01]-W[1-2/0.01]-F[0,​90,​180,​270]
HFDL0502-[40-70/10]-PC[1-2.49/0.01]-WC[0-0.99/0.01]-F[0,​90,​180,​270]
HFDL0502-LC[32-69.9/0.1]-P[2-5/0.01]-W[1-2/0.01]-F[0,​90,​180,​270]
HFDL0502-LC[32-69.9/0.1]-P[2-5/0.01]-WC[0-0.99/0.01]-F[0,​90,​180,​270]
HFDL0502-LC[32-69.9/0.1]-PC[1-2.49/0.01]-W[1-2/0.01]-F[0,​90,​180,​270]
HFDL0502-LC[32-69.9/0.1]-PC[1-2.49/0.01]-WC[0-0.99/0.01]-F[0,​90,​180,​270]
HFDL0503-[40-70/10]-P[2-5/0.01]-W[1-3/0.01]-F[0,​90,​180,​270]
HFDL0503-[40-70/10]-P[2-5/0.01]-WC[0-0.99/0.01]-F[0,​90,​180,​270]
HFDL0503-[40-70/10]-PC[1-2.49/0.01]-W[1-3/0.01]-F[0,​90,​180,​270]
HFDL0503-[40-70/10]-PC[1-2.49/0.01]-WC[0-0.99/0.01]-F[0,​90,​180,​270]
HFDL0503-LC[31-69.9/0.1]-P[2-5/0.01]-W[1-3/0.01]-F[0,​90,​180,​270]
HFDL0503-LC[31-69.9/0.1]-P[2-5/0.01]-WC[0-0.99/0.01]-F[0,​90,​180,​270]
HFDL0503-LC[31-69.9/0.1]-PC[1-2.49/0.01]-W[1-3/0.01]-F[0,​90,​180,​270]
HFDL0503-LC[31-69.9/0.1]-PC[1-2.49/0.01]-WC[0-0.99/0.01]-F[0,​90,​180,​270]
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSTip shape Material Tip length V (Shank)
(mm) 		H (Shank)
(mm) 		F (Flange position designation)
(°) 		L (L dimension)
(mm) 		LC (Full length alteration)
(mm) 		P (Tip dimension)
(mm) 		PC (Tip dimension alteration)
(mm) 		R (Tip corner R)
(mm) 		W (Tip dimension)
(mm) 		WC (Tip dimension alteration)
(mm)

-

1 Quote 10DSKH51 EquivalentL220 ～ 27040 ～ 70-1 ～ 2--1 ～ 2-

-

1 Quote 10DSKH51 EquivalentL220 ～ 27040 ～ 70-1 ～ 2---0 ～ 0.99

-

1 Quote 10DSKH51 EquivalentL220 ～ 270-32 ～ 69.91 ～ 2--1 ～ 2-

-

1 Quote 10DSKH51 EquivalentL220 ～ 270-32 ～ 69.91 ～ 2---0 ～ 0.99

-

1 Quote 10DSKH51 EquivalentL320 ～ 27040 ～ 70-1 ～ 3--1 ～ 2-

-

1 Quote 10DSKH51 EquivalentL320 ～ 27040 ～ 70-1 ～ 3---0 ～ 0.99

-

1 Quote 10DSKH51 EquivalentL320 ～ 27040 ～ 70--1 ～ 1.49-1 ～ 2-

-

1 Quote 10DSKH51 EquivalentL320 ～ 27040 ～ 70--1 ～ 1.49--0 ～ 0.99

-

1 Quote 10DSKH51 EquivalentL320 ～ 270-32 ～ 69.91 ～ 3--1 ～ 2-

-

1 Quote 10DSKH51 EquivalentL320 ～ 270-32 ～ 69.91 ～ 3---0 ～ 0.99

-

1 Quote 10DSKH51 EquivalentL320 ～ 270-32 ～ 69.9-1 ～ 1.49-1 ～ 2-

-

1 Quote 10DSKH51 EquivalentL320 ～ 270-32 ～ 69.9-1 ～ 1.49--0 ～ 0.99

-

1 Quote 10DSKH51 EquivalentL330 ～ 27040 ～ 70-1 ～ 3--1 ～ 3-

-

1 Quote 10DSKH51 EquivalentL330 ～ 27040 ～ 70-1 ～ 3---0 ～ 0.99

-

1 Quote 10DSKH51 EquivalentL330 ～ 27040 ～ 70--1 ～ 1.49-1 ～ 3-

-

1 Quote 10DSKH51 EquivalentL330 ～ 27040 ～ 70--1 ～ 1.49--0 ～ 0.99

-

1 Quote 10DSKH51 EquivalentL330 ～ 270-31 ～ 69.91 ～ 3--1 ～ 3-

-

1 Quote 10DSKH51 EquivalentL330 ～ 270-31 ～ 69.91 ～ 3---0 ～ 0.99

-

1 Quote 10DSKH51 EquivalentL330 ～ 270-31 ～ 69.9-1 ～ 1.49-1 ～ 3-

-

1 Quote 10DSKH51 EquivalentL330 ～ 270-31 ～ 69.9-1 ～ 1.49--0 ～ 0.99

-

1 Quote 10DSKH51 EquivalentL420 ～ 27040 ～ 70-2 ～ 4--1 ～ 2-

-

1 Quote 10DSKH51 EquivalentL420 ～ 27040 ～ 70-2 ～ 4---0 ～ 0.99

-

1 Quote 10DSKH51 EquivalentL420 ～ 27040 ～ 70--1 ～ 1.99-1 ～ 2-

-

1 Quote 10DSKH51 EquivalentL420 ～ 27040 ～ 70--1 ～ 1.99--0 ～ 0.99

-

1 Quote 10DSKH51 EquivalentL420 ～ 270-32 ～ 69.92 ～ 4--1 ～ 2-

-

1 Quote 10DSKH51 EquivalentL420 ～ 270-32 ～ 69.92 ～ 4---0 ～ 0.99

-

1 Quote 10DSKH51 EquivalentL420 ～ 270-32 ～ 69.9-1 ～ 1.99-1 ～ 2-

-

1 Quote 10DSKH51 EquivalentL420 ～ 270-32 ～ 69.9-1 ～ 1.99--0 ～ 0.99

-

1 Quote 10DSKH51 EquivalentL430 ～ 27040 ～ 70-2 ～ 4--1 ～ 3-

-

1 Quote 10DSKH51 EquivalentL430 ～ 27040 ～ 70-2 ～ 4---0 ～ 0.99

-

1 Quote 10DSKH51 EquivalentL430 ～ 27040 ～ 70--1 ～ 1.99-1 ～ 3-

-

1 Quote 10DSKH51 EquivalentL430 ～ 27040 ～ 70--1 ～ 1.99--0 ～ 0.99

-

1 Quote 10DSKH51 EquivalentL430 ～ 270-31 ～ 69.92 ～ 4--1 ～ 3-

-

1 Quote 10DSKH51 EquivalentL430 ～ 270-31 ～ 69.92 ～ 4---0 ～ 0.99

-

1 Quote 10DSKH51 EquivalentL430 ～ 270-31 ～ 69.9-1 ～ 1.99-1 ～ 3-

-

1 Quote 10DSKH51 EquivalentL430 ～ 270-31 ～ 69.9-1 ～ 1.99--0 ～ 0.99

-

1 Quote 10DSKH51 EquivalentL440 ～ 27040 ～ 70-2 ～ 4--1 ～ 4-

-

1 Quote 10DSKH51 EquivalentL440 ～ 27040 ～ 70-2 ～ 4---0 ～ 0.99

-

1 Quote 10DSKH51 EquivalentL440 ～ 27040 ～ 70--1 ～ 1.99-1 ～ 4-

-

1 Quote 10DSKH51 EquivalentL440 ～ 27040 ～ 70--1 ～ 1.99--0 ～ 0.99

-

1 Quote 10DSKH51 EquivalentL440 ～ 270-31 ～ 69.92 ～ 4--1 ～ 4-

-

1 Quote 10DSKH51 EquivalentL440 ～ 270-31 ～ 69.92 ～ 4---0 ～ 0.99

-

1 Quote 10DSKH51 EquivalentL440 ～ 270-31 ～ 69.9-1 ～ 1.99-1 ～ 4-

-

1 Quote 10DSKH51 EquivalentL440 ～ 270-31 ～ 69.9-1 ～ 1.99--0 ～ 0.99

-

1 Quote 10DSKH51 EquivalentL520 ～ 27040 ～ 70-2 ～ 5--1 ～ 2-

-

1 Quote 10DSKH51 EquivalentL520 ～ 27040 ～ 70-2 ～ 5---0 ～ 0.99

-

1 Quote 10DSKH51 EquivalentL520 ～ 27040 ～ 70--1 ～ 2.49-1 ～ 2-

-

1 Quote 10DSKH51 EquivalentL520 ～ 27040 ～ 70--1 ～ 2.49--0 ～ 0.99

-

1 Quote 10DSKH51 EquivalentL520 ～ 270-32 ～ 69.92 ～ 5--1 ～ 2-

-

1 Quote 10DSKH51 EquivalentL520 ～ 270-32 ～ 69.92 ～ 5---0 ～ 0.99

-

1 Quote 10DSKH51 EquivalentL520 ～ 270-32 ～ 69.9-1 ～ 2.49-1 ～ 2-

-

1 Quote 10DSKH51 EquivalentL520 ～ 270-32 ～ 69.9-1 ～ 2.49--0 ～ 0.99

-

1 Quote 10DSKH51 EquivalentL530 ～ 27040 ～ 70-2 ～ 5--1 ～ 3-

-

1 Quote 10DSKH51 EquivalentL530 ～ 27040 ～ 70-2 ～ 5---0 ～ 0.99

-

1 Quote 10DSKH51 EquivalentL530 ～ 27040 ～ 70--1 ～ 2.49-1 ～ 3-

-

1 Quote 10DSKH51 EquivalentL530 ～ 27040 ～ 70--1 ～ 2.49--0 ～ 0.99

-

1 Quote 10DSKH51 EquivalentL530 ～ 270-31 ～ 69.92 ～ 5--1 ～ 3-

-

1 Quote 10DSKH51 EquivalentL530 ～ 270-31 ～ 69.92 ～ 5---0 ～ 0.99

-

1 Quote 10DSKH51 EquivalentL530 ～ 270-31 ～ 69.9-1 ～ 2.49-1 ～ 3-

-

1 Quote 10DSKH51 EquivalentL530 ～ 270-31 ～ 69.9-1 ～ 2.49--0 ～ 0.99

Loading...

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. Next >>


Basic information

Shank type Normal With/without jector W/O Surface treatment None
Shank (mounting part) shape Single-flanged

Configure

Clear all

16,452Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.
The part number is completed.

Basic Attributes

  • Tip shape

    • D
    • R
    • E
    • G

    Clear

  • Material

    • SKD11 Equivalent
    • SKH51 Equivalent
    • Powdered high-speed steel

    Clear

  • Tip length

    • L
    • S

    Clear

  • V (Shank)(mm)

    • 2
    • 3
    • 4
    • 5
    • 6
    • 8
    • 10
    • 13
    • 16
    • 20
    • 22
    • 25
    • 28
    • 30
    • 40
    • 50

    Clear

  • H (Shank)(mm)

    • 2
    • 3
    • 4
    • 5
    • 6
    • 8
    • 10
    • 13
    • 16
    • 20
    • 22
    • 25
    • 28
    • 30

    Clear

  • F (Flange position designation)(°)

    • 0
    • 90
    • 180
    • 270

    Clear

  • L (L dimension)(mm)

     [40-100/10mm Unit(s)]

    Clear

  • LC (Full length alteration)(mm)

     [31-99.9/0.1mm Unit(s)]

    Clear

  • P (Tip dimension)(mm)

     [1-50/0.01mm Unit(s)]

    Clear

  • PC (Tip dimension alteration)(mm)

     [0-19.99/0.01mm Unit(s)]

    Clear

  • R (Tip corner R)(mm)

     [0.15-30/0.01mm Unit(s)]

    Clear

  • W (Tip dimension)(mm)

     [1-30/0.01mm Unit(s)]

    Clear

  • WC (Tip dimension alteration)(mm)

     [0-7.49/0.01mm Unit(s)]

    Clear

  • Type

    • HFDL
    • HFDS
    • HFEL
    • HFES
    • HFGL
    • HFGS
    • HFRL
    • HFRS
    • HSFDL
    • HSFDS
    • HSFEL
    • HSFES
    • HSFGL
    • HSFGS
    • HSFRL
    • HSFRS
    • PHFDL
    • PHFDS
    • PHFEL
    • PHFES
    • PHFGL
    • PHFGS
    • PHFRL
    • PHFRS

    Clear

  • Filter by CAD data type

    • 2D
    • 3D

    Clear

Optional Attributes
