MISUMI Top
Press Die Components
Punches & Dies
Precision Punches & Dies
Precision Punches
Cutting punches / without head / flange suspension / air bore / lapped / solid carbide

Configure

With/without lapping finish
- W/O
- With
D (Shank diameter)(mm)
- 5
- 6
- 8
B (Tip length)(mm)
[2-13/1mm units]
L (L dimension)(mm)
[40-70/10mm units]
LC (Full length alteration)(mm)
[40.1-49.9/0.1mm units]
[50.1-59.9/0.1mm units]
[60.1-69.9/0.1mm units]
P (Tip dimension)(mm)
[1-6/0.001mm units]
T (Head length)(mm)
- 13
- 16
- 20
- 25
T dimension alteration [TC](mm)
[13.1-24.9/0.1mm units]
Type
- L-VXJHAL
- VXJHAL
CAD
- 2D
- 3D

Cutting punches / without head / flange suspension / air bore / lapped / solid carbide

Mouse over image to enlarge

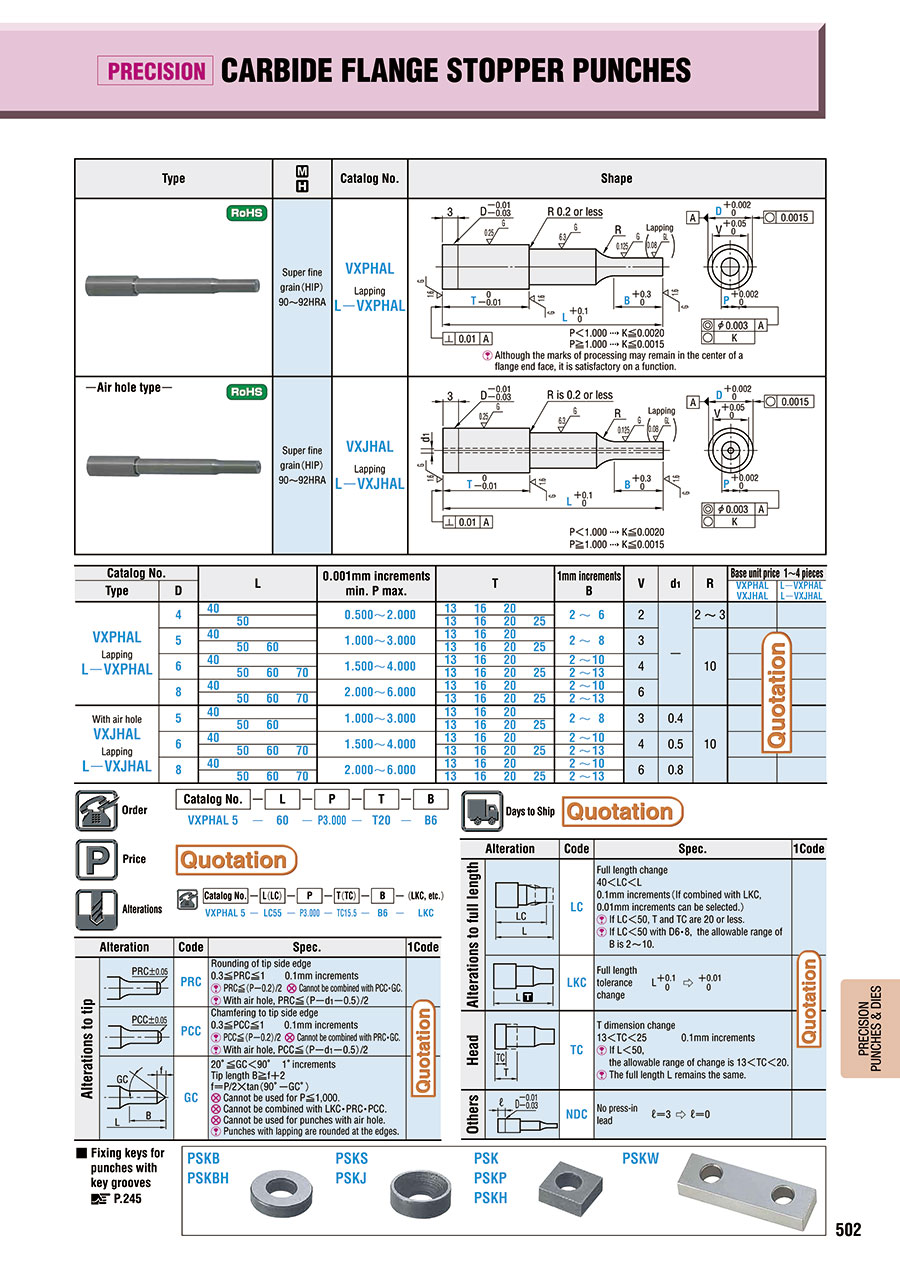

CatalogP.502

Part number:

Still undefined. 44 possible part numbers found.

Outline drawing
Part number list
More Information
Catalog

Outline drawing

Part number list

Number of items

Part number

L-VXJHAL5-[40-60/10]-P[1-3/0.001]-T[13,16,20,25]-B[2-8/1]

L-VXJHAL5-[40-60/10]-P[1-3/0.001]-TC[13.1-24.9/0.1]-B[2-8/1]

L-VXJHAL5-LC[40.1-49.9/0.1]-P[1-3/0.001]-T[13,16,20,25]-B[2-8/1]

L-VXJHAL5-LC[40.1-49.9/0.1]-P[1-3/0.001]-TC[13.1-24.9/0.1]-B[2-8/1]

L-VXJHAL5-LC[50.1-59.9/0.1]-P[1-3/0.001]-T[13,16,20,25]-B[2-8/1]

L-VXJHAL5-LC[50.1-59.9/0.1]-P[1-3/0.001]-TC[13.1-24.9/0.1]-B[2-8/1]

L-VXJHAL6-[40-70/10]-P[1.5-4/0.001]-T[13,16,20,25]-B[2-13/1]

L-VXJHAL6-[40-70/10]-P[1.5-4/0.001]-TC[13.1-24.9/0.1]-B[2-13/1]

L-VXJHAL6-LC[40.1-49.9/0.1]-P[1.5-4/0.001]-T[13,16,20,25]-B[2-13/1]

L-VXJHAL6-LC[40.1-49.9/0.1]-P[1.5-4/0.001]-TC[13.1-24.9/0.1]-B[2-13/1]

L-VXJHAL6-LC[50.1-59.9/0.1]-P[1.5-4/0.001]-T[13,16,20,25]-B[2-13/1]

L-VXJHAL6-LC[50.1-59.9/0.1]-P[1.5-4/0.001]-TC[13.1-24.9/0.1]-B[2-13/1]

L-VXJHAL6-LC[60.1-69.9/0.1]-P[1.5-4/0.001]-T[13,16,20,25]-B[2-13/1]

L-VXJHAL6-LC[60.1-69.9/0.1]-P[1.5-4/0.001]-TC[13.1-24.9/0.1]-B[2-13/1]

L-VXJHAL8-[40-70/10]-P[2-6/0.001]-T[13,16,20,25]-B[2-13/1]

L-VXJHAL8-[40-70/10]-P[2-6/0.001]-TC[13.1-24.9/0.1]-B[2-13/1]

L-VXJHAL8-LC[40.1-49.9/0.1]-P[2-6/0.001]-T[13,16,20,25]-B[2-13/1]

L-VXJHAL8-LC[40.1-49.9/0.1]-P[2-6/0.001]-TC[13.1-24.9/0.1]-B[2-13/1]

L-VXJHAL8-LC[50.1-59.9/0.1]-P[2-6/0.001]-T[13,16,20,25]-B[2-13/1]

L-VXJHAL8-LC[50.1-59.9/0.1]-P[2-6/0.001]-TC[13.1-24.9/0.1]-B[2-13/1]

L-VXJHAL8-LC[60.1-69.9/0.1]-P[2-6/0.001]-T[13,16,20,25]-B[2-13/1]

L-VXJHAL8-LC[60.1-69.9/0.1]-P[2-6/0.001]-TC[13.1-24.9/0.1]-B[2-13/1]

VXJHAL5-[40-60/10]-P[1-3/0.001]-T[13,16,20,25]-B[2-8/1]

VXJHAL5-[40-60/10]-P[1-3/0.001]-TC[13.1-24.9/0.1]-B[2-8/1]

VXJHAL5-LC[40.1-49.9/0.1]-P[1-3/0.001]-T[13,16,20,25]-B[2-8/1]

VXJHAL5-LC[40.1-49.9/0.1]-P[1-3/0.001]-TC[13.1-24.9/0.1]-B[2-8/1]

VXJHAL5-LC[50.1-59.9/0.1]-P[1-3/0.001]-T[13,16,20,25]-B[2-8/1]

VXJHAL5-LC[50.1-59.9/0.1]-P[1-3/0.001]-TC[13.1-24.9/0.1]-B[2-8/1]

VXJHAL6-[40-70/10]-P[1.5-4/0.001]-T[13,16,20,25]-B[2-13/1]

VXJHAL6-[40-70/10]-P[1.5-4/0.001]-TC[13.1-24.9/0.1]-B[2-13/1]

VXJHAL6-LC[40.1-49.9/0.1]-P[1.5-4/0.001]-T[13,16,20,25]-B[2-13/1]

VXJHAL6-LC[40.1-49.9/0.1]-P[1.5-4/0.001]-TC[13.1-24.9/0.1]-B[2-13/1]

VXJHAL6-LC[50.1-59.9/0.1]-P[1.5-4/0.001]-T[13,16,20,25]-B[2-13/1]

VXJHAL6-LC[50.1-59.9/0.1]-P[1.5-4/0.001]-TC[13.1-24.9/0.1]-B[2-13/1]

VXJHAL6-LC[60.1-69.9/0.1]-P[1.5-4/0.001]-T[13,16,20,25]-B[2-13/1]

VXJHAL6-LC[60.1-69.9/0.1]-P[1.5-4/0.001]-TC[13.1-24.9/0.1]-B[2-13/1]

VXJHAL8-[40-70/10]-P[2-6/0.001]-T[13,16,20,25]-B[2-13/1]

VXJHAL8-[40-70/10]-P[2-6/0.001]-TC[13.1-24.9/0.1]-B[2-13/1]

VXJHAL8-LC[40.1-49.9/0.1]-P[2-6/0.001]-T[13,16,20,25]-B[2-13/1]

VXJHAL8-LC[40.1-49.9/0.1]-P[2-6/0.001]-TC[13.1-24.9/0.1]-B[2-13/1]

VXJHAL8-LC[50.1-59.9/0.1]-P[2-6/0.001]-T[13,16,20,25]-B[2-13/1]

VXJHAL8-LC[50.1-59.9/0.1]-P[2-6/0.001]-TC[13.1-24.9/0.1]-B[2-13/1]

VXJHAL8-LC[60.1-69.9/0.1]-P[2-6/0.001]-T[13,16,20,25]-B[2-13/1]

VXJHAL8-LC[60.1-69.9/0.1]-P[2-6/0.001]-TC[13.1-24.9/0.1]-B[2-13/1]

With/without lapping finish

D (Shank diameter)

(mm)

B (Tip length)

(mm)

L (L dimension)

(mm)

LC (Full length alteration)

(mm)

P (Tip dimension)

(mm)

T (Head length)

(mm)

T dimension alteration [TC]

(mm)

RoHS?

Minimum order quantity

With	5	2 ～ 8	40 ～ 60	-	1 ～ 3	13 ～ 25	-	10	1 pieces
With	5	2 ～ 8	40 ～ 60	-	1 ～ 3	-	13.1 ～ 24.9	10	1 pieces
With	5	2 ～ 8	-	40.1 ～ 49.9	1 ～ 3	13 ～ 25	-	10	1 pieces
With	5	2 ～ 8	-	40.1 ～ 49.9	1 ～ 3	-	13.1 ～ 24.9	10	1 pieces
With	5	2 ～ 8	-	50.1 ～ 59.9	1 ～ 3	13 ～ 25	-	10	1 pieces
With	5	2 ～ 8	-	50.1 ～ 59.9	1 ～ 3	-	13.1 ～ 24.9	10	1 pieces
With	6	2 ～ 13	40 ～ 70	-	1.5 ～ 4	13 ～ 25	-	10	1 pieces
With	6	2 ～ 13	40 ～ 70	-	1.5 ～ 4	-	13.1 ～ 24.9	10	1 pieces
With	6	2 ～ 13	-	40.1 ～ 49.9	1.5 ～ 4	13 ～ 25	-	10	1 pieces
With	6	2 ～ 13	-	40.1 ～ 49.9	1.5 ～ 4	-	13.1 ～ 24.9	10	1 pieces
With	6	2 ～ 13	-	50.1 ～ 59.9	1.5 ～ 4	13 ～ 25	-	10	1 pieces
With	6	2 ～ 13	-	50.1 ～ 59.9	1.5 ～ 4	-	13.1 ～ 24.9	10	1 pieces
With	6	2 ～ 13	-	60.1 ～ 69.9	1.5 ～ 4	13 ～ 25	-	10	1 pieces
With	6	2 ～ 13	-	60.1 ～ 69.9	1.5 ～ 4	-	13.1 ～ 24.9	10	1 pieces
With	8	2 ～ 13	40 ～ 70	-	2 ～ 6	13 ～ 25	-	10	1 pieces
With	8	2 ～ 13	40 ～ 70	-	2 ～ 6	-	13.1 ～ 24.9	10	1 pieces
With	8	2 ～ 13	-	40.1 ～ 49.9	2 ～ 6	13 ～ 25	-	10	1 pieces
With	8	2 ～ 13	-	40.1 ～ 49.9	2 ～ 6	-	13.1 ～ 24.9	10	1 pieces
With	8	2 ～ 13	-	50.1 ～ 59.9	2 ～ 6	13 ～ 25	-	10	1 pieces
With	8	2 ～ 13	-	50.1 ～ 59.9	2 ～ 6	-	13.1 ～ 24.9	10	1 pieces
With	8	2 ～ 13	-	60.1 ～ 69.9	2 ～ 6	13 ～ 25	-	10	1 pieces
With	8	2 ～ 13	-	60.1 ～ 69.9	2 ～ 6	-	13.1 ～ 24.9	10	1 pieces
W/O	5	2 ～ 8	40 ～ 60	-	1 ～ 3	13 ～ 25	-	10	1 pieces
W/O	5	2 ～ 8	40 ～ 60	-	1 ～ 3	-	13.1 ～ 24.9	10	1 pieces
W/O	5	2 ～ 8	-	40.1 ～ 49.9	1 ～ 3	13 ～ 25	-	10	1 pieces
W/O	5	2 ～ 8	-	40.1 ～ 49.9	1 ～ 3	-	13.1 ～ 24.9	10	1 pieces
W/O	5	2 ～ 8	-	50.1 ～ 59.9	1 ～ 3	13 ～ 25	-	10	1 pieces
W/O	5	2 ～ 8	-	50.1 ～ 59.9	1 ～ 3	-	13.1 ～ 24.9	10	1 pieces
W/O	6	2 ～ 13	40 ～ 70	-	1.5 ～ 4	13 ～ 25	-	10	1 pieces
W/O	6	2 ～ 13	40 ～ 70	-	1.5 ～ 4	-	13.1 ～ 24.9	10	1 pieces
W/O	6	2 ～ 13	-	40.1 ～ 49.9	1.5 ～ 4	13 ～ 25	-	10	1 pieces
W/O	6	2 ～ 13	-	40.1 ～ 49.9	1.5 ～ 4	-	13.1 ～ 24.9	10	1 pieces
W/O	6	2 ～ 13	-	50.1 ～ 59.9	1.5 ～ 4	13 ～ 25	-	10	1 pieces
W/O	6	2 ～ 13	-	50.1 ～ 59.9	1.5 ～ 4	-	13.1 ～ 24.9	10	1 pieces
W/O	6	2 ～ 13	-	60.1 ～ 69.9	1.5 ～ 4	13 ～ 25	-	10	1 pieces
W/O	6	2 ～ 13	-	60.1 ～ 69.9	1.5 ～ 4	-	13.1 ～ 24.9	10	1 pieces
W/O	8	2 ～ 13	40 ～ 70	-	2 ～ 6	13 ～ 25	-	10	1 pieces
W/O	8	2 ～ 13	40 ～ 70	-	2 ～ 6	-	13.1 ～ 24.9	10	1 pieces
W/O	8	2 ～ 13	-	40.1 ～ 49.9	2 ～ 6	13 ～ 25	-	10	1 pieces
W/O	8	2 ～ 13	-	40.1 ～ 49.9	2 ～ 6	-	13.1 ～ 24.9	10	1 pieces
W/O	8	2 ～ 13	-	50.1 ～ 59.9	2 ～ 6	13 ～ 25	-	10	1 pieces
W/O	8	2 ～ 13	-	50.1 ～ 59.9	2 ～ 6	-	13.1 ～ 24.9	10	1 pieces
W/O	8	2 ～ 13	-	60.1 ～ 69.9	2 ～ 6	13 ～ 25	-	10	1 pieces
W/O	8	2 ～ 13	-	60.1 ～ 69.9	2 ～ 6	-	13.1 ～ 24.9	10	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote

More Information

Catalog

Products homepage

Catalog (2-page spread)
