Cutting bushes (+0,002) / side feed hole / conical waste hole / solid carbide

Cutting bushes (+0,002) / side feed hole / conical waste hole / solid carbide

Part number:

Still undefined. 24 possible part numbers found.
Quantity:

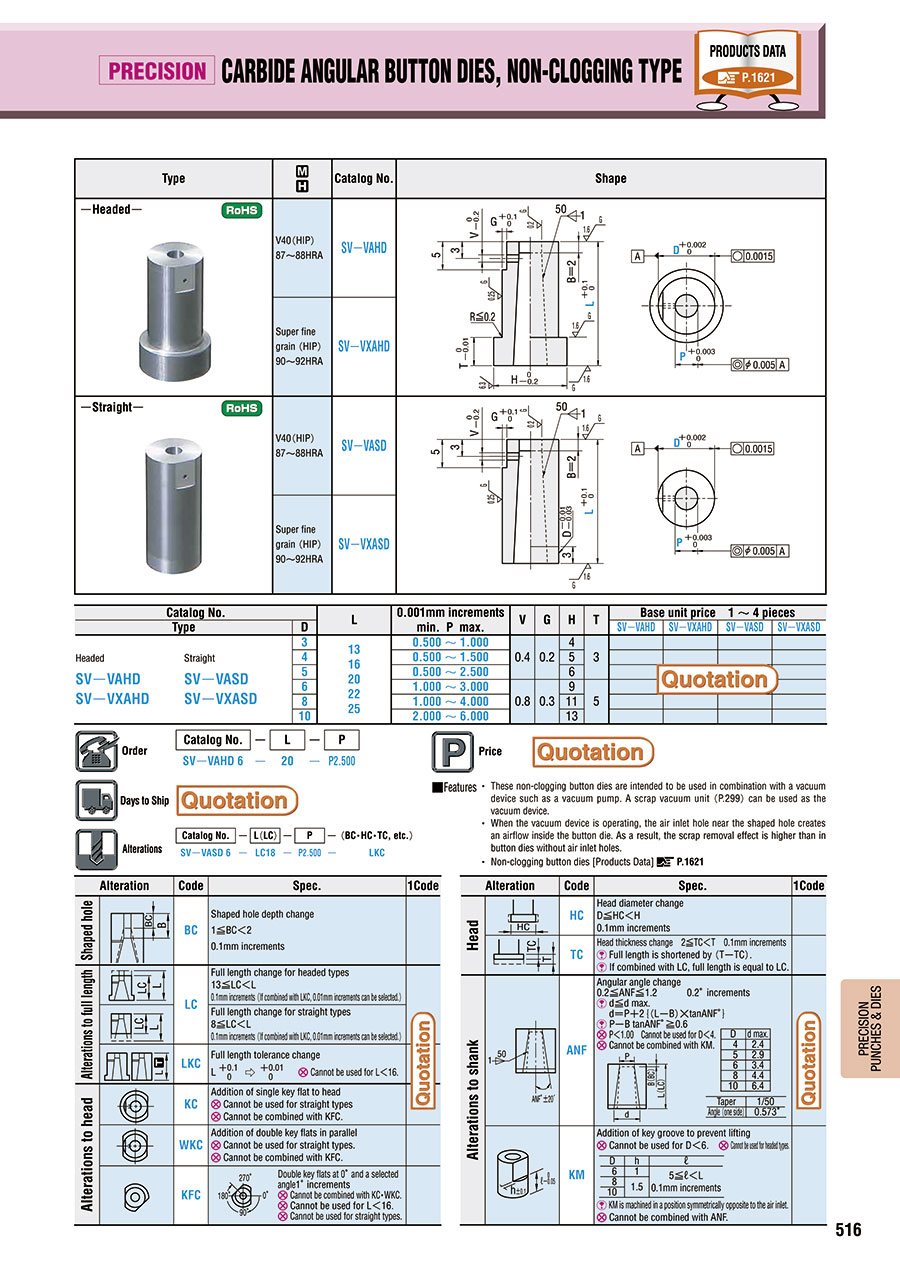

Outline drawing

Part number list

Number of items
  • 1
    • Part number
    SV-VASD3-[13,16,20,22,25]-P[0.5-1/0.001]
    SV-VASD3-LC[8-24.9/0.1]-P[0.5-1/0.001]
    SV-VASD4-[13,16,20,22,25]-P[0.5-1.5/0.001]
    SV-VASD4-LC[8-24.9/0.1]-P[0.5-1.5/0.001]
    SV-VASD5-[13,16,20,22,25]-P[0.5-2.5/0.001]
    SV-VASD5-LC[8-24.9/0.1]-P[0.5-2.5/0.001]
    SV-VASD6-[13,16,20,22,25]-P[1-3/0.001]
    SV-VASD6-LC[8-24.9/0.1]-P[1-3/0.001]
    SV-VASD8-[13,16,20,22,25]-P[1-4/0.001]
    SV-VASD8-LC[8-24.9/0.1]-P[1-4/0.001]
    SV-VASD10-[13,16,20,22,25]-P[2-6/0.001]
    SV-VASD10-LC[8-24.9/0.1]-P[2-6/0.001]
    SV-VXASD3-[13,16,20,22,25]-P[0.5-1/0.001]
    SV-VXASD3-LC[8-24.9/0.1]-P[0.5-1/0.001]
    SV-VXASD4-[13,16,20,22,25]-P[0.5-1.5/0.001]
    SV-VXASD4-LC[8-24.9/0.1]-P[0.5-1.5/0.001]
    SV-VXASD5-[13,16,20,22,25]-P[0.5-2.5/0.001]
    SV-VXASD5-LC[8-24.9/0.1]-P[0.5-2.5/0.001]
    SV-VXASD6-[13,16,20,22,25]-P[1-3/0.001]
    SV-VXASD6-LC[8-24.9/0.1]-P[1-3/0.001]
    SV-VXASD8-[13,16,20,22,25]-P[1-4/0.001]
    SV-VXASD8-LC[8-24.9/0.1]-P[1-4/0.001]
    SV-VXASD10-[13,16,20,22,25]-P[2-6/0.001]
    SV-VXASD10-LC[8-24.9/0.1]-P[2-6/0.001]

    Material

    D (Shank diameter)

    (mm)

    L (L dimension)

    (mm)

    LC (Full length alteration)

    (mm)

    P (Tip dimension)

    (mm)

    		RoHS?Minimum order quantity
    Carbide V40 (HIP)
    3
    13 ～ 25
    -
    0.5 ～ 1
    10
    1 pieces
    Carbide V40 (HIP)
    3
    -
    8 ～ 24.9
    0.5 ～ 1
    10
    1 pieces
    Carbide V40 (HIP)
    4
    13 ～ 25
    -
    0.5 ～ 1.5
    10
    1 pieces
    Carbide V40 (HIP)
    4
    -
    8 ～ 24.9
    0.5 ～ 1.5
    10
    1 pieces
    Carbide V40 (HIP)
    5
    13 ～ 25
    -
    0.5 ～ 2.5
    10
    1 pieces
    Carbide V40 (HIP)
    5
    -
    8 ～ 24.9
    0.5 ～ 2.5
    10
    1 pieces
    Carbide V40 (HIP)
    6
    13 ～ 25
    -
    1 ～ 3
    10
    1 pieces
    Carbide V40 (HIP)
    6
    -
    8 ～ 24.9
    1 ～ 3
    10
    1 pieces
    Carbide V40 (HIP)
    8
    13 ～ 25
    -
    1 ～ 4
    10
    1 pieces
    Carbide V40 (HIP)
    8
    -
    8 ～ 24.9
    1 ～ 4
    10
    1 pieces
    Carbide V40 (HIP)
    10
    13 ～ 25
    -
    2 ～ 6
    10
    1 pieces
    Carbide V40 (HIP)
    10
    -
    8 ～ 24.9
    2 ～ 6
    10
    1 pieces
    Carbide super fine grain (HIP)
    3
    13 ～ 25
    -
    0.5 ～ 1
    10
    1 pieces
    Carbide super fine grain (HIP)
    3
    -
    8 ～ 24.9
    0.5 ～ 1
    10
    1 pieces
    Carbide super fine grain (HIP)
    4
    13 ～ 25
    -
    0.5 ～ 1.5
    10
    1 pieces
    Carbide super fine grain (HIP)
    4
    -
    8 ～ 24.9
    0.5 ～ 1.5
    10
    1 pieces
    Carbide super fine grain (HIP)
    5
    13 ～ 25
    -
    0.5 ～ 2.5
    10
    1 pieces
    Carbide super fine grain (HIP)
    5
    -
    8 ～ 24.9
    0.5 ～ 2.5
    10
    1 pieces
    Carbide super fine grain (HIP)
    6
    13 ～ 25
    -
    1 ～ 3
    10
    1 pieces
    Carbide super fine grain (HIP)
    6
    -
    8 ～ 24.9
    1 ～ 3
    10
    1 pieces
    Carbide super fine grain (HIP)
    8
    13 ～ 25
    -
    1 ～ 4
    10
    1 pieces
    Carbide super fine grain (HIP)
    8
    -
    8 ～ 24.9
    1 ～ 4
    10
    1 pieces
    Carbide super fine grain (HIP)
    10
    13 ～ 25
    -
    2 ～ 6
    10
    1 pieces
    Carbide super fine grain (HIP)
    10
    -
    8 ～ 24.9
    2 ～ 6
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
