Carbide Punches With Taps

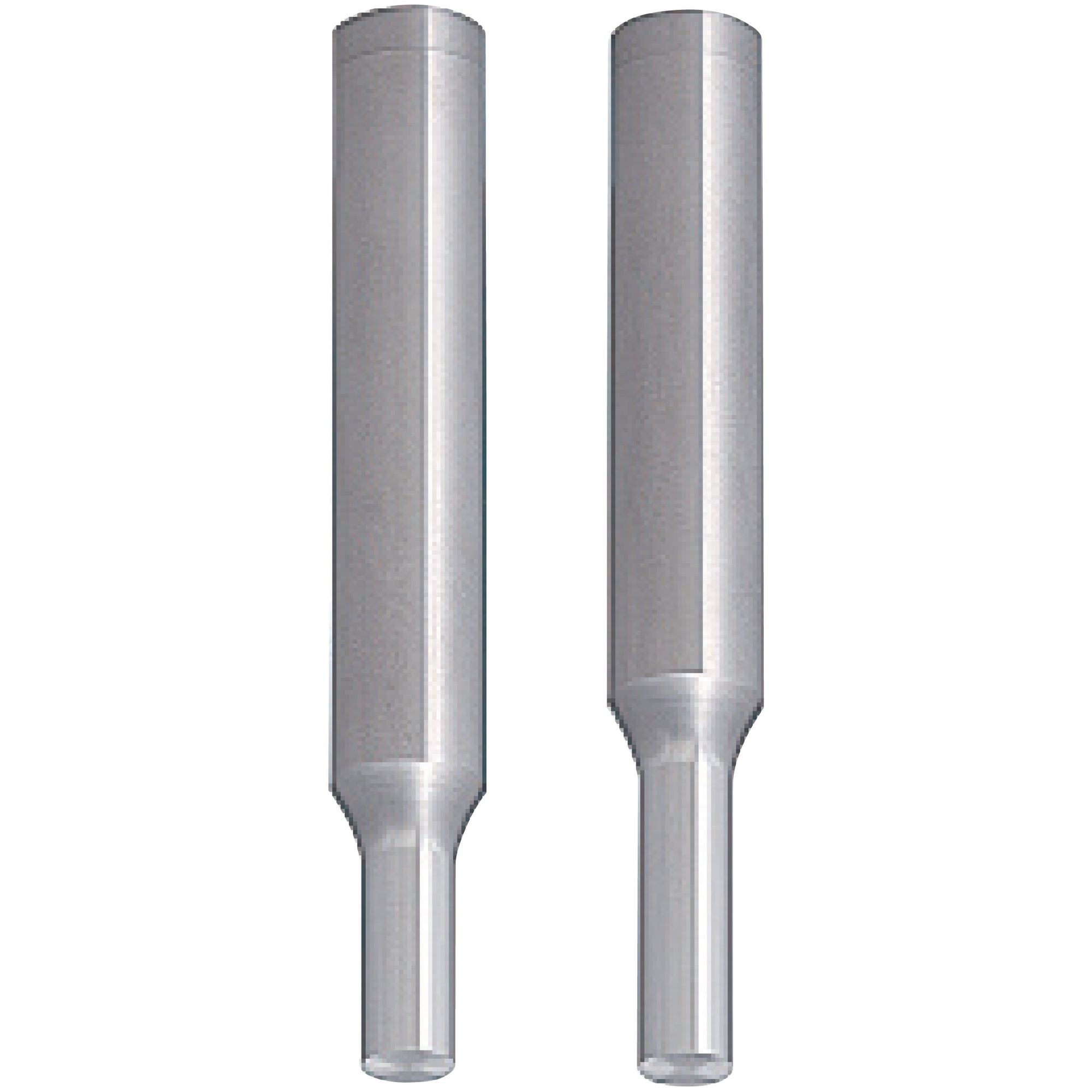

Cutting punches / without head / internal thread / lapped / solid carbide

Configure

Tip shape
- A
- D
- R
- E
- G
Material
- Carbide V30 (HIP)
- Carbide super fine grain (HIP)
Tip length
- L
- S
D (Shank diameter)(mm)
- 5
- 6
- 8
- 10
- 13
- 16
L (L dimension)(mm)
[40-80/10mm units]
LC (Full length alteration)(mm)
[27-79.9/0.1mm units]
P (Tip dimension)(mm)
[1.5-15.97/0.01mm units]
[2-15.999/0.001mm units]
PC (Tip dimension alteration)(mm)
[1-3.99/0.01mm units]
[1-9.999/0.001mm units]
R (Tip corner R)(mm)
[0.15-7.98/0.01mm units]
W (Tip dimension)(mm)
[1.5-15.97/0.01mm units]
WC (Tip dimension alteration)(mm)
[1-3.99/0.01mm units]
Type
CAD
- 2D
- 3D

Cutting punches / without head / internal thread / lapped / solid carbide

A	Carbide V30 (HIP)	L	5	50 ～ 70	-	2 ～ 4.999	-	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	L	5	50 ～ 70	-	-	1 ～ 1.999	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	L	5	-	27 ～ 69.9	2 ～ 4.999	-	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	L	5	-	27 ～ 69.9	-	1 ～ 1.999	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	L	6	50 ～ 70	-	2 ～ 5.999	-	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	L	6	50 ～ 70	-	-	1 ～ 1.999	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	L	6	-	27 ～ 69.9	2 ～ 5.999	-	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	L	6	-	27 ～ 69.9	-	1 ～ 1.999	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	L	8	50 ～ 80	-	3 ～ 7.999	-	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	L	8	50 ～ 80	-	-	1.5 ～ 2.999	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	L	8	-	27 ～ 79.9	3 ～ 7.999	-	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	L	8	-	27 ～ 79.9	-	1.5 ～ 2.999	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	L	10	50 ～ 80	-	3 ～ 9.999	-	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	L	10	50 ～ 80	-	-	1.5 ～ 2.999	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	L	10	-	27 ～ 79.9	3 ～ 9.999	-	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	L	10	-	27 ～ 79.9	-	1.5 ～ 2.999	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	L	13	50 ～ 80	-	6 ～ 12.999	-	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	L	13	50 ～ 80	-	-	3 ～ 5.999	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	L	13	-	27 ～ 79.9	6 ～ 12.999	-	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	L	13	-	27 ～ 79.9	-	3 ～ 5.999	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	L	16	60 ～ 80	-	10 ～ 15.999	-	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	L	16	60 ～ 80	-	-	5 ～ 9.999	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	L	16	-	27 ～ 79.9	10 ～ 15.999	-	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	L	16	-	27 ～ 79.9	-	5 ～ 9.999	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	S	5	40 ～ 70	-	2 ～ 4.999	-	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	S	5	40 ～ 70	-	-	1 ～ 1.999	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	S	5	-	27 ～ 69.9	2 ～ 4.999	-	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	S	5	-	27 ～ 69.9	-	1 ～ 1.999	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	S	6	40 ～ 70	-	2 ～ 5.999	-	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	S	6	40 ～ 70	-	-	1 ～ 1.999	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	S	6	-	27 ～ 69.9	2 ～ 5.999	-	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	S	6	-	27 ～ 69.9	-	1 ～ 1.999	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	S	8	40 ～ 80	-	3 ～ 7.999	-	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	S	8	40 ～ 80	-	-	1.5 ～ 2.999	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	S	8	-	27 ～ 79.9	3 ～ 7.999	-	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	S	8	-	27 ～ 79.9	-	1.5 ～ 2.999	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	S	10	40 ～ 80	-	3 ～ 9.999	-	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	S	10	40 ～ 80	-	-	1.5 ～ 2.999	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	S	10	-	27 ～ 79.9	3 ～ 9.999	-	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	S	10	-	27 ～ 79.9	-	1.5 ～ 2.999	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	S	13	40 ～ 80	-	6 ～ 12.999	-	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	S	13	40 ～ 80	-	-	3 ～ 5.999	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	S	13	-	27 ～ 79.9	6 ～ 12.999	-	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	S	13	-	27 ～ 79.9	-	3 ～ 5.999	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	S	16	40 ～ 80	-	10 ～ 15.999	-	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	S	16	40 ～ 80	-	-	5 ～ 9.999	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	S	16	-	27 ～ 79.9	10 ～ 15.999	-	-	-	-	10	1 pieces
A	Carbide V30 (HIP)	S	16	-	27 ～ 79.9	-	5 ～ 9.999	-	-	-	10	1 pieces
D	Carbide V30 (HIP)	L	6	50 ～ 70	-	2 ～ 5.97	-	-	2 ～ 5.97	-	10	1 pieces
D	Carbide V30 (HIP)	L	6	50 ～ 70	-	2 ～ 5.97	-	-	-	1.3 ～ 1.99	10	1 pieces
D	Carbide V30 (HIP)	L	6	50 ～ 70	-	-	1.3 ～ 1.99	-	2 ～ 5.97	-	10	1 pieces
D	Carbide V30 (HIP)	L	6	50 ～ 70	-	-	1.3 ～ 1.99	-	-	1.3 ～ 1.99	10	1 pieces
D	Carbide V30 (HIP)	L	6	-	32 ～ 69.9	2 ～ 5.97	-	-	2 ～ 5.97	-	10	1 pieces
D	Carbide V30 (HIP)	L	6	-	32 ～ 69.9	2 ～ 5.97	-	-	-	1.3 ～ 1.99	10	1 pieces
D	Carbide V30 (HIP)	L	6	-	32 ～ 69.9	-	1.3 ～ 1.99	-	2 ～ 5.97	-	10	1 pieces
D	Carbide V30 (HIP)	L	6	-	32 ～ 69.9	-	1.3 ～ 1.99	-	-	1.3 ～ 1.99	10	1 pieces
D	Carbide V30 (HIP)	L	8	50 ～ 80	-	2.5 ～ 7.97	-	-	2.5 ～ 7.97	-	10	1 pieces
D	Carbide V30 (HIP)	L	8	50 ～ 80	-	2.5 ～ 7.97	-	-	-	1.6 ～ 2.49	10	1 pieces
D	Carbide V30 (HIP)	L	8	50 ～ 80	-	-	1.6 ～ 2.49	-	2.5 ～ 7.97	-	10	1 pieces
D	Carbide V30 (HIP)	L	8	50 ～ 80	-	-	1.6 ～ 2.49	-	-	1.6 ～ 2.49	10	1 pieces

- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote

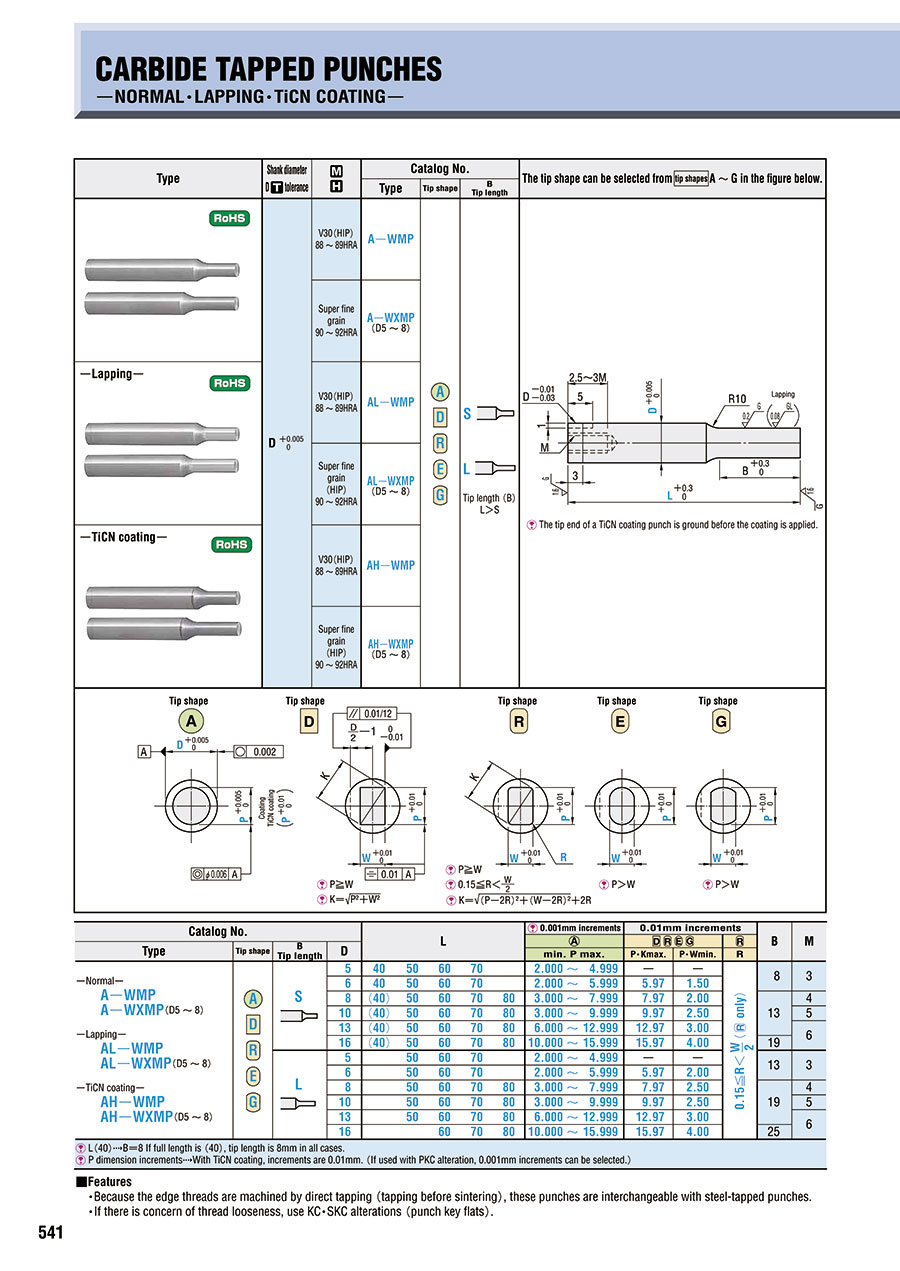

Cutting punches / without head / internal thread / lapped / solid carbide
