Carbide Punches With Key Grooves
Cutting punches / without head / lateral punch suspension / pneumatic hole / solid carbide

Configure

Tip shape
- A
- D
- R
- E
- G
Material
- Carbide V30 (HIP)
- Carbide super fine grain (HIP)
Shank diameter D tolerance
- +0.005/0
- m5
Tip length
- L
- S
D (Shank diameter)(mm)
- 4
- 5
- 6
- 8
- 10
- 13
- 16
L (L dimension)(mm)
[5-80/10mm units]
LC (Full length alteration)(mm)
[30-79.9/0.1mm units]
LCT (Head thickness tolerance change + Total length alteration)(mm)
[30-79.9/0.1mm units]
LCX (Full length change with no change to tip length B)(mm)
[27-79.9/0.1mm units]
P (Tip dimension)(mm)
[1.5-15.95/0.01mm units]
[1.5-15.99/0.001mm units]
PC (Tip dimension alteration)(mm)
[1.8-1.9/0.1mm units]
[2.5-2.9/0.1mm units]
[5-5.9/0.1mm units]
[1.8-1.99/0.01mm units]
[2.5-2.99/0.01mm units]
[5-5.99/0.01mm units]
[1.8-1.999/0.001mm units]
[2.3-2.999/0.001mm units]
[5-9.999/0.001mm units]
R (Tip corner R)(mm)
[0.15-7.96/0.01mm units]
T (Key groove position)(mm)
[5-80/0.1mm units]
W (Tip dimension)(mm)
[1.5-15.95/0.01mm units]
WC (Tip dimension alteration)(mm)
[1.8-1.9/0.1mm units]
[2.5-2.9/0.1mm units]
[5-5.9/0.1mm units]
[1.8-1.99/0.01mm units]
[2.5-2.99/0.01mm units]
[5-5.99/0.01mm units]
Type
CAD
- 2D
- 3D

Cutting punches / without head / lateral punch suspension / pneumatic hole / solid carbide

A	Carbide V30 (HIP)	+0.005/0	L	4	50 ～ 60	-	-	-	1.5 ～ 3.99	-	-	5 ～ 60	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	4	-	39 ～ 59.9	-	-	1.5 ～ 3.99	-	-	5 ～ 60	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	4	-	-	39 ～ 59.9	-	1.5 ～ 3.99	-	-	5 ～ 60	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	4	-	-	-	39 ～ 59.9	1.5 ～ 3.99	-	-	5 ～ 60	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	5	50 ～ 70	-	-	-	2 ～ 4.99	-	-	5 ～ 70	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	5	50 ～ 70	-	-	-	-	1.8 ～ 1.999	-	5 ～ 70	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	5	-	39 ～ 69.9	-	-	2 ～ 4.99	-	-	5 ～ 70	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	5	-	39 ～ 69.9	-	-	-	1.8 ～ 1.999	-	5 ～ 70	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	5	-	-	39 ～ 69.9	-	2 ～ 4.99	-	-	5 ～ 70	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	5	-	-	39 ～ 69.9	-	-	1.8 ～ 1.999	-	5 ～ 70	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	5	-	-	-	39 ～ 69.9	2 ～ 4.99	-	-	5 ～ 70	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	5	-	-	-	39 ～ 69.9	-	1.8 ～ 1.999	-	5 ～ 70	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	6	50 ～ 70	-	-	-	2 ～ 5.99	-	-	5 ～ 70	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	6	50 ～ 70	-	-	-	-	1.8 ～ 1.999	-	5 ～ 70	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	6	-	39 ～ 69.9	-	-	2 ～ 5.99	-	-	5 ～ 70	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	6	-	39 ～ 69.9	-	-	-	1.8 ～ 1.999	-	5 ～ 70	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	6	-	-	39 ～ 69.9	-	2 ～ 5.99	-	-	5 ～ 70	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	6	-	-	39 ～ 69.9	-	-	1.8 ～ 1.999	-	5 ～ 70	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	6	-	-	-	39 ～ 69.9	2 ～ 5.99	-	-	5 ～ 70	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	6	-	-	-	39 ～ 69.9	-	1.8 ～ 1.999	-	5 ～ 70	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	8	50 ～ 80	-	-	-	3 ～ 7.99	-	-	5 ～ 80	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	8	50 ～ 80	-	-	-	-	2.3 ～ 2.999	-	5 ～ 80	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	8	-	39 ～ 79.9	-	-	3 ～ 7.99	-	-	5 ～ 80	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	8	-	39 ～ 79.9	-	-	-	2.3 ～ 2.999	-	5 ～ 80	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	8	-	-	39 ～ 79.9	-	3 ～ 7.99	-	-	5 ～ 80	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	8	-	-	39 ～ 79.9	-	-	2.3 ～ 2.999	-	5 ～ 80	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	8	-	-	-	39 ～ 79.9	3 ～ 7.99	-	-	5 ～ 80	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	8	-	-	-	39 ～ 79.9	-	2.3 ～ 2.999	-	5 ～ 80	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	10	50 ～ 80	-	-	-	3 ～ 9.99	-	-	5 ～ 80	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	10	50 ～ 80	-	-	-	-	2.8 ～ 2.999	-	5 ～ 80	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	10	-	39 ～ 79.9	-	-	3 ～ 9.99	-	-	5 ～ 80	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	10	-	39 ～ 79.9	-	-	-	2.8 ～ 2.999	-	5 ～ 80	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	10	-	-	39 ～ 79.9	-	3 ～ 9.99	-	-	5 ～ 80	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	10	-	-	39 ～ 79.9	-	-	2.8 ～ 2.999	-	5 ～ 80	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	10	-	-	-	39 ～ 79.9	3 ～ 9.99	-	-	5 ～ 80	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	10	-	-	-	39 ～ 79.9	-	2.8 ～ 2.999	-	5 ～ 80	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	13	50 ～ 80	-	-	-	6 ～ 12.99	-	-	5 ～ 80	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	13	50 ～ 80	-	-	-	-	5 ～ 5.999	-	5 ～ 80	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	13	-	39 ～ 79.9	-	-	6 ～ 12.99	-	-	5 ～ 80	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	13	-	39 ～ 79.9	-	-	-	5 ～ 5.999	-	5 ～ 80	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	13	-	-	39 ～ 79.9	-	6 ～ 12.99	-	-	5 ～ 80	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	13	-	-	39 ～ 79.9	-	-	5 ～ 5.999	-	5 ～ 80	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	13	-	-	-	39 ～ 79.9	6 ～ 12.99	-	-	5 ～ 80	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	13	-	-	-	39 ～ 79.9	-	5 ～ 5.999	-	5 ～ 80	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	16	60 ～ 80	-	-	-	10 ～ 15.99	-	-	5 ～ 80	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	16	60 ～ 80	-	-	-	-	8 ～ 9.999	-	5 ～ 80	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	16	-	39 ～ 79.9	-	-	10 ～ 15.99	-	-	5 ～ 80	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	16	-	39 ～ 79.9	-	-	-	8 ～ 9.999	-	5 ～ 80	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	16	-	-	39 ～ 79.9	-	10 ～ 15.99	-	-	5 ～ 80	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	16	-	-	39 ～ 79.9	-	-	8 ～ 9.999	-	5 ～ 80	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	16	-	-	-	39 ～ 79.9	10 ～ 15.99	-	-	5 ～ 80	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	L	16	-	-	-	39 ～ 79.9	-	8 ～ 9.999	-	5 ～ 80	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	S	4	40 ～ 60	-	-	-	1.5 ～ 3.99	-	-	5 ～ 60	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	S	4	-	32 ～ 59.9	-	-	1.5 ～ 3.99	-	-	5 ～ 60	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	S	4	-	-	32 ～ 59.9	-	1.5 ～ 3.99	-	-	5 ～ 60	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	S	4	-	-	-	32 ～ 59.9	1.5 ～ 3.99	-	-	5 ～ 60	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	S	5	40 ～ 70	-	-	-	2 ～ 4.99	-	-	5 ～ 70	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	S	5	40 ～ 70	-	-	-	-	1.8 ～ 1.999	-	5 ～ 70	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	S	5	-	32 ～ 69.9	-	-	2 ～ 4.99	-	-	5 ～ 70	-	-	10	1 pieces
A	Carbide V30 (HIP)	+0.005/0	S	5	-	32 ～ 69.9	-	-	-	1.8 ～ 1.999	-	5 ～ 70	-	-	10	1 pieces

- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote

Cutting punches / without head / lateral punch suspension / pneumatic hole / solid carbide

Outline drawing

Part number list

More Information

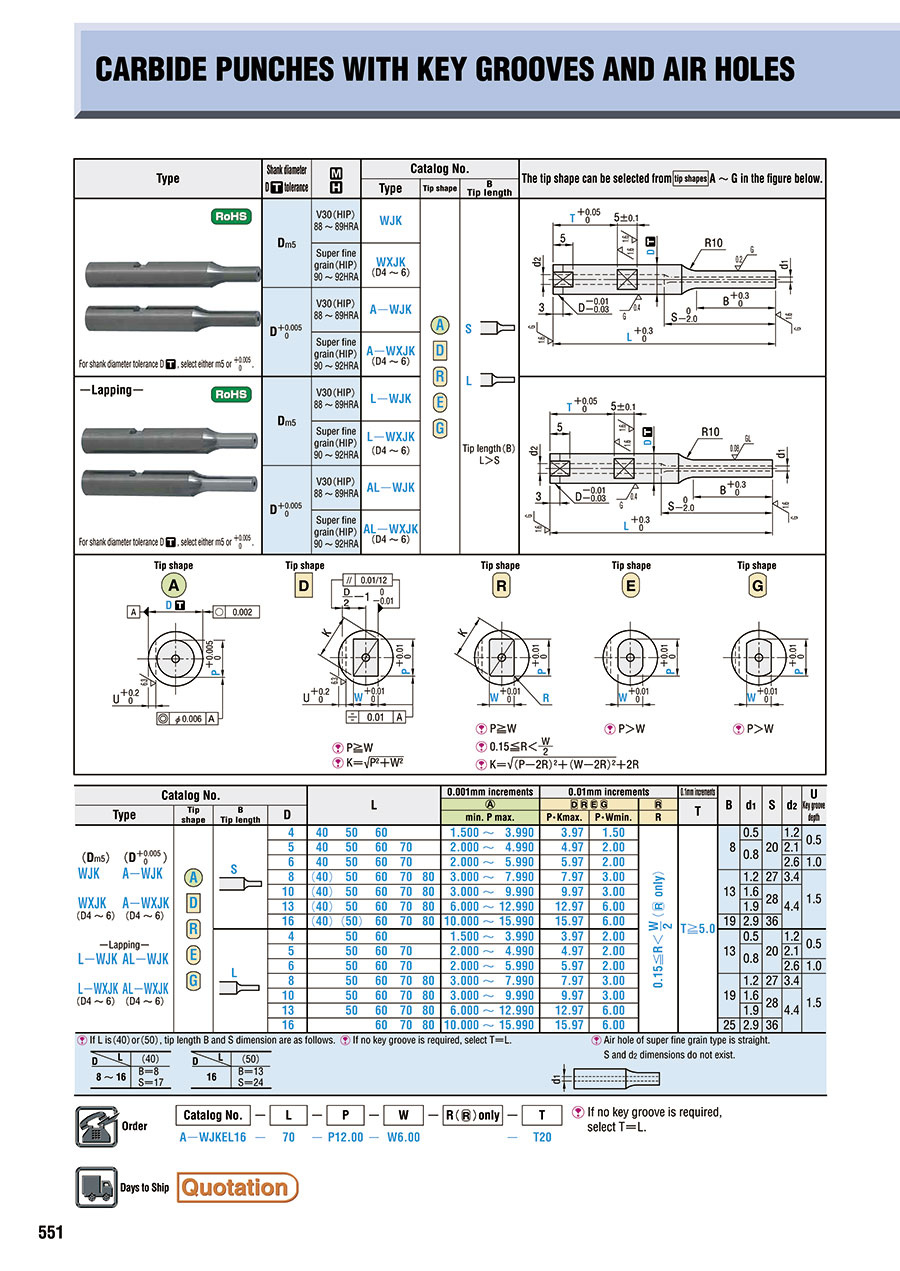

Catalog
