Cutting punches / cylindrical head / lapped / TiCN / VHM

Configure

Material
- Carbide V30 (HIP)
- Carbide super fine grain (HIP)
Surface treatment
Shank diameter D tolerance
- +0.005/0
- +0.01/0
No. (Nominal diameter)(mm)
- 1.0
- 1.6
- 2.0
- 2.5
- 3
- 4
- 5
- 6
- 8
- 10
L (L dimension)(mm)
- 20
- 25
- 30
- 35
- 40
- 50
- 60
[40-80/10mm units]
LC (Full length alteration)(mm)
[20-80/0.1mm units]
LCT (Head thickness tolerance change + Total length alteration)(mm)
[20-80/0.1mm units]
LMT (Head thickness tolerance change + Total length alteration)(mm)
[20-80/0.1mm units]
P (Tip dimension)(mm)
[1-8/0.01mm units]
[0.5-10/0.001mm units]
Type
CAD
- 2D
- 3D

Cutting punches / cylindrical head / lapped / TiCN / VHM

Carbide V30 (HIP)	TiCN	+0.01/0	1.6	20 ～ 35	-	-	-	1 ～ 1.6	10	1 pieces
Carbide V30 (HIP)	TiCN	+0.01/0	1.6	-	20 ～ 35	-	-	1 ～ 1.6	10	1 pieces
Carbide V30 (HIP)	TiCN	+0.01/0	1.6	-	-	20 ～ 35	-	1 ～ 1.6	10	1 pieces
Carbide V30 (HIP)	TiCN	+0.01/0	1.6	-	-	-	20 ～ 35	1 ～ 1.6	10	1 pieces
Carbide V30 (HIP)	TiCN	+0.01/0	2.0	20 ～ 50	-	-	-	1.6 ～ 2	10	1 pieces
Carbide V30 (HIP)	TiCN	+0.01/0	2.0	-	20 ～ 50	-	-	1.6 ～ 2	10	1 pieces
Carbide V30 (HIP)	TiCN	+0.01/0	2.0	-	-	20 ～ 50	-	1.6 ～ 2	10	1 pieces
Carbide V30 (HIP)	TiCN	+0.01/0	2.0	-	-	-	20 ～ 50	1.6 ～ 2	10	1 pieces
Carbide V30 (HIP)	TiCN	+0.01/0	2.5	20 ～ 60	-	-	-	2 ～ 2.5	10	1 pieces
Carbide V30 (HIP)	TiCN	+0.01/0	2.5	-	20.1 ～ 60	-	-	2 ～ 2.5	10	1 pieces
Carbide V30 (HIP)	TiCN	+0.01/0	2.5	-	-	20.1 ～ 60	-	2 ～ 2.5	10	1 pieces
Carbide V30 (HIP)	TiCN	+0.01/0	2.5	-	-	-	20.1 ～ 60	2 ～ 2.5	10	1 pieces
Carbide V30 (HIP)	TiCN	+0.01/0	3	40 ～ 60	-	-	-	2 ～ 3	10	1 pieces
Carbide V30 (HIP)	TiCN	+0.01/0	3	-	20 ～ 59.9	-	-	2 ～ 3	10	1 pieces
Carbide V30 (HIP)	TiCN	+0.01/0	3	-	-	20 ～ 59.9	-	2 ～ 3	10	1 pieces
Carbide V30 (HIP)	TiCN	+0.01/0	3	-	-	-	20 ～ 59.9	2 ～ 3	10	1 pieces
Carbide V30 (HIP)	TiCN	+0.01/0	4	40 ～ 70	-	-	-	3 ～ 4	10	1 pieces
Carbide V30 (HIP)	TiCN	+0.01/0	4	-	20 ～ 69.9	-	-	3 ～ 4	10	1 pieces
Carbide V30 (HIP)	TiCN	+0.01/0	4	-	-	20 ～ 69.9	-	3 ～ 4	10	1 pieces
Carbide V30 (HIP)	TiCN	+0.01/0	4	-	-	-	20 ～ 69.9	3 ～ 4	10	1 pieces
Carbide V30 (HIP)	TiCN	+0.01/0	5	40 ～ 70	-	-	-	4 ～ 5	10	1 pieces
Carbide V30 (HIP)	TiCN	+0.01/0	5	-	20 ～ 69.9	-	-	4 ～ 5	10	1 pieces
Carbide V30 (HIP)	TiCN	+0.01/0	5	-	-	20 ～ 69.9	-	4 ～ 5	10	1 pieces
Carbide V30 (HIP)	TiCN	+0.01/0	5	-	-	-	20 ～ 69.9	4 ～ 5	10	1 pieces
Carbide V30 (HIP)	TiCN	+0.01/0	6	40 ～ 70	-	-	-	5 ～ 6	10	1 pieces
Carbide V30 (HIP)	TiCN	+0.01/0	6	-	20 ～ 69.9	-	-	5 ～ 6	10	1 pieces
Carbide V30 (HIP)	TiCN	+0.01/0	6	-	-	20 ～ 69.9	-	5 ～ 6	10	1 pieces
Carbide V30 (HIP)	TiCN	+0.01/0	6	-	-	-	20 ～ 69.9	5 ～ 6	10	1 pieces
Carbide V30 (HIP)	TiCN	+0.01/0	8	40 ～ 80	-	-	-	6 ～ 8	10	1 pieces
Carbide V30 (HIP)	TiCN	+0.01/0	8	-	20 ～ 79.9	-	-	6 ～ 8	10	1 pieces
Carbide V30 (HIP)	TiCN	+0.01/0	8	-	-	20 ～ 79.9	-	6 ～ 8	10	1 pieces
Carbide V30 (HIP)	TiCN	+0.01/0	8	-	-	-	20 ～ 79.9	6 ～ 8	10	1 pieces
Carbide V30 (HIP)	TiCN	+0.01/0	10	40 ～ 80	-	-	-	8 ～ 10	10	1 pieces
Carbide V30 (HIP)	TiCN	+0.01/0	10	-	20 ～ 80	-	-	8 ～ 10	10	1 pieces
Carbide V30 (HIP)	TiCN	+0.01/0	10	-	-	20 ～ 80	-	8 ～ 10	10	1 pieces
Carbide V30 (HIP)	TiCN	+0.01/0	10	-	-	-	20 ～ 80	8 ～ 10	10	1 pieces
Carbide super fine grain (HIP)	TiCN	+0.01/0	1.6	20 ～ 35	-	-	-	1 ～ 1.6	10	1 pieces
Carbide super fine grain (HIP)	TiCN	+0.01/0	1.6	-	20.1 ～ 35	-	-	1 ～ 1.6	10	1 pieces
Carbide super fine grain (HIP)	TiCN	+0.01/0	1.6	-	-	20.1 ～ 35	-	1 ～ 1.6	10	1 pieces
Carbide super fine grain (HIP)	TiCN	+0.01/0	1.6	-	-	-	20.1 ～ 35	1 ～ 1.6	10	1 pieces
Carbide super fine grain (HIP)	TiCN	+0.01/0	2.0	20 ～ 50	-	-	-	1.6 ～ 2	10	1 pieces
Carbide super fine grain (HIP)	TiCN	+0.01/0	2.0	-	20.1 ～ 50	-	-	1.6 ～ 2	10	1 pieces
Carbide super fine grain (HIP)	TiCN	+0.01/0	2.0	-	-	20.1 ～ 50	-	1.6 ～ 2	10	1 pieces
Carbide super fine grain (HIP)	TiCN	+0.01/0	2.0	-	-	-	20.1 ～ 50	1.6 ～ 2	10	1 pieces
Carbide super fine grain (HIP)	TiCN	+0.01/0	2.5	20 ～ 60	-	-	-	2 ～ 2.5	10	1 pieces
Carbide super fine grain (HIP)	TiCN	+0.01/0	2.5	-	20.1 ～ 60	-	-	2 ～ 2.5	10	1 pieces
Carbide super fine grain (HIP)	TiCN	+0.01/0	2.5	-	-	20.1 ～ 60	-	2 ～ 2.5	10	1 pieces
Carbide super fine grain (HIP)	TiCN	+0.01/0	2.5	-	-	-	20.1 ～ 60	2 ～ 2.5	10	1 pieces
Carbide super fine grain (HIP)	TiCN	+0.01/0	3	40 ～ 60	-	-	-	2 ～ 3	10	1 pieces
Carbide super fine grain (HIP)	TiCN	+0.01/0	3	-	20 ～ 59.9	-	-	2 ～ 3	10	1 pieces
Carbide super fine grain (HIP)	TiCN	+0.01/0	3	-	-	20 ～ 59.9	-	2 ～ 3	10	1 pieces
Carbide super fine grain (HIP)	TiCN	+0.01/0	3	-	-	-	20 ～ 59.9	2 ～ 3	10	1 pieces
Carbide super fine grain (HIP)	TiCN	+0.01/0	4	40 ～ 70	-	-	-	3 ～ 4	10	1 pieces
Carbide super fine grain (HIP)	TiCN	+0.01/0	4	-	20 ～ 69.9	-	-	3 ～ 4	10	1 pieces
Carbide super fine grain (HIP)	TiCN	+0.01/0	4	-	-	20 ～ 69.9	-	3 ～ 4	10	1 pieces
Carbide super fine grain (HIP)	TiCN	+0.01/0	4	-	-	-	20 ～ 69.9	3 ～ 4	10	1 pieces
Carbide super fine grain (HIP)	TiCN	+0.01/0	5	40 ～ 70	-	-	-	4 ～ 5	10	1 pieces
Carbide super fine grain (HIP)	TiCN	+0.01/0	5	-	20 ～ 69.9	-	-	4 ～ 5	10	1 pieces
Carbide super fine grain (HIP)	TiCN	+0.01/0	5	-	-	20 ～ 69.9	-	4 ～ 5	10	1 pieces
Carbide super fine grain (HIP)	TiCN	+0.01/0	5	-	-	-	20 ～ 69.9	4 ～ 5	10	1 pieces

- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote

Cutting punches / cylindrical head / lapped / TiCN / VHM

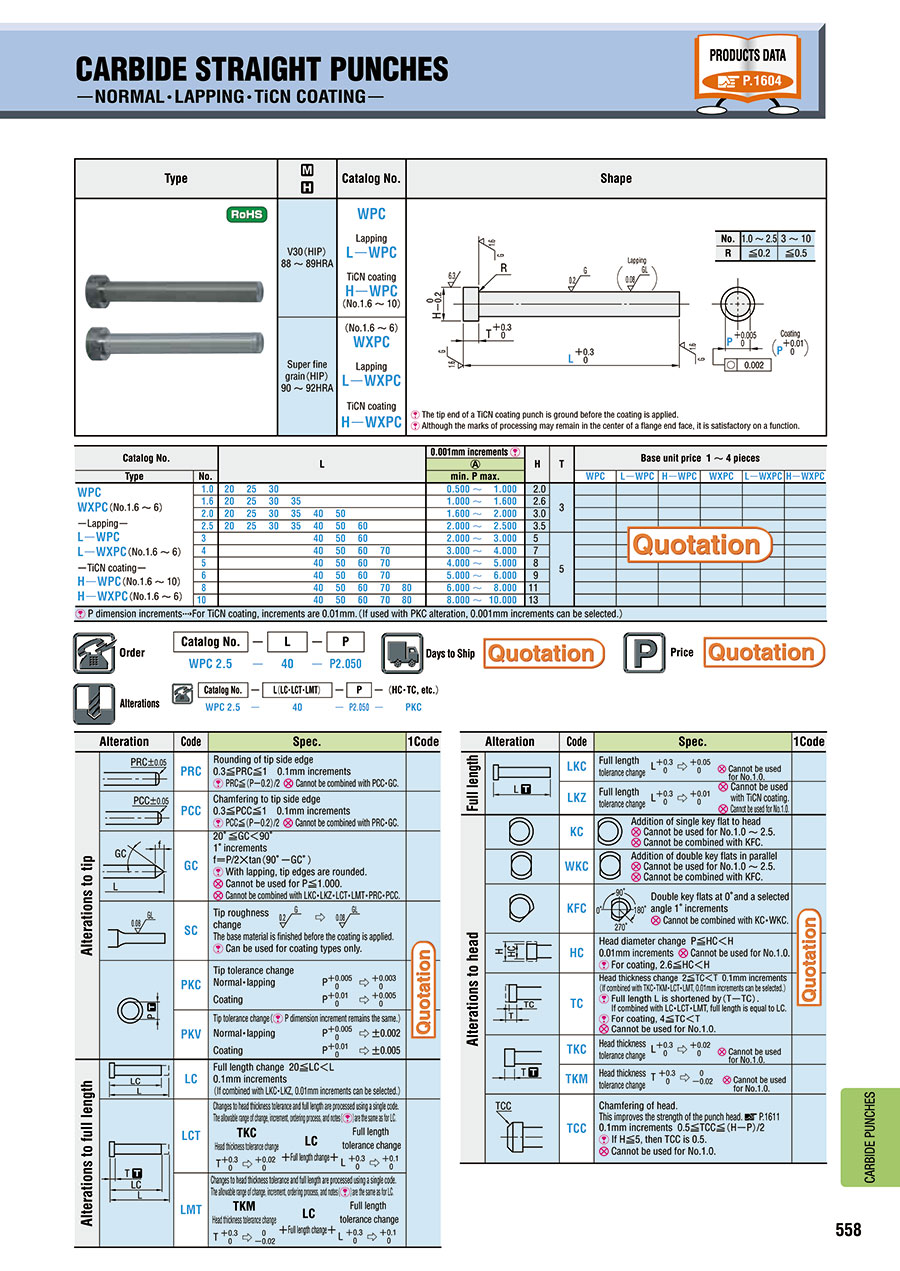

Outline drawing

Part number list
