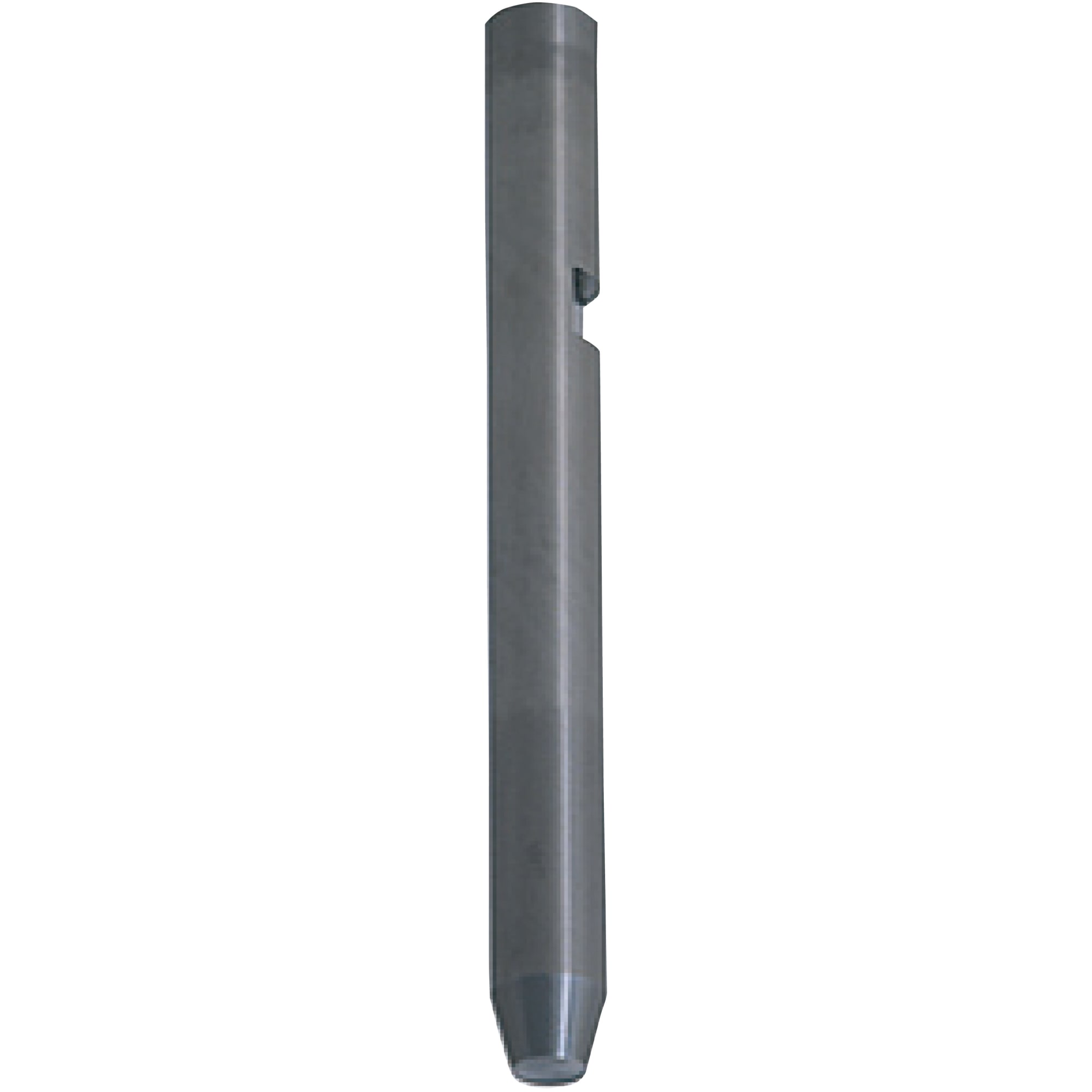

          Pilot pins / without head / lateral punch suspension / truncated cone tip / solid carbide

          Pilot pins / without head / lateral punch suspension / truncated cone tip / solid carbide

          Mouse over image to enlarge

          Part number:

          Still undefined. 18 possible part numbers found.
          Quantity:

          Outline drawing

          Part number list

          Number of items
        • 1
          • Part number
          WKTTC3-[42,52,62]-P[2-3/0.001]-T[5-62/0.1]
          WKTTC3-LC[32-61.9/0.1]-P[2-3/0.001]-T[5-62/0.1]
          WKTTC3-LCT[32-61.9/0.1]-P[2-3/0.001]-T[5-62/0.1]
          WKTTC4-[42,52,62,72]-P[3-4/0.001]-T[5-72/0.1]
          WKTTC4-LC[32-71.9/0.1]-P[3-4/0.001]-T[5-72/0.1]
          WKTTC4-LCT[32-71.9/0.1]-P[3-4/0.001]-T[5-72/0.1]
          WKTTC5-[42,52,62,72]-P[4-5/0.001]-T[5-72/0.1]
          WKTTC5-LC[32-71.9/0.1]-P[4-5/0.001]-T[5-72/0.1]
          WKTTC5-LCT[32-71.9/0.1]-P[4-5/0.001]-T[5-72/0.1]
          WKTTC6-[42,52,62,72]-P[5-6/0.001]-T[5-72/0.1]
          WKTTC6-LC[32-71.9/0.1]-P[5-6/0.001]-T[5-72/0.1]
          WKTTC6-LCT[32-71.9/0.1]-P[5-6/0.001]-T[5-72/0.1]
          WKTTC8-[42,52,62,72]-P[6-8/0.001]-T[5-72/0.1]
          WKTTC8-LC[32-71.9/0.1]-P[6-8/0.001]-T[5-72/0.1]
          WKTTC8-LCT[32-71.9/0.1]-P[6-8/0.001]-T[5-72/0.1]
          WKTTC10-[42,52,62,72]-P[8-10/0.001]-T[5-72/0.1]
          WKTTC10-LC[32-71.9/0.1]-P[8-10/0.001]-T[5-72/0.1]
          WKTTC10-LCT[32-71.9/0.1]-P[8-10/0.001]-T[5-72/0.1]

          No. (Nominal diameter)

          (mm)

          L (L dimension)

          (mm)

          LC (Full length alteration)

          (mm)

          LCT (Head thickness tolerance change + Total length alteration)

          (mm)

          P (Tip dimension)

          (mm)

          T (Key groove position)

          (mm)

          		RoHS?Minimum order quantity
          3
          42 ～ 62
          -
          -
          2 ～ 3
          5 ～ 62
          10
          1 pieces
          3
          -
          32 ～ 61.9
          -
          2 ～ 3
          5 ～ 62
          10
          1 pieces
          3
          -
          -
          32 ～ 61.9
          2 ～ 3
          5 ～ 62
          10
          1 pieces
          4
          42 ～ 72
          -
          -
          3 ～ 4
          5 ～ 72
          10
          1 pieces
          4
          -
          32 ～ 71.9
          -
          3 ～ 4
          5 ～ 72
          10
          1 pieces
          4
          -
          -
          32 ～ 71.9
          3 ～ 4
          5 ～ 72
          10
          1 pieces
          5
          42 ～ 72
          -
          -
          4 ～ 5
          5 ～ 72
          10
          1 pieces
          5
          -
          32 ～ 71.9
          -
          4 ～ 5
          5 ～ 72
          10
          1 pieces
          5
          -
          -
          32 ～ 71.9
          4 ～ 5
          5 ～ 72
          10
          1 pieces
          6
          42 ～ 72
          -
          -
          5 ～ 6
          5 ～ 72
          10
          1 pieces
          6
          -
          32 ～ 71.9
          -
          5 ～ 6
          5 ～ 72
          10
          1 pieces
          6
          -
          -
          32 ～ 71.9
          5 ～ 6
          5 ～ 72
          10
          1 pieces
          8
          42 ～ 72
          -
          -
          6 ～ 8
          5 ～ 72
          10
          1 pieces
          8
          -
          32 ～ 71.9
          -
          6 ～ 8
          5 ～ 72
          10
          1 pieces
          8
          -
          -
          32 ～ 71.9
          6 ～ 8
          5 ～ 72
          10
          1 pieces
          10
          42 ～ 72
          -
          -
          8 ～ 10
          5 ～ 72
          10
          1 pieces
          10
          -
          32 ～ 71.9
          -
          8 ～ 10
          5 ～ 72
          10
          1 pieces
          10
          -
          -
          32 ～ 71.9
          8 ～ 10
          5 ～ 72
          10
          1 pieces
          Unit price (excluding VAT)(Unit price including VAT)
