Configure

Tip shape
- D
- R
- E
Shank (mounting part) shape
L (L dimension)(mm)
[40-70/10mm units]
F (Flange position designation)(°)
- 0
- 90
K (Key groove position designation)(°)
- 0
- 90
LC (Full length alteration)(mm)
[20-69.9/0.1mm units]
P (Tip dimension)(mm)
[2-20/0.01mm units]
R (Tip corner R)(mm)
[0.15-10/0.01mm units]
T (Key groove position)(mm)
[2-65/0.1mm units]
W (Tip dimension)(mm)
[2-20/0.01mm units]
WF (Flange position designation)(°)
- 0
- 90
Type
- ZFCD
- ZFCE
- ZFCR
- ZKCD
- ZKCE
- ZKCR
- ZPCD
- ZPCE
- ZPCR
- ZWCD
- ZWCE
- ZWCR
CAD
- 2D
- 3D

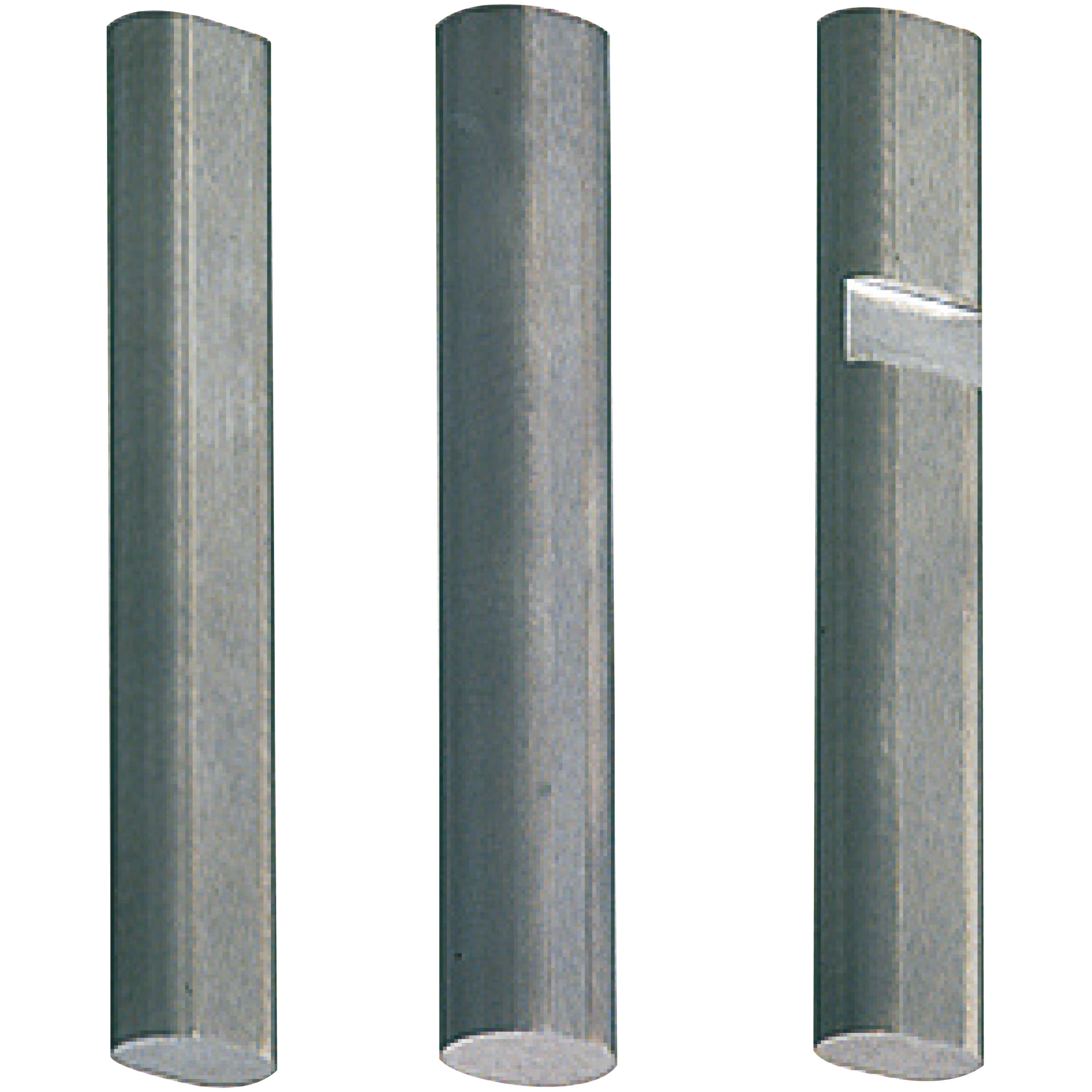

Shaped cutting punches (0.01) / solid carbide

Mouse over image to enlarge

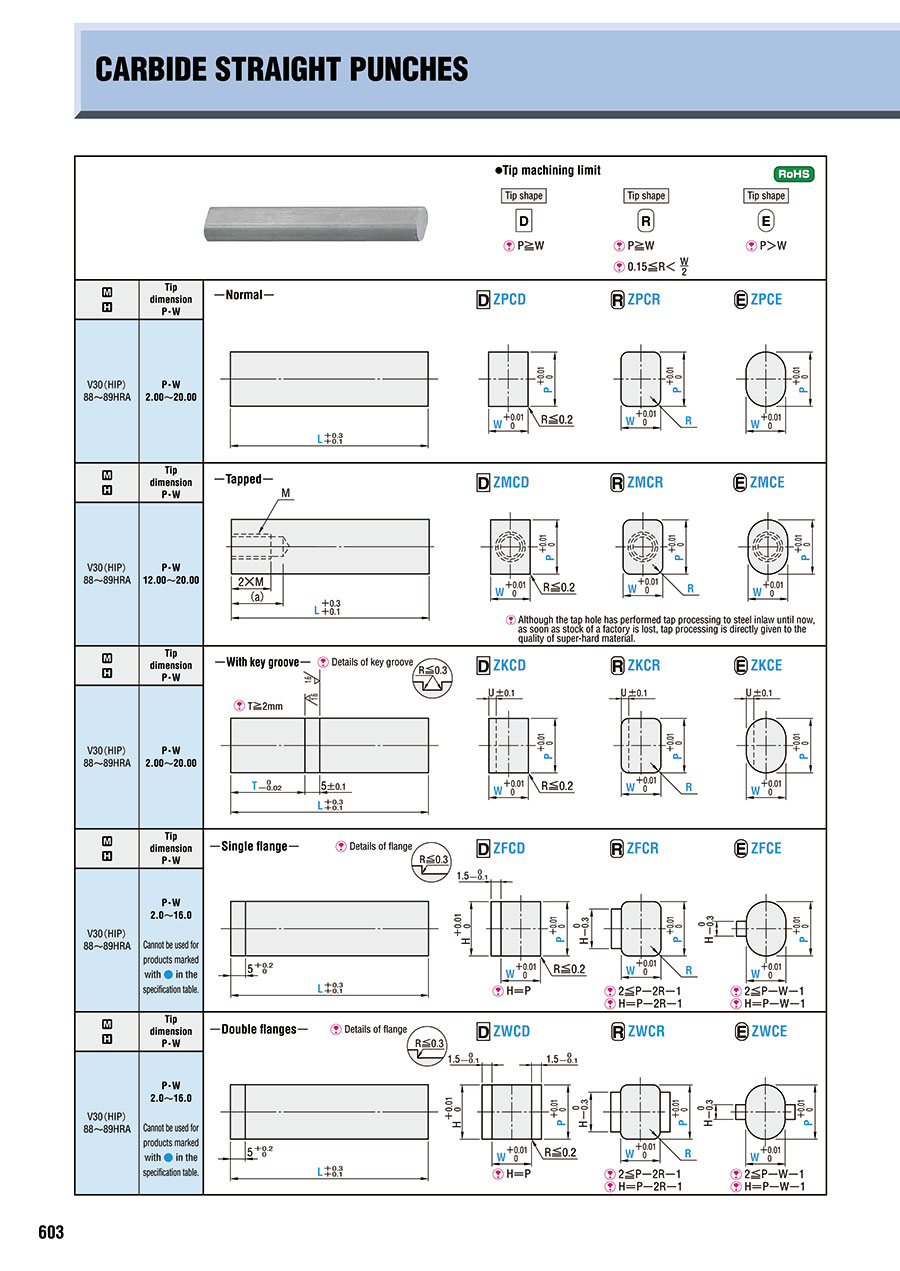

CatalogP.603

Part number:

Still undefined. 24 possible part numbers found.

Outline drawing
Part number list
More Information
Catalog

Outline drawing

Part number list

Number of items

Part number

ZFCD-[40-70/10]-P[2-16/0.01]-W[2-16/0.01]-F[0,90]

ZFCD-LC[20-69.9/0.1]-P[2-16/0.01]-W[2-16/0.01]-F[0,90]

ZFCE-[40-70/10]-P[2-16/0.01]-W[2-16/0.01]-F0

ZFCE-LC[20-69.9/0.1]-P[2-16/0.01]-W[2-16/0.01]-F0

ZFCR-[40-70/10]-P[2-16/0.01]-W[2-16/0.01]-R[0.15-9.99/0.01]-F[0,90]

ZFCR-LC[20-69.9/0.1]-P[2-16/0.01]-W[2-16/0.01]-R[0.15-9.99/0.01]-F[0,90]

ZKCD-[40-70/10]-P[2-20/0.01]-W[2-20/0.01]-T[2-65/0.1]-K[0,90]

ZKCD-LC[20-69.9/0.1]-P[2-20/0.01]-W[2-20/0.01]-T[2-65/0.1]-K[0,90]

ZKCE-[40-70/10]-P[2-20/0.01]-W[2-20/0.01]-T[2-65/0.1]-K[0,90]

ZKCE-LC[20-69.9/0.1]-P[2-20/0.01]-W[2-20/0.01]-T[2-65/0.1]-K[0,90]

ZKCR-[40-70/10]-P[2-20/0.01]-W[2-20/0.01]-R[0.15-10/0.01]-T[2-65/0.1]-K[0,90]

ZKCR-LC[20-69.9/0.1]-P[2-20/0.01]-W[2-20/0.01]-R[0.15-10/0.01]-T[2-65/0.1]-K[0,90]

ZPCD-[40-70/10]-P[2-20/0.01]-W[2-20/0.01]

ZPCD-LC[20-69.9/0.1]-P[2-20/0.01]-W[2-20/0.01]

ZPCE-[40-70/10]-P[2-20/0.01]-W[2-20/0.01]

ZPCE-LC[20-69.9/0.1]-P[2-20/0.01]-W[2-20/0.01]

ZPCR-[40-70/10]-P[2-20/0.01]-W[2-20/0.01]-R[0.15-10/0.01]

ZPCR-LC[20-69.9/0.1]-P[2-20/0.01]-W[2-20/0.01]-R[0.15-10/0.01]

ZWCD-[40-70/10]-P[2-16/0.01]-W[2-16/0.01]-WF[0,90]

ZWCD-LC[20-69.9/0.1]-P[2-16/0.01]-W[2-16/0.01]-WF[0,90]

ZWCE-[40-70/10]-P[2-16/0.01]-W[2-16/0.01]-WF0

ZWCE-LC[20-69.9/0.1]-P[2-16/0.01]-W[2-16/0.01]-WF0

ZWCR-[40-70/10]-P[2-16/0.01]-W[2-16/0.01]-R[0.15-9.99/0.01]-WF[0,90]

ZWCR-LC[20-69.9/0.1]-P[2-16/0.01]-W[2-16/0.01]-R[0.15-9.99/0.01]-WF[0,90]

Tip shape

Shank (mounting part) shape

L (L dimension)

(mm)

F (Flange position designation)

(°)

K (Key groove position designation)

(°)

LC (Full length alteration)

(mm)

P (Tip dimension)

(mm)

R (Tip corner R)

(mm)

T (Key groove position)

(mm)

W (Tip dimension)

(mm)

WF (Flange position designation)

(°)

RoHS?

Minimum order quantity

D	Single-flanged	40 ～ 70	0 ～ 90	-	-	2 ～ 16	-	-	2 ～ 16	-	10	1 pieces
D	Single-flanged	-	0 ～ 90	-	20 ～ 69.9	2 ～ 16	-	-	2 ～ 16	-	10	1 pieces
E	Single-flanged	40 ～ 70	0	-	-	2 ～ 16	-	-	2 ～ 16	-	10	1 pieces
E	Single-flanged	-	0	-	20 ～ 69.9	2 ～ 16	-	-	2 ～ 16	-	10	1 pieces
R	Single-flanged	40 ～ 70	0 ～ 90	-	-	2 ～ 16	0.15 ～ 9.99	-	2 ～ 16	-	10	1 pieces
R	Single-flanged	-	0 ～ 90	-	20 ～ 69.9	2 ～ 16	0.15 ～ 9.99	-	2 ～ 16	-	10	1 pieces
D	With key groove	40 ～ 70	-	0 ～ 90	-	2 ～ 20	-	2 ～ 65	2 ～ 20	-	10	1 pieces
D	With key groove	-	-	0 ～ 90	20 ～ 69.9	2 ～ 20	-	2 ～ 65	2 ～ 20	-	10	1 pieces
E	With key groove	40 ～ 70	-	0 ～ 90	-	2 ～ 20	-	2 ～ 65	2 ～ 20	-	10	1 pieces
E	With key groove	-	-	0 ～ 90	20 ～ 69.9	2 ～ 20	-	2 ～ 65	2 ～ 20	-	10	1 pieces
R	With key groove	40 ～ 70	-	0 ～ 90	-	2 ～ 20	0.15 ～ 10	2 ～ 65	2 ～ 20	-	10	1 pieces
R	With key groove	-	-	0 ～ 90	20 ～ 69.9	2 ～ 20	0.15 ～ 10	2 ～ 65	2 ～ 20	-	10	1 pieces
D	Standard	40 ～ 70	-	-	-	2 ～ 20	-	-	2 ～ 20	-	10	1 pieces
D	Standard	-	-	-	20 ～ 69.9	2 ～ 20	-	-	2 ～ 20	-	10	1 pieces
E	Standard	40 ～ 70	-	-	-	2 ～ 20	-	-	2 ～ 20	-	10	1 pieces
E	Standard	-	-	-	20 ～ 69.9	2 ～ 20	-	-	2 ～ 20	-	10	1 pieces
R	Standard	40 ～ 70	-	-	-	2 ～ 20	0.15 ～ 10	-	2 ～ 20	-	10	1 pieces
R	Standard	-	-	-	20 ～ 69.9	2 ～ 20	0.15 ～ 10	-	2 ～ 20	-	10	1 pieces
D	Double-flanged	40 ～ 70	-	-	-	2 ～ 16	-	-	2 ～ 16	0 ～ 90	10	1 pieces
D	Double-flanged	-	-	-	20 ～ 69.9	2 ～ 16	-	-	2 ～ 16	0 ～ 90	10	1 pieces
E	Double-flanged	40 ～ 70	-	-	-	2 ～ 16	-	-	2 ～ 16	0	10	1 pieces
E	Double-flanged	-	-	-	20 ～ 69.9	2 ～ 16	-	-	2 ～ 16	0	10	1 pieces
R	Double-flanged	40 ～ 70	-	-	-	2 ～ 16	0.15 ～ 9.99	-	2 ～ 16	0 ～ 90	10	1 pieces
R	Double-flanged	-	-	-	20 ～ 69.9	2 ～ 16	0.15 ～ 9.99	-	2 ～ 16	0 ～ 90	10	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
