      MISUMI

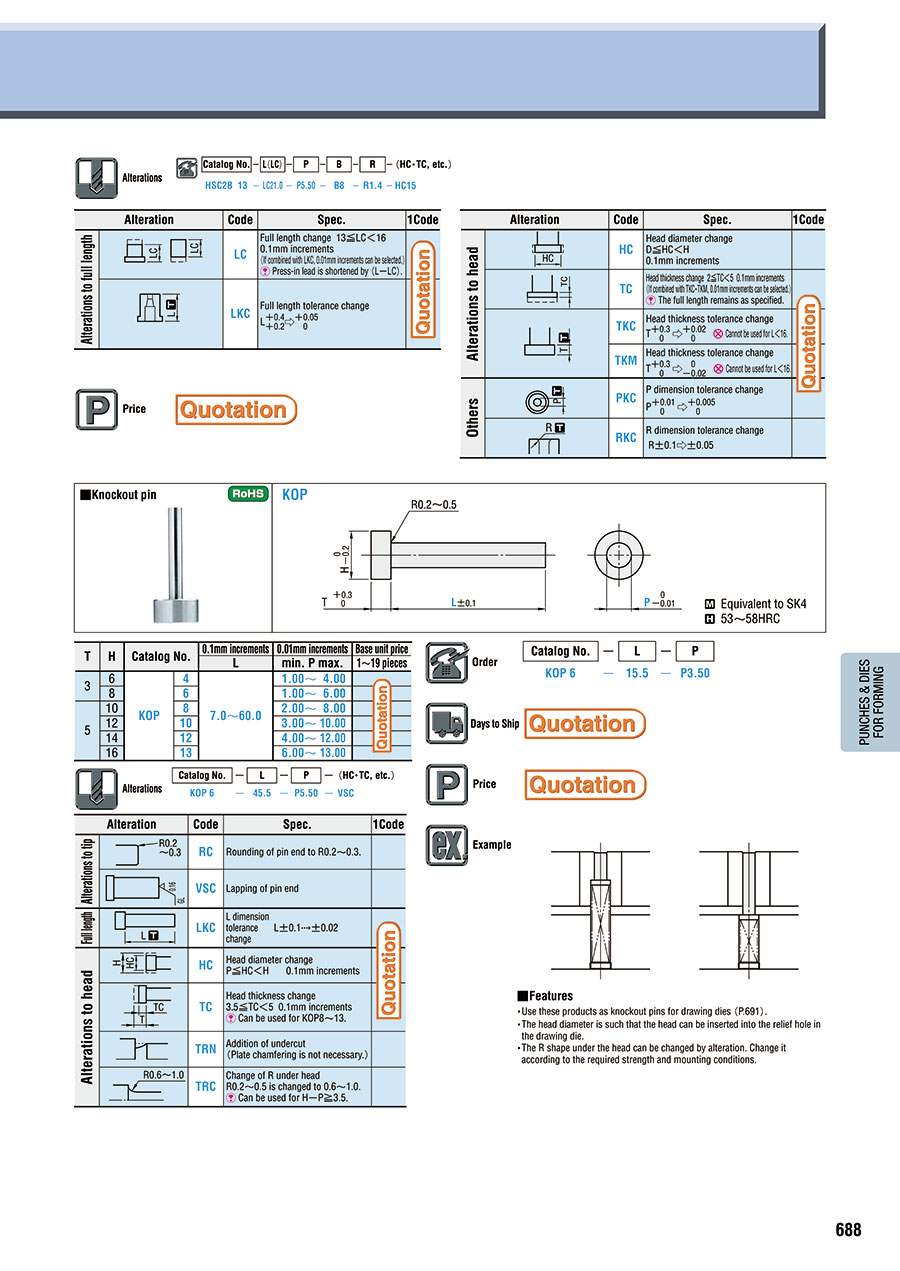

      Forcing-off pins for forming Inserts

      Forcing-off pins for forming Inserts

      Click image to view enlarged image

      Part number:

      Still undefined. 6 possible part numbers found.
      Quantity:

      Outline drawing

      Part number list

      Number of items
    • 1
      • Part number
      KOP4-[7-60/0.1]-P[1-4/0.01]
      KOP6-[7-60/0.1]-P[1-6/0.01]
      KOP8-[7-60/0.1]-P[2-8/0.01]
      KOP10-[7-60/0.1]-P[3-10/0.01]
      KOP12-[7-60/0.1]-P[4-12/0.01]
      KOP13-[7-60/0.1]-P[6-13/0.01]

      No. (Nominal diameter)

      (mm)

      H (Head diameter)

      L

      (mm)

      P

      (mm)

      		RoHS?Minimum order quantity
      4
      6
      7 ～ 60
      1 ～ 4
      10
      1 pieces
      6
      8
      7 ～ 60
      1 ～ 6
      10
      1 pieces
      8
      10
      7 ～ 60
      2 ～ 8
      10
      1 pieces
      10
      12
      7 ～ 60
      3 ～ 10
      10
      1 pieces
      12
      14
      7 ～ 60
      4 ～ 12
      10
      1 pieces
      13
      16
      7 ～ 60
      6 ～ 13
      10
      1 pieces
