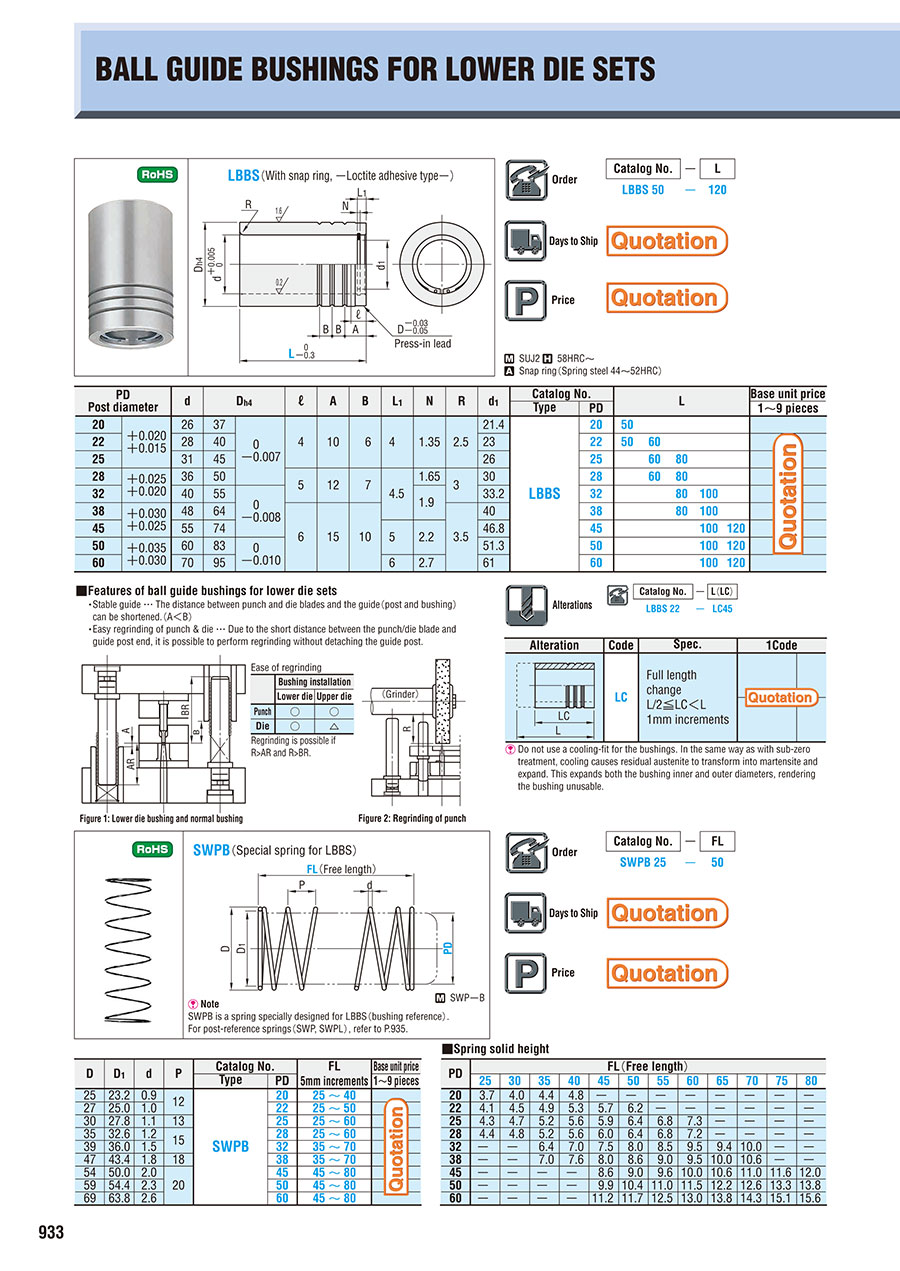

Guide bushes for ball cages / with circlip / steel / Anaerobic Adhesive type
Click on this image to zoom in.
Click on this image to zoom in.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- Catalog
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Loading...
| Part Number | Minimum order quantity | Volume Discount | RoHS | PD (Post diameter) (mm) | L (L dimension) (mm) | LC (Full length alteration) (mm) | |
|---|---|---|---|---|---|---|---|
| 1 | Quote | 10 | 20 | 50 | - | ||
| 1 | Quote | 10 | 20 | - | 25 ～ 49 | ||
| 1 | Quote | 10 | 22 | 50 ～ 60 | - | ||
| 1 | Quote | 10 | 22 | - | 25 ～ 49 | ||
| 1 | Quote | 10 | 22 | - | 51 ～ 59 | ||
| 1 | Quote | 10 | 25 | 60 ～ 80 | - | ||
| 1 | Quote | 10 | 25 | - | 30 ～ 59 | ||
| 1 | Quote | 10 | 25 | - | 61 ～ 79 | ||
| 1 | Quote | 10 | 28 | 60 ～ 80 | - | ||
| 1 | Quote | 10 | 28 | - | 30 ～ 59 | ||
| 1 | Quote | 10 | 28 | - | 61 ～ 79 | ||
| 1 | Quote | 10 | 32 | 80 ～ 100 | - | ||
| 1 | Quote | 10 | 32 | - | 40 ～ 79 | ||
| 1 | Quote | 10 | 32 | - | 81 ～ 99 | ||
| 1 | Quote | 10 | 38 | 80 ～ 100 | - | ||
| 1 | Quote | 10 | 38 | - | 40 ～ 79 | ||
| 1 | Quote | 10 | 38 | - | 81 ～ 99 | ||
| 1 | Quote | 10 | 45 | 100 ～ 120 | - | ||
| 1 | Quote | 10 | 45 | - | 50 ～ 99 | ||
| 1 | Quote | 10 | 45 | - | 101 ～ 119 | ||
| 1 | Quote | 10 | 50 | 100 ～ 120 | - | ||
| 1 | Quote | 10 | 50 | - | 50 ～ 99 | ||
| 1 | Quote | 10 | 50 | - | 101 ～ 119 | ||
| 1 | Quote | 10 | 60 | 100 ～ 120 | - | ||
| 1 | Quote | 10 | 60 | - | 50 ～ 99 | ||
| 1 | Quote | 10 | 60 | - | 101 ～ 119 |
Loading...
Basic information
| Set/single item/accessory | Bushing only | Bushing type | Ball guide | Bushing mounting methods | Loctite adhesive |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
