            MISUMI

            Insertion guides for large tools / flat profile / slotted hole / steel, stainless steel / position selectable

            Insertion guides for large tools / flat profile / slotted hole / steel, stainless steel / position selectable

            Click image to view enlarged image

            Part number:

            Still undefined. 3 possible part numbers found.
            Quantity:

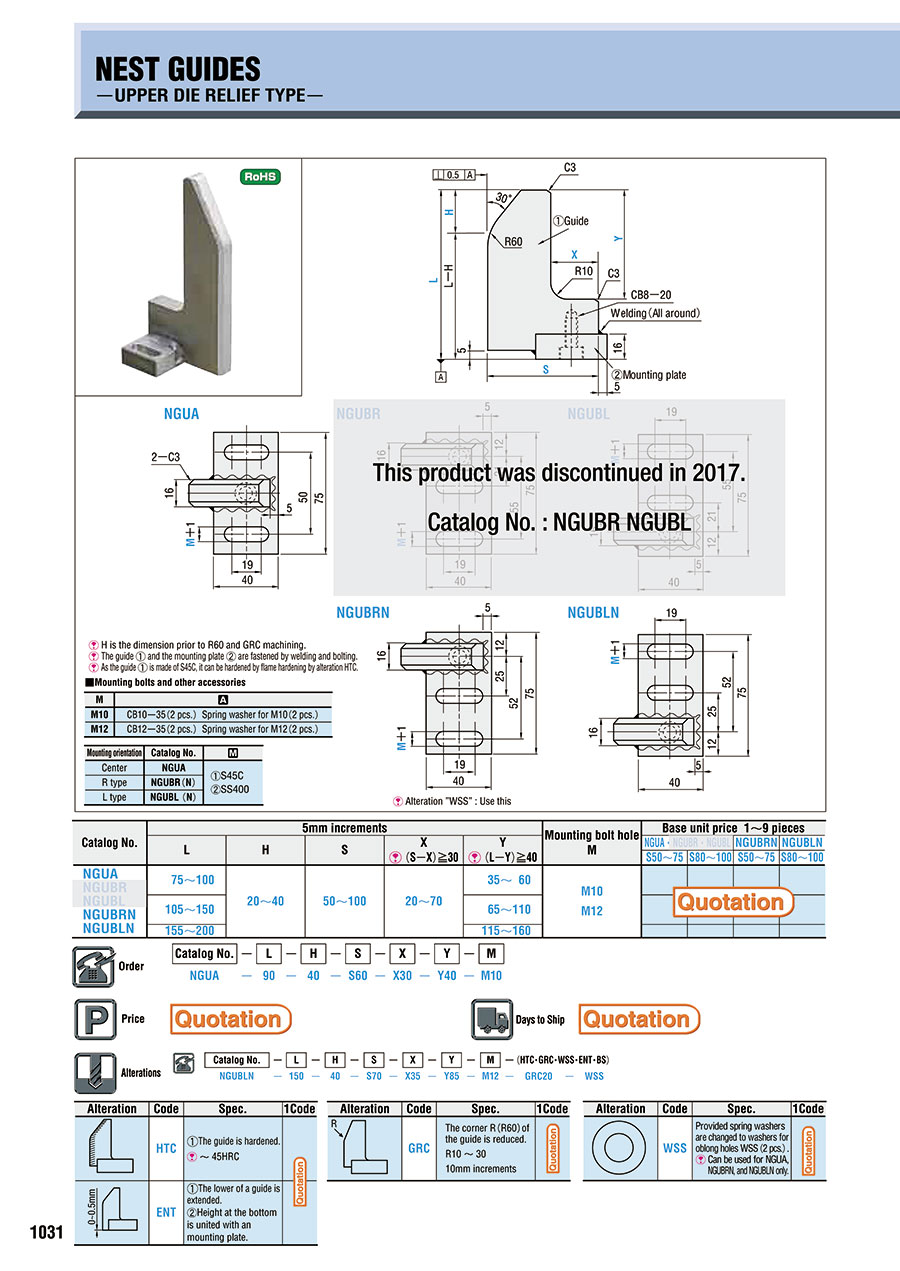

            Outline drawing

            Part number list

            Number of items
          • 1
            • Part number
            NGUA-[75-200/5]-[20-40/5]-S[50-100/5]-X[20-70/5]-Y[35-160/5]-M[10,12]
            NGUBLN-[75-200/5]-[20-40/5]-S[50-100/5]-X[20-70/5]-Y[35-160/5]-M[10,12]
            NGUBRN-[75-200/5]-[20-40/5]-S[50-100/5]-X[20-70/5]-Y[35-160/5]-M[10,12]

            Mounting orientation

            Hole position from the guide center

            (mm)

            L (Guide height)

            (mm)

            H (Tapered part)

            (mm)

            M (Mounting bolt hole)

            (mm)

            S (Width)

            (mm)

            X (Notch width)

            (mm)

            Y (Notch length)

            (mm)

            		RoHS?Minimum order quantity
            Center
            -
            75 ～ 200
            20 ～ 40
            10 ～ 12
            50 ～ 100
            20 ～ 70
            35 ～ 160
            10
            1 pieces
            Left hand type
            25
            75 ～ 200
            20 ～ 40
            10 ～ 12
            50 ～ 100
            20 ～ 70
            35 ～ 160
            10
            1 pieces
            Right hand type
            25
            75 ～ 200
            20 ～ 40
            10 ～ 12
            50 ～ 100
            20 ～ 70
            35 ～ 160
            10
            1 pieces
            Unit price (excluding VAT)(Unit price including VAT)
            Standard shipping days
            -
            ( - )
            Quote
            -
            ( - )
            Quote
            -
            ( - )
            Quote
          • 1

            • More Information
