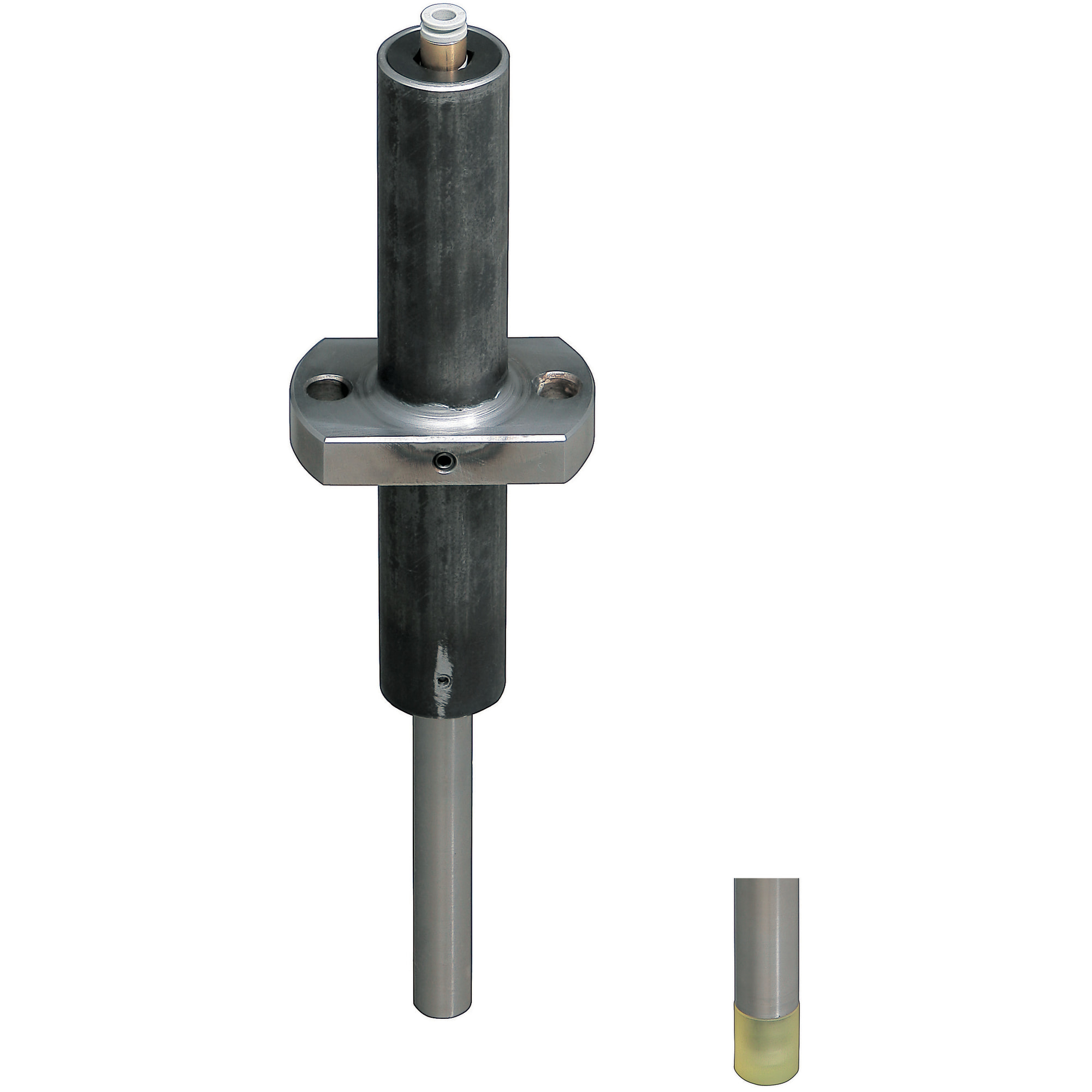

Thrust pieces / compressed air / tip material selectable

Mouse over image to enlarge

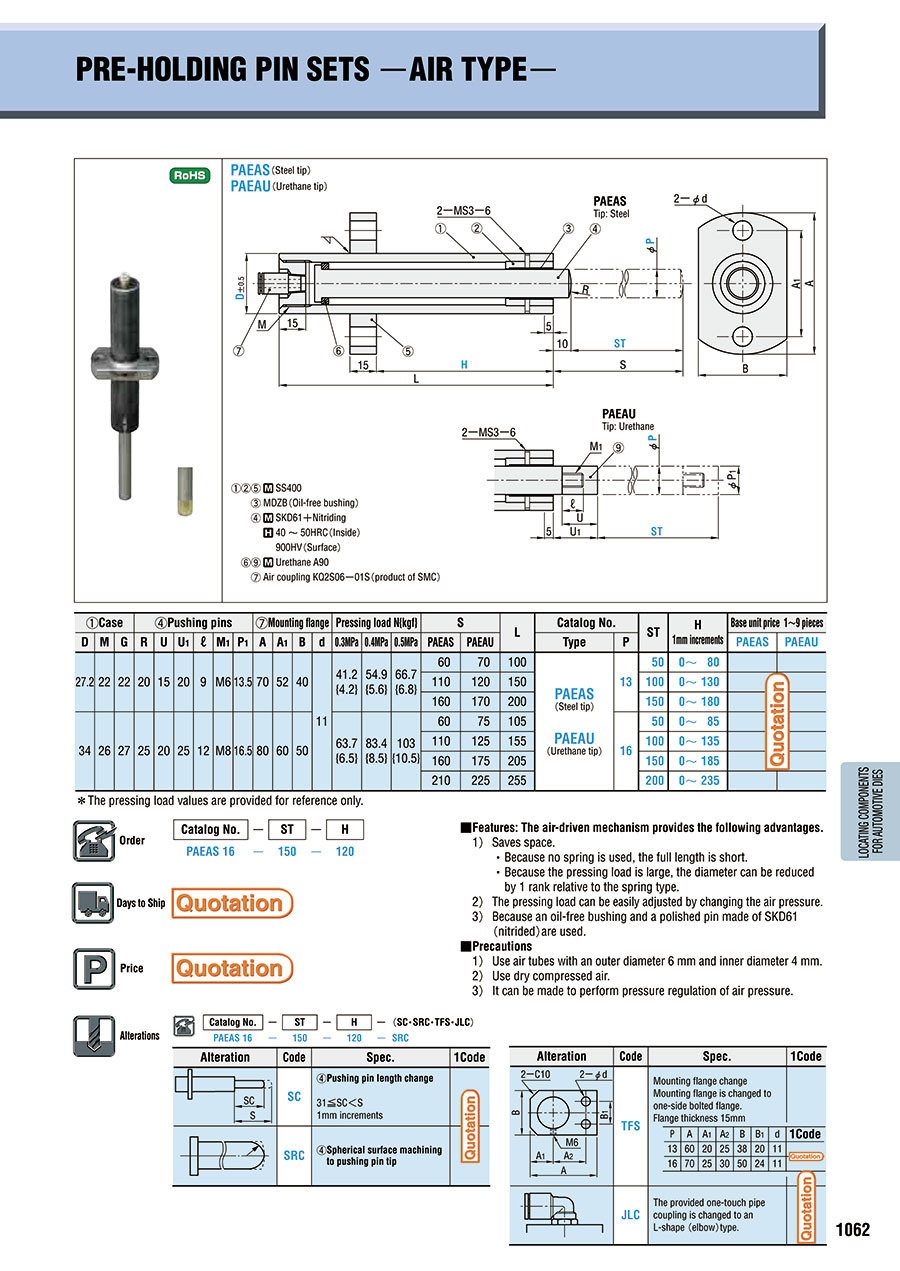

• CatalogP.1062

• Outline drawing
• Part number list
• More Information
• Catalog

Outline drawing

Part number list

Number of items

30 items60 items90 items

1

Part number

PAEAS13-50-[0-80/1]

PAEAS13-100-[0-130/1]

PAEAS13-150-[0-180/1]

PAEAS16-50-[0-85/1]

PAEAS16-100-[0-135/1]

PAEAS16-150-[0-185/1]

PAEAS16-200-[0-235/1]

PAEAU13-50-[0-80/1]

PAEAU13-100-[0-130/1]

PAEAU13-150-[0-180/1]

PAEAU16-50-[0-85/1]

PAEAU16-100-[0-135/1]

PAEAU16-150-[0-185/1]

PAEAU16-200-[0-235/1]

Shaped hole	P (Tip diameter) (mm)	ST (Stroke) (mm)	H (mm)	RoHS?	Minimum order quantity

Steel tip	13	50	0 ～ 80	10	1 pieces
Steel tip	13	100	0 ～ 130	10	1 pieces
Steel tip	13	150	0 ～ 180	10	1 pieces
Steel tip	16	50	0 ～ 85	10	1 pieces
Steel tip	16	100	0 ～ 135	10	1 pieces
Steel tip	16	150	0 ～ 185	10	1 pieces
Steel tip	16	200	0 ～ 235	10	1 pieces
Urethane tip	13	50	0 ～ 80	10	1 pieces
Urethane tip	13	100	0 ～ 130	10	1 pieces
Urethane tip	13	150	0 ～ 180	10	1 pieces
Urethane tip	16	50	0 ～ 85	10	1 pieces
Urethane tip	16	100	0 ～ 135	10	1 pieces
Urethane tip	16	150	0 ～ 185	10	1 pieces
Urethane tip	16	200	0 ～ 235	10	1 pieces
