Configure

Component name
Coil spring type
- SWF
- SWH
- SWL
- SWM
D (Applicable coil spring outer diameter)(mm)
- 40
- 50
- 60
- 70
FL (Coil spring free length)(mm)
- 90
- 100
- 125
- 150
- 175
- 200
- 250
- 300
- 350
- 400
- 450
- 500
d (inner diameter)(mm)
- 12.5
- 16.5
- 20
- 20.5
- 25
- 30
- 36
t (thickness)(mm)
- 1
- 2
- 5
L (Coil spring installation length)(mm)
[68-500/1mm units]
Type
- CUK
- CUKGP
- CUKPD
- CUKSD
- CUP
- CUR
CAD
- 2D
- 3D

MISUMI

Spring guide unit

Click image to view enlarged image

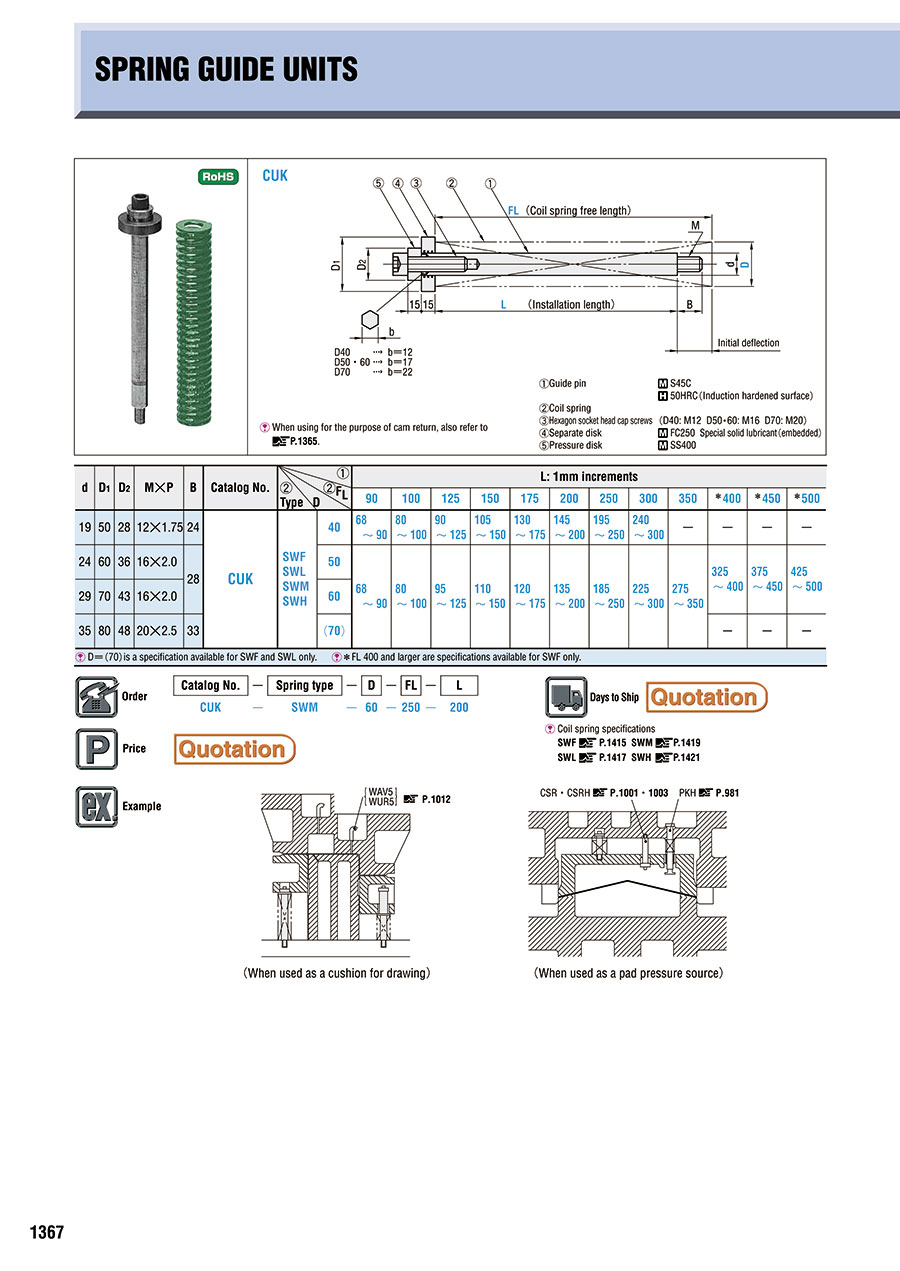

CatalogP.1367

Part number:

Still undefined. 193 possible part numbers found.

Outline drawing
Part number list
More Information
Catalog

Outline drawing

Part number list

Number of items

Part number

CUK-SWF-40-90-[68-90/1]

CUK-SWF-40-100-[80-100/1]

CUK-SWF-40-125-[90-125/1]

CUK-SWF-40-150-[105-150/1]

CUK-SWF-40-175-[130-175/1]

CUK-SWF-40-200-[145-200/1]

CUK-SWF-40-250-[195-250/1]

CUK-SWF-40-300-[240-300/1]

CUK-SWF-50-90-[68-90/1]

CUK-SWF-50-100-[80-100/1]

CUK-SWF-50-125-[95-125/1]

CUK-SWF-50-150-[110-150/1]

CUK-SWF-50-175-[120-175/1]

CUK-SWF-50-200-[135-200/1]

CUK-SWF-50-250-[185-250/1]

CUK-SWF-50-300-[225-300/1]

CUK-SWF-50-350-[275-350/1]

CUK-SWF-50-400-[325-400/1]

CUK-SWF-50-450-[375-450/1]

CUK-SWF-50-500-[425-500/1]

CUK-SWF-60-90-[68-90/1]

CUK-SWF-60-100-[80-100/1]

CUK-SWF-60-125-[95-125/1]

CUK-SWF-60-150-[110-150/1]

CUK-SWF-60-175-[120-175/1]

CUK-SWF-60-200-[135-200/1]

CUK-SWF-60-250-[185-250/1]

CUK-SWF-60-300-[225-300/1]

CUK-SWF-60-350-[275-350/1]

CUK-SWF-60-400-[325-400/1]

CUK-SWF-60-450-[375-450/1]

CUK-SWF-60-500-[425-500/1]

CUK-SWF-70-90-[68-90/1]

CUK-SWF-70-100-[80-100/1]

CUK-SWF-70-125-[95-125/1]

CUK-SWF-70-150-[110-150/1]

CUK-SWF-70-175-[120-175/1]

CUK-SWF-70-200-[135-200/1]

CUK-SWF-70-250-[185-250/1]

CUK-SWF-70-300-[225-300/1]

CUK-SWF-70-350-[275-350/1]

CUK-SWH-40-90-[68-90/1]

CUK-SWH-40-100-[80-100/1]

CUK-SWH-40-125-[90-125/1]

CUK-SWH-40-150-[105-150/1]

CUK-SWH-40-175-[130-175/1]

CUK-SWH-40-200-[145-200/1]

CUK-SWH-40-250-[195-250/1]

CUK-SWH-40-300-[240-300/1]

CUK-SWH-50-90-[68-90/1]

CUK-SWH-50-100-[80-100/1]

CUK-SWH-50-125-[95-125/1]

CUK-SWH-50-150-[110-150/1]

CUK-SWH-50-175-[120-175/1]

CUK-SWH-50-200-[135-200/1]

CUK-SWH-50-250-[185-250/1]

CUK-SWH-50-300-[225-300/1]

CUK-SWH-50-350-[275-350/1]

CUK-SWH-60-90-[68-90/1]

CUK-SWH-60-100-[80-100/1]

Component name

Coil spring type

D (Applicable coil spring outer diameter)

(mm)

FL (Coil spring free length)

(mm)

d (inner diameter)

(mm)

t (thickness)

(mm)

L (Coil spring installation length)

(mm)

RoHS?

Minimum order quantity

Units sets	SWF	40	90	-	-	68 ～ 90	10	1 pieces
Units sets	SWF	40	100	-	-	80 ～ 100	10	1 pieces
Units sets	SWF	40	125	-	-	90 ～ 125	10	1 pieces
Units sets	SWF	40	150	-	-	105 ～ 150	10	1 pieces
Units sets	SWF	40	175	-	-	130 ～ 175	10	1 pieces
Units sets	SWF	40	200	-	-	145 ～ 200	10	1 pieces
Units sets	SWF	40	250	-	-	195 ～ 250	10	1 pieces
Units sets	SWF	40	300	-	-	240 ～ 300	10	1 pieces
Units sets	SWF	50	90	-	-	68 ～ 90	10	1 pieces
Units sets	SWF	50	100	-	-	80 ～ 100	10	1 pieces
Units sets	SWF	50	125	-	-	95 ～ 125	10	1 pieces
Units sets	SWF	50	150	-	-	110 ～ 150	10	1 pieces
Units sets	SWF	50	175	-	-	120 ～ 175	10	1 pieces
Units sets	SWF	50	200	-	-	135 ～ 200	10	1 pieces
Units sets	SWF	50	250	-	-	185 ～ 250	10	1 pieces
Units sets	SWF	50	300	-	-	225 ～ 300	10	1 pieces
Units sets	SWF	50	350	-	-	275 ～ 350	10	1 pieces
Units sets	SWF	50	400	-	-	325 ～ 400	10	1 pieces
Units sets	SWF	50	450	-	-	375 ～ 450	10	1 pieces
Units sets	SWF	50	500	-	-	425 ～ 500	10	1 pieces
Units sets	SWF	60	90	-	-	68 ～ 90	10	1 pieces
Units sets	SWF	60	100	-	-	80 ～ 100	10	1 pieces
Units sets	SWF	60	125	-	-	95 ～ 125	10	1 pieces
Units sets	SWF	60	150	-	-	110 ～ 150	10	1 pieces
Units sets	SWF	60	175	-	-	120 ～ 175	10	1 pieces
Units sets	SWF	60	200	-	-	135 ～ 200	10	1 pieces
Units sets	SWF	60	250	-	-	185 ～ 250	10	1 pieces
Units sets	SWF	60	300	-	-	225 ～ 300	10	1 pieces
Units sets	SWF	60	350	-	-	275 ～ 350	10	1 pieces
Units sets	SWF	60	400	-	-	325 ～ 400	10	1 pieces
Units sets	SWF	60	450	-	-	375 ～ 450	10	1 pieces
Units sets	SWF	60	500	-	-	425 ～ 500	10	1 pieces
Units sets	SWF	70	90	-	-	68 ～ 90	10	1 pieces
Units sets	SWF	70	100	-	-	80 ～ 100	10	1 pieces
Units sets	SWF	70	125	-	-	95 ～ 125	10	1 pieces
Units sets	SWF	70	150	-	-	110 ～ 150	10	1 pieces
Units sets	SWF	70	175	-	-	120 ～ 175	10	1 pieces
Units sets	SWF	70	200	-	-	135 ～ 200	10	1 pieces
Units sets	SWF	70	250	-	-	185 ～ 250	10	1 pieces
Units sets	SWF	70	300	-	-	225 ～ 300	10	1 pieces
Units sets	SWF	70	350	-	-	275 ～ 350	10	1 pieces
Units sets	SWH	40	90	-	-	68 ～ 90	10	1 pieces
Units sets	SWH	40	100	-	-	80 ～ 100	10	1 pieces
Units sets	SWH	40	125	-	-	90 ～ 125	10	1 pieces
Units sets	SWH	40	150	-	-	105 ～ 150	10	1 pieces
Units sets	SWH	40	175	-	-	130 ～ 175	10	1 pieces
Units sets	SWH	40	200	-	-	145 ～ 200	10	1 pieces
Units sets	SWH	40	250	-	-	195 ～ 250	10	1 pieces
Units sets	SWH	40	300	-	-	240 ～ 300	10	1 pieces
Units sets	SWH	50	90	-	-	68 ～ 90	10	1 pieces
Units sets	SWH	50	100	-	-	80 ～ 100	10	1 pieces
Units sets	SWH	50	125	-	-	95 ～ 125	10	1 pieces
Units sets	SWH	50	150	-	-	110 ～ 150	10	1 pieces
Units sets	SWH	50	175	-	-	120 ～ 175	10	1 pieces
Units sets	SWH	50	200	-	-	135 ～ 200	10	1 pieces
Units sets	SWH	50	250	-	-	185 ～ 250	10	1 pieces
Units sets	SWH	50	300	-	-	225 ～ 300	10	1 pieces
Units sets	SWH	50	350	-	-	275 ～ 350	10	1 pieces
Units sets	SWH	60	90	-	-	68 ～ 90	10	1 pieces
Units sets	SWH	60	100	-	-	80 ～ 100	10	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
