  • L Dimension (L)(mm)
      [20-100/1mm units]
    • D (Outer diameter)(mm)
    • H (Gimlet hole length)(mm)
        [5-100/1mm units]
      • M (Nominal bolt diameter)
      • Type
      • CAD
      MISUMI

      Elastomer springs / cylindrical / low rebound / stepped bore / polyurethane A70

      Elastomer springs / cylindrical / low rebound / stepped bore / polyurethane A70

      Click image to view enlarged image

      Part number:

      Still undefined. 4 possible part numbers found.
      Quantity:

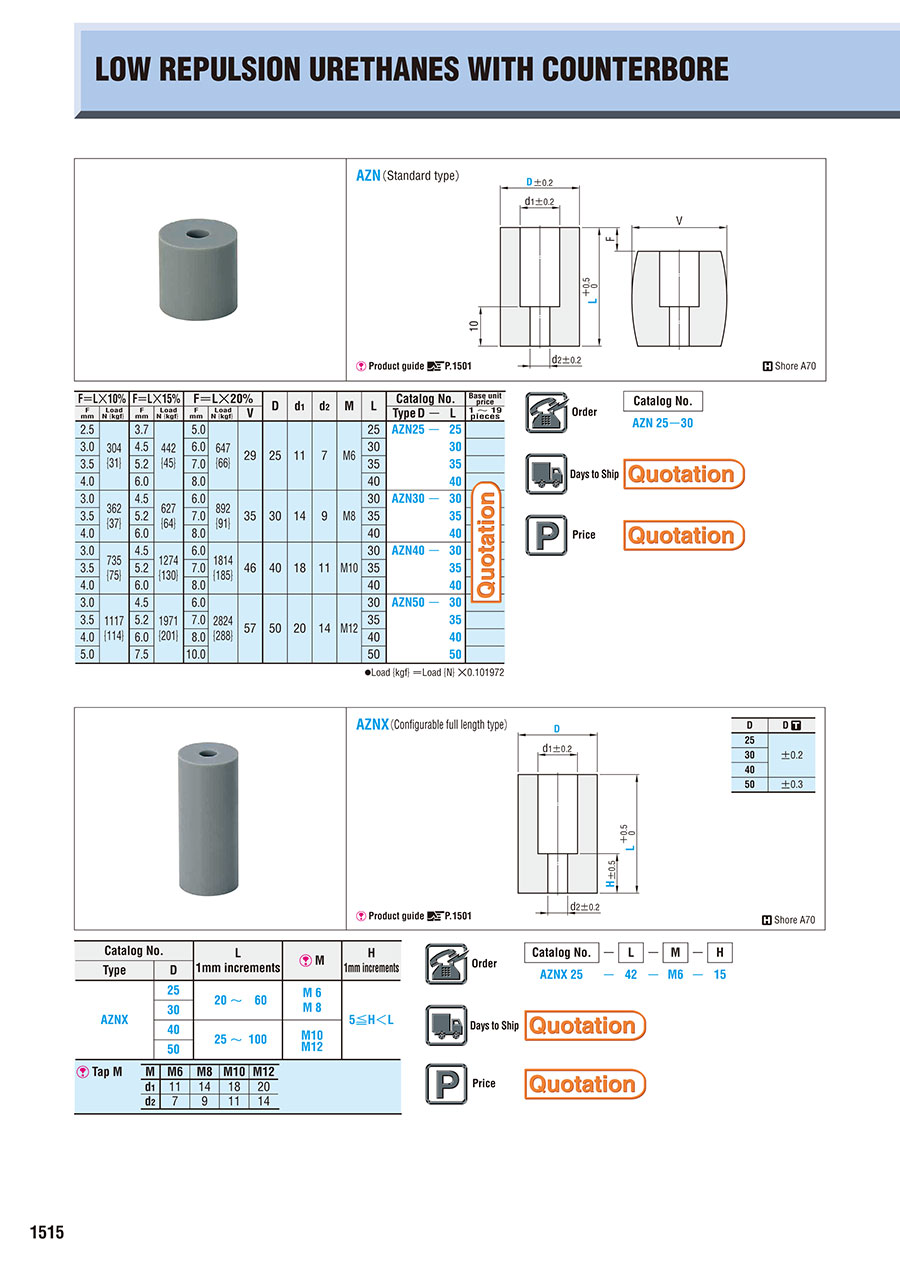

      Outline drawing

      Part number list

      Number of items
    • 1
      • Part number
      AZNX25-[20-60/1]-M[6,8]-[5-80/1]
      AZNX30-[20-60/1]-M[6,8]-[5-80/1]
      AZNX40-[25-100/1]-M[10,12]-[5-100/1]
      AZNX50-[25-100/1]-M[10,12]-[5-100/1]

      L Dimension (L)

      (mm)

      D (Outer diameter)

      (mm)

      H (Gimlet hole length)

      (mm)

      M (Nominal bolt diameter)

      		Minimum order quantity
      20 ～ 60
      25
      5 ～ 80
      6 ～ 8
      1 pieces
      20 ～ 60
      30
      5 ～ 80
      6 ～ 8
      1 pieces
      25 ～ 100
      40
      5 ～ 100
      10 ～ 12
      1 pieces
      25 ～ 100
      50
      5 ～ 100
      10 ～ 12
      1 pieces
      Unit price (excluding VAT)(Unit price including VAT)
      Standard shipping days
      -
      ( - )
      Quote
      -
      ( - )
      Quote
      -
      ( - )
      Quote
      -
      ( - )
      Quote
