Polurethane blocks for tool storage / ESUB+PHN

Polurethane blocks for tool storage / ESUB+PHN

Click image to view enlarged image

Part number:

Still undefined. 6 possible part numbers found.
Quantity:

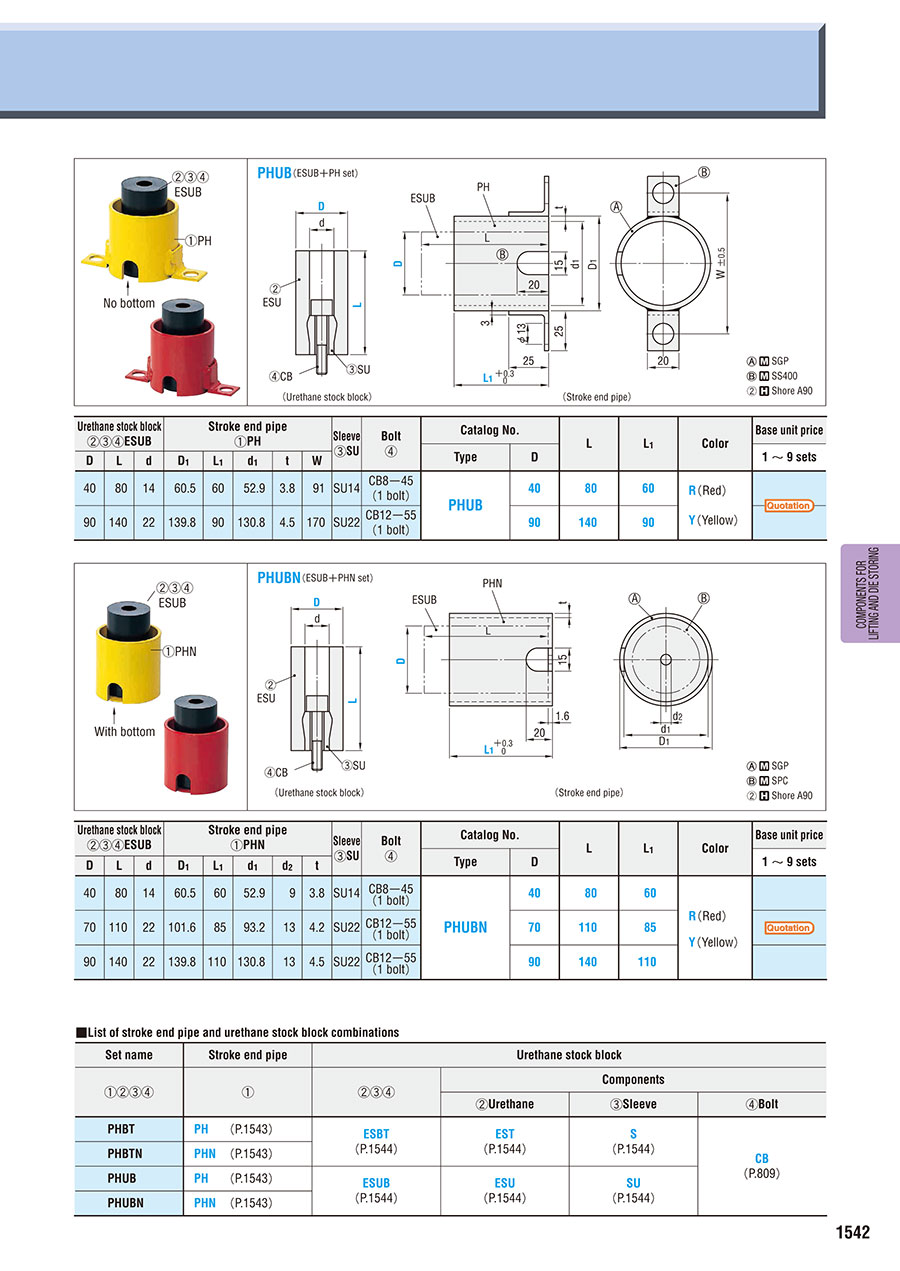

Outline drawing

Part number list

Number of items
  • 1
    • Part number
    PHUBN40-80-60-R
    PHUBN40-80-60-Y
    PHUBN70-110-85-R
    PHUBN70-110-85-Y
    PHUBN90-140-110-R
    PHUBN90-140-110-Y

    D (Urethane outer diameter, urethane outer diameter for stroke end pipe)

    (mm)

    L and L1 (Stroke end pipe full length)

    (mm)

    d1/d2 (Bottom mounting hole diameter)

    (mm)

    L (Urethane full length)

    (mm)

    Color: Secure color

    		Minimum order quantity
    40
    60
    9
    80
    R (Red)
    1 pieces
    40
    60
    9
    80
    Y (Yellow)
    1 pieces
    70
    85
    13
    110
    R (Red)
    1 pieces
    70
    85
    13
    110
    Y (Yellow)
    1 pieces
    90
    110
    13
    140
    R (Red)
    1 pieces
    90
    110
    13
    140
    Y (Yellow)
    1 pieces
