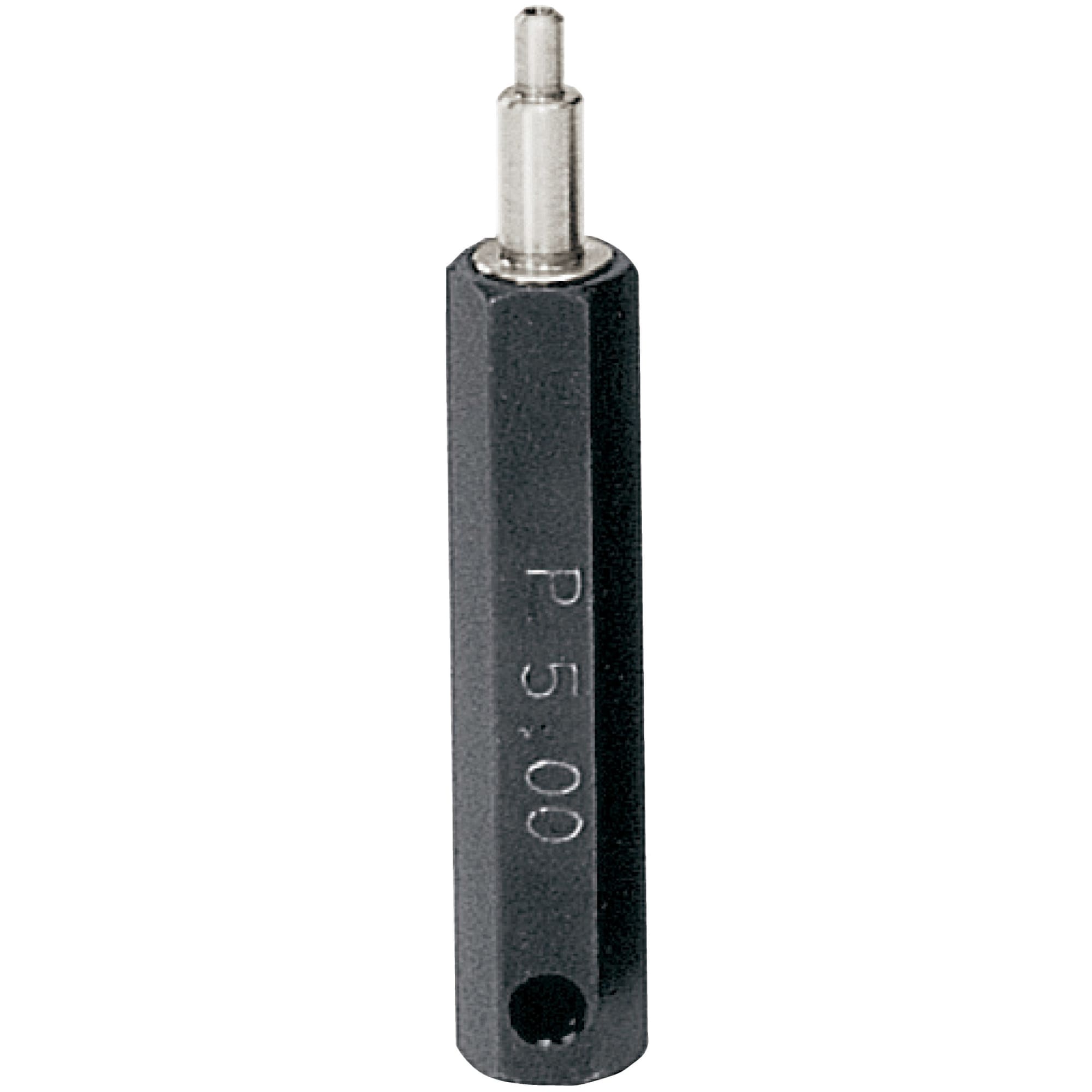

        Plug-in gauge / round on one side / stepped / heel length selectable / tool steel

        Plug-in gauge / round on one side / stepped / heel length selectable / tool steel

        Mouse over image to enlarge

        • Plug-in gauge / round on one side / stepped / heel length selectable / tool steel
        • Plug-in gauge / round on one side / stepped / heel length selectable / tool steel

        Part number:

        Still undefined. 3 possible part numbers found.
        Quantity:

        Outline drawing

        Part number list

        Number of items
      • 1
        • Part number
        BGOPH10-P[4-8/0.01]-A[5-15/1]-B[5-15/1]
        BGOPH13-P[8.01-10/0.01]-A[8-20/1]-B[8-20/1]
        BGOPH16-P[10.01-13/0.01]-A[8-20/1]-B[8-20/1]

        H (Width across flats)

        (mm)

        A (Gauge dimension)

        (mm)

        B (Gauge dimension)

        (mm)

        P (Gauge dimension)

        (mm)

        		RoHS?Minimum order quantity
        10
        5 ～ 15
        5 ～ 15
        4 ～ 8
        10
        1 pieces
        13
        8 ～ 20
        8 ～ 20
        8.01 ～ 10
        10
        1 pieces
        16
        8 ～ 20
        8 ～ 20
        10.01 ～ 13
        10
        1 pieces
        Unit price (excluding VAT)(Unit price including VAT)
        Standard shipping days
        -
        ( - )
        Quote
        -
        ( - )
        Quote
        -
        ( - )
        Quote
