    Test pins for fixtures / conical / round / external thread

    Test pins for fixtures / conical / round / external thread

    Mouse over image to enlarge

    Part number:

    Still undefined. 5 possible part numbers found.
    Quantity:

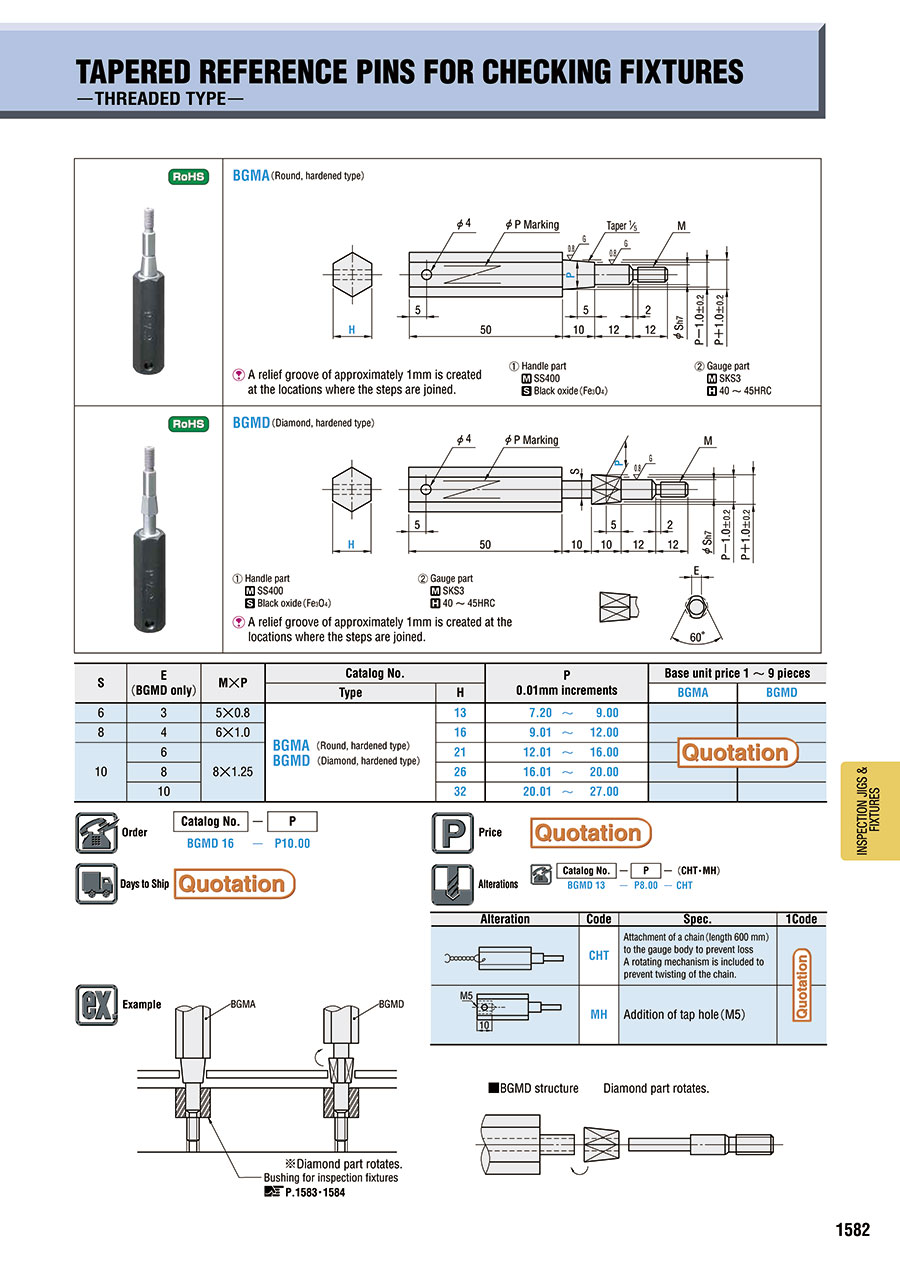

    Outline drawing

    Part number list

    Number of items
  • 1
    • Part number
    BGMA13-P[7.2-9/0.01]
    BGMA16-P[9.01-12/0.01]
    BGMA21-P[12.01-16/0.01]
    BGMA26-P[16.01-20/0.01]
    BGMA32-P[20.01-27/0.01]

    H (Width across flats)

    (mm)

    P (Tapered part diameter)

    (mm)

    		RoHS?Minimum order quantity
    13
    7.2 ～ 9
    10
    1 pieces
    16
    9.01 ～ 12
    10
    1 pieces
    21
    12.01 ～ 16
    10
    1 pieces
    26
    16.01 ～ 20
    10
    1 pieces
    32
    20.01 ～ 27
    10
    1 pieces
