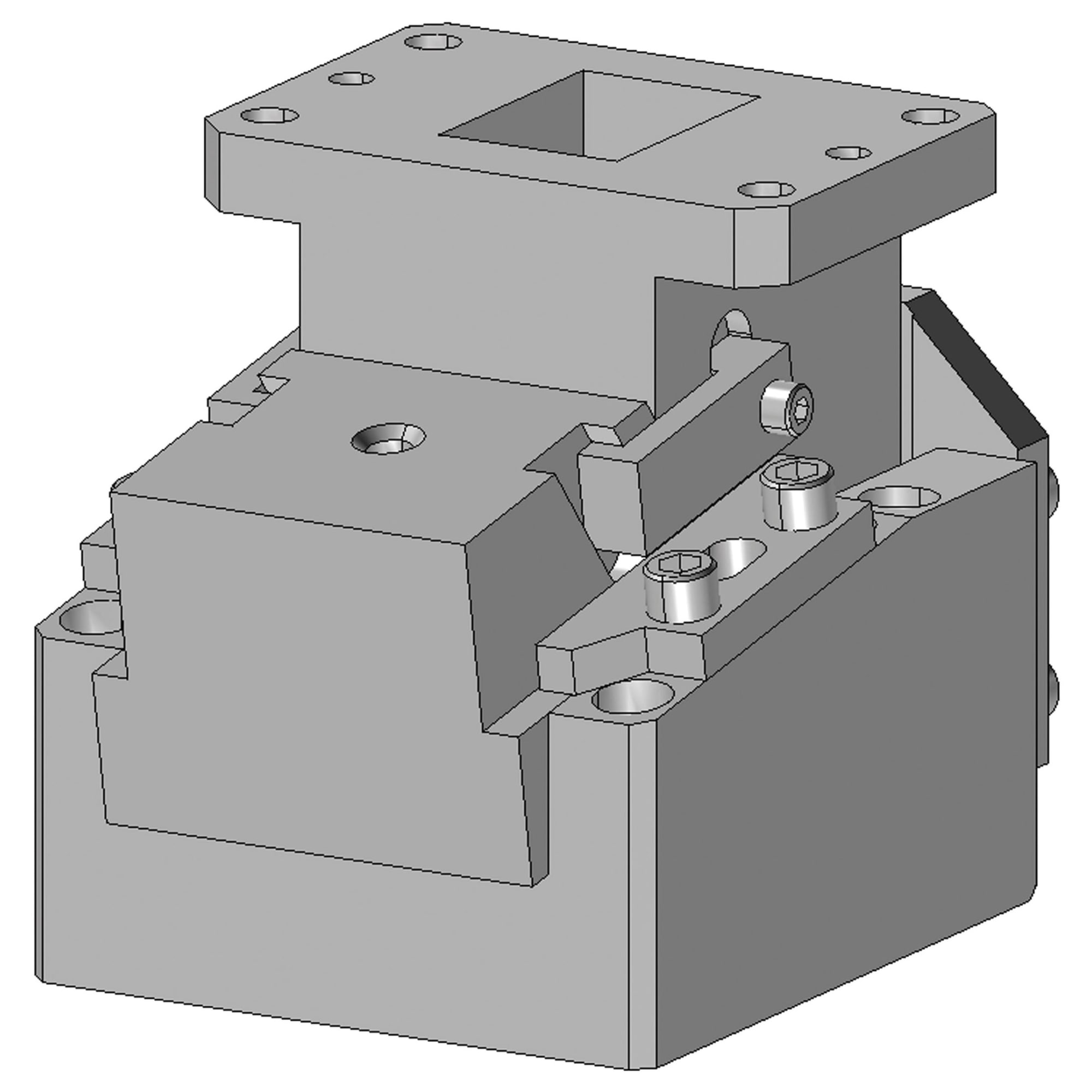

Standard cam units, bottom upright / MGDC65 (stroke angle θ: 00) / MGDCA65 (stroke angle θ: 00)

Mouse over image to enlarge

• CatalogP.1315

• Outline drawing
• Part number list
• More Information
• Catalog

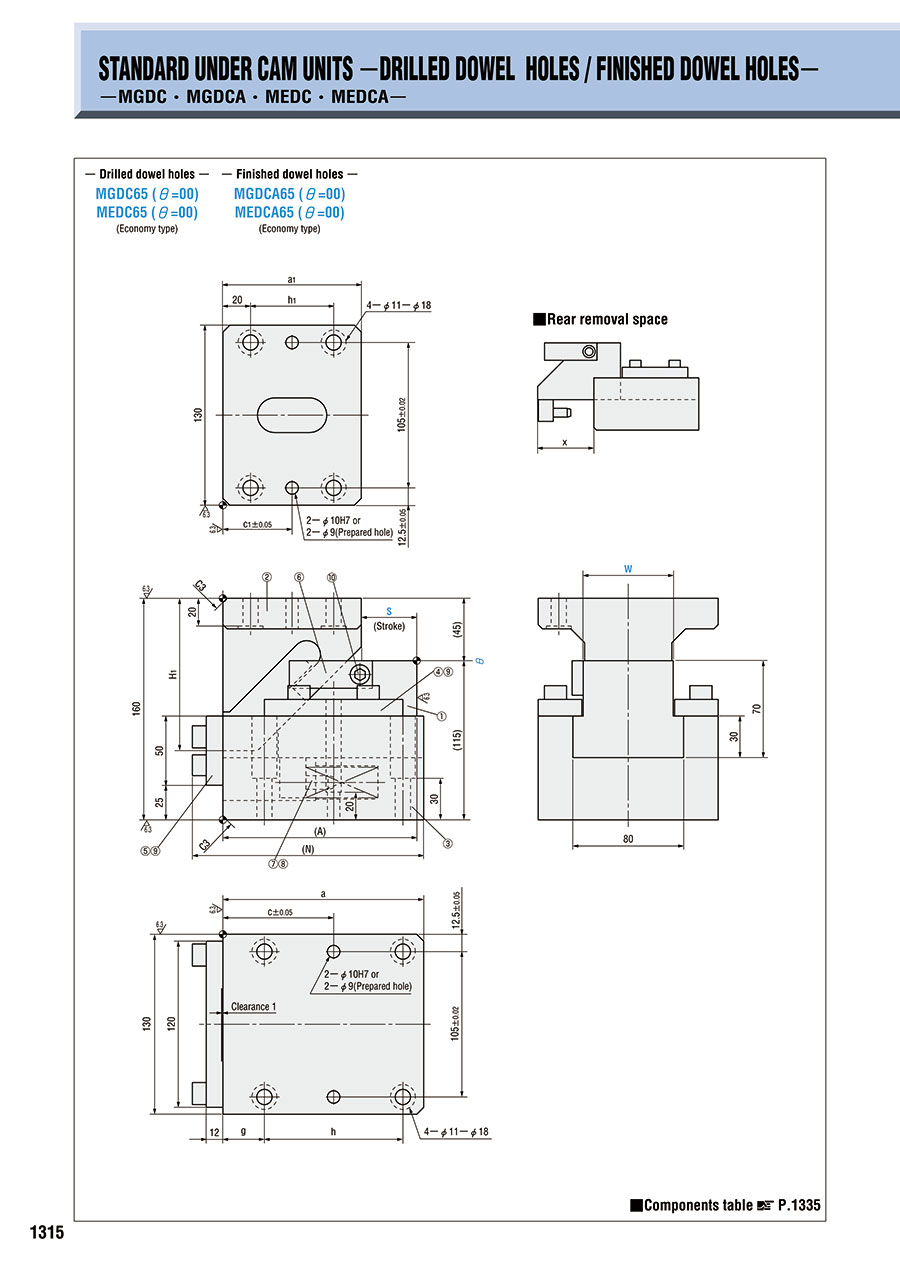

Outline drawing

Part number list

Number of items

30 items60 items90 items

1

Part number

MGDC65-00-40

MGDC65-00-60

MGDCA65-00-40

MGDCA65-00-60

Cam Types	Stroke (mm)	RoHS?	Minimum order quantity

Standard -Drilled Dowel Holes-	40	10	1 pieces
Standard -Drilled Dowel Holes-	60	10	1 pieces
Standard -Finished Dowel Holes-	40	10	1 pieces
Standard -Finished Dowel Holes-	60	10	1 pieces

Unit price (excluding VAT)(Unit price including VAT) Sort by	Standard shipping days Sort by

- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote

1

More Information

Catalog

• Products homepage

• Open
• Catalog (2-page spread)
