Press Die Components
Punches & Dies
Punches
Cutting punches
Cutting punches / cylindrical head / anti-twist device / forcing pin / RW

Configure

Jector
- Standard type
- Spring reinforced type
Tip shape
- A
- D
- R
- E
- G
B (Tip length)
- L
- S
D (Shank diameter)(mm)
- 4
- 5
- 6
- 8
- 10
- 13
- 16
- 20
- 25
P (Tip dimension)(mm)
[1-24.97/0.01mm units]
L (L dimension)(mm)
[40-100/10mm units]
LC
[27-100/0.1]
LCT (Head thickness tolerance change + Total length alteration)(mm)
[27-100/0.1mm units]
LMT (Head thickness tolerance change + Total length alteration)(mm)
[27-100/0.1mm units]
PC (Tip dimension alteration)(mm)
[1.8-1.99/0.01mm units]
[2.5-2.99/0.01mm units]
[5-5.99/0.01mm units]
[8-17.99/0.01mm units]
R (Tip corner R)
[0.15-11.39/0.01]
W
[1-22.8/0.01]
WC
[1.8-1.99/0.01]
[2.5-2.99/0.01]
[5-6.99/0.01]
Type
CAD
- 2D
- 3D

Cutting punches / cylindrical head / anti-twist device / forcing pin / RW

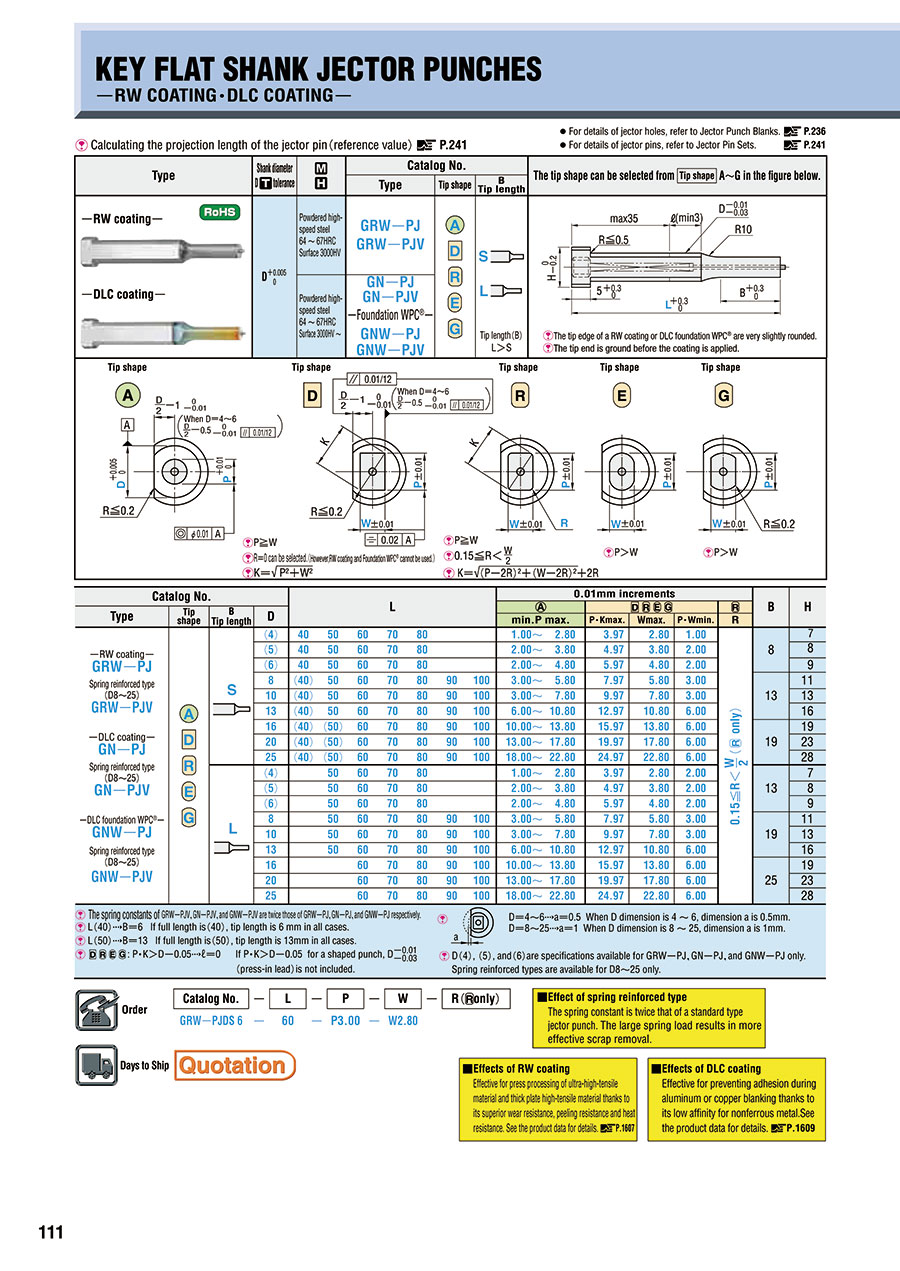

CatalogP.111

Part number:

Still undefined. 6,909 possible part numbers found.

Outline drawing
Part number list
More Information
Catalog

Outline drawing

Part number list

Number of items

...

116

Part number

GRW-PJAL4-[50-80/10]-P[1-2.8/0.01]

GRW-PJAL4-LC[39-49.9/0.1]-P[1-2.8/0.01]

GRW-PJAL4-LC[50.1-59.9/0.1]-P[1-2.8/0.01]

GRW-PJAL4-LC[60.1-69.9/0.1]-P[1-2.8/0.01]

GRW-PJAL4-LC[70.1-79.9/0.1]-P[1-2.8/0.01]

GRW-PJAL4-LCT[39-49.9/0.1]-P[1-2.8/0.01]

GRW-PJAL4-LCT[50.1-59.9/0.1]-P[1-2.8/0.01]

GRW-PJAL4-LCT[60.1-69.9/0.1]-P[1-2.8/0.01]

GRW-PJAL4-LCT[70.1-79.9/0.1]-P[1-2.8/0.01]

GRW-PJAL4-LMT[39-49.9/0.1]-P[1-2.8/0.01]

GRW-PJAL4-LMT[50.1-59.9/0.1]-P[1-2.8/0.01]

GRW-PJAL4-LMT[60.1-69.9/0.1]-P[1-2.8/0.01]

GRW-PJAL4-LMT[70.1-79.9/0.1]-P[1-2.8/0.01]

GRW-PJAL5-[50-80/10]-P[2-3.8/0.01]

GRW-PJAL5-[50-80/10]-PC[1.8-1.99/0.01]

GRW-PJAL5-LC[39-49.9/0.1]-P[2-3.8/0.01]

GRW-PJAL5-LC[39-49.9/0.1]-PC[1.8-1.99/0.01]

GRW-PJAL5-LC[50.1-59.9/0.1]-P[2-3.8/0.01]

GRW-PJAL5-LC[50.1-59.9/0.1]-PC[1.8-1.99/0.01]

GRW-PJAL5-LC[60.1-69.9/0.1]-P[2-3.8/0.01]

GRW-PJAL5-LC[60.1-69.9/0.1]-PC[1.8-1.99/0.01]

GRW-PJAL5-LC[70.1-79.9/0.1]-P[2-3.8/0.01]

GRW-PJAL5-LC[70.1-79.9/0.1]-PC[1.8-1.99/0.01]

GRW-PJAL5-LCT[39-49.9/0.1]-P[2-3.8/0.01]

GRW-PJAL5-LCT[39-49.9/0.1]-PC[1.8-1.99/0.01]

GRW-PJAL5-LCT[50.1-59.9/0.1]-P[2-3.8/0.01]

GRW-PJAL5-LCT[50.1-59.9/0.1]-PC[1.8-1.99/0.01]

GRW-PJAL5-LCT[60.1-69.9/0.1]-P[2-3.8/0.01]

GRW-PJAL5-LCT[60.1-69.9/0.1]-PC[1.8-1.99/0.01]

GRW-PJAL5-LCT[70.1-79.9/0.1]-P[2-3.8/0.01]

GRW-PJAL5-LCT[70.1-79.9/0.1]-PC[1.8-1.99/0.01]

GRW-PJAL5-LMT[39-49.9/0.1]-P[2-3.8/0.01]

GRW-PJAL5-LMT[39-49.9/0.1]-PC[1.8-1.99/0.01]

GRW-PJAL5-LMT[50.1-59.9/0.1]-P[2-3.8/0.01]

GRW-PJAL5-LMT[50.1-59.9/0.1]-PC[1.8-1.99/0.01]

GRW-PJAL5-LMT[60.1-69.9/0.1]-P[2-3.8/0.01]

GRW-PJAL5-LMT[60.1-69.9/0.1]-PC[1.8-1.99/0.01]

GRW-PJAL5-LMT[70.1-79.9/0.1]-P[2-3.8/0.01]

GRW-PJAL5-LMT[70.1-79.9/0.1]-PC[1.8-1.99/0.01]

GRW-PJAL6-[50-80/10]-P[2-4.8/0.01]

GRW-PJAL6-[50-80/10]-PC[1.8-1.99/0.01]

GRW-PJAL6-LC[39-49.9/0.1]-P[2-4.8/0.01]

GRW-PJAL6-LC[39-49.9/0.1]-PC[1.8-1.99/0.01]

GRW-PJAL6-LC[50.1-59.9/0.1]-P[2-4.8/0.01]

GRW-PJAL6-LC[50.1-59.9/0.1]-PC[1.8-1.99/0.01]

GRW-PJAL6-LC[60.1-69.9/0.1]-P[2-4.8/0.01]

GRW-PJAL6-LC[60.1-69.9/0.1]-PC[1.8-1.99/0.01]

GRW-PJAL6-LC[70.1-79.9/0.1]-P[2-4.8/0.01]

GRW-PJAL6-LC[70.1-79.9/0.1]-PC[1.8-1.99/0.01]

GRW-PJAL6-LCT[39-49.9/0.1]-P[2-4.8/0.01]

GRW-PJAL6-LCT[39-49.9/0.1]-PC[1.8-1.99/0.01]

GRW-PJAL6-LCT[50.1-59.9/0.1]-P[2-4.8/0.01]

GRW-PJAL6-LCT[50.1-59.9/0.1]-PC[1.8-1.99/0.01]

GRW-PJAL6-LCT[60.1-69.9/0.1]-P[2-4.8/0.01]

GRW-PJAL6-LCT[60.1-69.9/0.1]-PC[1.8-1.99/0.01]

GRW-PJAL6-LCT[70.1-79.9/0.1]-P[2-4.8/0.01]

GRW-PJAL6-LCT[70.1-79.9/0.1]-PC[1.8-1.99/0.01]

GRW-PJAL6-LMT[39-49.9/0.1]-P[2-4.8/0.01]

GRW-PJAL6-LMT[39-49.9/0.1]-PC[1.8-1.99/0.01]

GRW-PJAL6-LMT[50.1-59.9/0.1]-P[2-4.8/0.01]

Jector

Tip shape

B (Tip length)

D (Shank diameter)

(mm)

P (Tip dimension)

(mm)

L (L dimension)

(mm)

LCT (Head thickness tolerance change + Total length alteration)

(mm)

LMT (Head thickness tolerance change + Total length alteration)

(mm)

PC (Tip dimension alteration)

(mm)

R (Tip corner R)

RoHS?

Minimum order quantity

Standard type	A	L	4	1 ～ 2.8	50 ～ 80	-	-	-	-	-	-	-	10	1 pieces
Standard type	A	L	4	1 ～ 2.8	-	39 ～ 49.9	-	-	-	-	-	-	10	1 pieces
Standard type	A	L	4	1 ～ 2.8	-	50.1 ～ 59.9	-	-	-	-	-	-	10	1 pieces
Standard type	A	L	4	1 ～ 2.8	-	60.1 ～ 69.9	-	-	-	-	-	-	10	1 pieces
Standard type	A	L	4	1 ～ 2.8	-	70.1 ～ 79.9	-	-	-	-	-	-	10	1 pieces
Standard type	A	L	4	1 ～ 2.8	-	-	39 ～ 49.9	-	-	-	-	-	10	1 pieces
Standard type	A	L	4	1 ～ 2.8	-	-	50.1 ～ 59.9	-	-	-	-	-	10	1 pieces
Standard type	A	L	4	1 ～ 2.8	-	-	60.1 ～ 69.9	-	-	-	-	-	10	1 pieces
Standard type	A	L	4	1 ～ 2.8	-	-	70.1 ～ 79.9	-	-	-	-	-	10	1 pieces
Standard type	A	L	4	1 ～ 2.8	-	-	-	39 ～ 49.9	-	-	-	-	10	1 pieces
Standard type	A	L	4	1 ～ 2.8	-	-	-	50.1 ～ 59.9	-	-	-	-	10	1 pieces
Standard type	A	L	4	1 ～ 2.8	-	-	-	60.1 ～ 69.9	-	-	-	-	10	1 pieces
Standard type	A	L	4	1 ～ 2.8	-	-	-	70.1 ～ 79.9	-	-	-	-	10	1 pieces
Standard type	A	L	5	2 ～ 3.8	50 ～ 80	-	-	-	-	-	-	-	10	1 pieces
Standard type	A	L	5	-	50 ～ 80	-	-	-	1.8 ～ 1.99	-	-	-	10	1 pieces
Standard type	A	L	5	2 ～ 3.8	-	39 ～ 49.9	-	-	-	-	-	-	10	1 pieces
Standard type	A	L	5	-	-	39 ～ 49.9	-	-	1.8 ～ 1.99	-	-	-	10	1 pieces
Standard type	A	L	5	2 ～ 3.8	-	50.1 ～ 59.9	-	-	-	-	-	-	10	1 pieces
Standard type	A	L	5	-	-	50.1 ～ 59.9	-	-	1.8 ～ 1.99	-	-	-	10	1 pieces
Standard type	A	L	5	2 ～ 3.8	-	60.1 ～ 69.9	-	-	-	-	-	-	10	1 pieces
Standard type	A	L	5	-	-	60.1 ～ 69.9	-	-	1.8 ～ 1.99	-	-	-	10	1 pieces
Standard type	A	L	5	2 ～ 3.8	-	70.1 ～ 79.9	-	-	-	-	-	-	10	1 pieces
Standard type	A	L	5	-	-	70.1 ～ 79.9	-	-	1.8 ～ 1.99	-	-	-	10	1 pieces
Standard type	A	L	5	2 ～ 3.8	-	-	39 ～ 49.9	-	-	-	-	-	10	1 pieces
Standard type	A	L	5	-	-	-	39 ～ 49.9	-	1.8 ～ 1.99	-	-	-	10	1 pieces
Standard type	A	L	5	2 ～ 3.8	-	-	50.1 ～ 59.9	-	-	-	-	-	10	1 pieces
Standard type	A	L	5	-	-	-	50.1 ～ 59.9	-	1.8 ～ 1.99	-	-	-	10	1 pieces
Standard type	A	L	5	2 ～ 3.8	-	-	60.1 ～ 69.9	-	-	-	-	-	10	1 pieces
Standard type	A	L	5	-	-	-	60.1 ～ 69.9	-	1.8 ～ 1.99	-	-	-	10	1 pieces
Standard type	A	L	5	2 ～ 3.8	-	-	70.1 ～ 79.9	-	-	-	-	-	10	1 pieces
Standard type	A	L	5	-	-	-	70.1 ～ 79.9	-	1.8 ～ 1.99	-	-	-	10	1 pieces
Standard type	A	L	5	2 ～ 3.8	-	-	-	39 ～ 49.9	-	-	-	-	10	1 pieces
Standard type	A	L	5	-	-	-	-	39 ～ 49.9	1.8 ～ 1.99	-	-	-	10	1 pieces
Standard type	A	L	5	2 ～ 3.8	-	-	-	50.1 ～ 59.9	-	-	-	-	10	1 pieces
Standard type	A	L	5	-	-	-	-	50.1 ～ 59.9	1.8 ～ 1.99	-	-	-	10	1 pieces
Standard type	A	L	5	2 ～ 3.8	-	-	-	60.1 ～ 69.9	-	-	-	-	10	1 pieces
Standard type	A	L	5	-	-	-	-	60.1 ～ 69.9	1.8 ～ 1.99	-	-	-	10	1 pieces
Standard type	A	L	5	2 ～ 3.8	-	-	-	70.1 ～ 79.9	-	-	-	-	10	1 pieces
Standard type	A	L	5	-	-	-	-	70.1 ～ 79.9	1.8 ～ 1.99	-	-	-	10	1 pieces
Standard type	A	L	6	2 ～ 4.8	50 ～ 80	-	-	-	-	-	-	-	10	1 pieces
Standard type	A	L	6	-	50 ～ 80	-	-	-	1.8 ～ 1.99	-	-	-	10	1 pieces
Standard type	A	L	6	2 ～ 4.8	-	39 ～ 49.9	-	-	-	-	-	-	10	1 pieces
Standard type	A	L	6	-	-	39 ～ 49.9	-	-	1.8 ～ 1.99	-	-	-	10	1 pieces
Standard type	A	L	6	2 ～ 4.8	-	50.1 ～ 59.9	-	-	-	-	-	-	10	1 pieces
Standard type	A	L	6	-	-	50.1 ～ 59.9	-	-	1.8 ～ 1.99	-	-	-	10	1 pieces
Standard type	A	L	6	2 ～ 4.8	-	60.1 ～ 69.9	-	-	-	-	-	-	10	1 pieces
Standard type	A	L	6	-	-	60.1 ～ 69.9	-	-	1.8 ～ 1.99	-	-	-	10	1 pieces
Standard type	A	L	6	2 ～ 4.8	-	70.1 ～ 79.9	-	-	-	-	-	-	10	1 pieces
Standard type	A	L	6	-	-	70.1 ～ 79.9	-	-	1.8 ～ 1.99	-	-	-	10	1 pieces
Standard type	A	L	6	2 ～ 4.8	-	-	39 ～ 49.9	-	-	-	-	-	10	1 pieces
Standard type	A	L	6	-	-	-	39 ～ 49.9	-	1.8 ～ 1.99	-	-	-	10	1 pieces
Standard type	A	L	6	2 ～ 4.8	-	-	50.1 ～ 59.9	-	-	-	-	-	10	1 pieces
Standard type	A	L	6	-	-	-	50.1 ～ 59.9	-	1.8 ～ 1.99	-	-	-	10	1 pieces
Standard type	A	L	6	2 ～ 4.8	-	-	60.1 ～ 69.9	-	-	-	-	-	10	1 pieces
Standard type	A	L	6	-	-	-	60.1 ～ 69.9	-	1.8 ～ 1.99	-	-	-	10	1 pieces
Standard type	A	L	6	2 ～ 4.8	-	-	70.1 ～ 79.9	-	-	-	-	-	10	1 pieces
Standard type	A	L	6	-	-	-	70.1 ～ 79.9	-	1.8 ～ 1.99	-	-	-	10	1 pieces
Standard type	A	L	6	2 ～ 4.8	-	-	-	39 ～ 49.9	-	-	-	-	10	1 pieces
Standard type	A	L	6	-	-	-	-	39 ～ 49.9	1.8 ～ 1.99	-	-	-	10	1 pieces
Standard type	A	L	6	2 ～ 4.8	-	-	-	50.1 ～ 59.9	-	-	-	-	10	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote

...

116
