Cutting punches / heavy design / cylindrical head / dowel pin bore / break-off pin / RW

Click image to view enlarged image

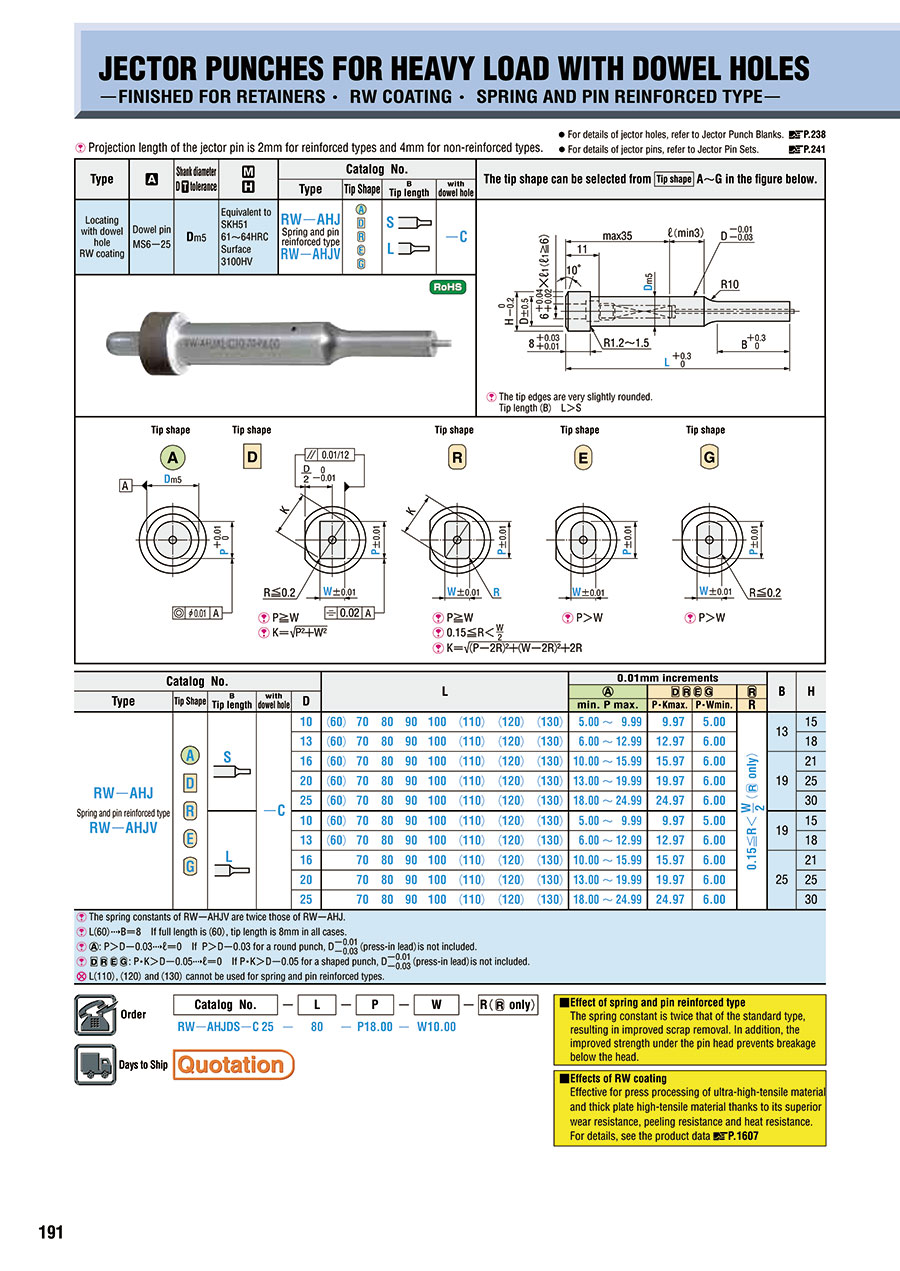

• CatalogP.191

• Outline drawing
• Part number list
• More Information
• Catalog

Outline drawing

Part number list

Number of items

30 items60 items90 items

1

2

3

4

Next

Part number

RW-AHJAL-C10-[60-130/10]-P[5-9.99/0.01]

RW-AHJAL-C10-LC[53-129.9/0.1]-P[5-9.99/0.01]

RW-AHJAL-C13-[60-130/10]-P[6-12.99/0.01]

RW-AHJAL-C13-LC[53-129.9/0.1]-P[6-12.99/0.01]

RW-AHJAL-C16-[70-130/10]-P[10-15.99/0.01]

RW-AHJAL-C16-LC[53-129.9/0.1]-P[10-15.99/0.01]

RW-AHJAL-C20-[70-130/10]-P[13-19.99/0.01]

RW-AHJAL-C20-LC[53-129.9/0.1]-P[13-19.99/0.01]

RW-AHJAL-C25-[70-130/10]-P[18-24.99/0.01]

RW-AHJAL-C25-LC[53-129.9/0.1]-P[18-24.99/0.01]

RW-AHJAS-C10-[60-130/10]-P[5-9.99/0.01]

RW-AHJAS-C10-LC[53-129.9/0.1]-P[5-9.99/0.01]

RW-AHJAS-C13-[60-130/10]-P[6-12.99/0.01]

RW-AHJAS-C13-LC[53-129.9/0.1]-P[6-12.99/0.01]

RW-AHJAS-C16-[60-130/10]-P[10-15.99/0.01]

RW-AHJAS-C16-LC[53-129.9/0.1]-P[10-15.99/0.01]

RW-AHJAS-C20-[60-130/10]-P[13-19.99/0.01]

RW-AHJAS-C20-LC[53-129.9/0.1]-P[13-19.99/0.01]

RW-AHJAS-C25-[60-130/10]-P[18-24.99/0.01]

RW-AHJAS-C25-LC[53-129.9/0.1]-P[18-24.99/0.01]

RW-AHJDL-C10-[60-130/10]-P[5-9.97/0.01]-W[5-9.97/0.01]

RW-AHJDL-C10-LC[54-129.9/0.1]-P[5-9.97/0.01]-W[5-9.97/0.01]

RW-AHJDL-C13-[60-130/10]-P[6-12.97/0.01]-W[6-12.97/0.01]

RW-AHJDL-C13-LC[54-129.9/0.1]-P[6-12.97/0.01]-W[6-12.97/0.01]

RW-AHJDL-C16-[70-130/10]-P[6-15.97/0.01]-W[6-15.97/0.01]

RW-AHJDL-C16-LC[54-129.9/0.1]-P[6-15.97/0.01]-W[6-15.97/0.01]

RW-AHJDL-C20-[70-130/10]-P[6-19.97/0.01]-W[6-19.97/0.01]

RW-AHJDL-C20-LC[54-129.9/0.1]-P[6-19.97/0.01]-W[6-19.97/0.01]

RW-AHJDL-C25-[70-130/10]-P[6-24.97/0.01]-W[6-24.97/0.01]

RW-AHJDL-C25-LC[54-129.9/0.1]-P[6-24.97/0.01]-W[6-24.97/0.01]

RW-AHJDS-C10-[60-130/10]-P[5-9.97/0.01]-W[5-9.97/0.01]

RW-AHJDS-C10-LC[54-129.9/0.1]-P[5-9.97/0.01]-W[5-9.97/0.01]

RW-AHJDS-C13-[60-130/10]-P[6-12.97/0.01]-W[6-12.97/0.01]

RW-AHJDS-C13-LC[54-129.9/0.1]-P[6-12.97/0.01]-W[6-12.97/0.01]

RW-AHJDS-C16-[60-130/10]-P[6-15.97/0.01]-W[6-15.97/0.01]

RW-AHJDS-C16-LC[54-129.9/0.1]-P[6-15.97/0.01]-W[6-15.97/0.01]

RW-AHJDS-C20-[60-130/10]-P[6-19.97/0.01]-W[6-19.97/0.01]

RW-AHJDS-C20-LC[54-129.9/0.1]-P[6-19.97/0.01]-W[6-19.97/0.01]

RW-AHJDS-C25-[60-130/10]-P[6-24.97/0.01]-W[6-24.97/0.01]

RW-AHJDS-C25-LC[54-129.9/0.1]-P[6-24.97/0.01]-W[6-24.97/0.01]

RW-AHJEL-C10-[60-130/10]-P[5-9.97/0.01]-W[5-9.97/0.01]

RW-AHJEL-C10-LC[53-129.9/0.1]-P[5-9.97/0.01]-W[5-9.97/0.01]

RW-AHJEL-C13-[60-130/10]-P[6-12.97/0.01]-W[6-12.97/0.01]

RW-AHJEL-C13-LC[53-129.9/0.1]-P[6-12.97/0.01]-W[6-12.97/0.01]

RW-AHJEL-C16-[70-130/10]-P[6-15.97/0.01]-W[6-15.97/0.01]

RW-AHJEL-C16-LC[53-129.9/0.1]-P[6-15.97/0.01]-W[6-15.97/0.01]

RW-AHJEL-C20-[70-130/10]-P[6-19.97/0.01]-W[6-19.97/0.01]

RW-AHJEL-C20-LC[53-129.9/0.1]-P[6-19.97/0.01]-W[6-19.97/0.01]

RW-AHJEL-C25-[70-130/10]-P[6-24.97/0.01]-W[6-24.97/0.01]

RW-AHJEL-C25-LC[53-129.9/0.1]-P[6-24.97/0.01]-W[6-24.97/0.01]

RW-AHJES-C10-[60-130/10]-P[5-9.97/0.01]-W[5-9.97/0.01]

RW-AHJES-C10-LC[54-129.9/0.1]-P[5-9.97/0.01]-W[5-9.97/0.01]

RW-AHJES-C13-[60-130/10]-P[6-12.97/0.01]-W[6-12.97/0.01]

RW-AHJES-C13-LC[54-129.9/0.1]-P[6-12.97/0.01]-W[6-12.97/0.01]

RW-AHJES-C16-[60-130/10]-P[6-15.97/0.01]-W[6-15.97/0.01]

RW-AHJES-C16-LC[54-129.9/0.1]-P[6-15.97/0.01]-W[6-15.97/0.01]

RW-AHJES-C20-[60-130/10]-P[6-19.97/0.01]-W[6-19.97/0.01]

RW-AHJES-C20-LC[54-129.9/0.1]-P[6-19.97/0.01]-W[6-19.97/0.01]

RW-AHJES-C25-[60-130/10]-P[6-24.97/0.01]-W[6-24.97/0.01]

RW-AHJES-C25-LC[54-129.9/0.1]-P[6-24.97/0.01]-W[6-24.97/0.01]

Jector	Tip shape	B (Tip length)	D (Shank diameter) (mm)	L (L dimension) (mm)	LC	P	R	W	RoHS?	Minimum order quantity

Standard type	A	L	10	60 ～ 130	-	5 ～ 9.99	-	-	10	1 pieces
Standard type	A	L	10	-	53 ～ 129.9	5 ～ 9.99	-	-	10	1 pieces
Standard type	A	L	13	60 ～ 130	-	6 ～ 12.99	-	-	10	1 pieces
Standard type	A	L	13	-	53 ～ 129.9	6 ～ 12.99	-	-	10	1 pieces
Standard type	A	L	16	70 ～ 130	-	10 ～ 15.99	-	-	10	1 pieces
Standard type	A	L	16	-	53 ～ 129.9	10 ～ 15.99	-	-	10	1 pieces
Standard type	A	L	20	70 ～ 130	-	13 ～ 19.99	-	-	10	1 pieces
Standard type	A	L	20	-	53 ～ 129.9	13 ～ 19.99	-	-	10	1 pieces
Standard type	A	L	25	70 ～ 130	-	18 ～ 24.99	-	-	10	1 pieces
Standard type	A	L	25	-	53 ～ 129.9	18 ～ 24.99	-	-	10	1 pieces
Standard type	A	S	10	60 ～ 130	-	5 ～ 9.99	-	-	10	1 pieces
Standard type	A	S	10	-	53 ～ 129.9	5 ～ 9.99	-	-	10	1 pieces
Standard type	A	S	13	60 ～ 130	-	6 ～ 12.99	-	-	10	1 pieces
Standard type	A	S	13	-	53 ～ 129.9	6 ～ 12.99	-	-	10	1 pieces
Standard type	A	S	16	60 ～ 130	-	10 ～ 15.99	-	-	10	1 pieces
Standard type	A	S	16	-	53 ～ 129.9	10 ～ 15.99	-	-	10	1 pieces
Standard type	A	S	20	60 ～ 130	-	13 ～ 19.99	-	-	10	1 pieces
Standard type	A	S	20	-	53 ～ 129.9	13 ～ 19.99	-	-	10	1 pieces
Standard type	A	S	25	60 ～ 130	-	18 ～ 24.99	-	-	10	1 pieces
Standard type	A	S	25	-	53 ～ 129.9	18 ～ 24.99	-	-	10	1 pieces
Standard type	D	L	10	60 ～ 130	-	5 ～ 9.97	-	5 ～ 9.97	10	1 pieces
Standard type	D	L	10	-	54 ～ 129.9	5 ～ 9.97	-	5 ～ 9.97	10	1 pieces
Standard type	D	L	13	60 ～ 130	-	6 ～ 12.97	-	6 ～ 12.97	10	1 pieces
Standard type	D	L	13	-	54 ～ 129.9	6 ～ 12.97	-	6 ～ 12.97	10	1 pieces
Standard type	D	L	16	70 ～ 130	-	6 ～ 15.97	-	6 ～ 15.97	10	1 pieces
Standard type	D	L	16	-	54 ～ 129.9	6 ～ 15.97	-	6 ～ 15.97	10	1 pieces
Standard type	D	L	20	70 ～ 130	-	6 ～ 19.97	-	6 ～ 19.97	10	1 pieces
Standard type	D	L	20	-	54 ～ 129.9	6 ～ 19.97	-	6 ～ 19.97	10	1 pieces
Standard type	D	L	25	70 ～ 130	-	6 ～ 24.97	-	6 ～ 24.97	10	1 pieces
Standard type	D	L	25	-	54 ～ 129.9	6 ～ 24.97	-	6 ～ 24.97	10	1 pieces
Standard type	D	S	10	60 ～ 130	-	5 ～ 9.97	-	5 ～ 9.97	10	1 pieces
Standard type	D	S	10	-	54 ～ 129.9	5 ～ 9.97	-	5 ～ 9.97	10	1 pieces
Standard type	D	S	13	60 ～ 130	-	6 ～ 12.97	-	6 ～ 12.97	10	1 pieces
Standard type	D	S	13	-	54 ～ 129.9	6 ～ 12.97	-	6 ～ 12.97	10	1 pieces
Standard type	D	S	16	60 ～ 130	-	6 ～ 15.97	-	6 ～ 15.97	10	1 pieces
Standard type	D	S	16	-	54 ～ 129.9	6 ～ 15.97	-	6 ～ 15.97	10	1 pieces
Standard type	D	S	20	60 ～ 130	-	6 ～ 19.97	-	6 ～ 19.97	10	1 pieces
Standard type	D	S	20	-	54 ～ 129.9	6 ～ 19.97	-	6 ～ 19.97	10	1 pieces
Standard type	D	S	25	60 ～ 130	-	6 ～ 24.97	-	6 ～ 24.97	10	1 pieces
Standard type	D	S	25	-	54 ～ 129.9	6 ～ 24.97	-	6 ～ 24.97	10	1 pieces
Standard type	E	L	10	60 ～ 130	-	5 ～ 9.97	-	5 ～ 9.97	10	1 pieces
Standard type	E	L	10	-	53 ～ 129.9	5 ～ 9.97	-	5 ～ 9.97	10	1 pieces
Standard type	E	L	13	60 ～ 130	-	6 ～ 12.97	-	6 ～ 12.97	10	1 pieces
Standard type	E	L	13	-	53 ～ 129.9	6 ～ 12.97	-	6 ～ 12.97	10	1 pieces
Standard type	E	L	16	70 ～ 130	-	6 ～ 15.97	-	6 ～ 15.97	10	1 pieces
Standard type	E	L	16	-	53 ～ 129.9	6 ～ 15.97	-	6 ～ 15.97	10	1 pieces
Standard type	E	L	20	70 ～ 130	-	6 ～ 19.97	-	6 ～ 19.97	10	1 pieces
Standard type	E	L	20	-	53 ～ 129.9	6 ～ 19.97	-	6 ～ 19.97	10	1 pieces
Standard type	E	L	25	70 ～ 130	-	6 ～ 24.97	-	6 ～ 24.97	10	1 pieces
Standard type	E	L	25	-	53 ～ 129.9	6 ～ 24.97	-	6 ～ 24.97	10	1 pieces
Standard type	E	S	10	60 ～ 130	-	5 ～ 9.97	-	5 ～ 9.97	10	1 pieces
Standard type	E	S	10	-	54 ～ 129.9	5 ～ 9.97	-	5 ～ 9.97	10	1 pieces
Standard type	E	S	13	60 ～ 130	-	6 ～ 12.97	-	6 ～ 12.97	10	1 pieces
Standard type	E	S	13	-	54 ～ 129.9	6 ～ 12.97	-	6 ～ 12.97	10	1 pieces
Standard type	E	S	16	60 ～ 130	-	6 ～ 15.97	-	6 ～ 15.97	10	1 pieces
Standard type	E	S	16	-	54 ～ 129.9	6 ～ 15.97	-	6 ～ 15.97	10	1 pieces
Standard type	E	S	20	60 ～ 130	-	6 ～ 19.97	-	6 ～ 19.97	10	1 pieces
Standard type	E	S	20	-	54 ～ 129.9	6 ～ 19.97	-	6 ～ 19.97	10	1 pieces
Standard type	E	S	25	60 ～ 130	-	6 ～ 24.97	-	6 ～ 24.97	10	1 pieces
Standard type	E	S	25	-	54 ～ 129.9	6 ～ 24.97	-	6 ～ 24.97	10	1 pieces
