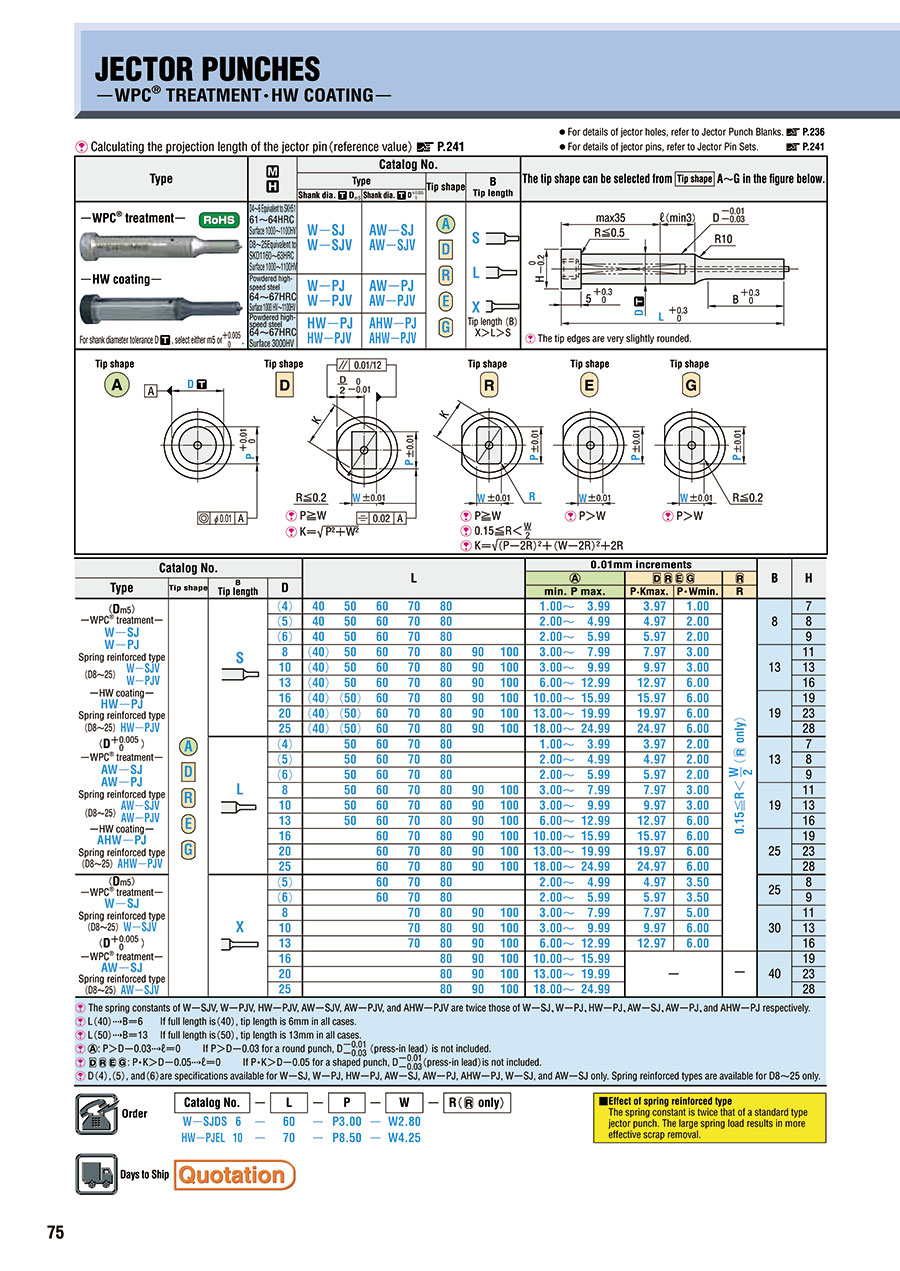

Cutting punches / cylindrical head / bead breaking pin / WPC

Cutting punches / cylindrical head / bead breaking pin / WPC

MISUMI

MISUMI

  • FLANGE
  • SKH51
  • SKD11
  • POWDER HSS
  • WPC
  • PUNCH&RETAINER SET

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...

Plug-in is required for 3D Preview

CAD Download

Data to be displayed
30
45
60
  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. Next >>
Part Number
AW-PJAL4-[50-80/10]-P[1-3.99/0.01]
AW-PJAL4-[50-80/10]-PC[0.9-0.99/0.01]
AW-PJAL4-LC[39-79.9/0.1]-P[1-3.99/0.01]
AW-PJAL4-LC[39-79.9/0.1]-PC[0.9-0.99/0.01]
AW-PJAL4-LCT[39-79.9/0.1]-P[1-3.99/0.01]
AW-PJAL4-LCT[39-79.9/0.1]-PC[0.9-0.99/0.01]
AW-PJAL4-LMT[39-79.9/0.1]-P[1-3.99/0.01]
AW-PJAL4-LMT[39-79.9/0.1]-PC[0.9-0.99/0.01]
AW-PJAL5-[50-80/10]-P[2-4.99/0.01]
AW-PJAL5-[50-80/10]-PC[1.8-1.99/0.01]
AW-PJAL5-LC[39-79.9/0.1]-P[2-4.99/0.01]
AW-PJAL5-LC[39-79.9/0.1]-PC[1.8-1.99/0.01]
AW-PJAL5-LCT[39-79.9/0.1]-P[2-4.99/0.01]
AW-PJAL5-LCT[39-79.9/0.1]-PC[1.8-1.99/0.01]
AW-PJAL5-LMT[39-79.9/0.1]-P[2-4.99/0.01]
AW-PJAL5-LMT[39-79.9/0.1]-PC[1.8-1.99/0.01]
AW-PJAL6-[50-80/10]-P[2-5.99/0.01]
AW-PJAL6-[50-80/10]-PC[1.8-1.99/0.01]
AW-PJAL6-LC[39-79.9/0.1]-P[2-5.99/0.01]
AW-PJAL6-LC[39-79.9/0.1]-PC[1.8-1.99/0.01]
AW-PJAL6-LCT[39-79.9/0.1]-P[2-5.99/0.01]
AW-PJAL6-LCT[39-79.9/0.1]-PC[1.8-1.99/0.01]
AW-PJAL6-LMT[39-79.9/0.1]-P[2-5.99/0.01]
AW-PJAL6-LMT[39-79.9/0.1]-PC[1.8-1.99/0.01]
AW-PJAL8-[50-100/10]-P[3-7.99/0.01]
AW-PJAL8-[50-100/10]-PC[2.5-2.99/0.01]
AW-PJAL8-LC[33-99.9/0.1]-P[3-7.99/0.01]
AW-PJAL8-LC[33-99.9/0.1]-PC[2.5-2.99/0.01]
AW-PJAL8-LCT[33-99.9/0.1]-P[3-7.99/0.01]
AW-PJAL8-LCT[33-99.9/0.1]-PC[2.5-2.99/0.01]
AW-PJAL8-LMT[33-99.9/0.1]-P[3-7.99/0.01]
AW-PJAL8-LMT[33-99.9/0.1]-PC[2.5-2.99/0.01]
AW-PJAL10-[50-100/10]-P[3-9.99/0.01]
AW-PJAL10-[50-100/10]-PC[2.8-2.99/0.01]
AW-PJAL10-LC[33-99.9/0.1]-P[3-9.99/0.01]
AW-PJAL10-LC[33-99.9/0.1]-PC[2.8-2.99/0.01]
AW-PJAL10-LCT[33-99.9/0.1]-P[3-9.99/0.01]
AW-PJAL10-LCT[33-99.9/0.1]-PC[2.8-2.99/0.01]
AW-PJAL10-LMT[33-99.9/0.1]-P[3-9.99/0.01]
AW-PJAL10-LMT[33-99.9/0.1]-PC[2.8-2.99/0.01]
AW-PJAL13-[50-100/10]-P[6-12.99/0.01]
AW-PJAL13-[50-100/10]-PC[5-5.99/0.01]
AW-PJAL13-LC[33-99.9/0.1]-P[6-12.99/0.01]
AW-PJAL13-LC[33-99.9/0.1]-PC[5-5.99/0.01]
AW-PJAL13-LCT[33-99.9/0.1]-P[6-12.99/0.01]
AW-PJAL13-LCT[33-99.9/0.1]-PC[5-5.99/0.01]
AW-PJAL13-LMT[33-99.9/0.1]-P[6-12.99/0.01]
AW-PJAL13-LMT[33-99.9/0.1]-PC[5-5.99/0.01]
AW-PJAL16-[60-100/10]-P[10-15.99/0.01]
AW-PJAL16-[60-100/10]-PC[8-9.99/0.01]
AW-PJAL16-LC[33-99.9/0.1]-P[10-15.99/0.01]
AW-PJAL16-LC[33-99.9/0.1]-PC[8-9.99/0.01]
AW-PJAL16-LCT[33-99.9/0.1]-P[10-15.99/0.01]
AW-PJAL16-LCT[33-99.9/0.1]-PC[8-9.99/0.01]
AW-PJAL16-LMT[33-99.9/0.1]-P[10-15.99/0.01]
AW-PJAL16-LMT[33-99.9/0.1]-PC[8-9.99/0.01]
AW-PJAL20-[60-100/10]-P[13-19.99/0.01]
AW-PJAL20-[60-100/10]-PC[9-12.99/0.01]
AW-PJAL20-LC[33-99.9/0.1]-P[13-19.99/0.01]
AW-PJAL20-LC[33-99.9/0.1]-PC[9-12.99/0.01]
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSJector Tip shape Material Shank diameter D tolerance B (Tip length) D (Shank diameter)
(mm) 		P (Tip dimension)
(mm) 		L (L dimension)
(mm) 		LC (Full length alteration)
(mm) 		LCT (Head thickness tolerance change + Total length alteration)
(mm) 		LMT (Head thickness tolerance change + Total length alteration)
(mm) 		PC (Tip dimension alteration)
(mm) 		R (Tip corner R)
(mm) 		W (Tip dimension)
(mm) 		WC (Tip dimension alteration)
(mm)

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L41 ～ 3.9950 ～ 80-------

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L4-50 ～ 80---0.9 ～ 0.99---

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L41 ～ 3.99-39 ～ 79.9------

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L4--39 ～ 79.9--0.9 ～ 0.99---

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L41 ～ 3.99--39 ～ 79.9-----

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L4---39 ～ 79.9-0.9 ～ 0.99---

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L41 ～ 3.99---39 ～ 79.9----

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L4----39 ～ 79.90.9 ～ 0.99---

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L52 ～ 4.9950 ～ 80-------

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L5-50 ～ 80---1.8 ～ 1.99---

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L52 ～ 4.99-39 ～ 79.9------

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L5--39 ～ 79.9--1.8 ～ 1.99---

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L52 ～ 4.99--39 ～ 79.9-----

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L5---39 ～ 79.9-1.8 ～ 1.99---

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L52 ～ 4.99---39 ～ 79.9----

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L5----39 ～ 79.91.8 ～ 1.99---

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L62 ～ 5.9950 ～ 80-------

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L6-50 ～ 80---1.8 ～ 1.99---

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L62 ～ 5.99-39 ～ 79.9------

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L6--39 ～ 79.9--1.8 ～ 1.99---

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L62 ～ 5.99--39 ～ 79.9-----

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L6---39 ～ 79.9-1.8 ～ 1.99---

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L62 ～ 5.99---39 ～ 79.9----

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L6----39 ～ 79.91.8 ～ 1.99---

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L83 ～ 7.9950 ～ 100-------

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L8-50 ～ 100---2.5 ～ 2.99---

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L83 ～ 7.99-33 ～ 99.9------

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L8--33 ～ 99.9--2.5 ～ 2.99---

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L83 ～ 7.99--33 ～ 99.9-----

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L8---33 ～ 99.9-2.5 ～ 2.99---

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L83 ～ 7.99---33 ～ 99.9----

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L8----33 ～ 99.92.5 ～ 2.99---

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L103 ～ 9.9950 ～ 100-------

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L10-50 ～ 100---2.8 ～ 2.99---

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L103 ～ 9.99-33 ～ 99.9------

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L10--33 ～ 99.9--2.8 ～ 2.99---

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L103 ～ 9.99--33 ～ 99.9-----

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L10---33 ～ 99.9-2.8 ～ 2.99---

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L103 ～ 9.99---33 ～ 99.9----

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L10----33 ～ 99.92.8 ～ 2.99---

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L136 ～ 12.9950 ～ 100-------

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L13-50 ～ 100---5 ～ 5.99---

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L136 ～ 12.99-33 ～ 99.9------

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L13--33 ～ 99.9--5 ～ 5.99---

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L136 ～ 12.99--33 ～ 99.9-----

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L13---33 ～ 99.9-5 ～ 5.99---

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L136 ～ 12.99---33 ～ 99.9----

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L13----33 ～ 99.95 ～ 5.99---

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L1610 ～ 15.9960 ～ 100-------

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L16-60 ～ 100---8 ～ 9.99---

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L1610 ～ 15.99-33 ～ 99.9------

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L16--33 ～ 99.9--8 ～ 9.99---

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L1610 ～ 15.99--33 ～ 99.9-----

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L16---33 ～ 99.9-8 ～ 9.99---

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L1610 ～ 15.99---33 ～ 99.9----

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L16----33 ～ 99.98 ～ 9.99---

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L2013 ～ 19.9960 ～ 100-------

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L20-60 ～ 100---9 ～ 12.99---

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L2013 ～ 19.99-33 ～ 99.9------

-

1 Quote 10Standard typeAPowdered high-speed steel+0.005/0L20--33 ～ 99.9--9 ～ 12.99---

Loading...

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. Next >>


Basic information

Heavy-load punches No Shank type Single-stepped Surface treatment WPC
Shank (mounting part) shape Standard T (Head thickness/plate thickness)(mm) 5

Configure

Clear all

10,352Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.
The part number is completed.

Basic Attributes

  • Jector

    • Standard type
    • Spring reinforced type

    Clear

  • Tip shape

    • A
    • D
    • R
    • E
    • G

    Clear

  • Material

    • SKD11 Equivalent
    • SKH51 Equivalent
    • Powdered high-speed steel

    Clear

  • Shank diameter D tolerance

    • +0.005/0
    • m5

    Clear

  • B (Tip length)

    • L
    • S
    • X

    Clear

  • D (Shank diameter)(mm)

    • 4
    • 5
    • 6
    • 8
    • 10
    • 13
    • 16
    • 20
    • 25

    Clear

  • P (Tip dimension)(mm)

     [1-24.99/0.01mm Unit(s)]

    Clear

  • L (L dimension)(mm)

     [40-100/10mm Unit(s)]

    Clear

  • LC (Full length alteration)(mm)

     [33-99.9/0.1mm Unit(s)]

    Clear

  • LCT (Head thickness tolerance change + Total length alteration)(mm)

     [33-99.9/0.1mm Unit(s)]

    Clear

  • LMT (Head thickness tolerance change + Total length alteration)(mm)

     [33-99.9/0.1mm Unit(s)]

    Clear

  • PC (Tip dimension alteration)(mm)

     [0.9-0.99/0.01mm Unit(s)][1.8-2/0.01mm Unit(s)][2.5-3/0.01mm Unit(s)][5-6/0.01mm Unit(s)][8-18/0.01mm Unit(s)]

    Clear

  • R (Tip corner R)(mm)

     [0.15-12.48/0.01mm Unit(s)]

    Clear

  • W (Tip dimension)(mm)

     [1-24.97/0.01mm Unit(s)]

    Clear

  • WC (Tip dimension alteration)(mm)

     [1.8-2/0.01mm Unit(s)][2.5-3/0.01mm Unit(s)][5-6/0.01mm Unit(s)]

    Clear

  • Type

    • AW-PJAL
    • AW-PJAS
    • AW-PJDL
    • AW-PJDS
    • AW-PJEL
    • AW-PJES
    • AW-PJGL
    • AW-PJGS
    • AW-PJRL
    • AW-PJRS
    • AW-PJVAL
    • AW-PJVAS
    • AW-PJVDL
    • AW-PJVDS
    • AW-PJVEL
    • AW-PJVES
    • AW-PJVGL
    • AW-PJVGS
    • AW-PJVRL
    • AW-PJVRS
    • AW-SJAL
    • AW-SJAS
    • AW-SJAX
    • AW-SJDL
    • AW-SJDS
    • AW-SJDX
    • AW-SJEL
    • AW-SJES
    • AW-SJEX
    • AW-SJGL
    • AW-SJGS
    • AW-SJGX
    • AW-SJRL
    • AW-SJRS
    • AW-SJRX
    • AW-SJVAL
    • AW-SJVAS
    • AW-SJVAX
    • AW-SJVDL
    • AW-SJVDS
    • AW-SJVDX
    • AW-SJVEL
    • AW-SJVES
    • AW-SJVEX
    • AW-SJVGL
    • AW-SJVGS
    • AW-SJVGX
    • AW-SJVRL
    • AW-SJVRS
    • AW-SJVRX
    • W-PJAL
    • W-PJAS
    • W-PJDL
    • W-PJDS
    • W-PJEL
    • W-PJES
    • W-PJGL
    • W-PJGS
    • W-PJRL
    • W-PJRS
    • W-PJVAL
    • W-PJVAS
    • W-PJVDL
    • W-PJVDS
    • W-PJVEL
    • W-PJVES
    • W-PJVGL
    • W-PJVGS
    • W-PJVRL
    • W-PJVRS
    • W-SJAL
    • W-SJAS
    • W-SJAX
    • W-SJDL
    • W-SJDS
    • W-SJDX
    • W-SJEL
    • W-SJES
    • W-SJEX
    • W-SJGL
    • W-SJGS
    • W-SJGX
    • W-SJRL
    • W-SJRS
    • W-SJRX
    • W-SJVAL
    • W-SJVAS
    • W-SJVAX
    • W-SJVDL
    • W-SJVDS
    • W-SJVDX
    • W-SJVEL
    • W-SJVES
    • W-SJVEX
    • W-SJVGL
    • W-SJVGS
    • W-SJVGX
    • W-SJVRL
    • W-SJVRS
    • W-SJVRX

    Clear

  • Filter by CAD data type

    • 2D
    • 3D

    Clear

Optional Attributes

Tech Support

Technical Inquiry

Payment Method

  • Payment on account
  • Pre Payment
  • PayPal

On-Demand Manufacturing

Change View

Certificates

  • ISO-9001
  • ISO-14001
  • AEO Certification
  • RoHS
  • REACH

MISUMI worldwide

Social Media

Legal notice

Copyright © MISUMI Corporation All Rights Reserved.
