Pilot Punches For Fixing To Stripper Plates
Pilot pins for stripper plate / cylindrical head / immersion side selectable

Configure

Tip shape
Material
Shank diameter D tolerance
- +0.005/0
- m5
D (Shank diameter)(mm)
- 1.6
- 2
- 2.5
- 3
- 4
- 5
- 6
- 8
- 10
- 13
- 16
A (Taper angle)(°)
- 10
- 15
- 20
- 25
- 30
L (L dimension)(mm)
[10-40/0.1mm units]
Tip angle change [AC](°)
[16-45/1° units]
P (Tip dimension)(mm)
[0.3-15.99/0.01mm units]
Type
CAD
- 2D
- 3D

Pilot pins for stripper plate / cylindrical head / immersion side selectable

Sharp tip angle	SKD11 Equivalen	+0.005/0	1.6	10 ～ 30	10 ～ 40	-	0.3 ～ 1.59	10	1 pieces
Sharp tip angle	SKD11 Equivalen	+0.005/0	1.6	-	10 ～ 40	16 ～ 45	0.3 ～ 1.59	10	1 pieces
Sharp tip angle	SKD11 Equivalen	+0.005/0	2	10 ～ 30	10 ～ 40	-	0.5 ～ 1.99	10	1 pieces
Sharp tip angle	SKD11 Equivalen	+0.005/0	2	-	10 ～ 40	16 ～ 45	0.5 ～ 1.99	10	1 pieces
Sharp tip angle	SKD11 Equivalen	+0.005/0	2.5	10 ～ 30	10 ～ 40	-	1 ～ 2.49	10	1 pieces
Sharp tip angle	SKD11 Equivalen	+0.005/0	2.5	-	10 ～ 40	16 ～ 45	1 ～ 2.49	10	1 pieces
Sharp tip angle	SKD11 Equivalen	+0.005/0	3	10 ～ 30	10 ～ 40	-	1 ～ 2.99	10	1 pieces
Sharp tip angle	SKD11 Equivalen	+0.005/0	3	-	10 ～ 40	16 ～ 45	1 ～ 2.99	10	1 pieces
Sharp tip angle	SKD11 Equivalen	+0.005/0	4	15 ～ 30	10 ～ 40	-	2 ～ 3.99	10	1 pieces
Sharp tip angle	SKD11 Equivalen	+0.005/0	4	-	10 ～ 40	16 ～ 45	2 ～ 3.99	10	1 pieces
Sharp tip angle	SKD11 Equivalen	+0.005/0	5	15 ～ 30	10 ～ 40	-	2 ～ 4.99	10	1 pieces
Sharp tip angle	SKD11 Equivalen	+0.005/0	5	-	10 ～ 40	16 ～ 45	2 ～ 4.99	10	1 pieces
Sharp tip angle	SKD11 Equivalen	+0.005/0	6	15 ～ 30	10 ～ 40	-	2.5 ～ 5.99	10	1 pieces
Sharp tip angle	SKD11 Equivalen	+0.005/0	6	-	10 ～ 40	16 ～ 45	2.5 ～ 5.99	10	1 pieces
Sharp tip angle	SKD11 Equivalen	+0.005/0	8	15 ～ 30	10 ～ 40	-	5 ～ 7.99	10	1 pieces
Sharp tip angle	SKD11 Equivalen	+0.005/0	8	-	10 ～ 40	16 ～ 45	5 ～ 7.99	10	1 pieces
Sharp tip angle	SKD11 Equivalen	+0.005/0	10	15 ～ 30	10 ～ 40	-	7 ～ 9.99	10	1 pieces
Sharp tip angle	SKD11 Equivalen	+0.005/0	10	-	10 ～ 40	16 ～ 45	7 ～ 9.99	10	1 pieces
Sharp tip angle	SKD11 Equivalen	+0.005/0	13	15 ～ 30	10 ～ 40	-	10 ～ 12.99	10	1 pieces
Sharp tip angle	SKD11 Equivalen	+0.005/0	13	-	10 ～ 40	16 ～ 19	10 ～ 12.99	10	1 pieces
Sharp tip angle	SKD11 Equivalen	+0.005/0	13	-	10 ～ 40	21 ～ 24	10 ～ 12.99	10	1 pieces
Sharp tip angle	SKD11 Equivalen	+0.005/0	13	-	10 ～ 40	26 ～ 29	10 ～ 12.99	10	1 pieces
Sharp tip angle	SKD11 Equivalen	+0.005/0	13	-	10 ～ 40	31 ～ 45	10 ～ 12.99	10	1 pieces
Sharp tip angle	SKD11 Equivalen	+0.005/0	16	15 ～ 30	10 ～ 40	-	13 ～ 15.99	10	1 pieces
Sharp tip angle	SKD11 Equivalen	+0.005/0	16	-	10 ～ 40	16 ～ 19	13 ～ 15.99	10	1 pieces
Sharp tip angle	SKD11 Equivalen	+0.005/0	16	-	10 ～ 40	21 ～ 24	13 ～ 15.99	10	1 pieces
Sharp tip angle	SKD11 Equivalen	+0.005/0	16	-	10 ～ 40	26 ～ 29	13 ～ 15.99	10	1 pieces
Sharp tip angle	SKD11 Equivalen	+0.005/0	16	-	10 ～ 40	31 ～ 45	13 ～ 15.99	10	1 pieces
Sharp tip angle	SKH51 Equivalent	+0.005/0	1.6	10 ～ 30	10 ～ 40	-	0.3 ～ 1.59	10	1 pieces
Sharp tip angle	SKH51 Equivalent	+0.005/0	1.6	-	10 ～ 40	16 ～ 45	0.3 ～ 1.59	10	1 pieces
Sharp tip angle	SKH51 Equivalent	+0.005/0	2	10 ～ 30	10 ～ 40	-	0.5 ～ 1.99	10	1 pieces
Sharp tip angle	SKH51 Equivalent	+0.005/0	2	-	10 ～ 40	16 ～ 45	0.5 ～ 1.99	10	1 pieces
Sharp tip angle	SKH51 Equivalent	+0.005/0	2.5	10 ～ 30	10 ～ 40	-	1 ～ 2.49	10	1 pieces
Sharp tip angle	SKH51 Equivalent	+0.005/0	2.5	-	10 ～ 40	16 ～ 45	1 ～ 2.49	10	1 pieces
Sharp tip angle	SKH51 Equivalent	+0.005/0	3	10 ～ 30	10 ～ 40	-	1 ～ 2.99	10	1 pieces
Sharp tip angle	SKH51 Equivalent	+0.005/0	3	-	10 ～ 40	16 ～ 45	1 ～ 2.99	10	1 pieces
Sharp tip angle	SKH51 Equivalent	+0.005/0	4	15 ～ 30	10 ～ 40	-	2 ～ 3.99	10	1 pieces
Sharp tip angle	SKH51 Equivalent	+0.005/0	4	-	10 ～ 40	16 ～ 45	2 ～ 3.99	10	1 pieces
Sharp tip angle	SKH51 Equivalent	+0.005/0	5	15 ～ 30	10 ～ 40	-	2 ～ 4.99	10	1 pieces
Sharp tip angle	SKH51 Equivalent	+0.005/0	5	-	10 ～ 40	16 ～ 45	2 ～ 4.99	10	1 pieces
Sharp tip angle	SKH51 Equivalent	+0.005/0	6	15 ～ 30	10 ～ 40	-	2.5 ～ 5.99	10	1 pieces
Sharp tip angle	SKH51 Equivalent	+0.005/0	6	-	10 ～ 40	16 ～ 45	2.5 ～ 5.99	10	1 pieces
Sharp tip angle	SKH51 Equivalent	+0.005/0	8	15 ～ 30	10 ～ 40	-	5 ～ 7.99	10	1 pieces
Sharp tip angle	SKH51 Equivalent	+0.005/0	8	-	10 ～ 40	16 ～ 45	5 ～ 7.99	10	1 pieces
Sharp tip angle	SKH51 Equivalent	+0.005/0	10	15 ～ 30	10 ～ 40	-	7 ～ 9.99	10	1 pieces
Sharp tip angle	SKH51 Equivalent	+0.005/0	10	-	10 ～ 40	16 ～ 45	7 ～ 9.99	10	1 pieces
Sharp tip angle	SKH51 Equivalent	+0.005/0	13	15 ～ 30	10 ～ 40	-	10 ～ 12.99	10	1 pieces
Sharp tip angle	SKH51 Equivalent	+0.005/0	13	-	10 ～ 40	16 ～ 19	10 ～ 12.99	10	1 pieces
Sharp tip angle	SKH51 Equivalent	+0.005/0	13	-	10 ～ 40	21 ～ 24	10 ～ 12.99	10	1 pieces
Sharp tip angle	SKH51 Equivalent	+0.005/0	13	-	10 ～ 40	26 ～ 29	10 ～ 12.99	10	1 pieces
Sharp tip angle	SKH51 Equivalent	+0.005/0	13	-	10 ～ 40	31 ～ 45	10 ～ 12.99	10	1 pieces
Sharp tip angle	SKH51 Equivalent	+0.005/0	16	15 ～ 30	10 ～ 40	-	13 ～ 15.99	10	1 pieces
Sharp tip angle	SKH51 Equivalent	+0.005/0	16	-	10 ～ 40	16 ～ 19	13 ～ 15.99	10	1 pieces
Sharp tip angle	SKH51 Equivalent	+0.005/0	16	-	10 ～ 40	21 ～ 24	13 ～ 15.99	10	1 pieces
Sharp tip angle	SKH51 Equivalent	+0.005/0	16	-	10 ～ 40	26 ～ 29	13 ～ 15.99	10	1 pieces
Sharp tip angle	SKH51 Equivalent	+0.005/0	16	-	10 ～ 40	31 ～ 45	13 ～ 15.99	10	1 pieces
Tip R	SKH51 Equivalent	+0.005/0	1.6	-	10 ～ 40	-	0.3 ～ 1.59	10	1 pieces
Tip R	SKH51 Equivalent	+0.005/0	2	-	10 ～ 40	-	0.5 ～ 1.99	10	1 pieces
Tip R	SKH51 Equivalent	+0.005/0	2.5	-	10 ～ 40	-	1 ～ 2.49	10	1 pieces
Tip R	SKH51 Equivalent	+0.005/0	3	-	10 ～ 40	-	1 ～ 2.99	10	1 pieces

- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote

Pilot pins for stripper plate / cylindrical head / immersion side selectable

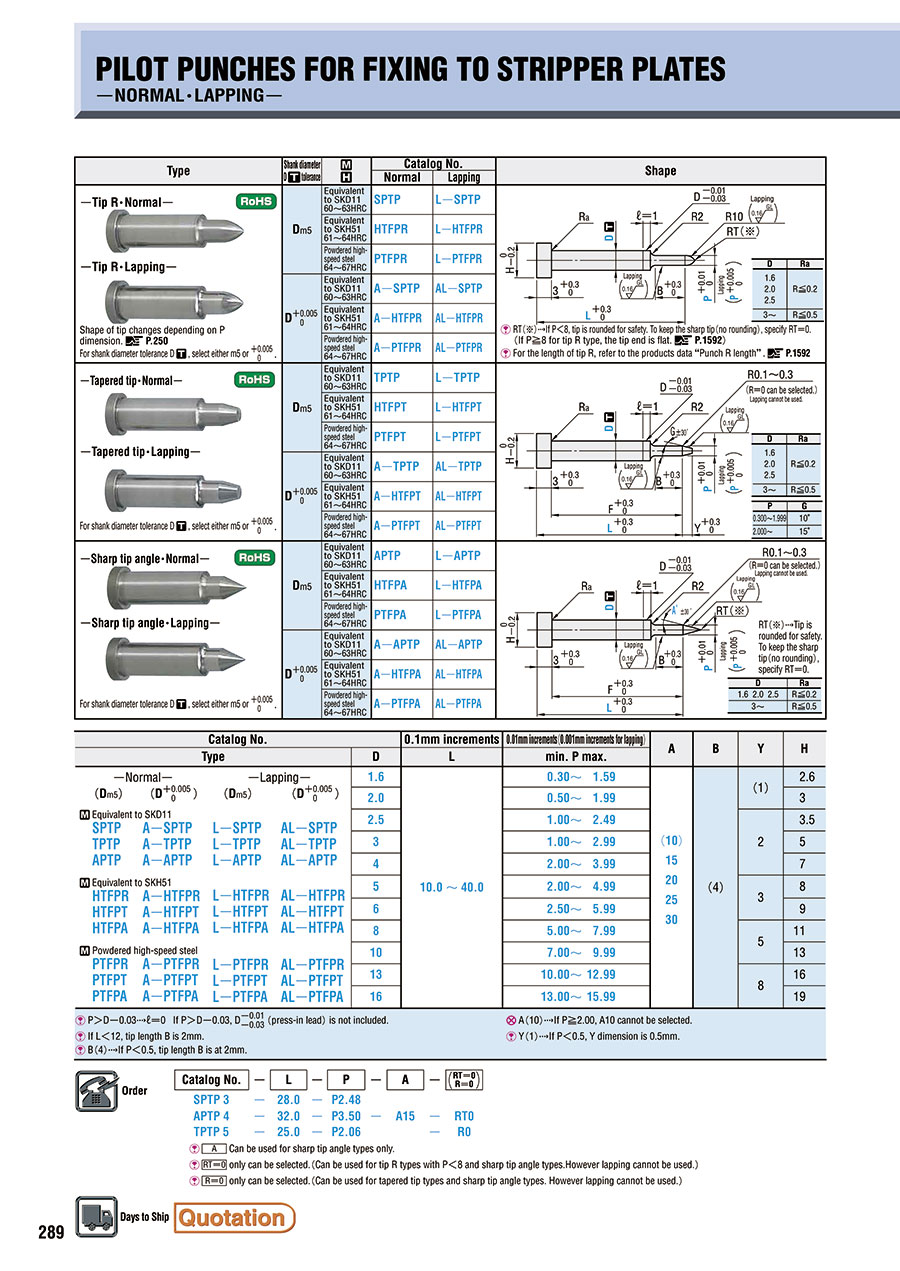

Outline drawing
